peristaltic pump liquid equipment for dispensing
- Category: >>>
- Supplier: Hyuweiy(beijing)fluid Equipment Co. Ltd.
Share on (60681295502):
Product Overview
Description
peristaltic pump liquid equipment for dispensing
Product Description
max flow rate :1140ml/min
Technical parameter
Speed: 1-300 rpm, reversible Speed precision: 1 rpm
Speed control: membrane keypad and rotary encoded switch
Display: LCD displays flow rate, speed or dispensing mode
Copy number: 1 to 999, 0 means unlimited cycle
Dispensing volume: 0.1 mL to 99.9 L
Pause time : 1 to 999 sec
Back suction angle: 0 to 360°, 18° increments
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
Communication: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Power: 90-260V AC,50/60Hz
Power consumption: < 50W
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 276×184×175 (mm)
Drive Weight: 3.5 kg
Technical parameters
Technical parameter
Speed: 1-300 rpm, reversible Speed precision: 1 rpm
Speed control: membrane keypad and rotary encoded switch
Display: LCD displays flow rate, speed or dispensing mode
Copy number: 1 to 999, 0 means unlimited cycle
Dispensing volume: 0.1 mL to 99.9 L
Pause time : 1 to 999 sec
Back suction angle: 0 to 360°, 18° increments
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
Communication: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Power: 90-260V AC,50/60Hz
Power consumption: < 50W
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 276×184×175 (mm)
Drive Weight: 3.5 kg
Technical parameters

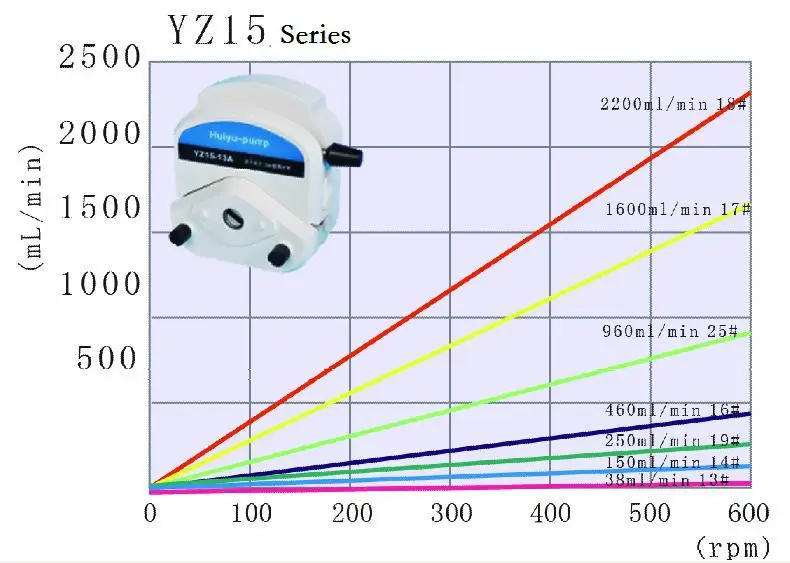

| Pump head | model | Available tubing | flow rate range (ml/min) |
| | YZ15-lA | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm | 0.07-1140ml/min |

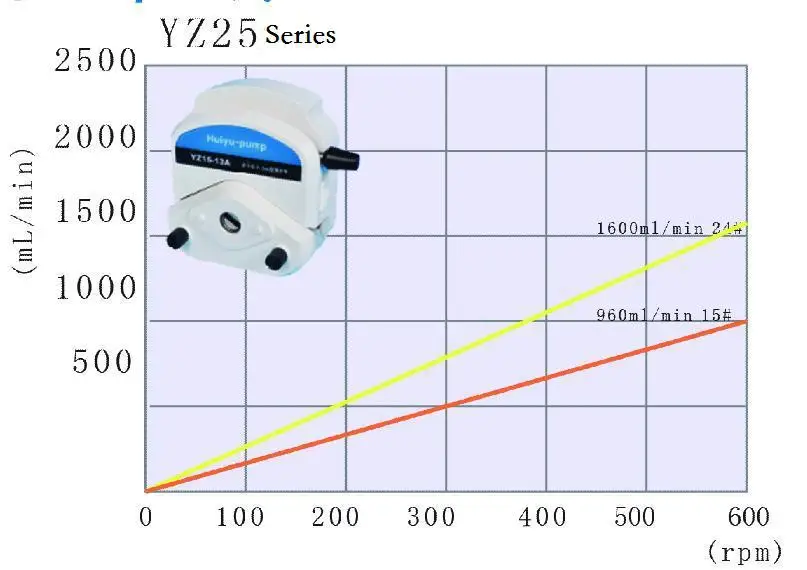

| YZ25-lA | 15#, 24# wall thickness:2.5mm | 1.7-810ml/min |
OEM option
Accessories
Packaging & Shipping
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
CE certificate
