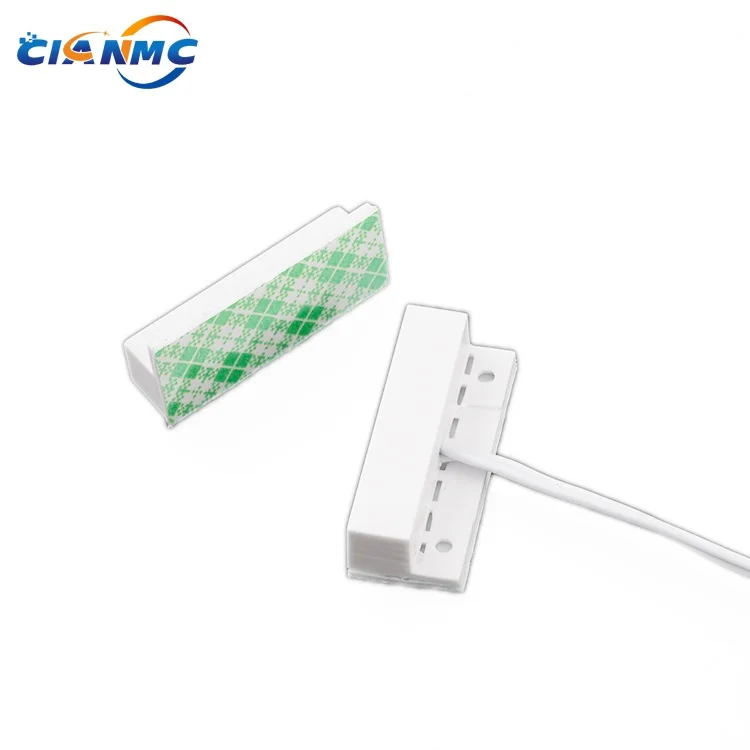

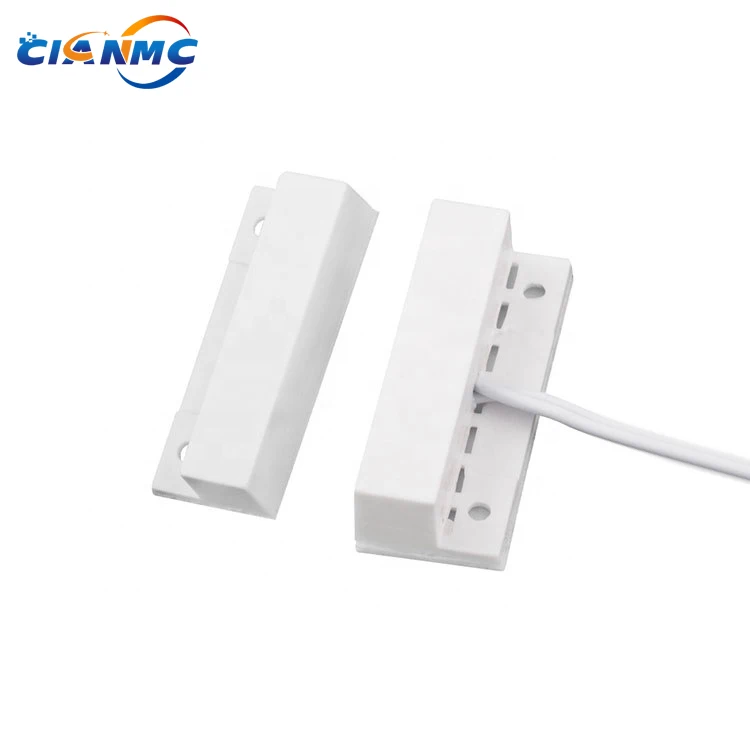

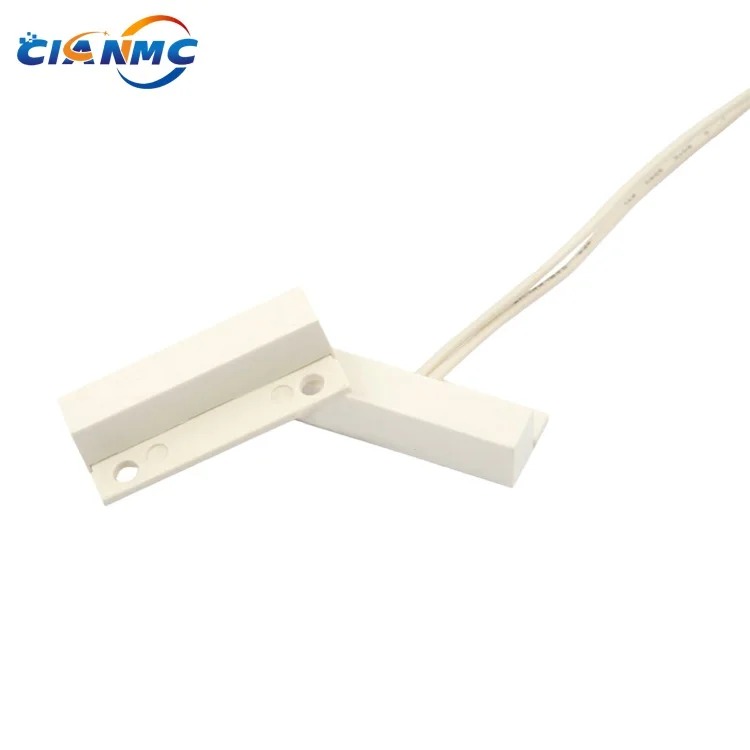

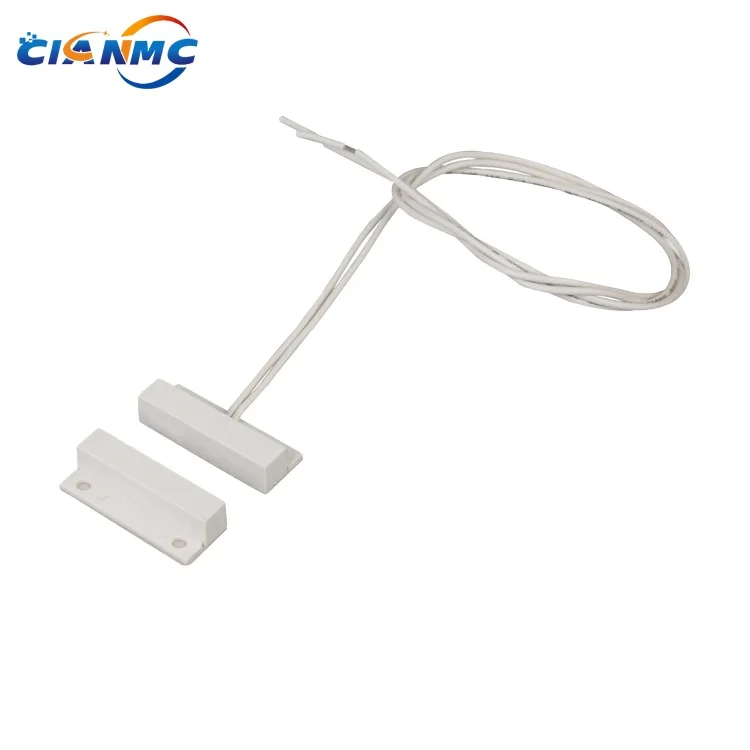

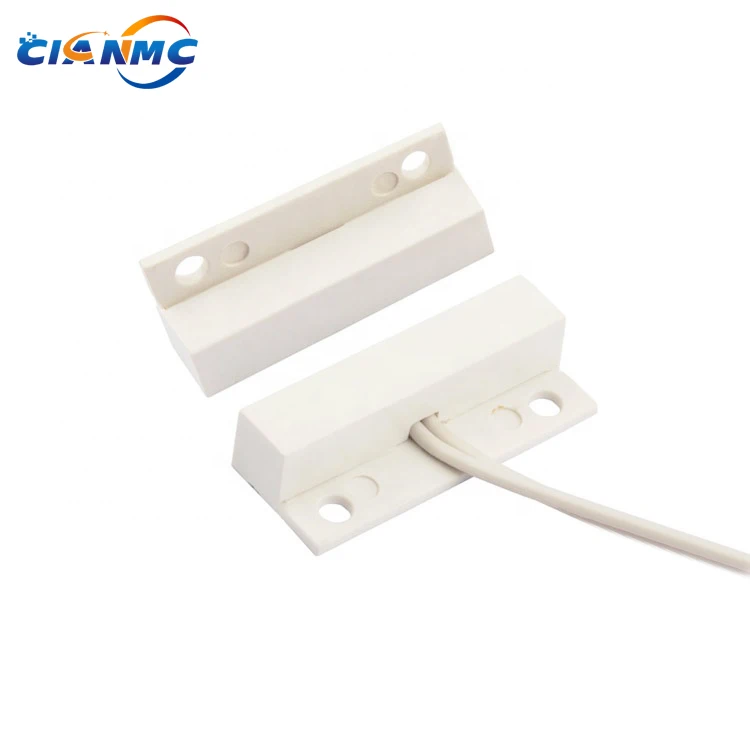

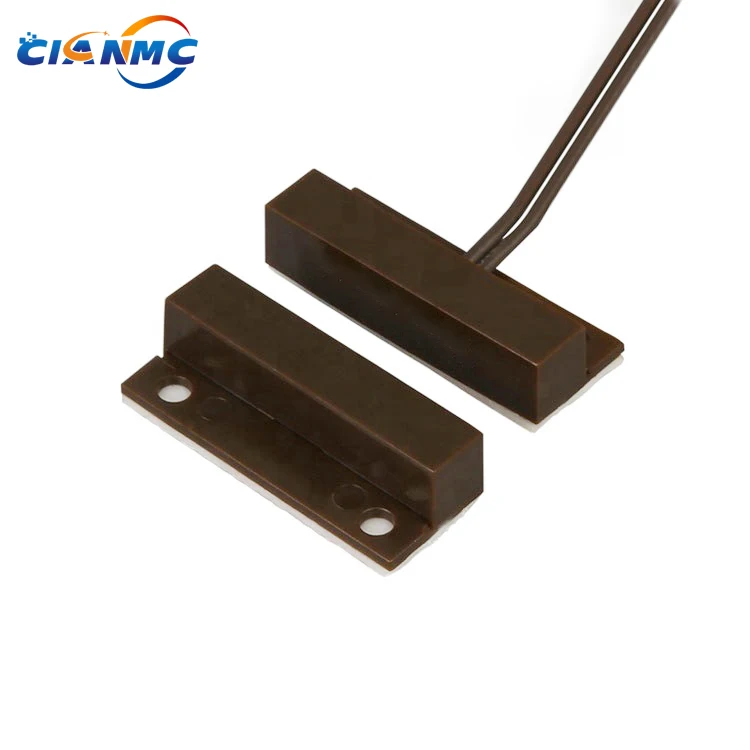

Surface Mount Wired NO/NC Magnetic Contact Switch For Elevator Door Window Security Alarm System
- Category: >>>
- Supplier: Shenzhen Cian Electronics Co. Ltd.
Share on (60681301018):
Product Overview
Description
Product Description
Surface Mount Wired NO/NC Magnetic Contact Switch For Elevator Door Window Security Alarm System
The principle of magnetic door contact is producing a magnetic field around the sensor through changed the position and polarity of triggerso as to have the sensor worked. Hermetically sealed, lifespan exceed 1 million times at least, easy installation.

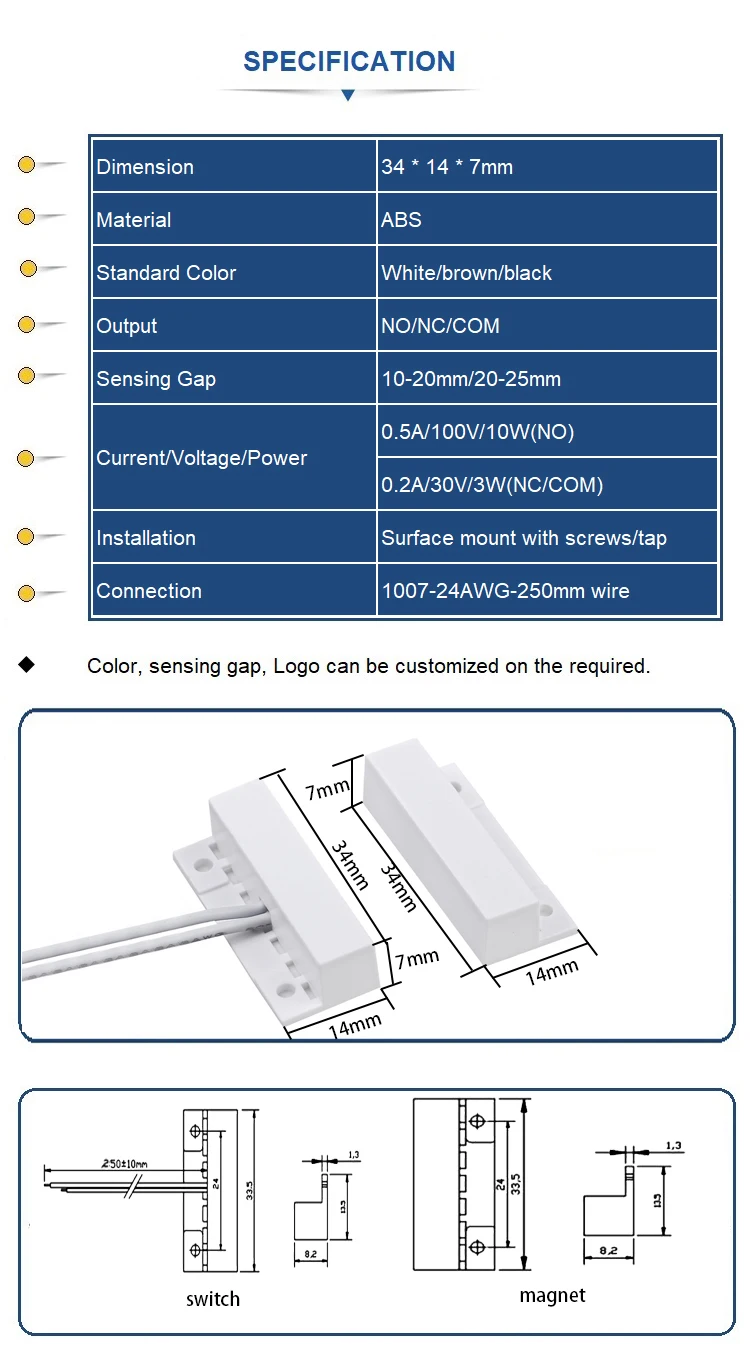

Product name | Magnetic door contact |
Size | 34 * 14 * 7mm |
Color/Material | White/brown/black ABS |

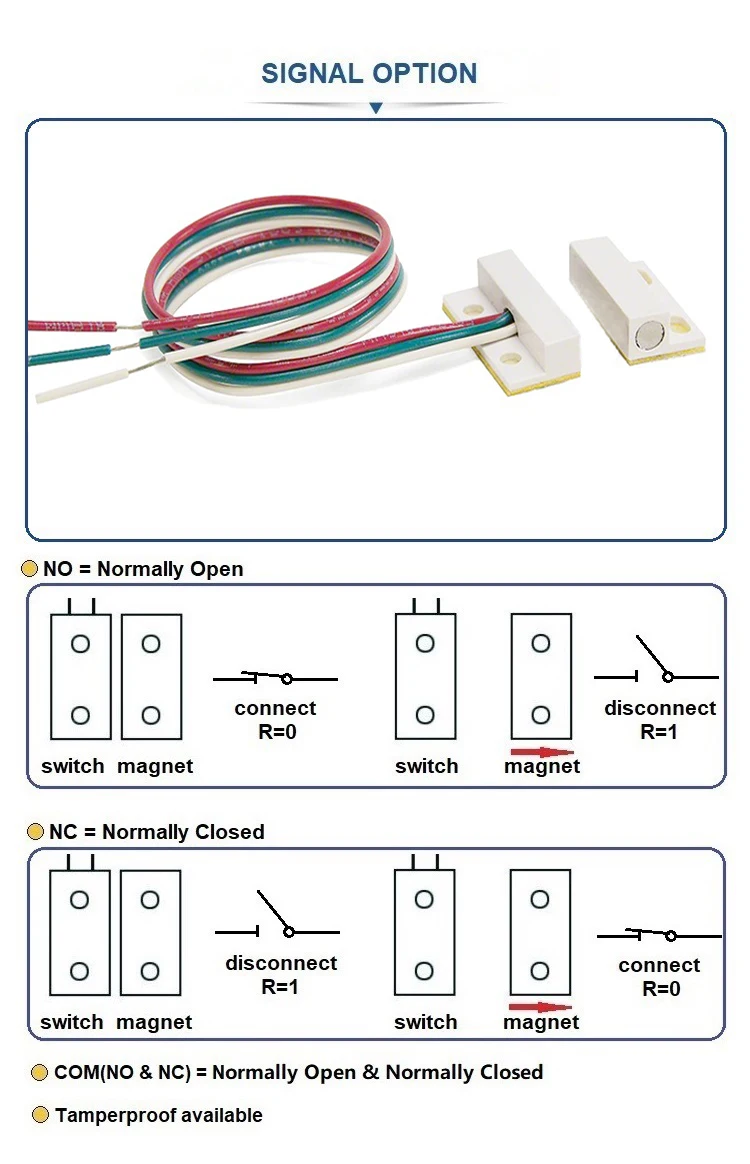

Alarm output | NO/NC/COM |
Sensing gap | 10-20mm/20-25mm |
Current/Voltage/Power | 0.5A/100V/10W9(NO); 0.2A/30V/3W(NC/COM) |
Connection | 1007-24AWG-250mm wire |
Installation | Screw mount with tap |
Usage/Application | Door or windows/Home Security System |
Certificates | CE,ROHS |
Product Paramenters
Product Image
Manufacturing Technique
Application
This magnetic door contact aplly for the kinds of door or window at the place such as below shops, supermarket, factory,
warehouse, villa, family, hotel, school, KTV entertainment place, hospital, government bodies etc to control the swtich ON or OFF signal to the third devices of home security alarm system.
warehouse, villa, family, hotel, school, KTV entertainment place, hospital, government bodies etc to control the swtich ON or OFF signal to the third devices of home security alarm system.
