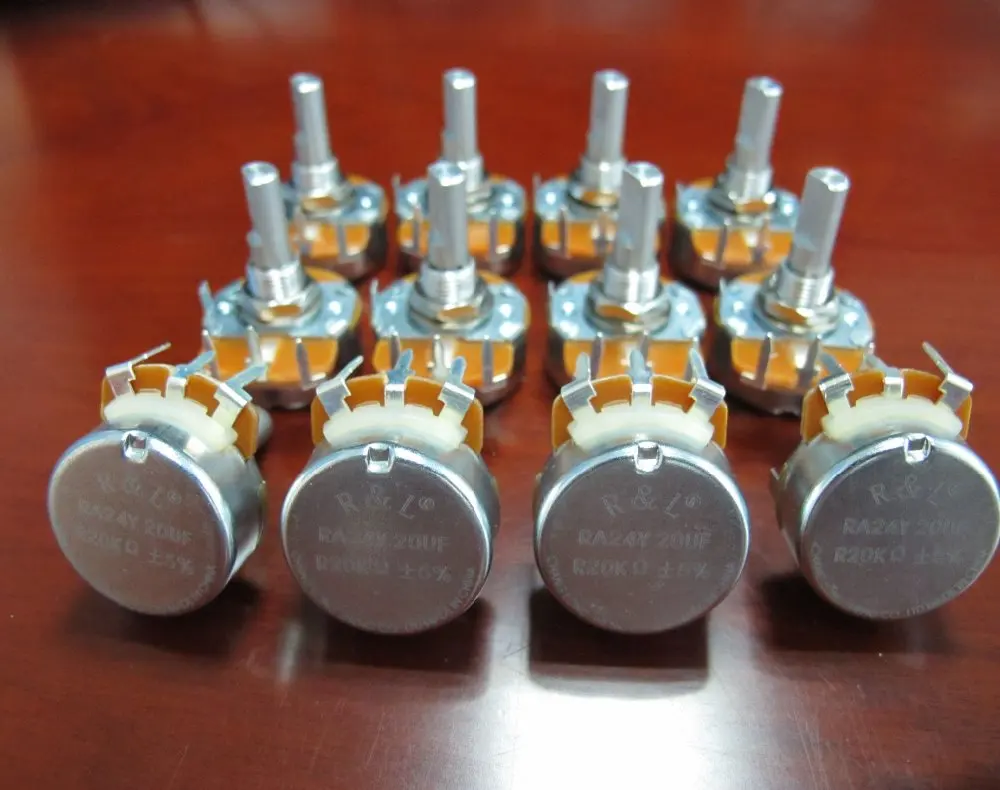

5W/ 15k,20k ohm rotary wire wound potentiometers

Share on (60681306152):


Price:RUB 178.80

Quantity:


Product Overview

Description

Product Description



Shaft

10

15

17

20

25

30

35

40

45



15KΩ

15KΩ

15KΩ

15KΩ

15KΩ

15KΩ

15KΩ

15KΩ

15KΩ



20KΩ

20KΩ

20KΩ

20KΩ

20KΩ

20KΩ

20KΩ

20KΩ

20KΩ





Maximum working voltage

AC 250V

Residual resistance

Below 0.2% of total resistance

Noise

Less than 47MV as JIS C6443

Insulation resistance

Above 100MΩ at DC 500V

Dielectric strength

AC 1Kv for 1 min

V.R life

15,000 cycles

Electrical characteristics



Nominal total resistance

Terminal 1-3 B(R) ±5%

Maximum rated wattage

Temp 40~100

Taper B 5W











Details:





















Mechanical characteristic:

Total rotational angle:  300°±5°

Rotational torque: 30~300gf –cm

Shaft stop strength:  5Kg f

Nut wring strength: 10Kg-cm









Packaging & Shipping

 carton box:290mm*270mm*175mm

Company Information



CHANGLONGSHENG is a private owned company based at Shenzhen, with the history of 17 years. Since we are professional manufacturer with some senior industrial design engineers, also collaborated with Wuhan University of Technology as a study and research site, we have strong R&D team who can customed design as per your requirement.

Company’s products are listed as follows: wire wound potentionmeter, heating ring,  convection heaters, heating elements, water bottle rack, electric heating coil, etc. Besides, majority of our product are patented and exported to Europe, North America, Middle East, Israel, Japan, and Russia.

FAQ



1.Are you manufacturer or trading company?

We are professional factory specialized in making potentionmeter, brand R&L.

2. Will you offer free sample?

No. however, if you place order, sample fee will be part of the order payment.

3. Can you make as per to me requirements?

Yes, customized design and making are acceptable. Just let us know your requirement, better to show us the drawing, picture and relevant figures.

4. How much is the freight charge would be?

The freight cost depends on the weight and packaging size and where to deliver.

5. When can I expect to get your sample?

The sample will be ready for delivery in 1-2days and should arrive in about 5-7 days.

6. How can I contact you to know more?

Attn: Josephine Zhou

Skype: clssales01

wechat, whatsapp: +86 189 4831 6200

Cell: +86 189 4831 6200
