Без покрытия N BK7 Высокоточный оптический Windows
- Category: Lenses >>>
- Supplier: Wuhan Especial Optic Inc.
Share on (60681393550):
Product Overview
Description
Product Description

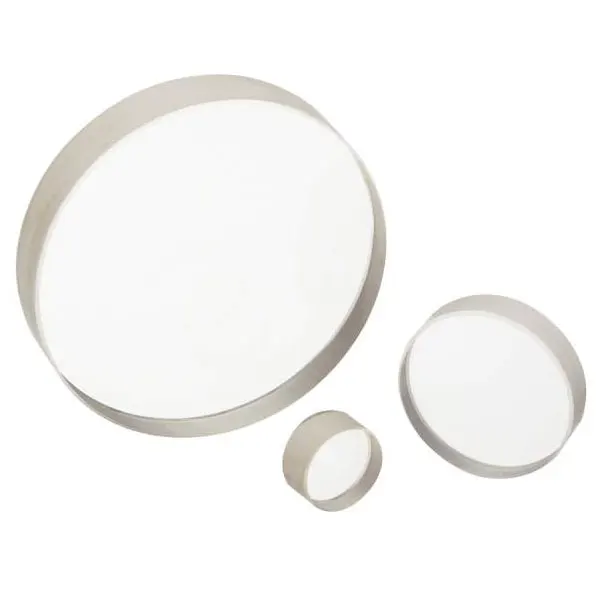

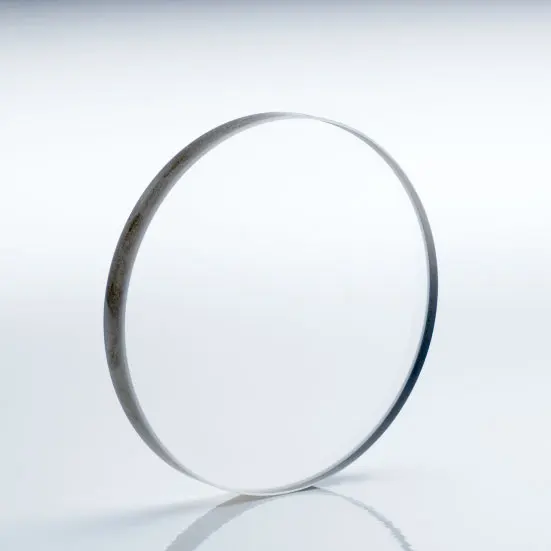

Transparent N-BK7 window
BK7 window is the most common type of window. It has good performance over visible and near infrared wavelength region. BK7 window is ideal for applications require minimal transmitted beam deviation.
Diameter Tolerance | +0.0 / -0.2 mm |
Thickness Tolerance | ±0.1 mm |
Clear Aperture | >90% Diameter |
Parallelism | ≤5 arcsec |
Surface Flatness | λ/10 over CA |
Substrate | N-BK7 |
Surface Quality | 20-10 Scratch-Dig |

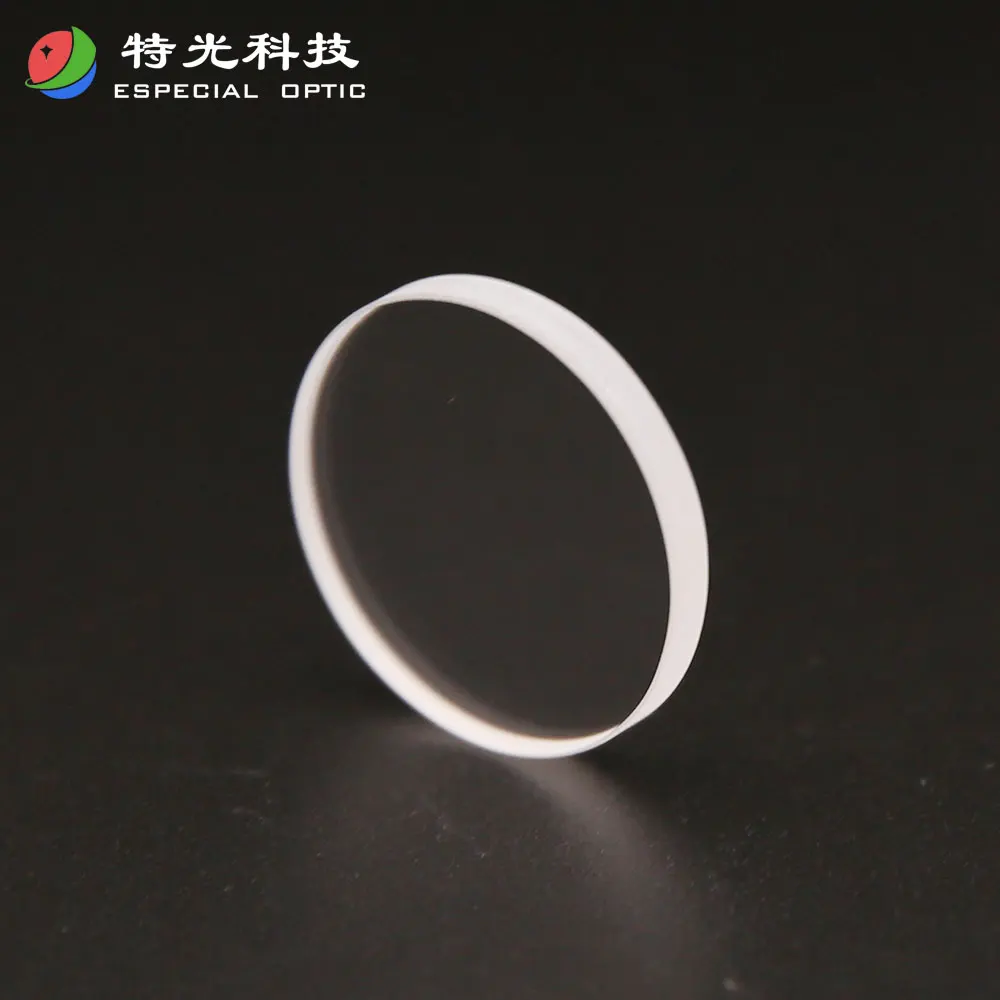

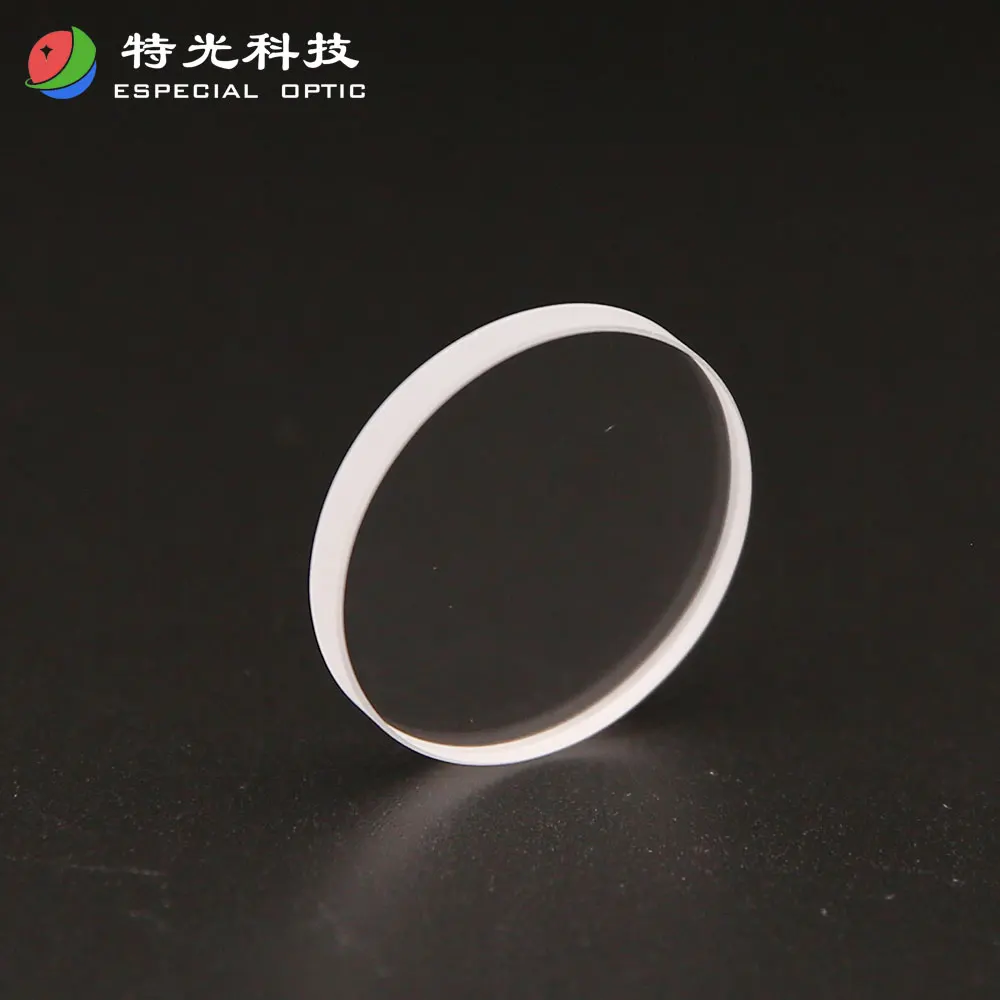

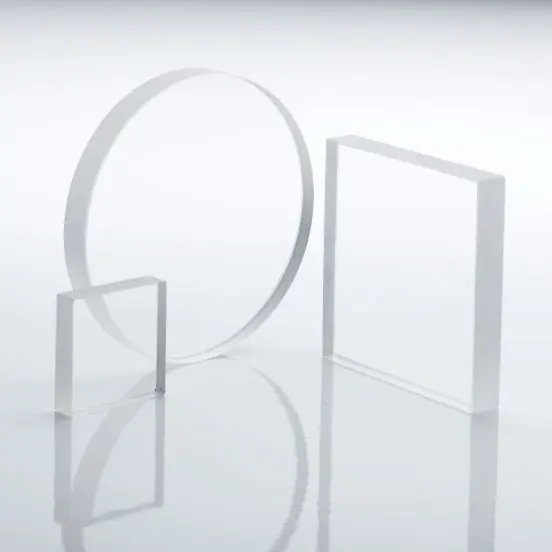

Detailed Images
Wuhan Especial Optic' Ø1/2", Ø1", and Ø2" N-BK7 High Precision Windows are available uncoated for the 350 nm - 2.0 μm range or with one of our three low-loss standard broadband antireflection (AR) coatings deposited on both surfaces: -A (350 - 700 nm), -B (650 - 1050 nm), or -C (1050 - 1700 nm). While uncoated windows have typical losses of about 4% per surface, the AR coatings reduce this to Ravg < 0.5%. These AR coatings provide good performance for angles of incidence (AOI) between 0° and 30°.
For applications that require protecting a laser output while minimizing stray light and reflections, we offer this line of laser windows. Each side of the optic features an AR coating that is centered around a common laser wavelength. These windows also exhibit high damage thresholds, making them an ideal solution for most industrial and laser protecting applications.
Packing & Delivery
Packing Details : Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details : Depends on the type and quantity of the product.
1. Protective film
2.Pearl cotton
3. Cardboard box
4. Notify the shipping company to pickup
5. Inspection and pickup
6. By air, land or sea
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Service
Optical design
We can design optical components according to your requirements.
Production
Our current production capacity includes but not limited to cutting, grinding, polishing,coatin and testing.
After-sales service
If you have questions about our products you can contact us directly.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity and precision.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight if we have it in store.
Q: What is your terms of payment ?
A: Payment<=500USD, 100% in advance. Payment>500USD, 30% T/T in advance ,balance before shippment.
If you have another question.
