Product Description

Product Application:


Working principle: Under proper vacuum conditions, the pre-fabricated alloy rod is zone molten with inert gas protection. Then the liquid metals straightly pass the tight coupling nozzle and are cracked by the high pressure air flow from the nozzle. The liquid droplets then solidify into powders during falling down. The powders and gas mixture will be delivered to cyclone separator via the carrier pipe. The coarse powders, fine powders and gas are separated in the cyclone separator. The metal powders are collected in the collecting tank.
SPECIFICATIONS FOR ROTATING ELECTRODE VACUUM GAS ATOMIZATION EQUIPMENT

Vacuum melting chamber
Stainless steel water cooled double layer
2 watching window and 1 temperature measurement window
vertical structure and the side door can be opened horizontally

Power supply
Melting power
KW
100
Nominal voltage
V
380V
Nominal frequency
Hz
50/60Hz

Vacuum system
Backing pumps
2 sets
H-150
Roots pump
1 set
ZJP-1200
Limiting vacuum degree
pa
6.67*10-3

Main Features

1)Low oxygen content.

2)  Producing spherical and semi-spherical powders.
3)  Producing many special alloy powders due to its quick solidification that overcoms the segregation.
4)  Adopting proper process technology to make the powder particle size distribution within a specific lot.
5) Tailored particle size distributions are also available on request.
6) The electrode induction gas atomization process can create the possibility to melt the feedstock material directly on its surface without a ceramic liner.
Detailed Images

Machine Parts

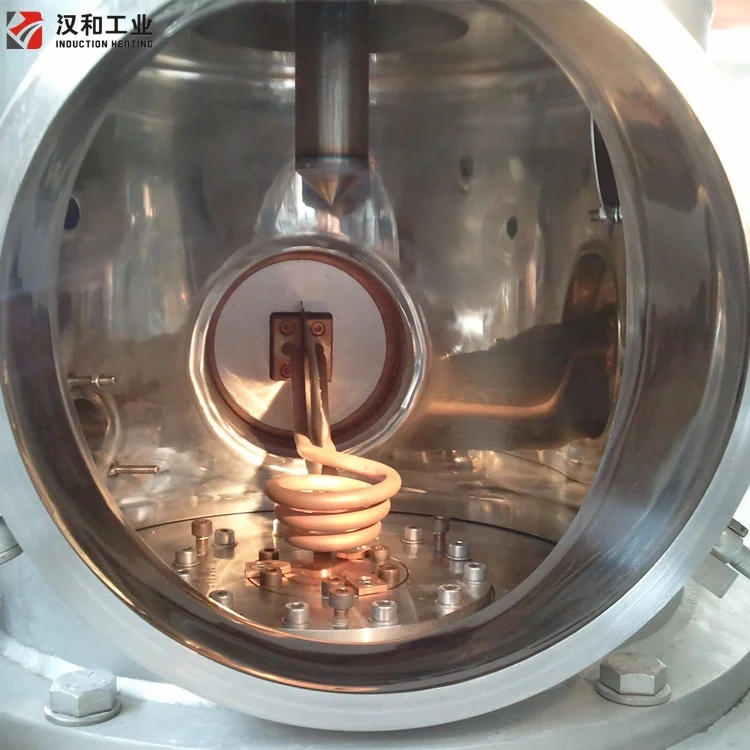

Vacuum ZONE MELTING chamber

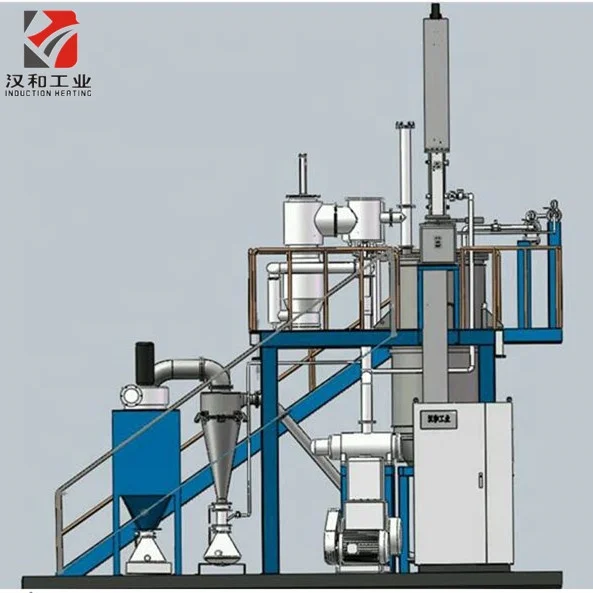

Vacuum atomization furnace

IGBT medium frequency power supply

High vacuum unit

Cyclone separator

Electric control cabinet

High pressure nozzle

Main Parts


Air fluxing control cabinet
Powder collector
Fixed support
Pipeline
Closed cooling water tower
Integrated control system
Holding heating system
Vibrating screen
Operation platform
