Product Overview

Description


Product Description

Product Application

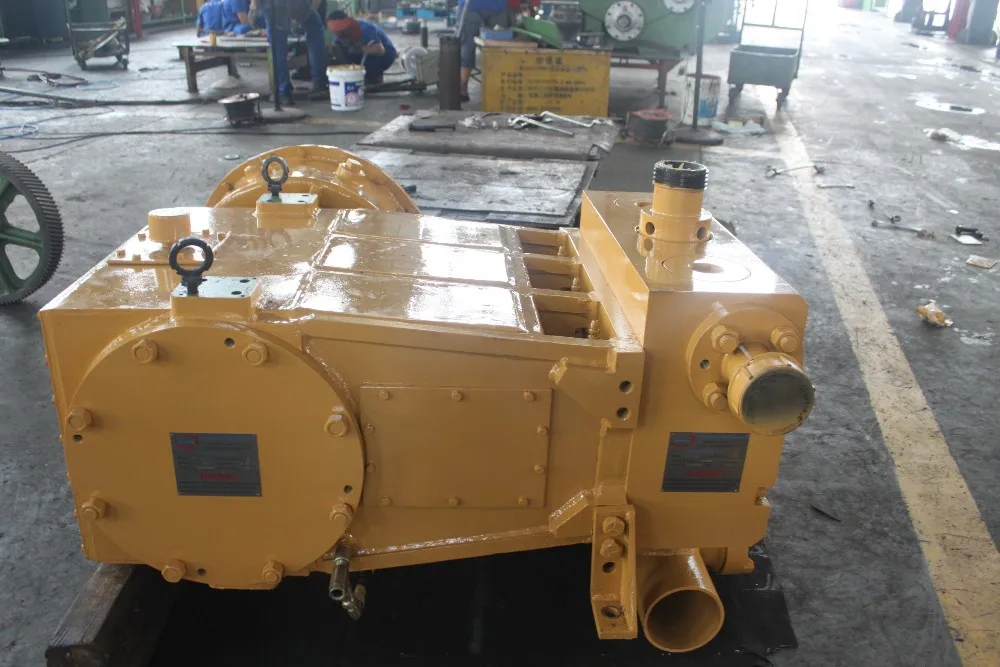

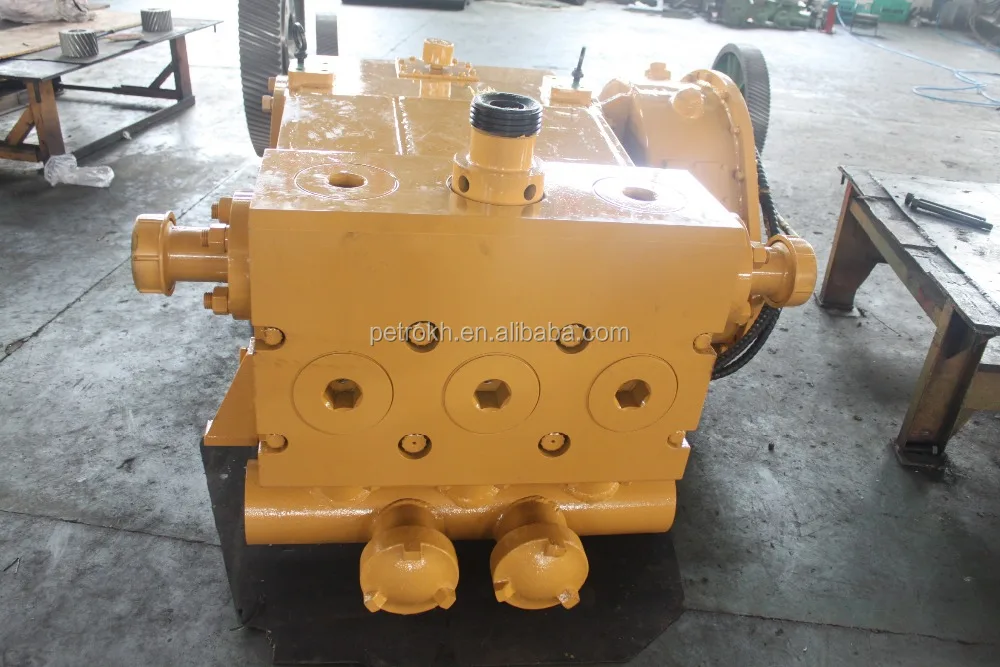

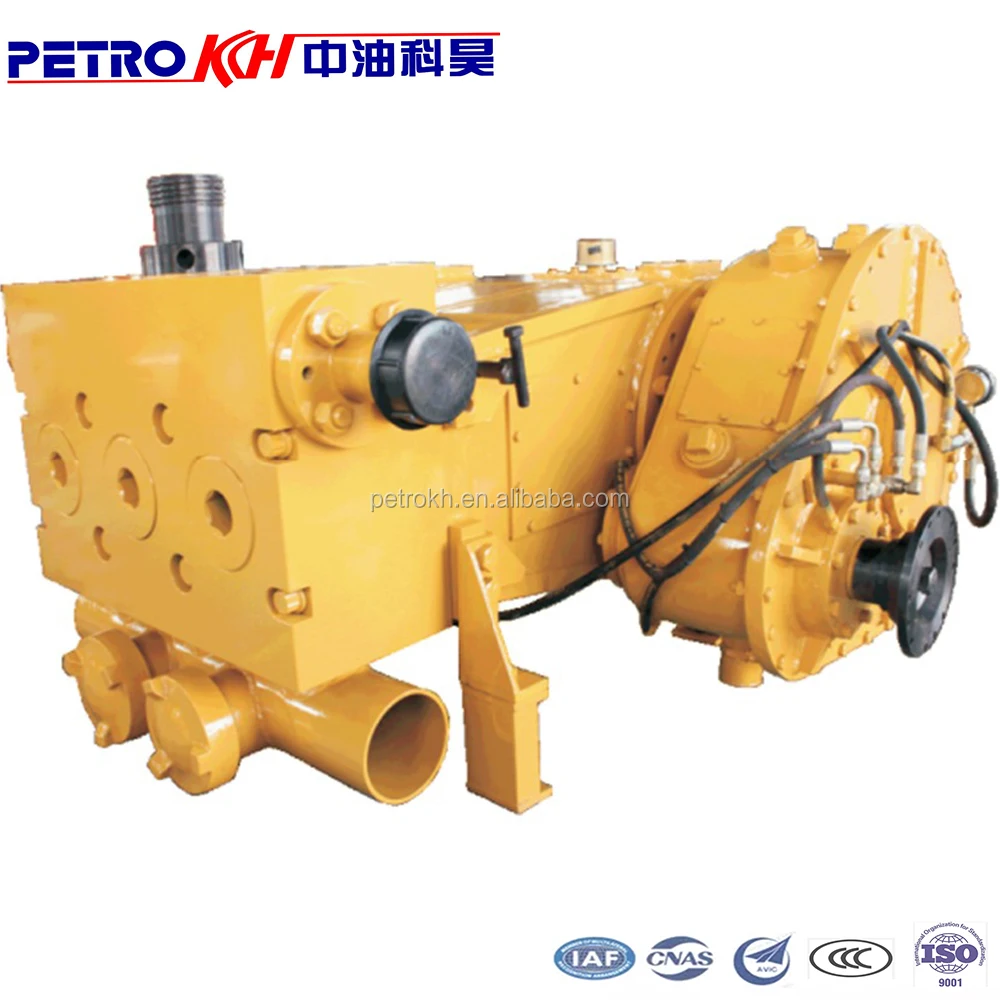

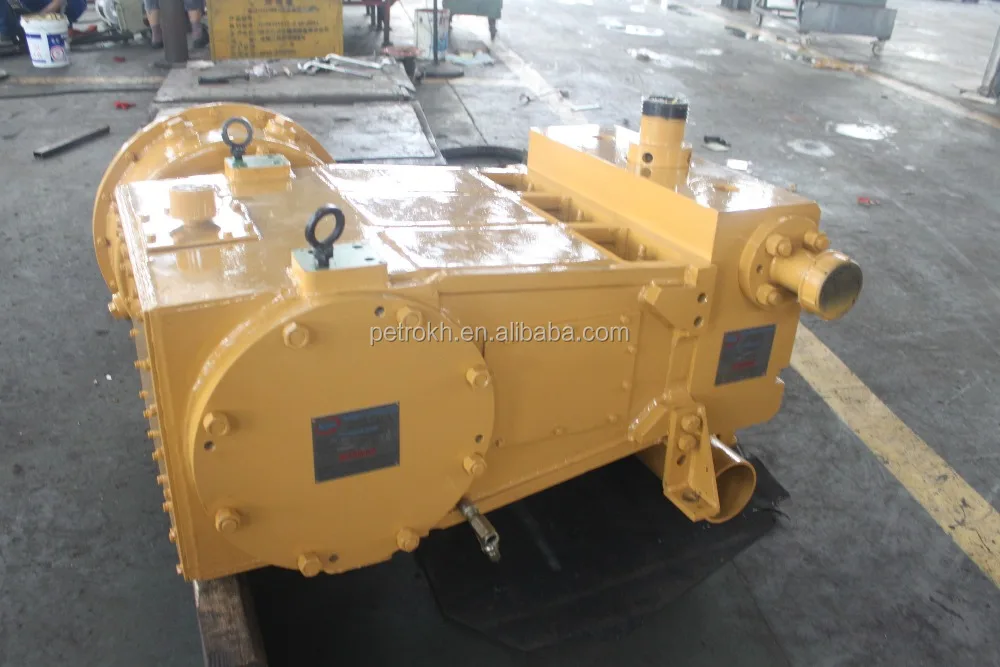

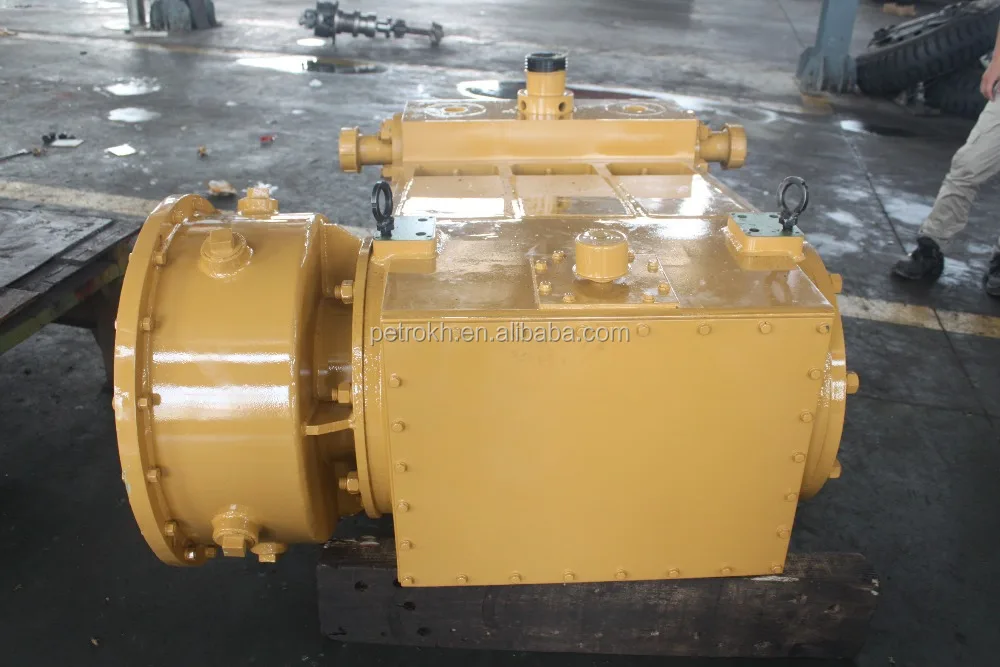

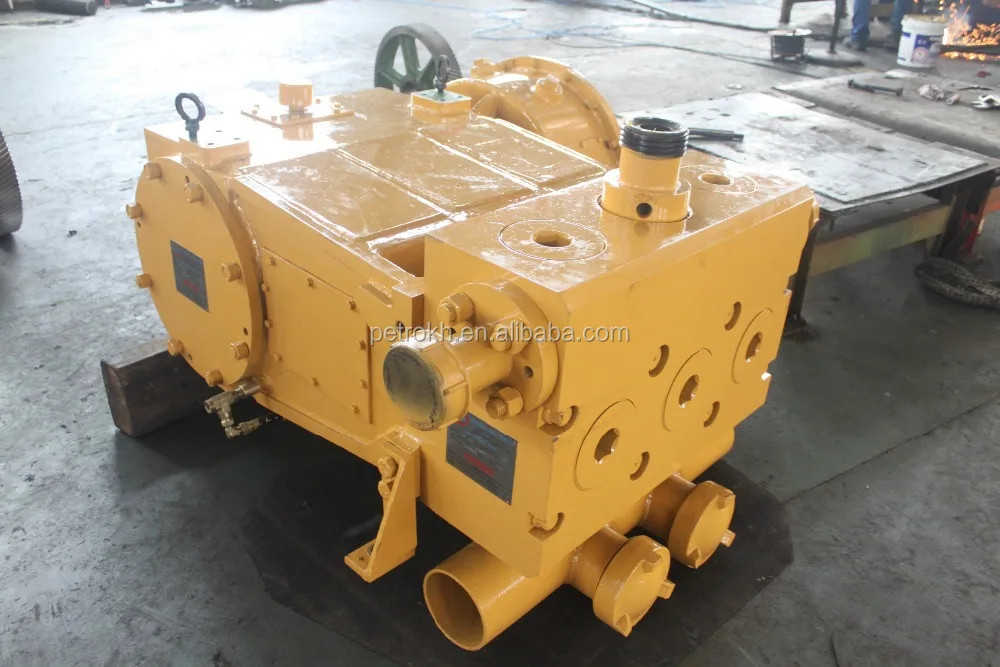

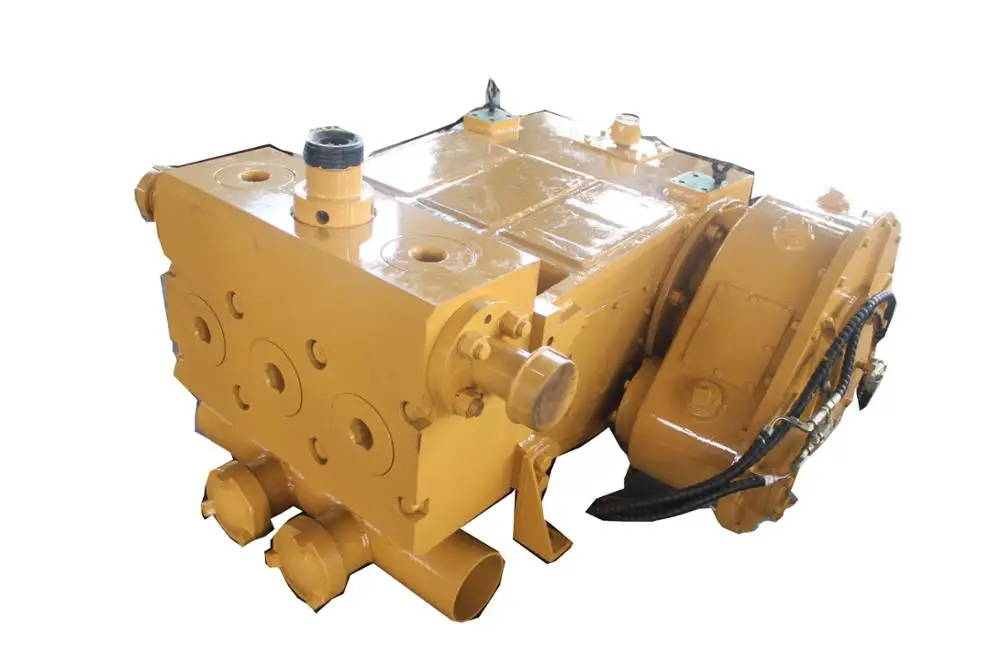

Pump consists of power end assembly, fluid end assembly and reducing gearbox assembly. The reducing gearbox assembly may be installed at the right side or the left side of the pump. 17 installation positions of input shaft of the reducing gearbox are designed for customer option to suit various pumping devices of drive system. Two sizes of pump body are designed to for installation with different plungers so as to achieve different pressure and displacement. (At present, plunger  has four sizes: 3”,3 1/2”,4”,4 1/2”).
The customer may choose different packing assembly, valve assembly, and discharge flange to meet various configuration requirements and pump special fluids under different conditions. Pump weight will not change largely subject to different plunger size and other options. Pump weight error will remain within ±5% of total weight.
\t
SPECIFICATIONS
\t
Rated Power(kw):
\t
442
\t
\t
\t
Stroke (mm/in)
\t
152.4 (6’’)
\t
\t
\t
Gear ratio:
\t
4.61:1
\t
\t
\t
Legth(mm) x width(mm) x height(mm):
\t
1290x1360x825
\t
\t
\t
Weight(kg):
\t
2146
\t
\t
\t
     plunger diameter (mm/in)
\t
 max pressure  (Mpa)
\t
      max displacement(L/min)
\t
\t
76.2(3’’)
\t
97.6
\t
938
\t
\t
88.9(3-1/2’’)
\t
71.7
\t
1276
\t

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
