Products Description

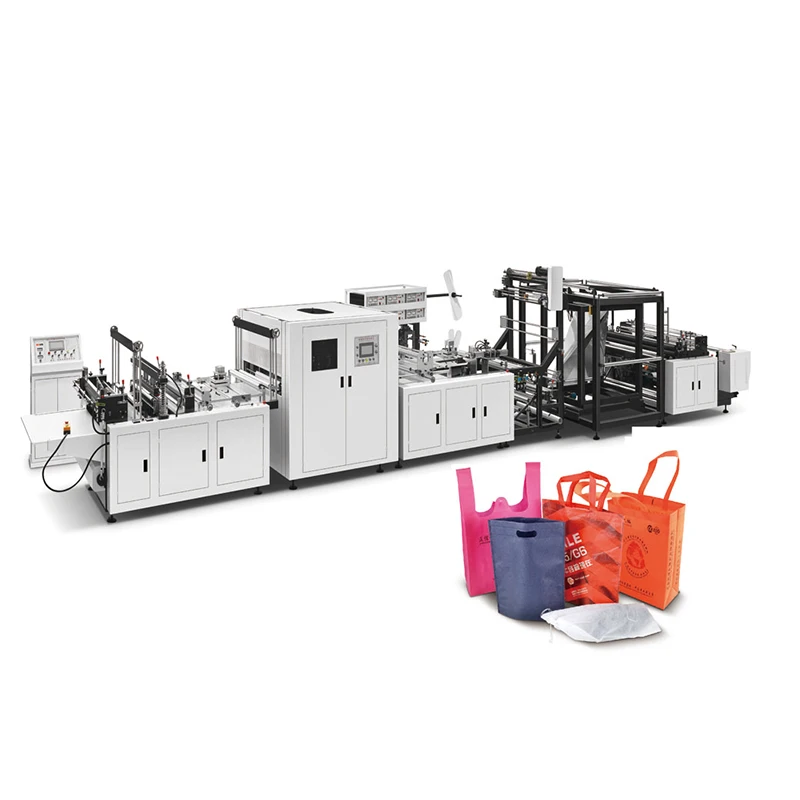

Model: ZXL-E700 Non Woven Box Bag Making Machine with Online Handle Attaching(5 in 1)
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs of non woven bags can be made by this machine.
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs of non woven bags can be made by this machine.
Material | Rolls of pp spunbond non woven fabric Laminated non woven fabric | If you have different requirements, please let us know, and we will provide you with customized solutions based on the actual situation of the machine. | ||
Production speed | 20-120pcs/min | |||
Fabric thickness | 35-100gsm for bag body 60-100gsm for bag handle | |||

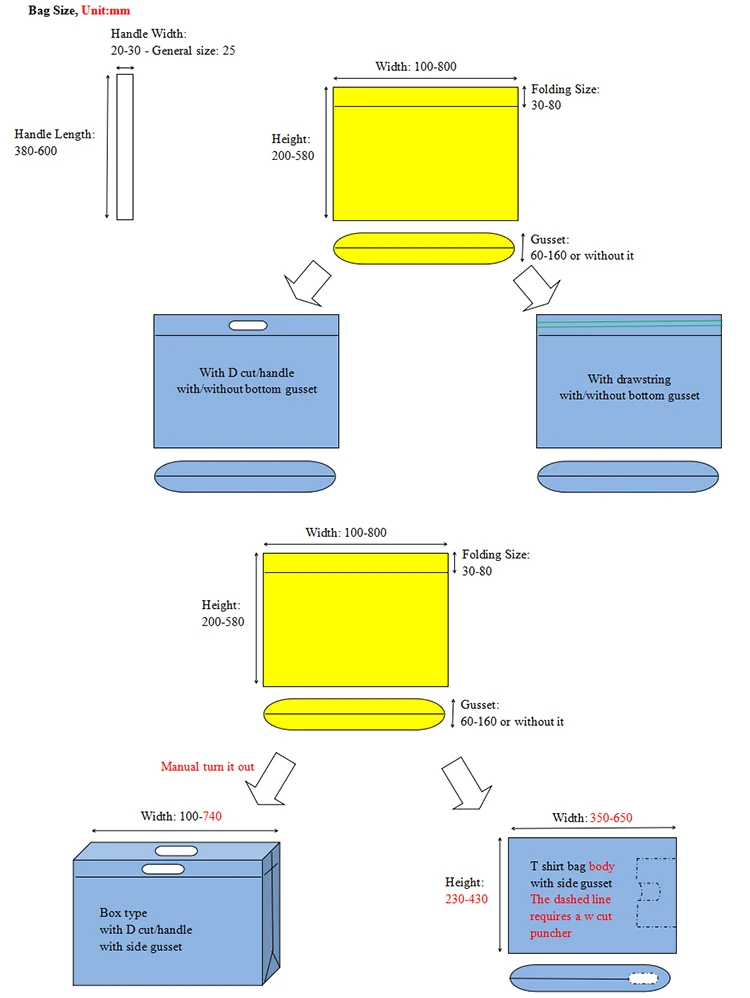

Bag width | 100-800mm | |||
Bag height | 200-580mm | |||
Power supplier | 220V/380V | |||
Power | 18kW | |||
Overall dimension (L*W*H) | 11500*2600*2100mm | |||
Weight | 4000kg | |||
Online D-cut punching Bottom gusset and side gusset making Drawstring feeding Optional online T-shirt bag auto punching Box bag forming Online handle attaching Pressure requirements: 0.8-1.0 Mpa (recommended 7.5KW screw air compressor with refrigerate air dryer and 0.6 m3air tank) | ||||

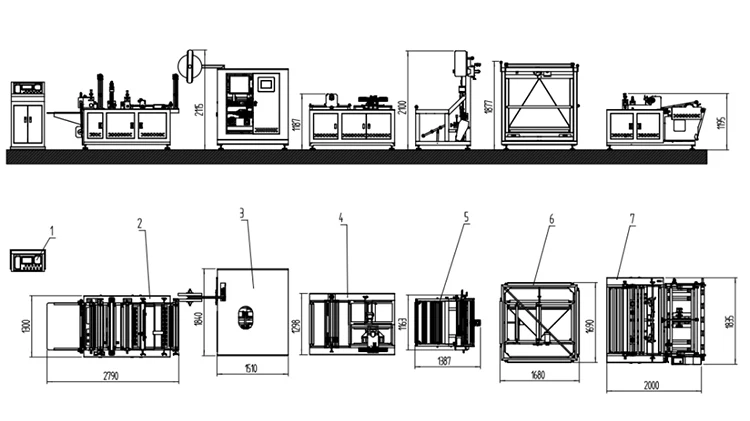

Schematic Diagram

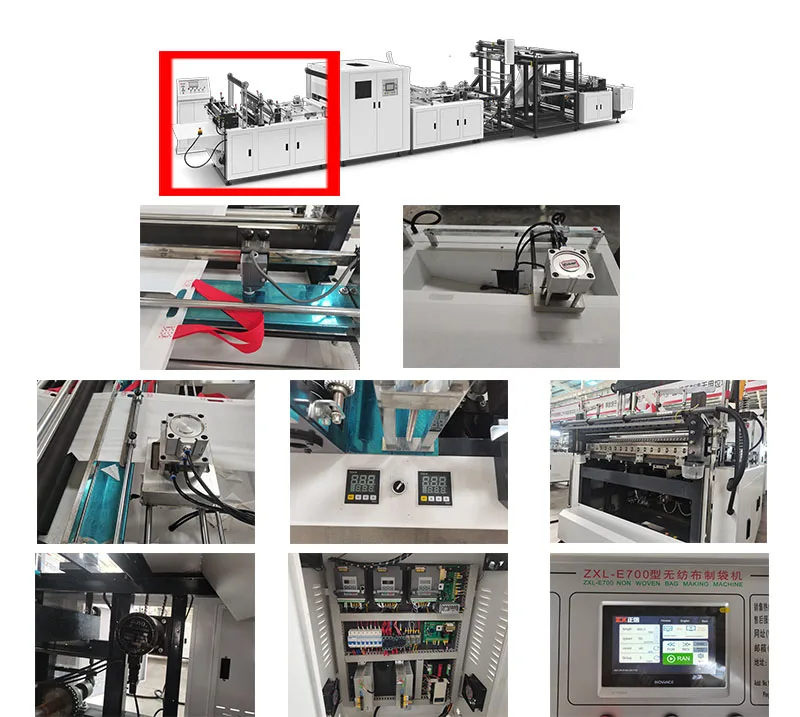

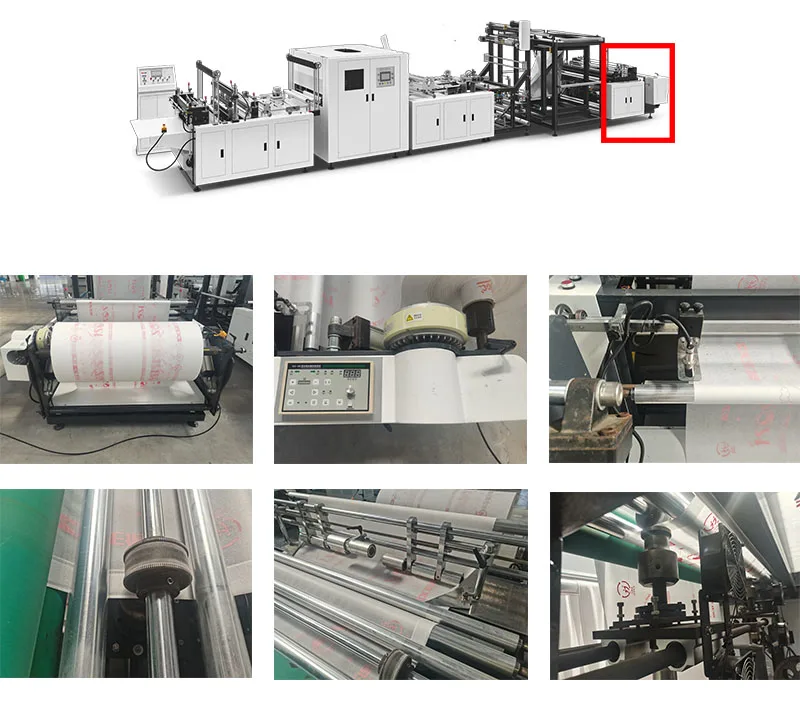

Inflatable shaft to fix the fabric roll when machine working
Auto stop when material run out of
Magnetic powder tension controller
Auto rectifying deviation system(EPC box and web guider)
Bag mouth folding and sealing by ultrasonic welding
Cylinders to lift and fix the sealing mold
Custom-made sealing mould is available
Manual web guider
- compressed air input here
The blower removes waste fabric

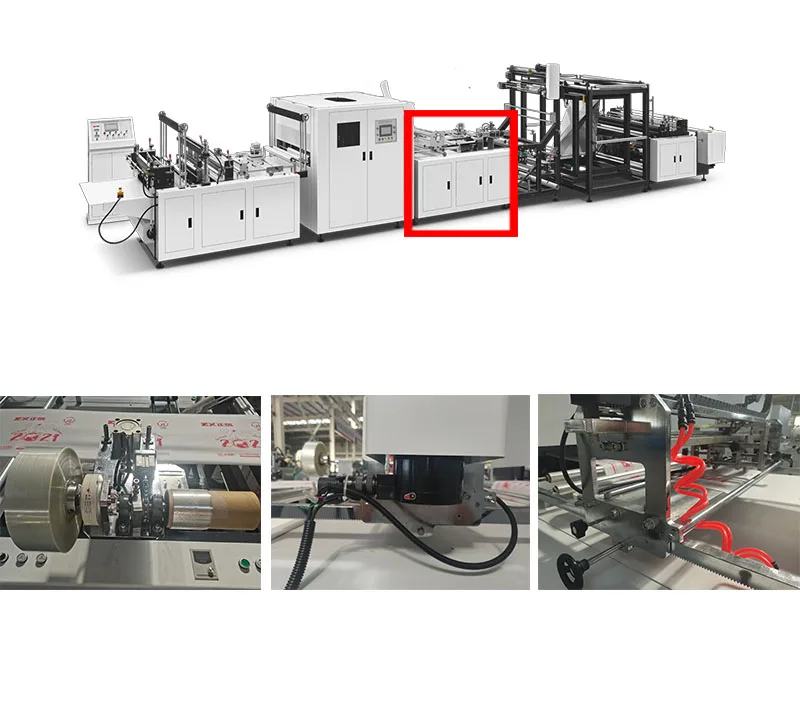

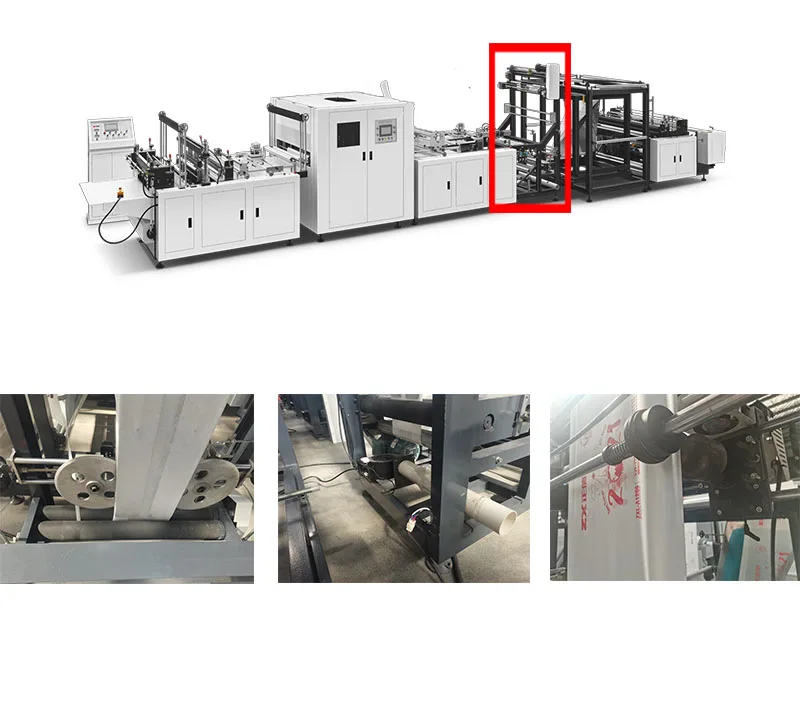

T-shirt bag sealing by ultrasonic welding
Two separate pneumatic wheels to make the box bag more three-dimensional, equipped with stepping motor
With magnetic powder tension controller
- compressed air input here

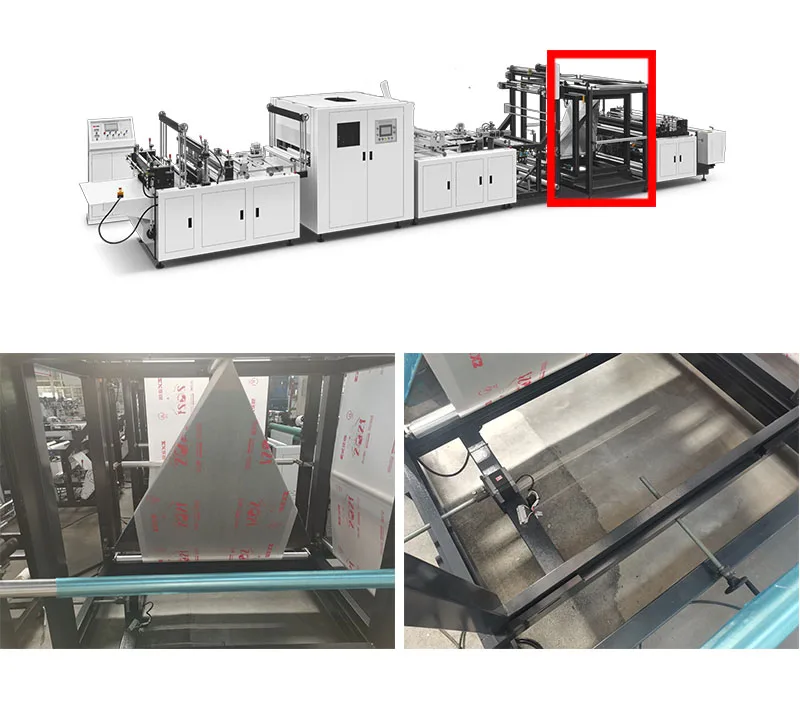

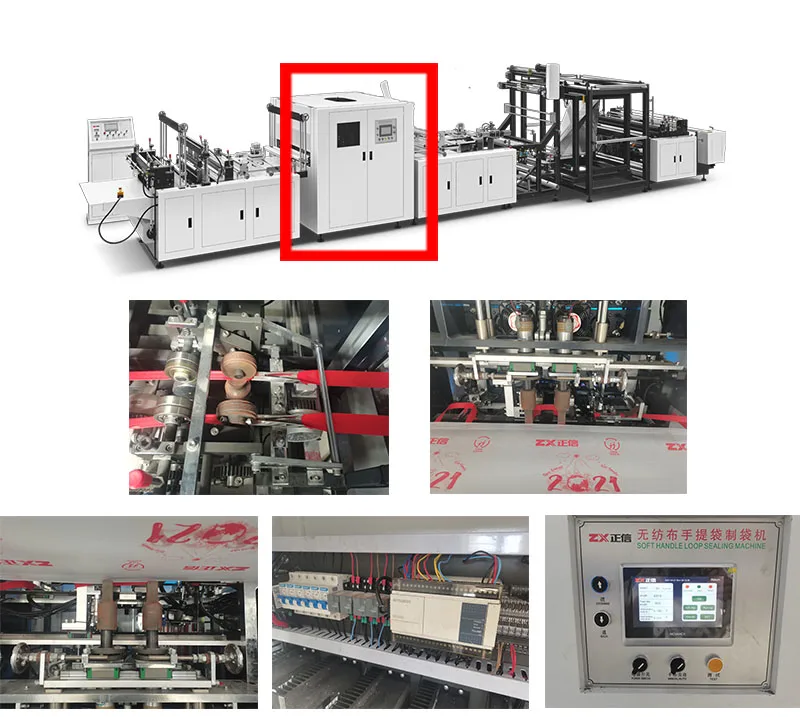

Four sets of ultrasonic welding systems for handle attaching
Adjusted by touch screen
Man machine interface:touch screen
Motion control:PLC
Bag Side Sealing, Cutting, Collection
Adjustable photoelectric sensor for printing color mark tracking( it can be turned on/off on the touch screen)
Online D-cut punching, drawstring bag punching
Bag side sealing by ultrasonic welding system
Durable cold cutter
Sealing mould with heating device inside(temperature control by thermal indicator)
static eliminator device
Double stepping motor feeding system for bag length fix
Man machine interface:touch screen
Motion control:PLC
Online D-cut punching, drawstring bag punching
Bag side sealing by ultrasonic welding system
Durable cold cutter
Sealing mould with heating device inside(temperature control by thermal indicator)
static eliminator device
Double stepping motor feeding system for bag length fix
Man machine interface:touch screen
Motion control:PLC
Production Process
Main Products
Sales and Service Network
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
