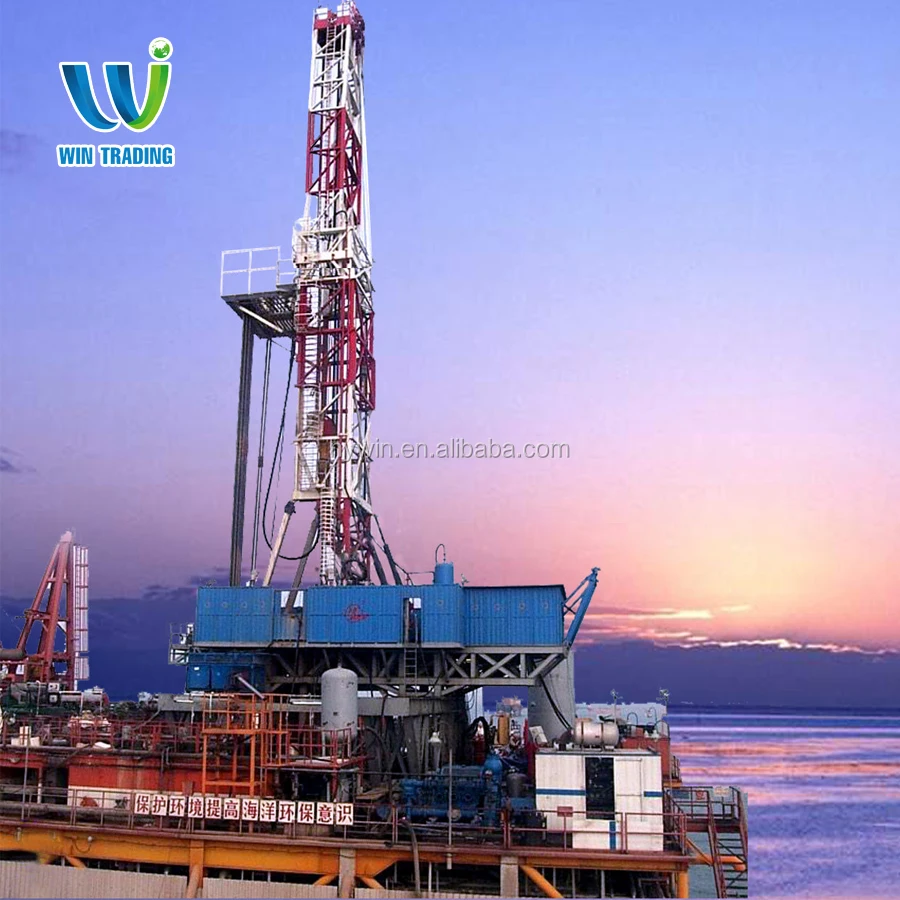

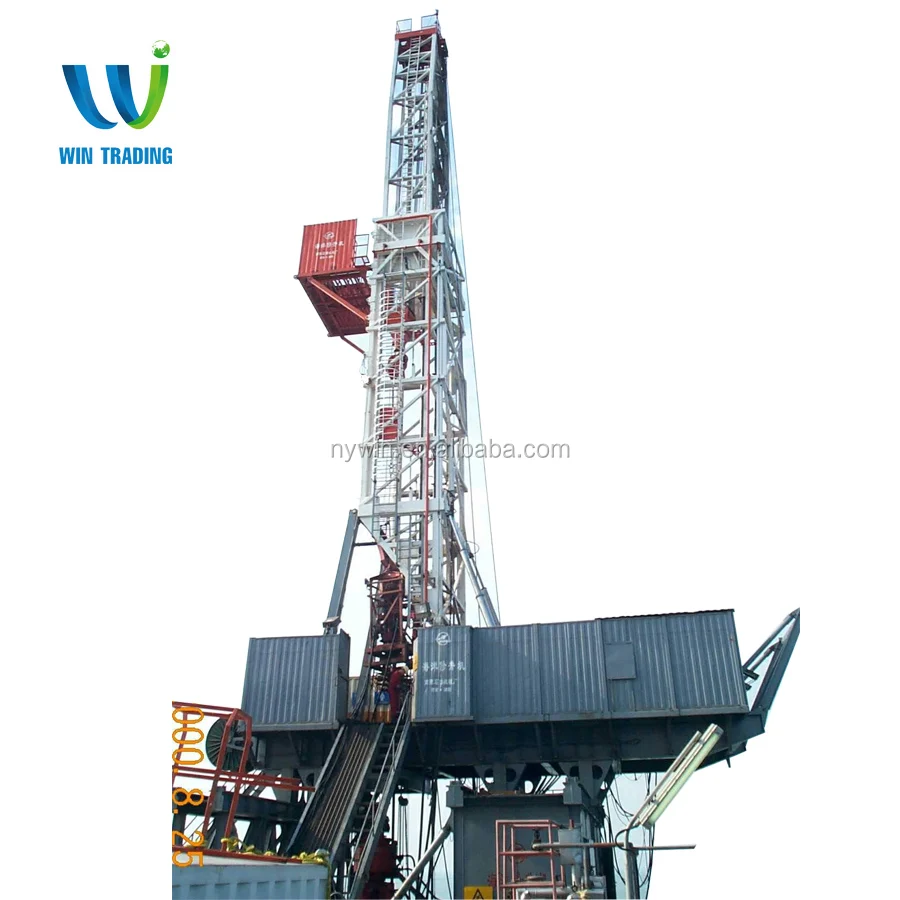

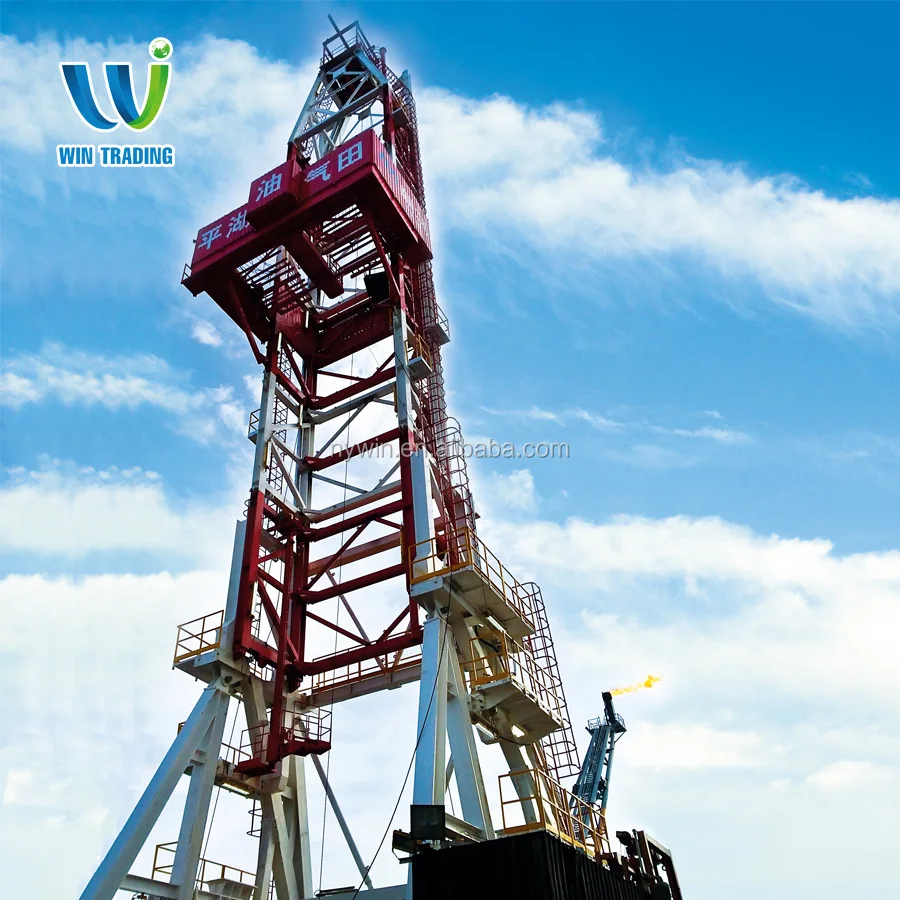

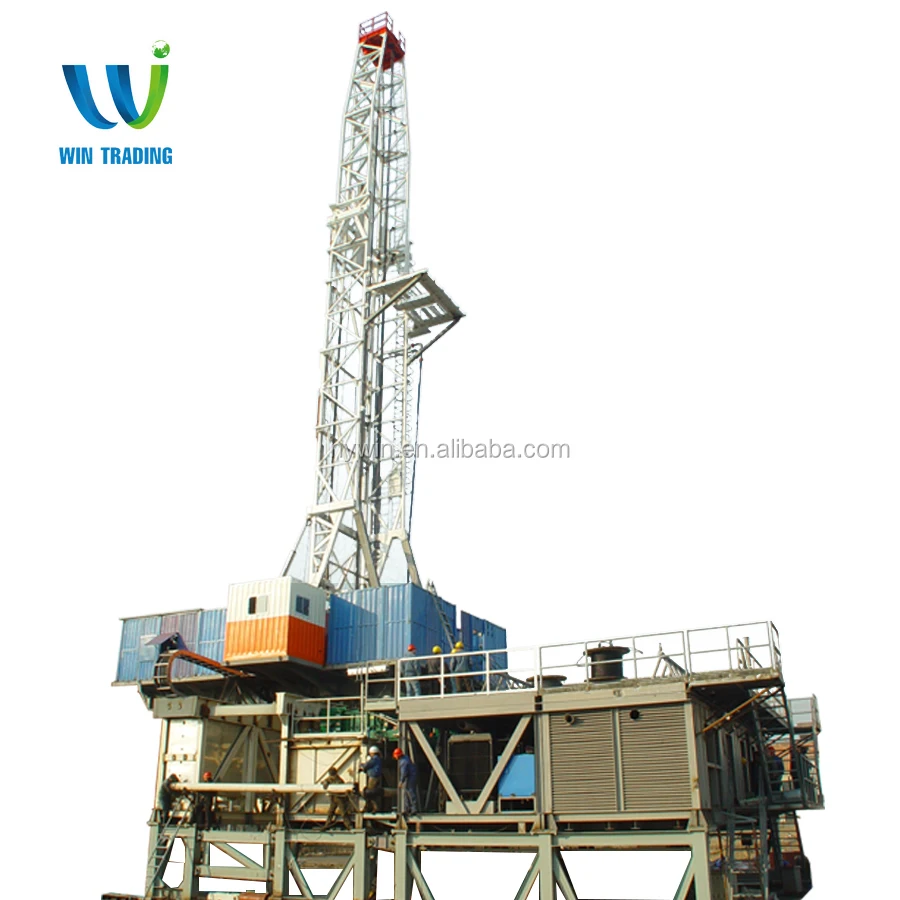

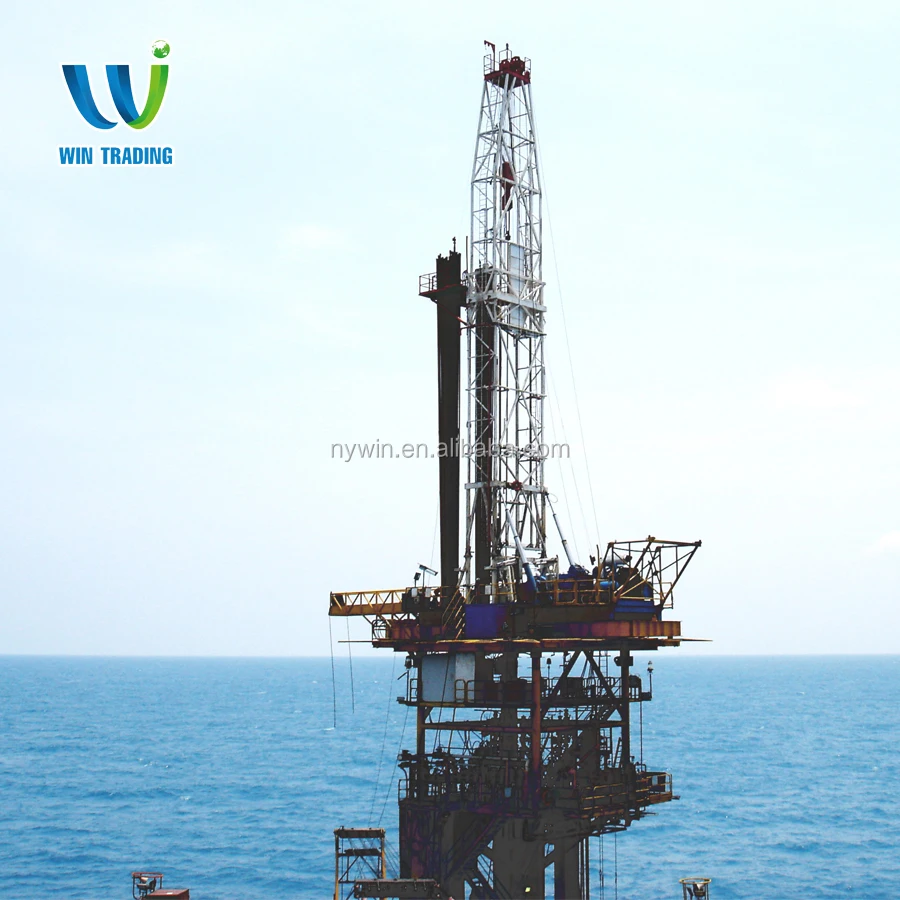

RG API Standard Oil Field Oil and Gas Well Bore Hole Sea Offshore HXJ 135 Drilling and Workover Rig
- Category: Oil Field Equipment >>>
- Supplier: Win Trading Co. Ltd. [Henan China]Win
Share on (60681558404):
Product Overview
Description
Welcome
Product Description
| Model | HZJ30 | HZJ40 | HZJ50DB | HZJ70DB | |
| Drilling depth (ft) | 41/2″DP | 10000 | 13000 | 16500 | 23000 |
| 5″DP | 8000 | 10500 | 15000 | 20000 | |
| Max hook load (lbf) | 404640 | 505800 | 708120 | 1011600 | |
| Hook speed (ft/s) | 0.66~5 | 0.66~5 | |||
| Derrick height (ft) | 108/118 | 135/148/154 | |||
| Derrick type | Double section, telescoping | Tower type or jack up | |||
| Drill floor height (ft) | 15~21 | 15~40 | |||
| Engine type | CAT3406C | CAT3408B | -- | -- | |
| Engine power (hp ×set) | 360×2 | 530×2 | 805×7 | 1073×9 | |
| Drive ways | hydraulic+ mechanical | VFD drive | VFD drive | ||
| Traveling system | 5×4/6×5 | 7×6 | 7×6 | ||
| Drawworks | JC28 | HJC50DB | HJC70DB | ||
| Drawworks power (hp) | 738 | 986 | 1475 | 2000 | |
| Main brake | Band brake/Disc brake | Band brake | |||
| Auxiliary brake | 324WCB | Motor Resistance Brake | |||
| Drilling line diameter (in) | 1 1/8”/1 1/4” | 1 3/8” | 1 1/2” | ||
| Hook block | YG180/YG225 | YC315,DG315 | YC450,DG450 | ||
| Swivel | SL225/XSL225 | SL450/XSL450 | |||
| Rotary table | ZP275 | ZP375 | |||
| Mud pump power(hp×set) | 1000×2 | 1300×2 | 1600×2 | 1600×3 | |
| Nominal working pressure of hydraulic system (psi) | 2000 | 2000/3000 | |||
| Max working pressure of air system (psi) | 145 | ||||
