General Laboratory Filtration Deionized Water Machine with Resisitivity and Conductivity Display ZYC
- Category: >>>
- Supplier: Sichuan Zhuoyue Water Treatment Equipment Co. Ltd.
Share on (60681558460):
Product Overview
Description
HOT sale machine
CGF for student tests PFT for biological analysis CGF for ICP/AA/AES ZYMICRO for nutrient solution
Product Description

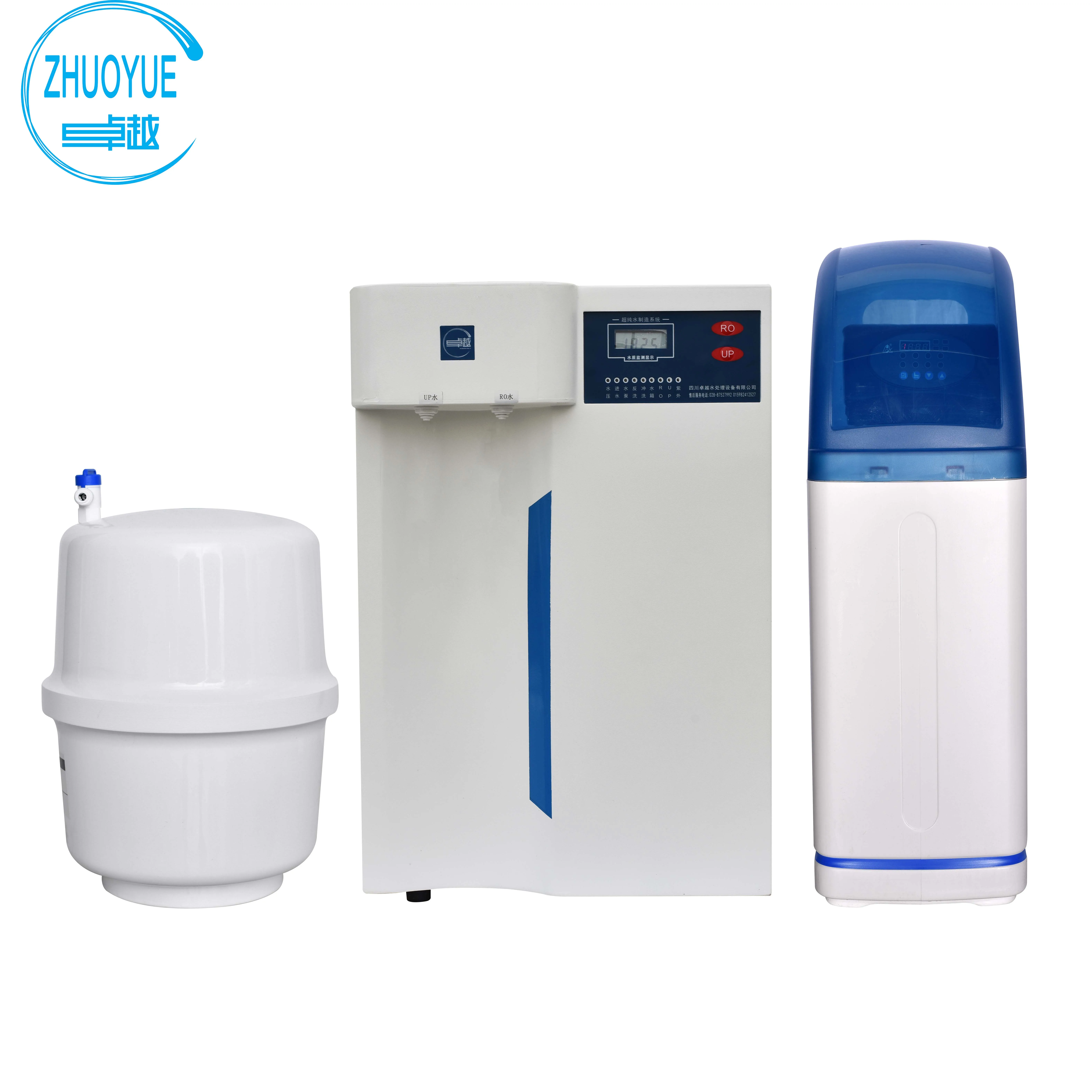

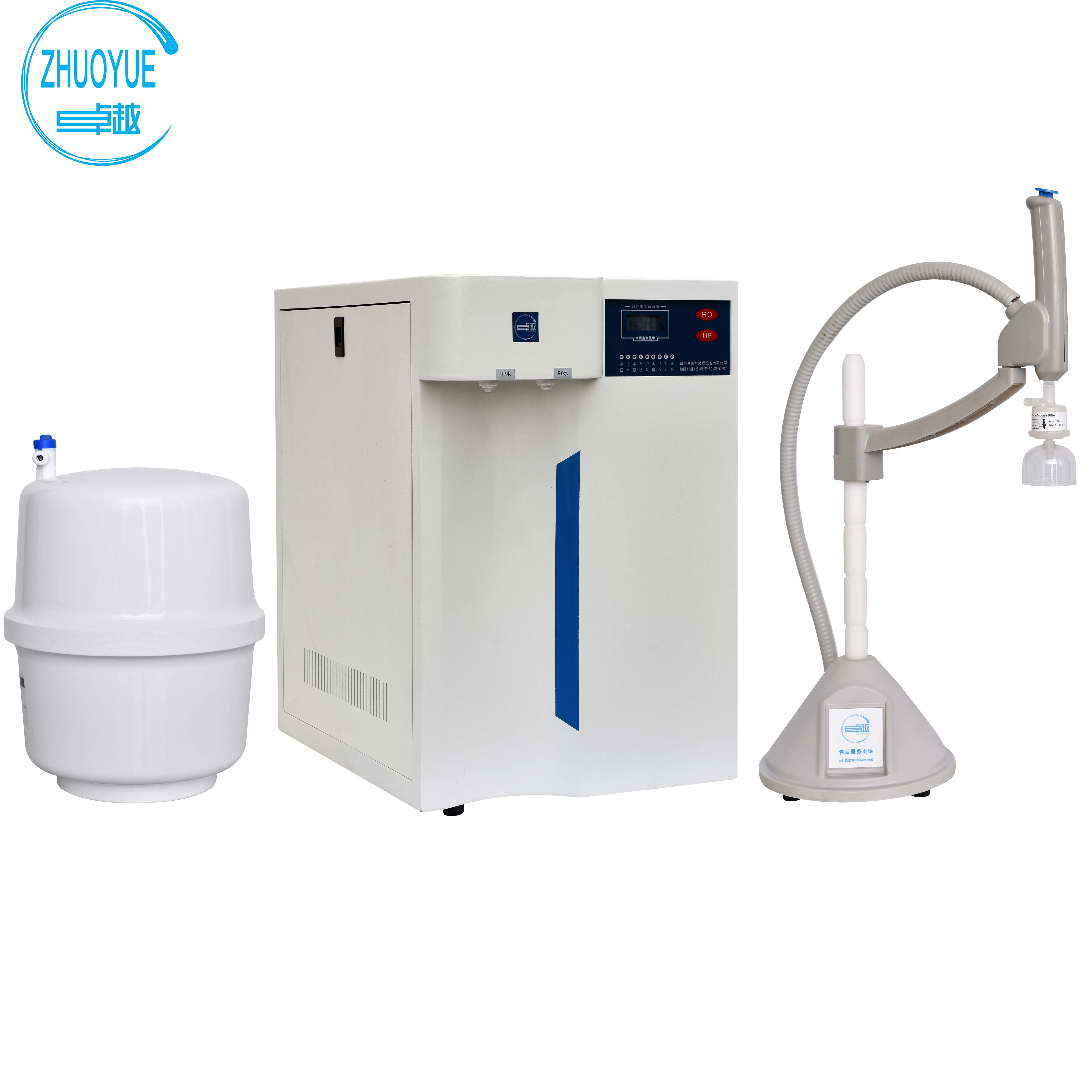

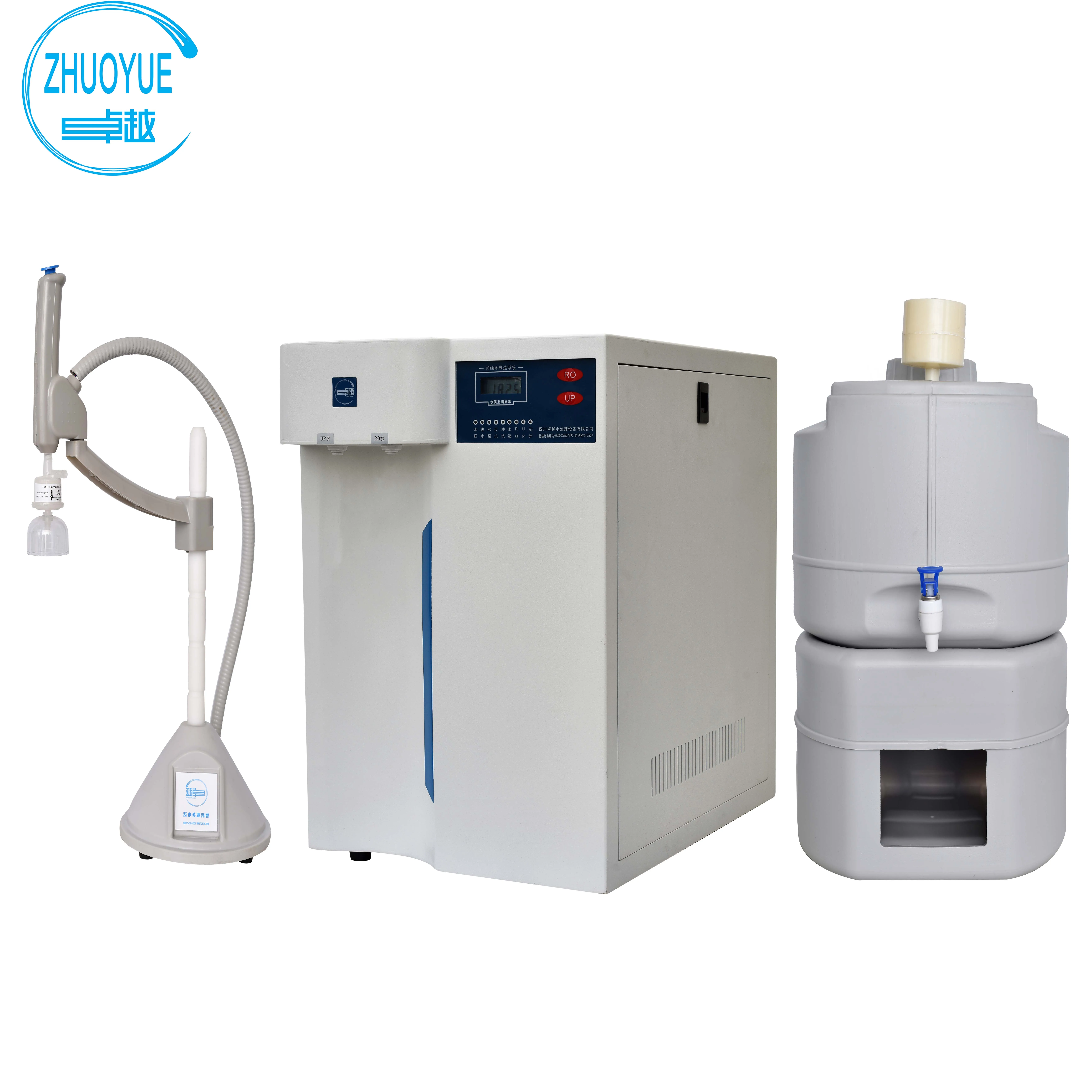

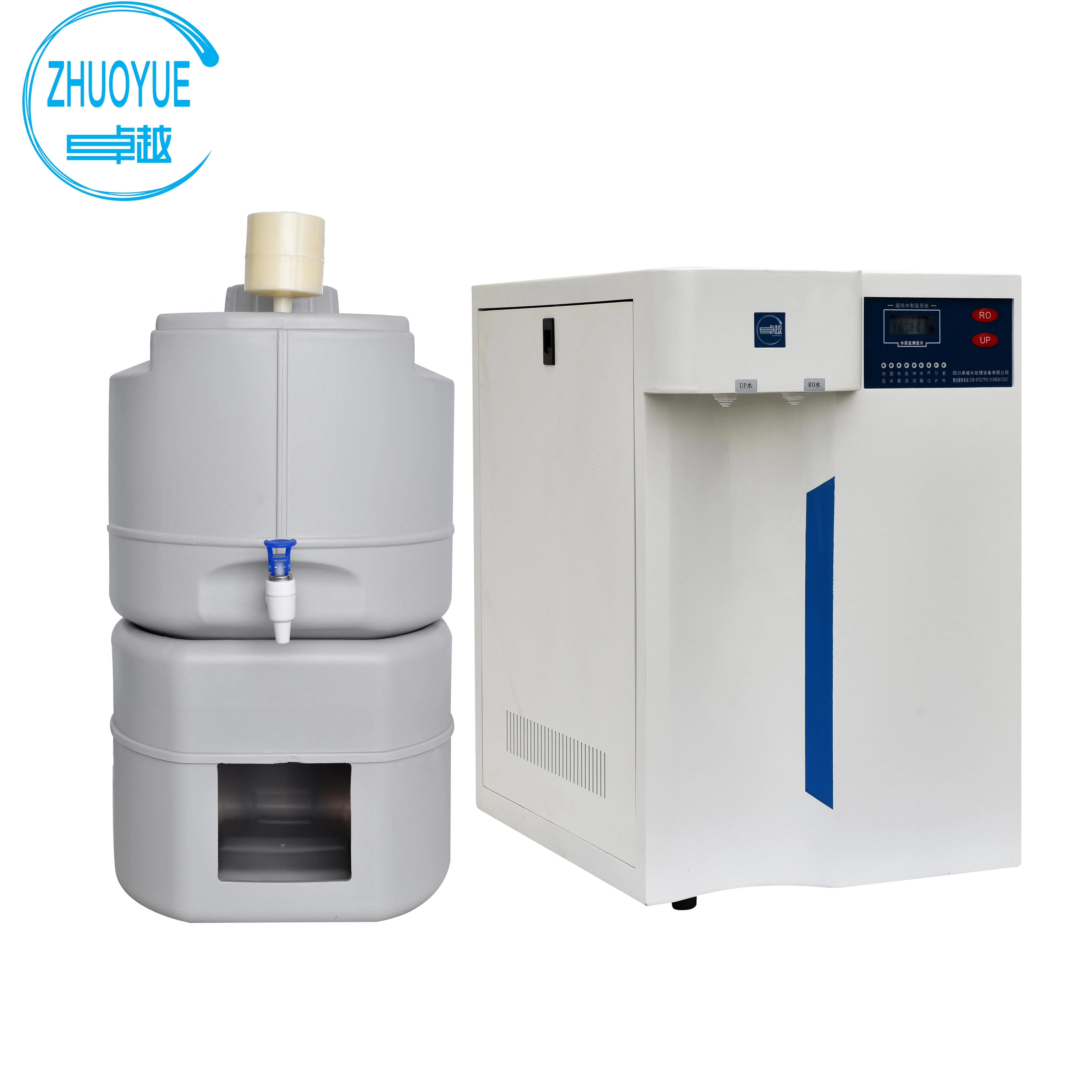

ZYC Laboratory Deionized Water Machine
ZYC series routine analysis ultrapure water machine is the best choice to instead of distilling water machine. It can produce standard grade III RO water (2-10us/cm) and grade I DI water (15-18.25MΩ.cm) to laboratory experiments. The purifying system uses automatic control circuit board with low power, safy, simple, convenient and monitoring online function to completely meet users' requirements.
Working Conditions of Laboratory Deionized Water Machine
Feed water have certain requirements. Feed water quality and environmental changes affect system’s capacity. Failure to meet the requirements of feed water may result in contamination and damage to membrane components. If the equipment is operated under non-standard production conditions, the equipment performance is impaired and is not covered by the warranty.
Source water source: city tap water or groundwater
Minimum water supply pressure: 0.1-0.5MPa (pressure at minimum feed water flow rate.)
Water temperature: 5 ~ 35 ℃
PH range: 6 ~ 9
Solubility Total solids: TDS ≤ 200 mg / L (ppm)
Residual chlorine: ≤0.1mg / L (ppm)
Total iron: ≤0.1 mg / L (ppm)
Manganese: ≤0.5 mg / L (ppm)
Co2: <30 mg / L (ppm)
SDI: <5 mg / L (ppm)
Note: TDS >350mg / L ,the optional water softener should be taken into consideration.
Power supply: a safe grounding AC 220V 5A
Model List of Laboratory Deionized Water Machine
| Model | ZYC-I-10L | ZYC-II-10L | ZYC-III-10L | ZYC-IV-10L |
| Output(25°C)* | 10 liters/hour | |||
| Flow rate | Up to 1.8 liters/minute(with pressure tank) | |||
| Feed water requirements | Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm2 | |||
| RO water quality | ||||
| Conductivity At 25℃ | 2-10μs/cm | 2-10μs/cm | 2-10μs/cm | 2-10μs/cm |
| Ion rejection rate | 99% (new RO membrane) | |||
| Organic rejection rate | >99%, when MW>200 Dalton | |||
| Particles and bacteria rejection rate | >99% | |||
| Ultrapure water quality | ||||
| Resistivity(25°C) | 18.2MΩ.cm | 18.2MΩ.cm | 18.2MΩ.cm | 18.2MΩ.cm |
| Heavy metal ion | <0.1ppb | <0.1ppb | <0.1ppb | <0.1ppb |
| Bacteria | < 1cfu/ml | < 1cfu/ml | < 1cfu/ml | < 1cfu/ml |
| Particle(>0.2μm) | <1/ml | <1/ml | <1/ml | <1/ml |
| TOC Level*** | < 20 ppb | < 20 ppb | < 10 ppb | < 10 ppb |
| Dimension and weight | Length*Width*Height: 530*420*570mm, 40kg | |||
| Electrical requirements | AC210-240V, 50/60Hz | |||
| Terminal disinfection filter | N/A | N/A | yes | yes |
| UV lamp | N/A | N/A | yes | yes |
| UF | N/A | N/A | N/A | yes |
| Standard configuration | Main body (Including 1 set of cartridge)+10 liters pressure tank | |||
| Can be selected flow rate ( L/H) | 10L/H, 20L/H, 30L/H | |||

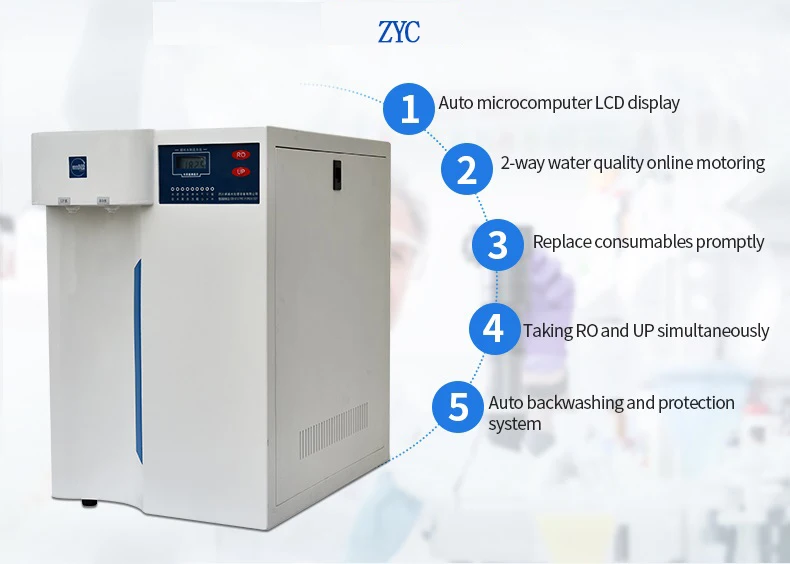

Features of Laboratory Deionized Water Machine
1. Water Quality on-line monitoring; accurate and intuitive LCD panel digital display;
2. Polyethylene (PE) and polyacetal (POM) made pressure tank avoids secondary pollution;
3. Automatic water production and storage;
4. Produce RO pure water and UP ultra-pure water.
5. System flushing extends life span of reverse osmosis membrane
6. Pressure alarm display.
7. Automatic water quality alarm.

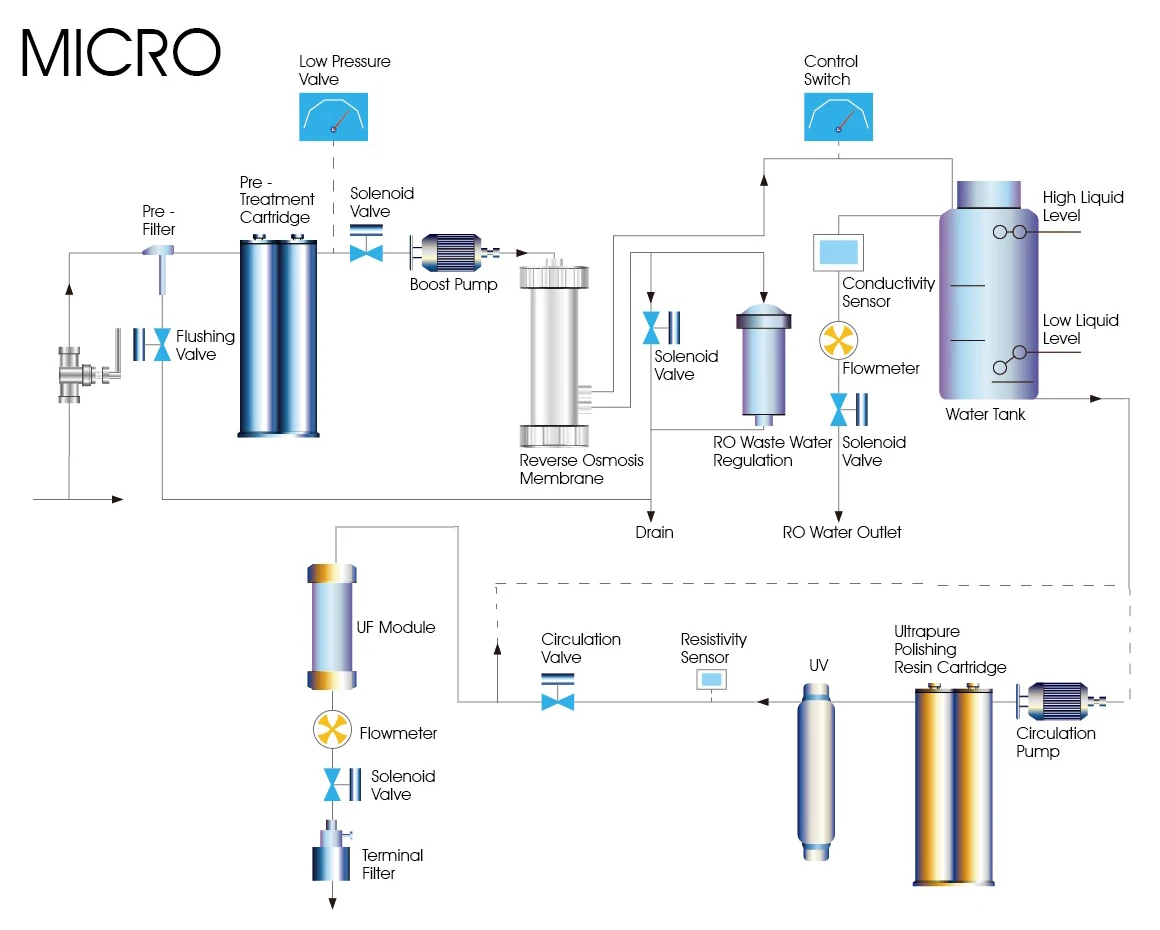

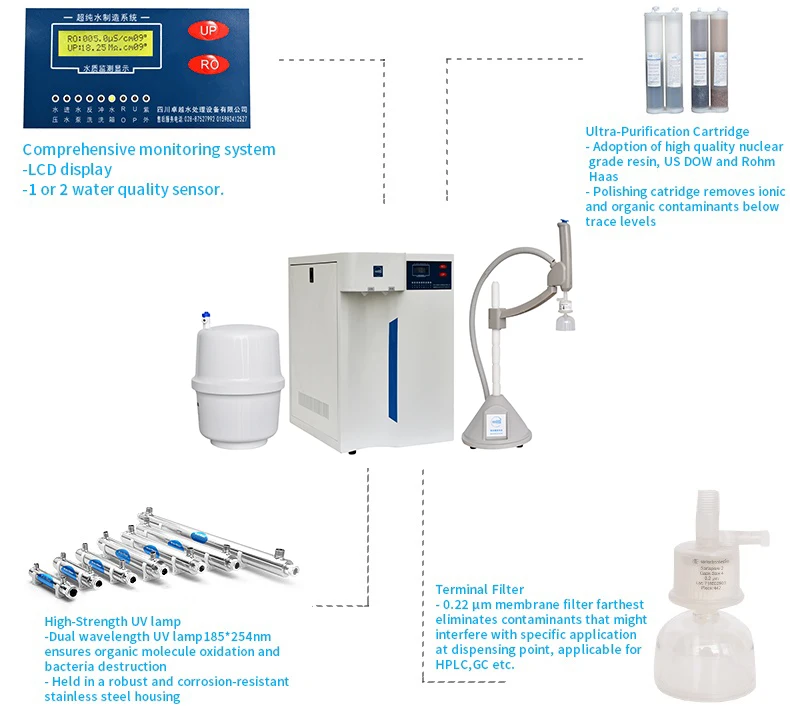

Working Process of Laboratory Deionized Water Machine

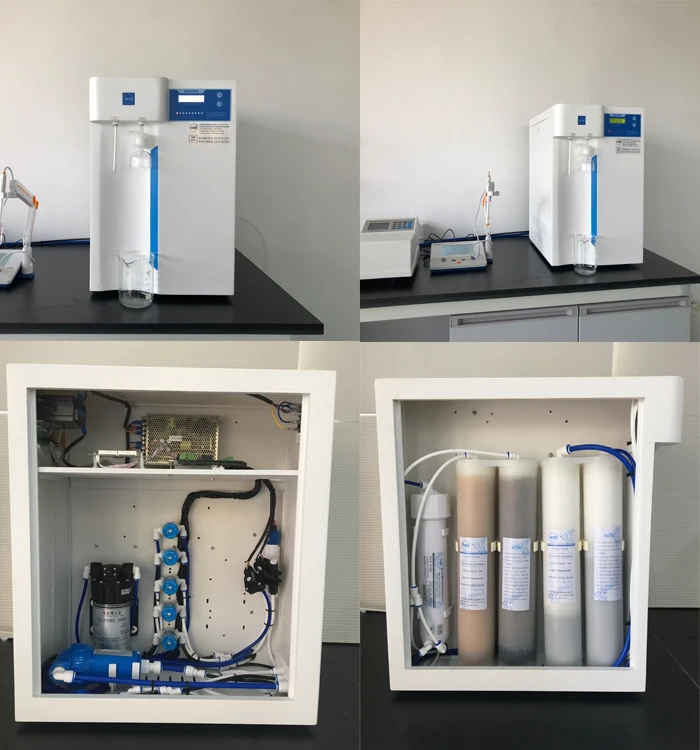

*. The machine is mainly composed by pre-treatment collumn, RO membrane and ultrapure cartridge;
*. Prea-treatment collumn: remove sediment, rust, suspended matter, residual chlorine, color, smell, calcium and maganesium;
*. RO membrane: 0.0001-0.001um; remove more than 99% salt ions, organics, microorganism, bacteria, etc.
*. Ultrapure cartridge: produce 15-18.25MΩ.cm ultrapure water.
*. 0.2um terminal filter: filtrate colloid and free resin.
*. UV lamp: 9999-12000 hours; disinfect water.
*. UF module: 8000 dalton; filtrate bacteria and endotoxin.
Company Information
Sichuan Zhuoyue Water Treatment Equipment Co., Ltd.
Packaging & Shipping
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
Contacts : Any problem , my pleasure to serve.
