The main raw material of the model AT09 reducer is aluminum and consists of nine parts.
The model AT09 reducer is a two stage reducer for LPG sequential injection system and equipped with an integrated filter unit and a solenoid valve inlet.
The model AT09 reducer has been designed for lpg sequential injection systems.
Product Name

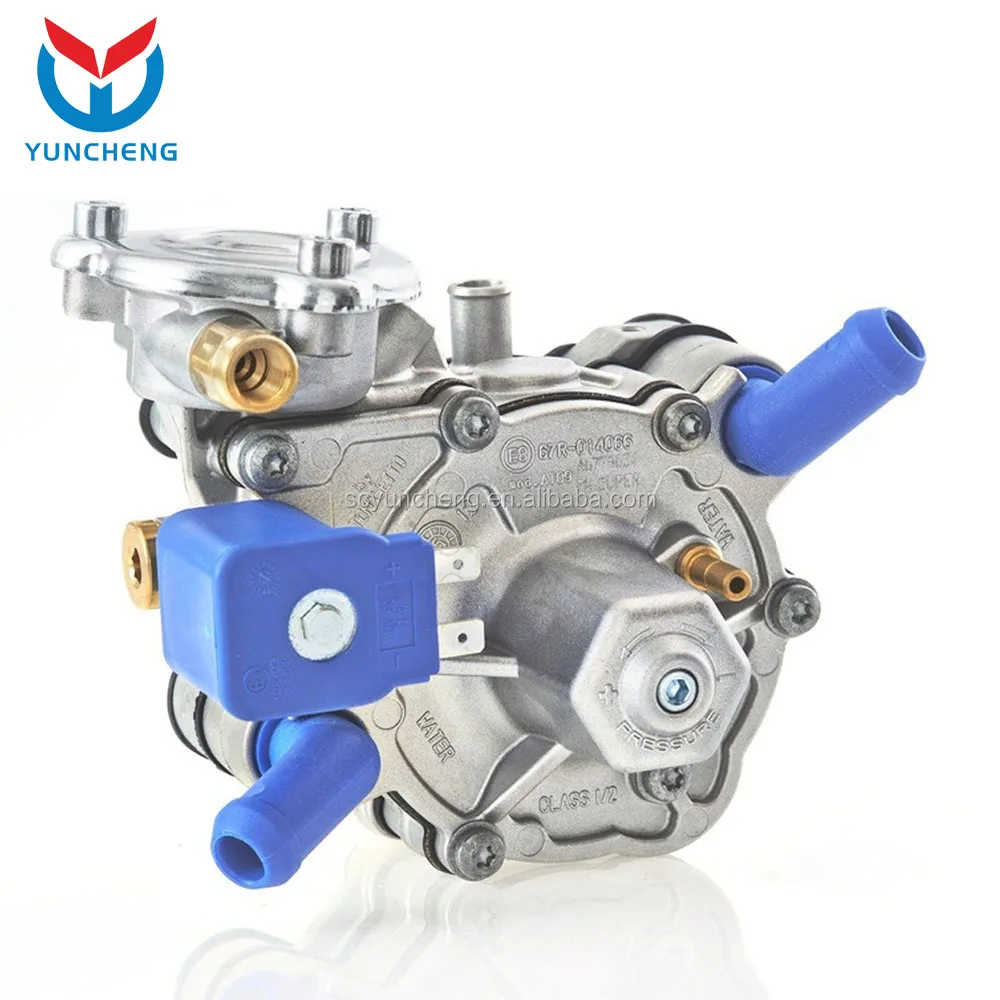

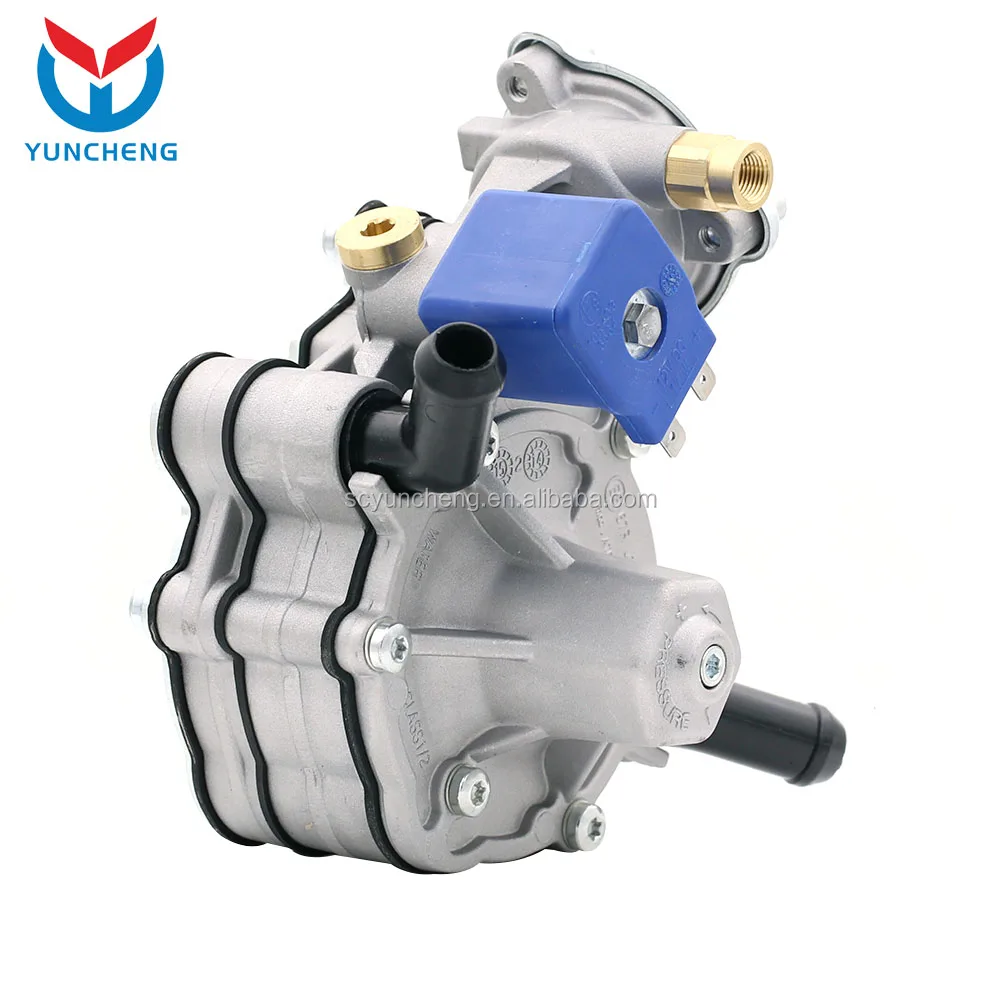

YCR07002 Gnv Lpg Conversion Kit At09 Regulator
Inlet Pressure
2~20Mpa
Secondary Stage Pressure
0~0.3Mpa
Working Temperature
-40℃~+120℃
Working Voltage
DC12V
Power Range
P≤180KW
Flow Rate
Q≥35 m³/h(P=0.1Mpa)
Type
LPG reducer for vehicle
Weight
1.5KG
Dimensions
12*125*11cm
Max. inlet Pressure
3MPa
Max. outlet Pressure
0.15-0.3MPa
Working Pressure
22MPa
Max Flow
30m³/h
Engine Power
up to 140HP
Our Services
- independent design and R&D
- high level OEM service
- Resonable Price & Quality Control
- Trade Assurance
- Problem Solving Service.
- 1 year Warranty.
- Fast shipment& Free Sample
- CNG conversion kits, ECU, pipe and other supporting part could be bought by us if necessary.
Company Information
Sichuan Yuncheng Vehicle Gas Co., Ltd., located in Chengdu, China, one of the largest LPG/CNG reducer/injector suppliers in China, is a manufacturer specialize in R&D and OEM service.
In 2003, together with Landi Renzo(Beijing), completed the first CNG conversion of more than 4,000 taxis in Chengdu.
According to user requirements, independent design and R&D could be done perfectly. With a high level of OEM service, stable quality, low maintenance cost, our powerful reducer and fast-response injector are warmly welcomed all over the world.
CNG conversion kits, ECU, pipe and other supporting part could be bought by us if necessary.
Packaging & Shipping
1. Ship worldwide from by FEDEX ,DHL ,UPS ,TNT, EMS and Post service , Air cargo and Sea .
2. Buyer is responsible for all applicable customs , import duties and VATS.
3. We can declare package with lower value if customer required.
