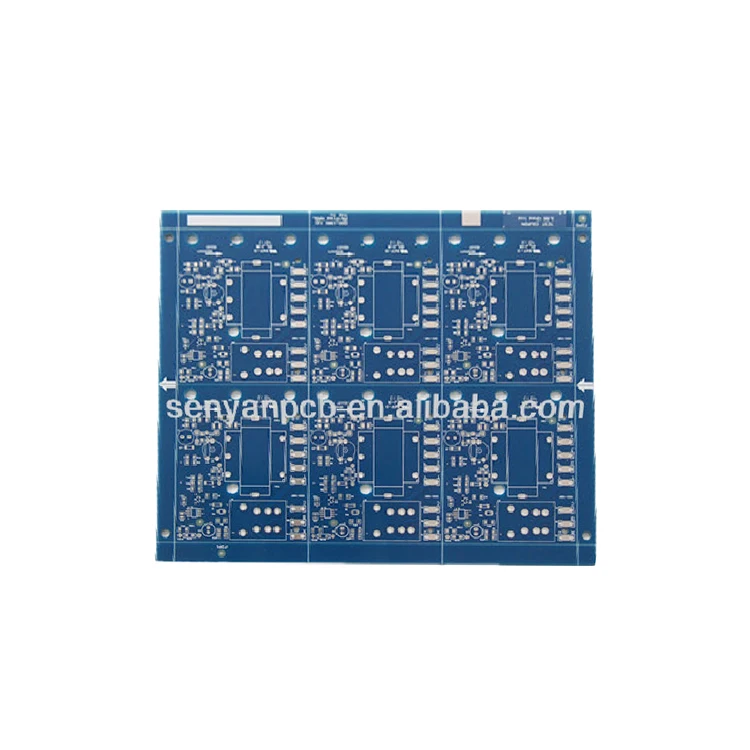

Customized Mp3 Amplifier Board 5.1 Audio Pcb Circuit Board Home Appliances Oem Electronic Board OEM Services Provided 1oz 0.2mm
- Category: Double-sided PCB >>>
- Supplier: Shenzhen,Senyan,Circuit,Co.,Ltd.
Share on:
Product Overview
Description
Specification
Layer | 1-20 layer |
Material Type | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
Board Thickness | 0.21mm to 7.0mm |
Copper Thickness | 0.5 OZ to 6 oz |
Size（Custom） | Max. Board Size: 580mm×1100mm |
Min. Drilled Hole Size: 0.2 mm (8 mil) | |
Min. Line Width: 4mil (0.1mm) | |
Min. Line Spacing: 4mil (0.1mm) | |
Surface Finishing | HASL / HASL lead free, HAL, Chemical tin, |
Immersion Silver / Gold, OSP, Gold plating | |
Solder Mask Color | Green / Yellow / Black / White / Red / Blue |
Tolerance | Shape tolerance: ±0.13 |
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 | |
Certificate | International Certification Standards |
Special Requirements | Buried and blind vias+controlled impedance +BGA |
Profiling | Punching, Routing, V-CUT, Beveling |
Product Description
Recommend Products
Application Field
Company Profile
Our principle for management is "providing the clients with excellent products, making them satisfied with our services." "Trustworthiness, responsibility, profession and innovation" is the operation philosophy that we always stick to. We will win the trust of clients by our professional manufacturing management, stable quality, exquisite technology and the improvement of the services.
Our Certification
Production Process
Packing & Delivery
Inner vacuum package, outer with carton box
FAQ
1.Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can support.
2.How can we guarantee you receive an good quality product ?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
3.Are my files safe ?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
4.what services can we provide ?
Accepted Delivery Terms: FOB,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese
We havent any limited about MOQ .Sample and mass production all can support.
