Name: universal split air conditioner electronic control board
SKU: 60681627000
Availability: InStock

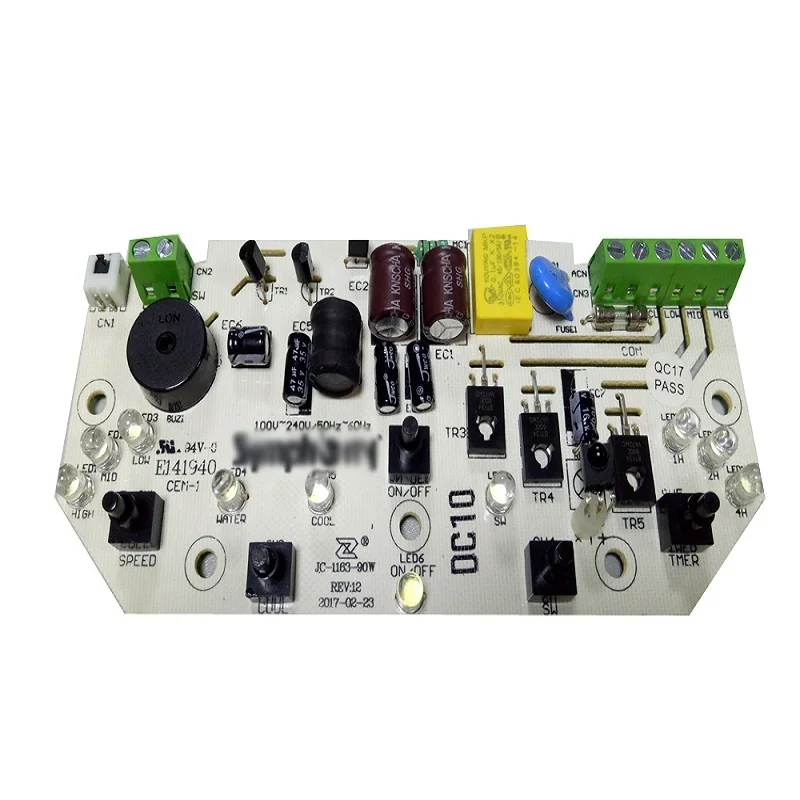

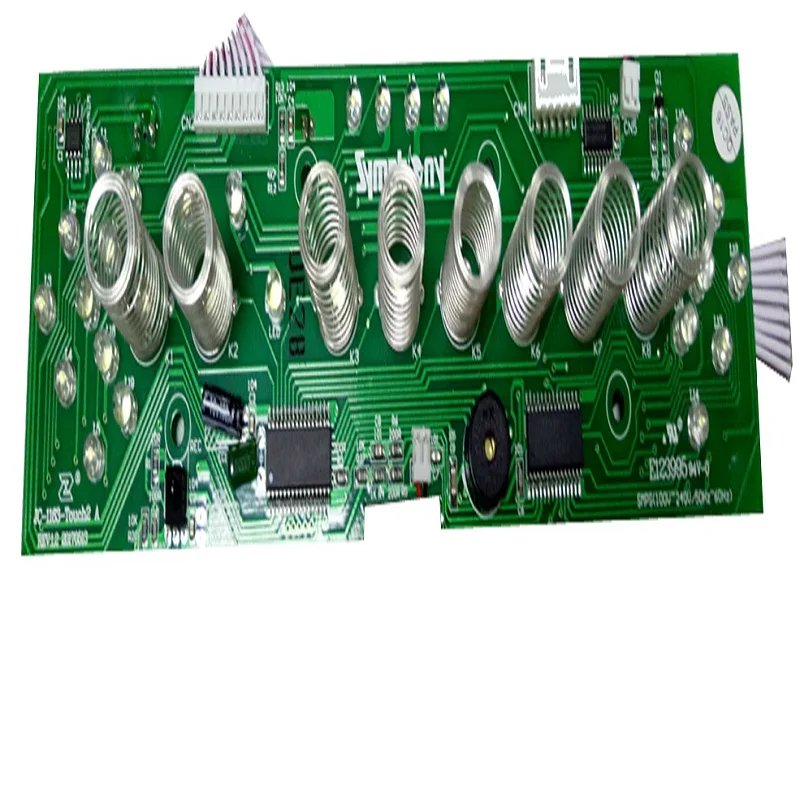

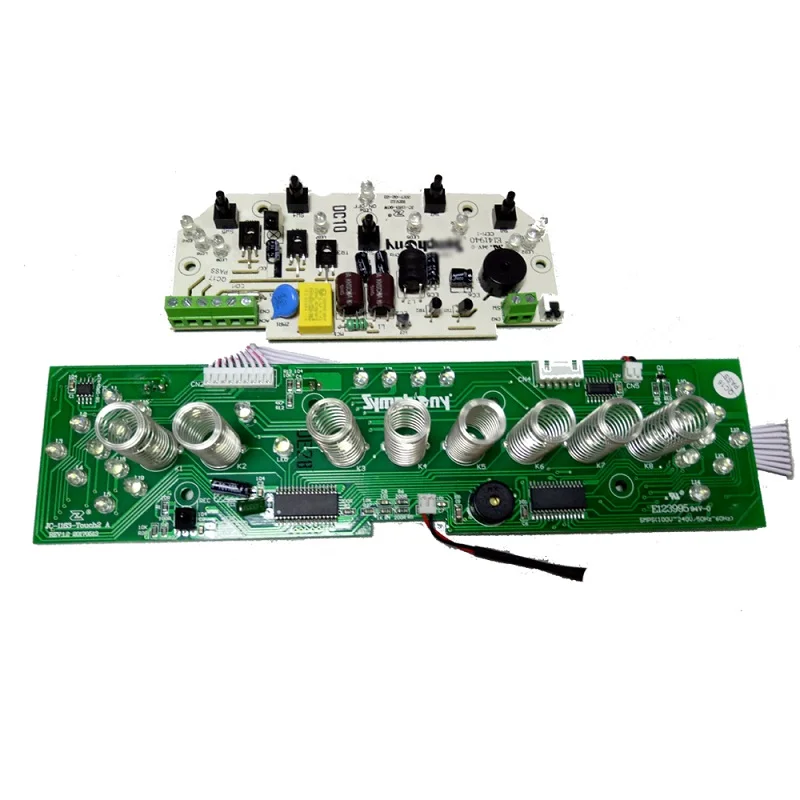

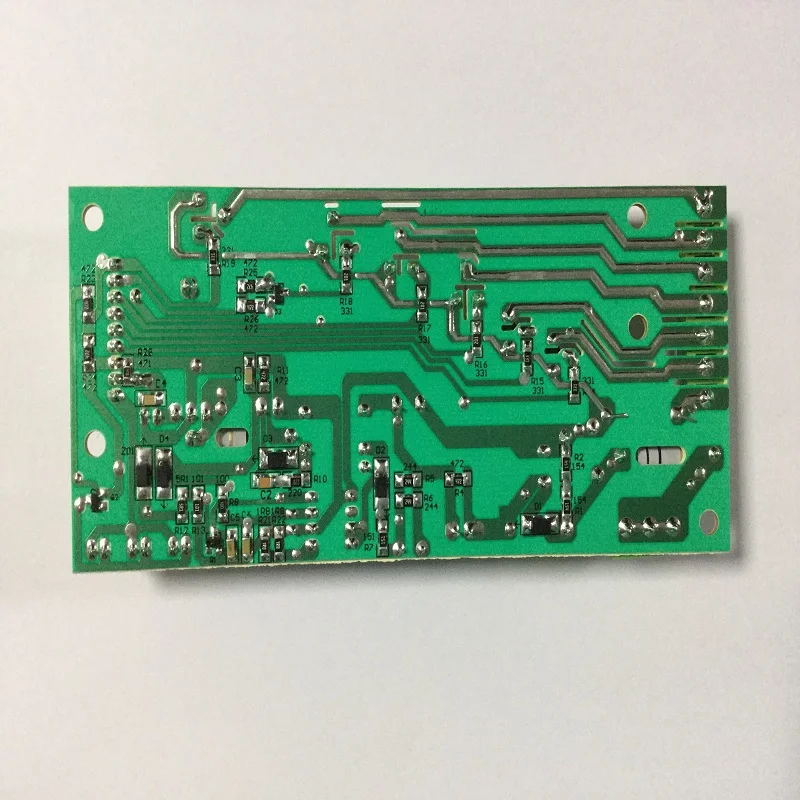

universal split air conditioner electronic control board

Brief description:

PCB Controller for air cooler

1)Air cooler control board;Air cooler with water

2)Safety device

3)Energy saving

Functions details:

1) 110V/50HZ for North America market; 220-240V/50/60HZ for Asia and European market

2) RC Voltage-reducing resolution for pcb circuit ; Or Switching power supply circuit resolution, both are available. Customized fan pcba design are welcome

3) Pushing button control/touch switch control

4) LED display,red,green color for your option;Two‘Eight’seven segment display is also available

5) Buzzer alarm for safety.

6) Competitive price with three-year quality guarantee.

PCBA datails:

Surface Coating	HASL/ plating gold /immersion gold/ Ni/Au plating gold finger/OSP processing/immersion Tin (Sn)
Layers	Single-sided,double-sided
PCB Color	White, yellow, black and red available
Copper Thickness	1 OZ; 2.0OZ available
Board Thickness	1.2 mm-1.6mm
Min Hole Size	0.2mm-0.7mm
Min Line Width	0.1mm-0.3mm
Min Line Spacing	0.1mm-0.3mm
Max board size	flexiable,depends on the water heater plastic panel design
Solder mask type	Green/yellow/black/red/white/blue or transparent photosensitive solder mask and peel off blue glue.
Silk legend color	White/ yellow /black
Data file format for OEM	GERBER file and corresponding drilling file,PROTEL series,PADS2000,POWERPCB series,
Data file format for ODM	Need product specification or datasheet,
Electricity performance & Reliability tests	EMC(Voltage dip test, EFT test, Withstand high voltage test, Current leakage test, Surge test), High & Low chamber test, Humidity test,Salt spray test,and life test.
Various types base material	High TG board, high frequency board(ROGERS,TEFLON) halogen-free board (FR-4,CEM-1,CEM-3)
Certifications	ISO9001:2008,ISO14001,SGS,ROHS; Products comply with REACH & RoHs.

universal split air conditioner electronic control board
