FSTB KSD301 bimetal thermostat 16A 250V thermal protector for Electric heater

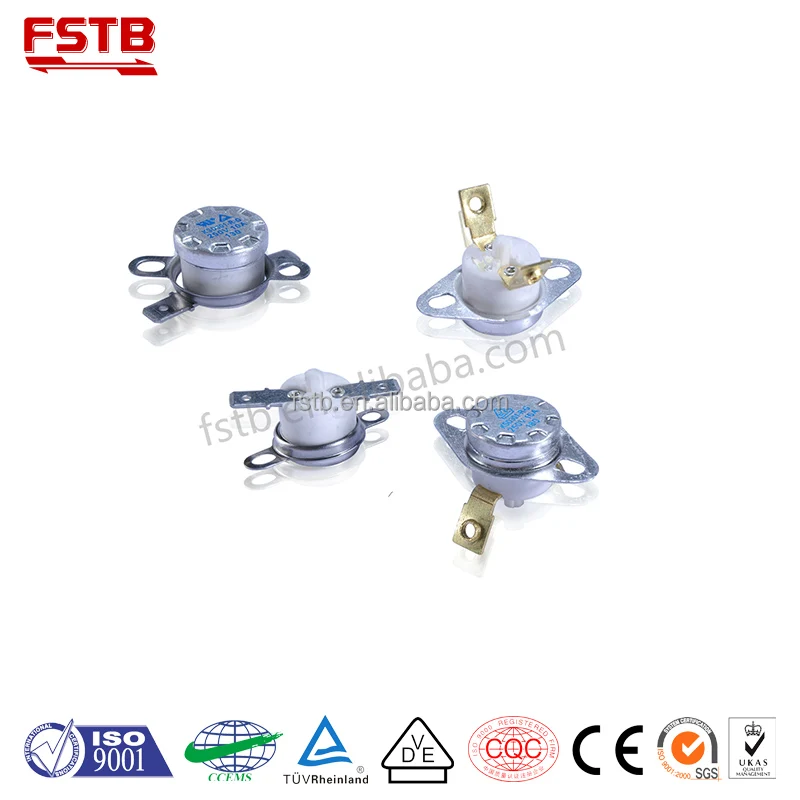

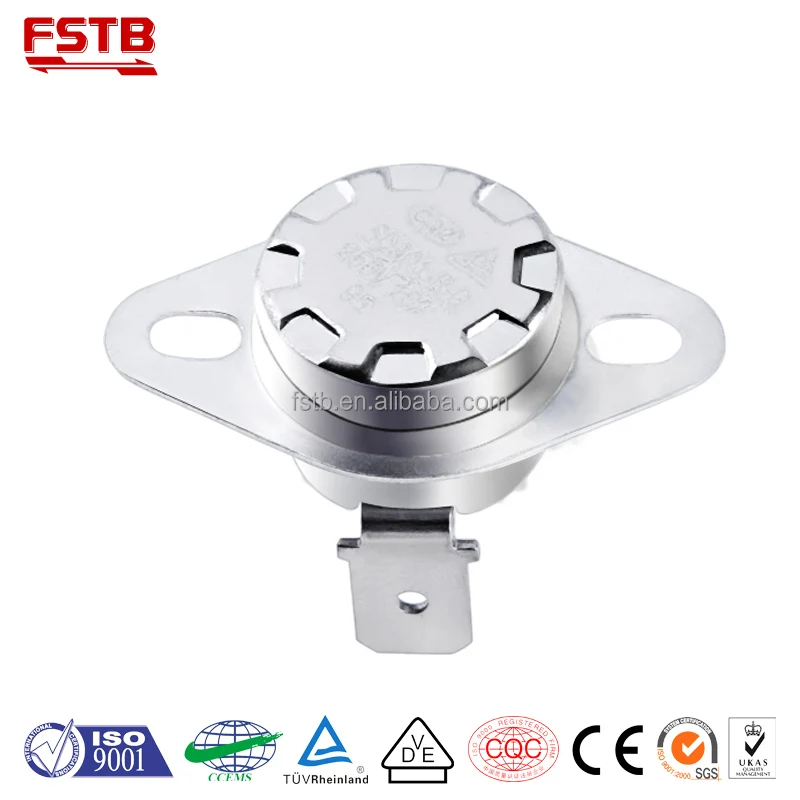

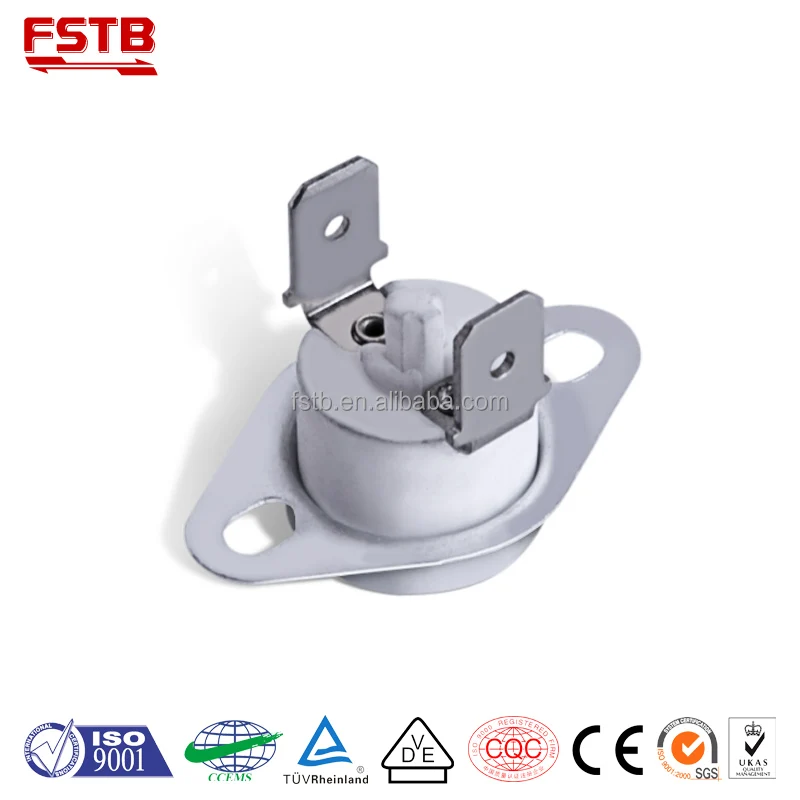

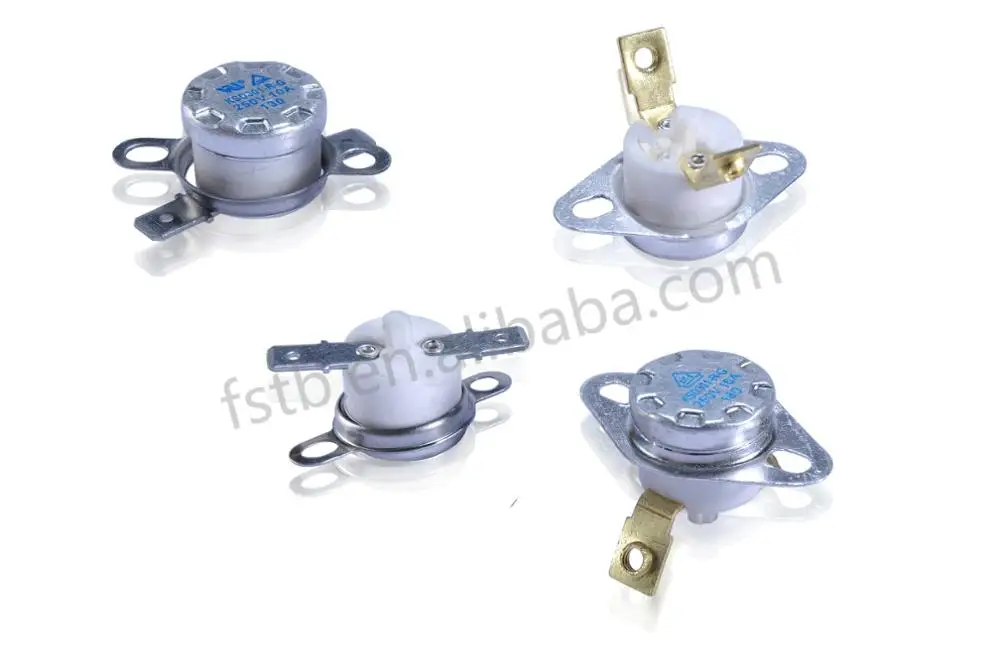

 KSD301-R-G series snap-action thermostat is a kind of miniature hermetically sealed bimetal disc protector (1/2" disc). It is of single-pole single-throw structure and works under resistive load.

 Thsi bimetal switch is in wide use in a great variety of compact type home appliances, such as coffee maker, water dispenser, toaster, microwave oven, electric pad and portable icebox etc., to provide temperature control or temperature protection.(cut off thermostat)

Advantages:

• Easy mounting.


• Rapid heat transmission.


• High durability.


• No breakdown, no flashover.


• Every product will be tested, extremely high temperature pass rate.


• High precision.



Parameter:

Use	Temperature control/Overheat protection
Appliance	Coffee maker/ Drinking machine/toaster/Microwave oven/ Heating/ Portable Refrigerator/etc
Reset type	Manual
Base material	Ceramic base
Amperage	5A/10A/16A
Max. Operating Temperature	220°C
Differential	Refer to the regulation
Tolerance	Refer to the regulation
Protection class	IP00
Contact material	Silver/ Gold
Dielectric Strength	Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.
Insulation Resistance	With a DC 500V megger, borne DC 500V, the tested value is over 10MΩ.
Resistance Between Terminals	Below 50MΩ
Temp. characteristics:	Normal type: OFF temperature higher than ON temperature.(Normal close) One-shot type: The thermostat switches on at room temperature and it won’t be able to reset after switching off.
Maximum ambient temperature	280°C(Long period)
Diameter of bimetal disc	F12.8mm(1/2″)
Approvals	UL/ CQC/ TUV
Terminal type	Customized (Refer to our specification)
Cover/Bracket	Customized (Refer to our specification)

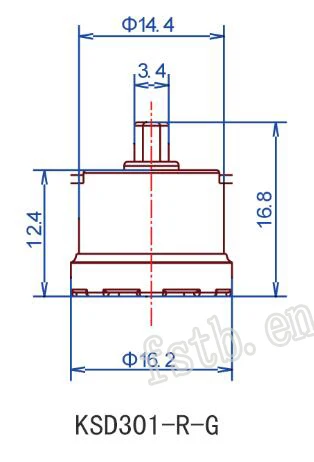

Dimension of the main body:





Safety certificate:

Max. OT	Life	250V 10A	125V 16A	250V 16A
180°C	10,000	UL	UL	CQC,TUV
220°C	10,000	CQC,UL, sec. 2,TUV





Installation and Direction for Use:

• Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.


• The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.


• When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.


• If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.


• The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.


• Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.


• The terminals should be bent, or else, the reliability of electric connection will be influenced.





Major series of snap-action thermostats are as follows:



Series	Diameter of bimetal disc	Max. operating  Temp.	Max.	Switch structure	Service purposes
			rated
			current
KSD301	F12.8mm	280°C	16A	SPST	Temperature control and overheating protection for low-duty electric heating applications.
	(1/2″)
KSD301-U	F12.8mm	280°C	16A	SPST	One shot type fuse for low-duty electric heating applications.
	(1/2″)
KSD302	F22.25mm	125°C	25A	SPST	Temperature control and overheating protection for high-duty electric heating applications.
	(7/8″)
KSD303	F12.8mm	50°C	10A	SPST	Defrosting and temperature compensation for refrigerator.
	(1/2″)
KSD305	F22.25mm
	(7/8″)
KSD306	F22.25mm	120°C	30A	DPST	Temperature control and overheating protection for electric heating applications such as water heater.
	(7/8″)
KSD307	F12.8mm (1/2″)	220°C	20A	SPST	PTC power cut out for electric heater, commercial appliance
KSD308	F19mm	100°C	16A	DPST	Temperature control and overheating protection for electric heating applications such as water heater.
	(3/4″)
KSD309	F12.8mm	280°C	16A	SPST	Temperature control and overheating protection for high temperature heating applications.
	(1/2″)
KSD310	F19mm	50°C	35A	SPST	Defrosting for big current refrigerator, air conditioner or other commercial cooling appliances
	(3/4″)
KSD312	F19mm	200°C	/	DPST	Temperature limiter for rice cooker
	(3/4″)
KSD314	F19mm	220°C	45A	SPST	Temperature control and overheating protection for big current heating applications.
	(3/4″)
KSD315	F19mm (3/4″)	125°C	16A	DPST	Manual reset for water heater protection







NOTE: TERMINALS AND COVERS OF THE  SNAP-ACTION 16A 250V/125V CERAMIC MANUAL THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT FSTB THERMOSTATS.

(  //www.thermostat-gb.com/  )





A: Please offer the specification of the product, such as operating temperature, volt, current, application, quantity etc. Picture or drawing are welcome for our reference.



Q2: What is the MOQ?

A: Normally our MOQ is 1000 pcs. Larger quantity could win lower price.



Q3: What about the lead time?

A: It usually takes about only 7-15 days to produce KSD thermostat, KST thermostat and capillary thermostat would take longer time, which is about 30 days.



Q4:Which payment terms you can accept?

A: T/T, Western Union, L/C



Q5:Guarantee?

A: We offer 3 year guarantee.
