smd 3535 45V High Voltage 2W white High Power led chip
- Category: >>>
- Supplier: SUPER BRITE LTD.SUPER LTD.
Share on (60681793627):
Product Overview
Description
Specification
3535 2W HV 45V Power LED
AT3535H45-2LEXX-RX
All Brite 3535, is one of the smallest high power LED footprint available by All Brite,
has offered extended solid-state lighting design possibilities.
All Brite 3535 is designed with All Brite own Patents and using copper leadframe,
the best thermal material of the world.
All Brite 3535 qualifies as the JEDEC Level 1 MSL sensitivity level
and suitable for SMD process, Pb_free reflow soldering capability,
and full compliance with EU Reduction of Hazardous Substances (RoHS) legislation.
Product Description
Features
•100% foot print compatible with
Cree XP-C / XP-E / XP-G
•Best thermal material solution of the worldCree XP-C / XP-E / XP-G
•Best Moisture Sensitivity: JEDEC Level 1
•RoHS compliant
•High flux per LED
•Good color uniformity
Typical Applications
•LED bulb
•Indoor Lighting
•Outdoor Lighting

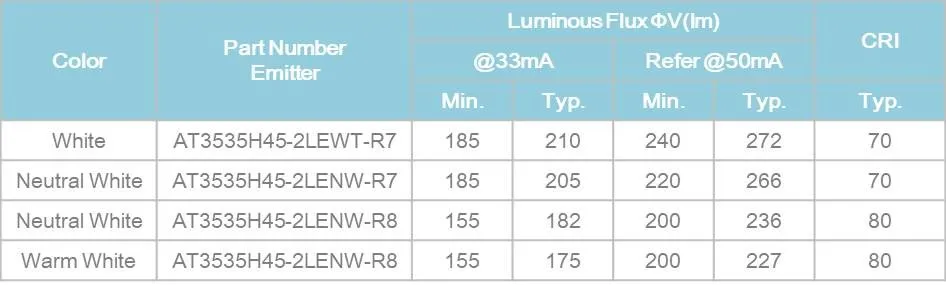

Flux Characteristics, TJ= 25°C

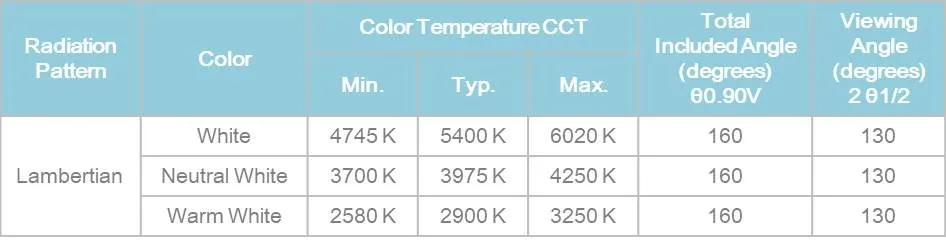

Optical Characteristics at 33mA, TJ= 25°C

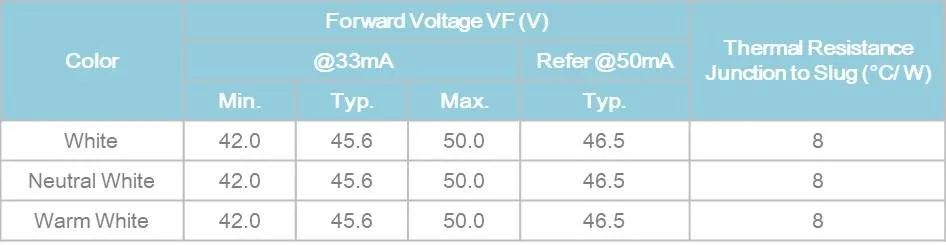

Electrical Characteristics at 350mA, TJ= 25°C

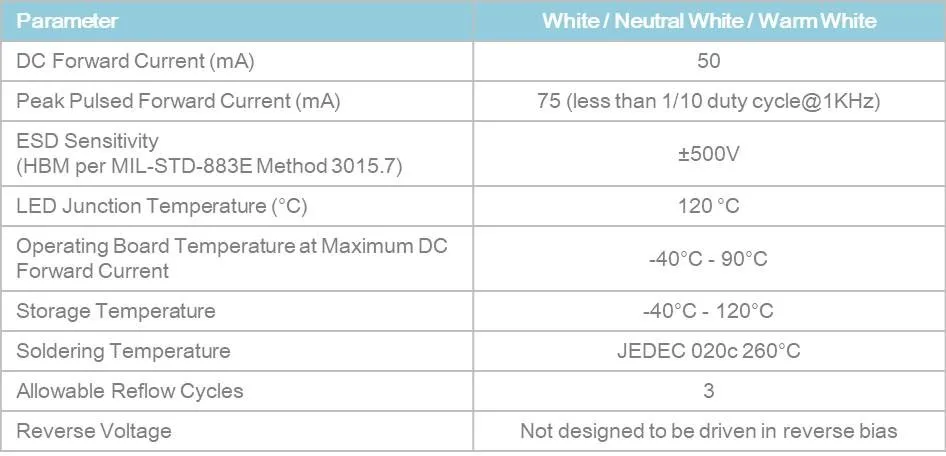

Absolute Maximum Ratings (Ta=25℃)

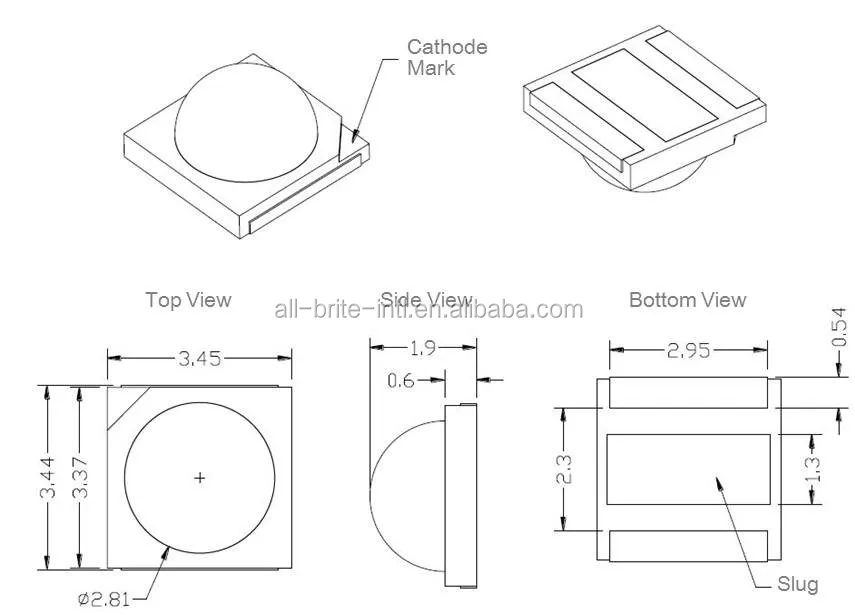

Mechanical Dimension
Emitter Reel Packaging
Recommended Products
Company Information
Certifications
Payment Terms
We accept official Bank Wire transfer and for sample amount payment customer can use
Paypal, Western Union, Alipay and Ecrow …etc.
Shipping Delivery
We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS …etc.
Also, Air Freight and Sea Freight depends on clients needs.
FAQ
Q1. Sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Lead time?
A:1-2 weeks depends on different items
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q5. How to process an order?
A: please kindly contact us for more detail
