Автоматические резиновые роликовые детали для рисовой мельницы

Product Overview

Description

Auto rice mill huller rubber roller parts price

Auto rice mill

Brand: The brand of "Hongqi bridge" has high market share, and is the first choose of customer all the time. we also accepte  the OME order with your logo.





Principle of Operation:
If a grain of paddy is pressed between two resilient surfaces moving at different speeds in the same direction, the husk will be stripped off. The picture shows the operational principle of the modern rice sheller whose rollers have the same diameter but revolve at different angular speeds.

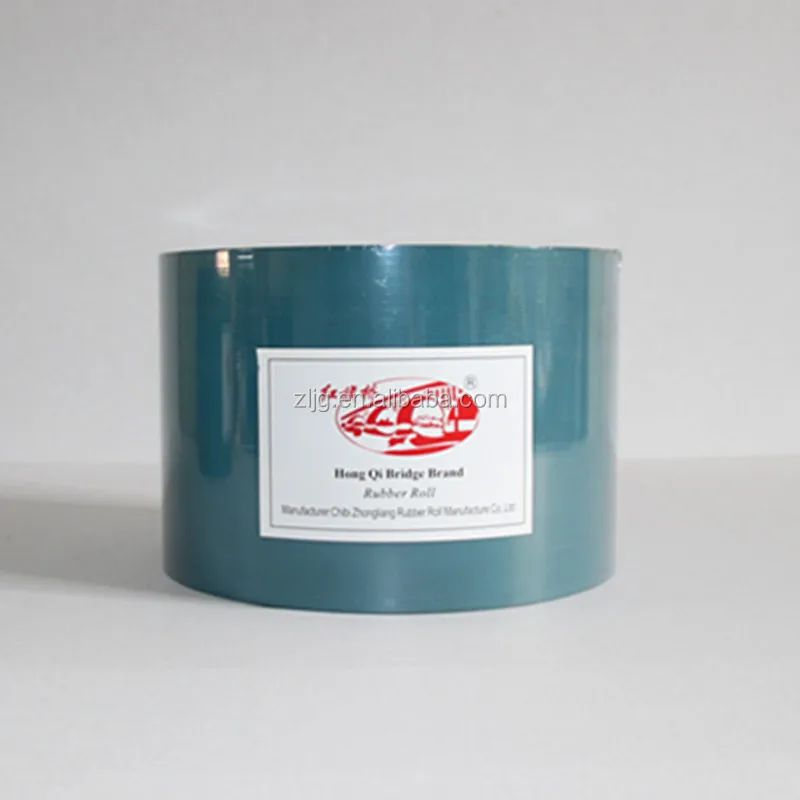

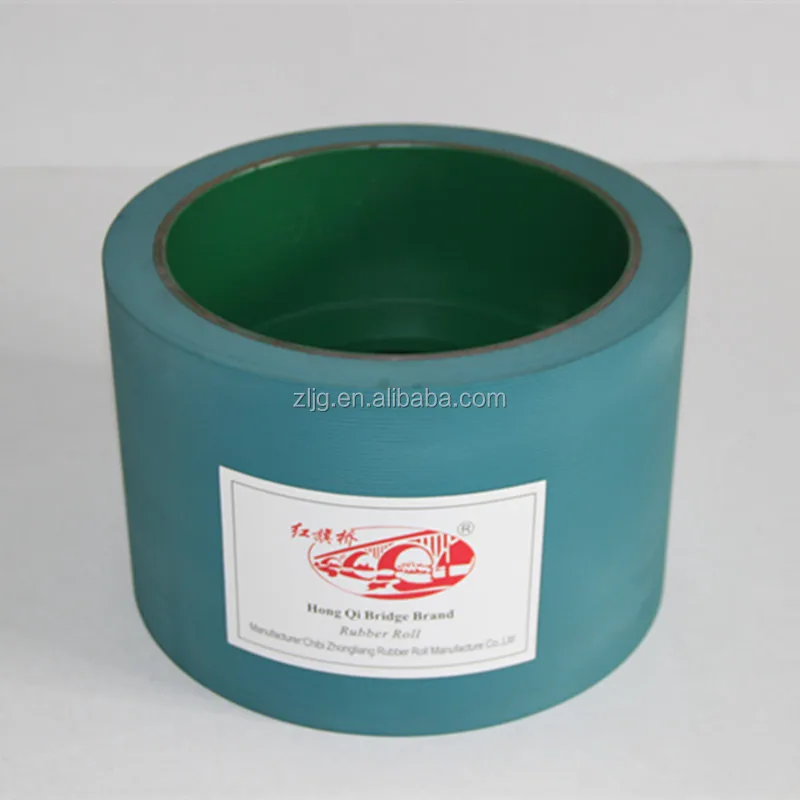

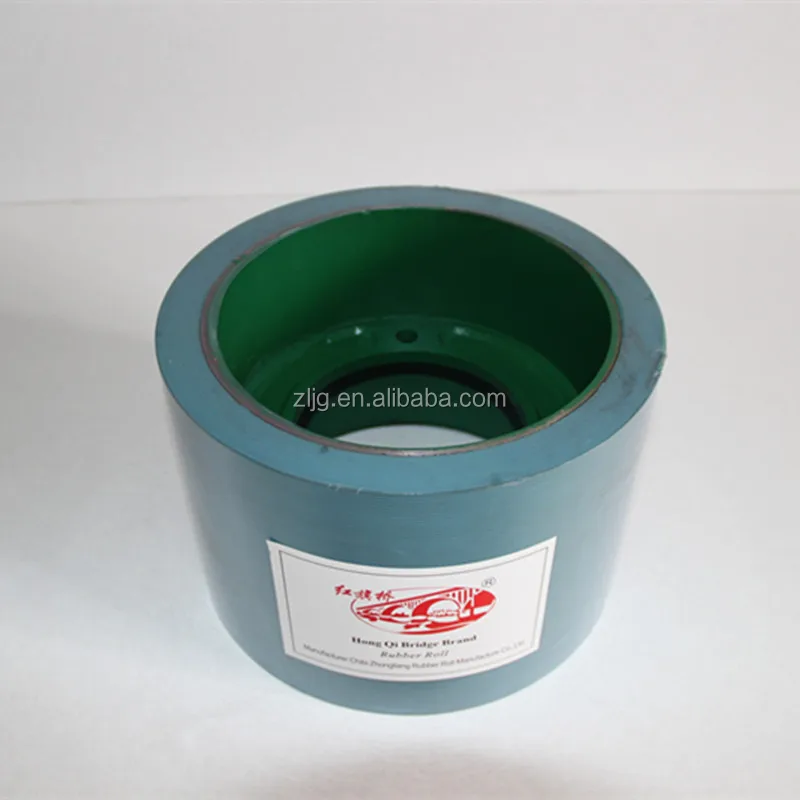

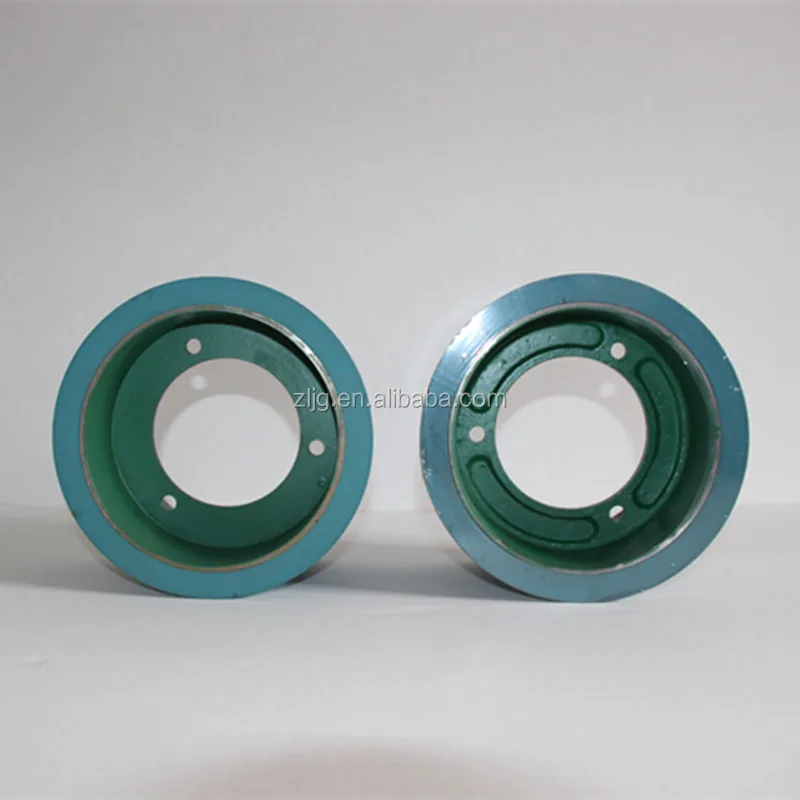

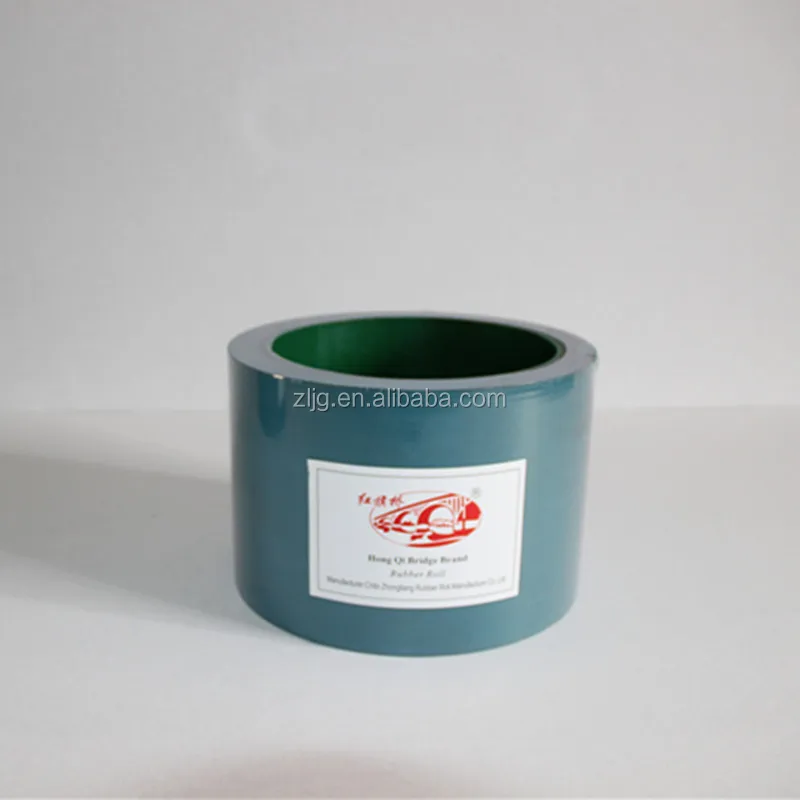

Variety: Rubber roller for hulling rice,paddy hulling rubber roll,6'' SBR paddy hulling rubber roll



Specification:

Type	Inch	External diameter	Length	Thickness of rubber
Wheel Type	4”	222 mm	100 mm	19.5 mm
	6”	222 mm	152 mm	19.5 mm
	8”	225 mm	200 mm	25 mm
	10”	255 mm	254 mm	24.5mm
Casing Type	14”	227 mm	355 mm	29.5 mm
	18”	232 mm	457 mm	30.5 mm
	20”	258 mm	508 mm	30.5 mm
	25”	255 mm	635mm	30.5mm
	28”	255mm	710mm	30.5mm
Color	Blue
Hardness Shore A	95±3°
Tensile Strength	≥21.0(Mpa) [Superior to international advanced level]
Elongation Rate	≥250%     [Superior to international advanced level]
Brand	Hong QI Bridge, Tiger & Lion, JinBao



Features:





Attention matters:

1.Handle carefully during the transportation.

2.Store in dry place,away from Acid,Alkali,Salt,oil and dirty,forbidden to put under sun for long time.

3.Take sands away from the paddy,keep paddy dry and cleaning when using the rollers.

4.Two rollers should be at the same level,the space must be equal.

5.The paddy inputting should be keep the balance.

6.Keep the rate of the re-hulling under the limited.

7.Don't make the machine work for a long time,in case effecting the hulling capacity.

8.The surrounding temperature is better under the 50°C.

9.Change the fast and slow roller at a certain time.







Usage and Attention



1. Optional of Rubber Roller: For the choice of  the black, brown and white rubber roller with  hardnes shore A 90^oC and 95^oC, it should be according to the type of rices, climate conditions, and different seasons.Try to avoid to use the single roller,  the recommended way is higher hardness for fast roller, lower hardness for slow roller.







2.Temperature and Hardness Control: The proper hardness is shore A 82-86^oC, and the temperature is below 50^oC. When the temperature reaches above 60^oC,  the hardness of roller should be reduced 4-8^oC







3. Alternative use of rubber rollers is recommended:
A: It can increase the usage life of roller and quantity of dehusking rice.



B: Each roller has break time during the working, which is good for recoving the function of rubber, adjusting the speed difference



    upon on different diameters, and controlling the temperature effectively.







4. Two rollers should be at the same level to keep the space equal.







5. The paddy inputting should keep the balance.







6.  Keep the rate of the re-hulling under the limitation







7. Storage:



A: Avoid the direct sun shine and soaked in the rain and snow.



B: Away from the heating device about 1.5m.



C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.



D. Keep the room temperature 10-30^oC, comparative moisture 50-80^oC
E. Keep in vertical position,  horizontal is not allowed.



F. No other materials pressure on it, no hitting to avoid deformation and damage
G. Validity of storage life: one year.
