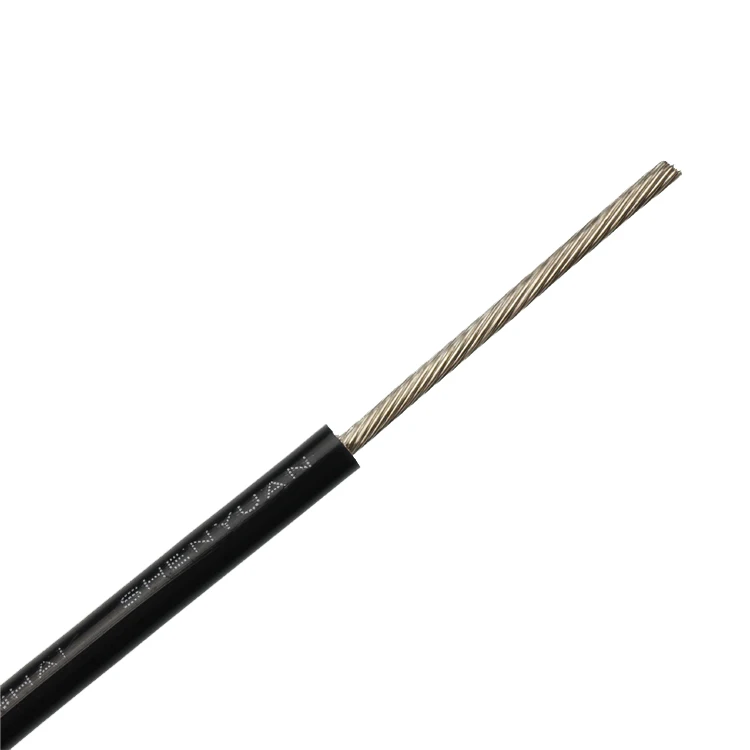

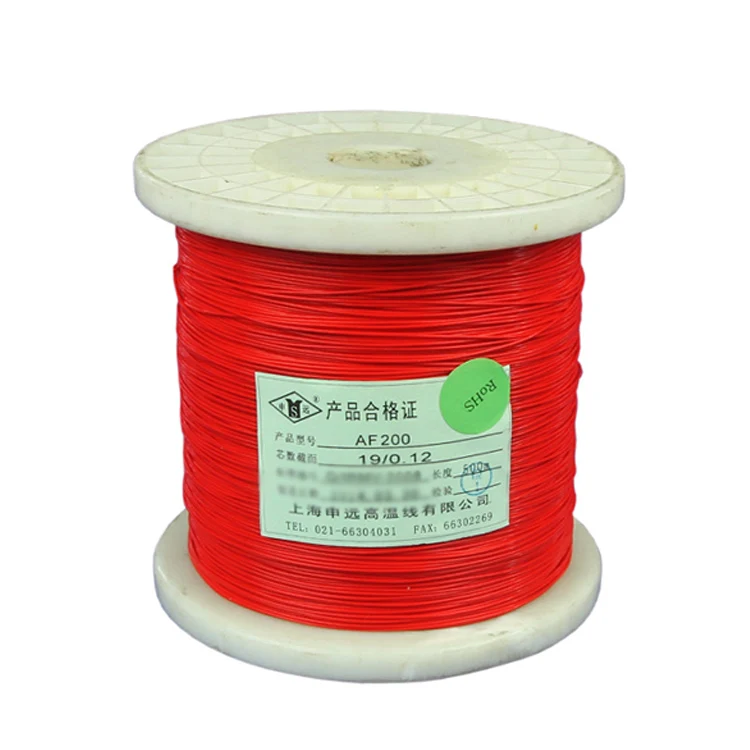

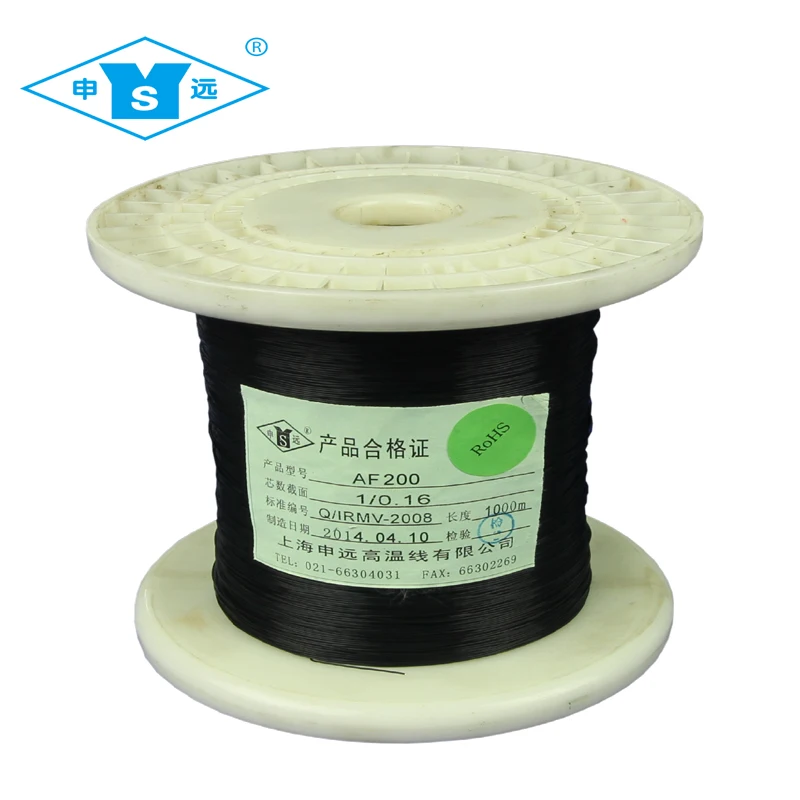

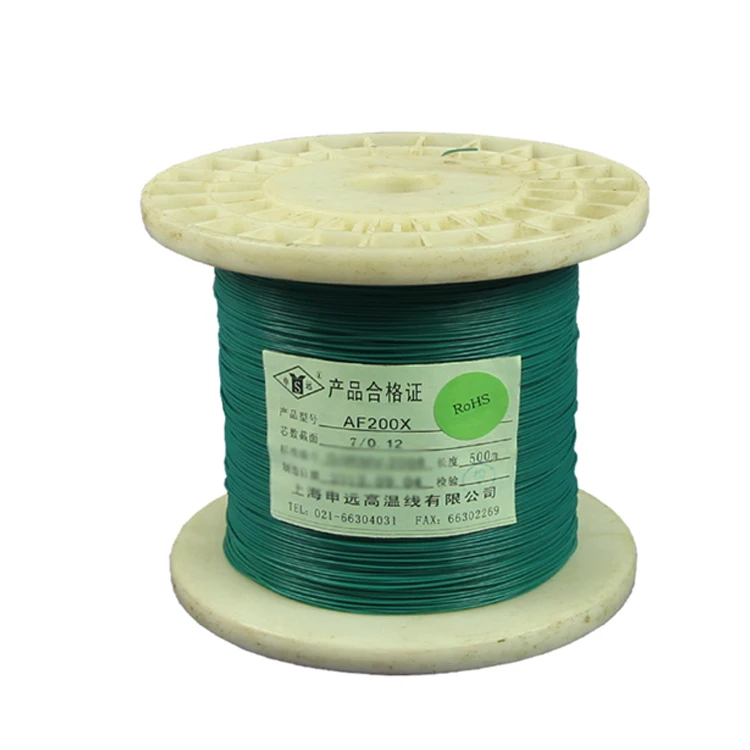

AWM1332 20 AWG Stranded Tinned Copper FEP wire

Product Overview

Description



1) Product: FEP WIRE
2) Style No.: AWM1332
3) Size: 32AWG~2AWG
4) Rated Voltage: 600V
5) Rated Temperature:-100°C~+200°C
6) Conductor: tinned, silver or Nickel copper
7) Insulation: FEP

8) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc



Product features
Has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Applications
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.



AWG	Conductor construction NO.×mm	Insulation Thickness mm	Outer Diameter mm	m/coil
10	37×0.43	0.33	3.67	305
12	19×0.49	0.33	3.11	305
14	19×0.37	0.33	2.51	305
16	19×0.30	0.33	2.16	305
17	19×0.26	0.33	1.96	305
18	19×0.23	0.33	1.81	305
20	19×0.18	0.33	1.56	305
20	1×0.80	0.33	1.46	305
22	19×0.16	0.33	1.46	610
22	1×0.65	0.33	1.31	610
24	7×0.20	0.33	1.26	610
24	1×0.50	0.33	1.16	610
26	1×0.40	0.33	1.06	610
28	1×0.32	0.33	0.98	610
30	1×0.254	0.33	0.914	610
