Product Overview
Description
MACHINES SALES GUIDE:
BEFORE YOU READ FOLLOWING INFO., PLEASE PERPARE YOUR QUESTIONS TO GET MY SPECIFIC TURN-KEY SOLUTION OFFER FOR YOU. CHEERS!
1. What's your tin can look like and special requirement?
2. What's your tin can Dimensions?
3. What's your demand for production capacity (CPM)?
4. More information please go to www.jeitco.com
| Related Equipment |

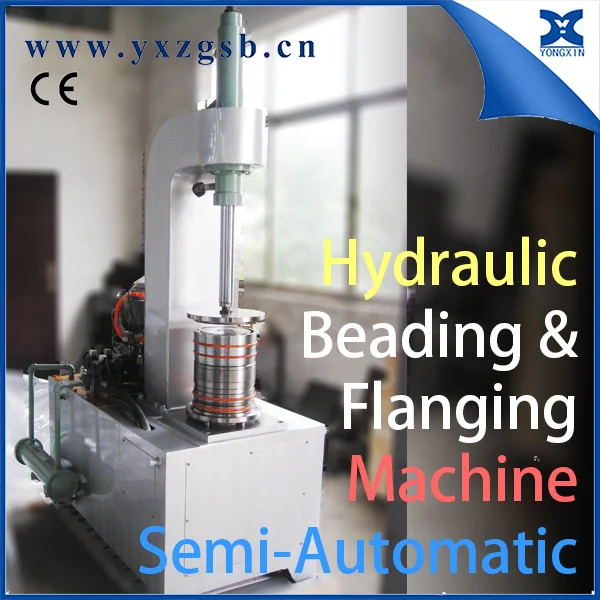

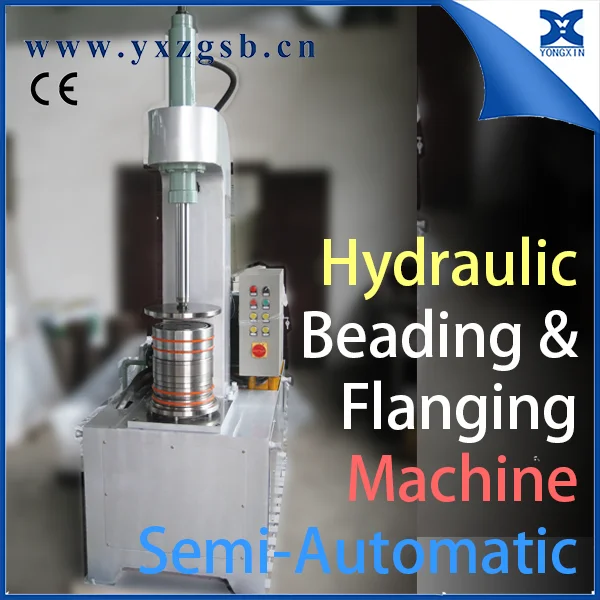

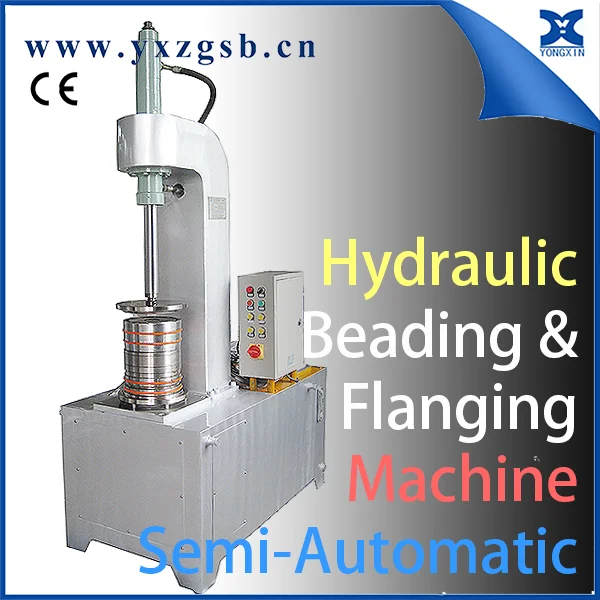

Semi-Automatic Pedal Hydraulic Drive Beading and Flanging Machine for 10-20L Pail Making
| Specification |
| Model | GT3B18Y |

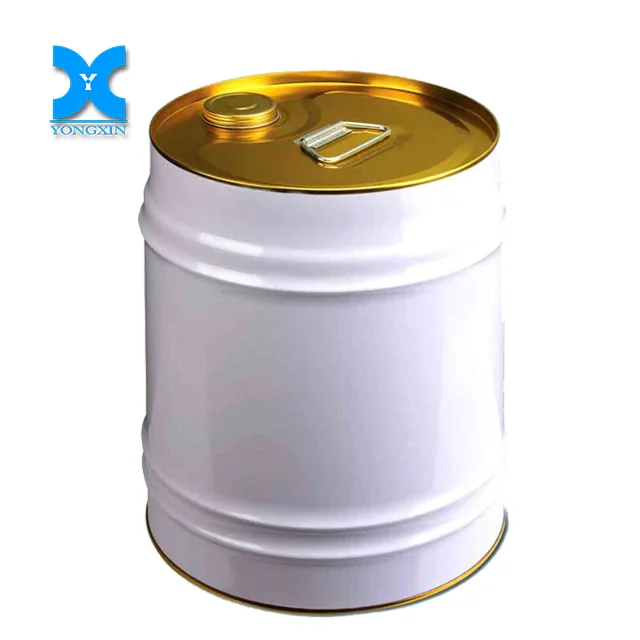

| Usage | Mainly apply for 10-20L Steel Pail beading & flanging |
| Operation Mode | Semi-Automatic Pedal Switch Operate Hydraulic Drive |
| Output Capacity (CPM) | 10-15 cans per min. (Operator Dependent) |
| Range of Pail Diameter | 220 - 300 (mm) |
| Range of Pail Height | Less 370mm |
| Feeding Mode | Manual Feed-in |
| Pail Body Thickness Range | less 0.5mm |
| Support Pail Material | Tinplate / Steel-based / Chrome |
| Pail Body Material Hardness | T2.5-DR8 |
| Forming Die Changeable Function | Provided |
| Top End+Bottom End Forming Die Function | Flanging |
| Lower End Forming Die Function | Beading |
| Tailor Made Beading Position | Provided |
| Forming Dia Material | High-grade Alloy Tool Steel (Cr12MoV) |
| Power System Overload & Short-Circuit Protection | Provided |
| Main Frame Material | High Strength Steel for Canmaking |
| Protection Grade for Electrical Switch-gear Box | Class Index IP65 |
| Standard | IEC60947 for Electrical Sys. |
| Electrical Control & Distribution Sys. Provider | Schneider Electric + Omron |
| Hydraulic Assy. Provider | COMPASS |
| Pedal Switch Provider | CHINT |
| Motor Provider | SIEMENS |
| Motor Power | 5.5KW |
| Power Supply Required | 380V AC 50/60Hz Three-phase sys. |
| Weight | 1080KG |
| Construction Size | 1500 X 900 X 2300 (mm) |
| Shipment Lead time | 4-8 weeks from order |
| Packaging | Plywood Case (Standard Export Packaging) |
| Warranty | 1st Year FREE CHARGE for parts from shipping date + Lifetime services |
| Operator Manual & Instruction | PDF / Printed paper provided |
