Product Overview
Description

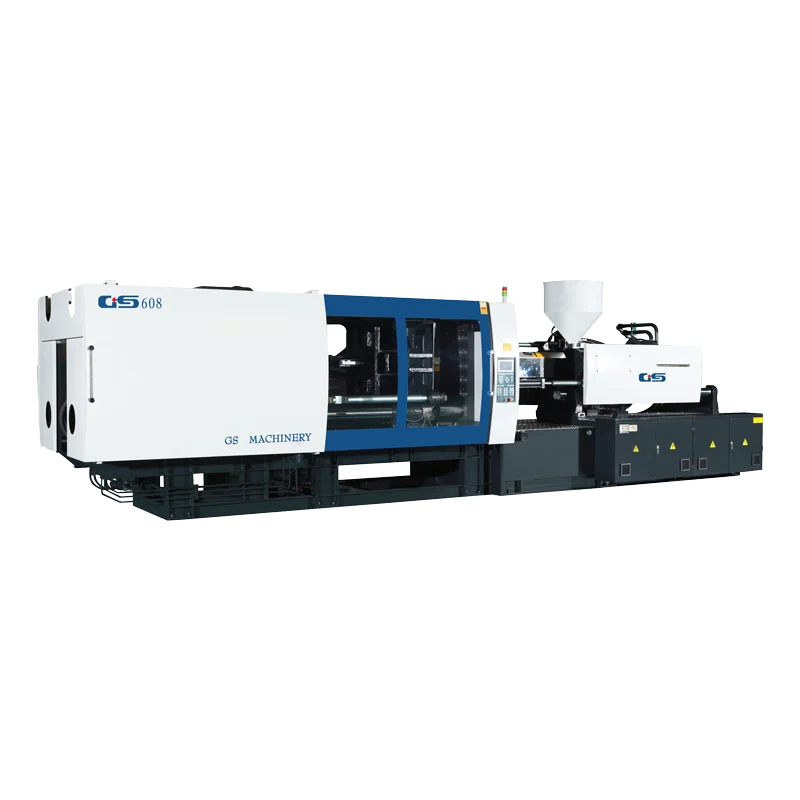

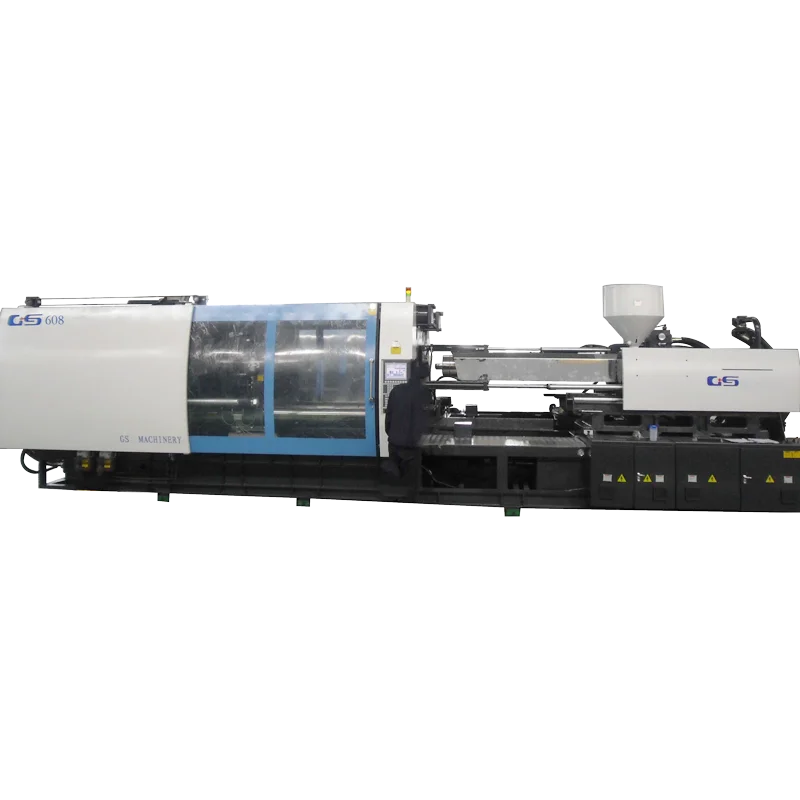

GS608V small injection plastic molding machine controller price
GS-V
GSV- variable pump energy-series
GS-V variable pump series injection molding machine is the company's energy-saving light precision plastic products, using international advanced variable pump control technology. The model uses a high response proportional variable system, so that the actual output power consumption of injection molding machines and hydraulic system to match the machine running, avoiding the loss of high pressure throttling overflow of energy, compared with the general quantitative pump machine can save 30 % ~ 50%, economic benefit.
In addition, the machine made to reduce the heat, you can reduce the amount of about 30% of the cooling water, reducing noise around the machine and increase the service life of the oil hydraulic seals and hydraulic oil, making the machine usage and maintenance costs greatly reduced, but also in line with current international stringent environmental requirements. GS-V series variable pump injection molding machine for its superiority can bring to our customers a more significant economic benefits.
GS-V variable pump injection molding machine, and its superior performance mainly in:
1. saving 30 to 50 percent;
2.system, fast response, short cycle times;
3.oil heating system greatly reduced;
4.mitigate the impact of the lock mode to extend the life of machinery and mold;
5. hydraulic system to extend life and reduce maintenance times, save a lot of maintenance costs;
6. high precision hydraulic oil with high precision return oil filter
We welcome foreign businessmen to visit to visit the guide, we will spare no effort to provide customers with more comprehensive, more
professional, more detailed services to win new customers trust and support.
Main Features
1. After preform injection, the heat is used for bottle blowing, no need of preform packaging, storage, reh- eating and other working procedures.
2. Less land occupation, simple management, high degree of automation, less labor intensify (1 person can control more than 3 machines).
3. With a temperature adjustable station, suitable for complicated shape, difficult forming products (such as PP IV-solution bottles).
4.The compact structure greatly shortens the production cycle and enhances productivity.
5.Adopt variable pump and servo motor, maximally reduce energy consumption.
6.The replacement of the mold cost is far lower than similar foreign equipment.
Technical parameters
Model Sorts | Unit | GS608 | ||||
A | B | C | D | |||
Injection unit | Screw Diameter | Mm | 80 | 85 | 90 | 100 |
Screw L/D ratio | L/D | 21.2 | 20 | 18 | 17.6 | |
Theoretical shot size | Cm3 | 2362.5 | 2667 | 2990 | 3691.4 | |
Injection weight (PS) | g | 2150 | 2427 | 2721 | 3359 | |
Injection pressure | Mpa | 201 | 178.6 | 159.3 | 129 | |
Injection rate (PS) | g/s | 505 | 568 | 700 | 832 | |
Plasticizing capacity (PS) | g/s | 97.4 | 109.2 | 134.8 | 163.1 | |
Max screw speed | Rpm | 0-130 | ||||
Injection stroke | Mm | 470 | ||||
Clamping unit | Clamp tonnage | KN | 6080 | |||
Toggle stroke | Mm | 900 | ||||
Tie bar space (H*V) | Mm | 880*880 | ||||
Max. mold height | Mm | 880 | ||||
Min. mold height | Mm | 350 | ||||
Daylight opening | Mm | 1780 | ||||
Ejector stroke | Mm | 250 | ||||
Ejector tonnage | KN | 158 | ||||
Ejector number | Pcs | 21 | ||||
Others | System pressure | Mpa | 16 | |||
Pump motor power | Kw | 55 | ||||
Heater power | Kw | 44.45 | ||||
M/C dimension (L*W*H) | M | 8.63*2.27*2.45 | ||||
Net weight | T | 29 | ||||
Hopper capacity | Kg | 100 | ||||
Oil tank capacity | L | 640 | ||||

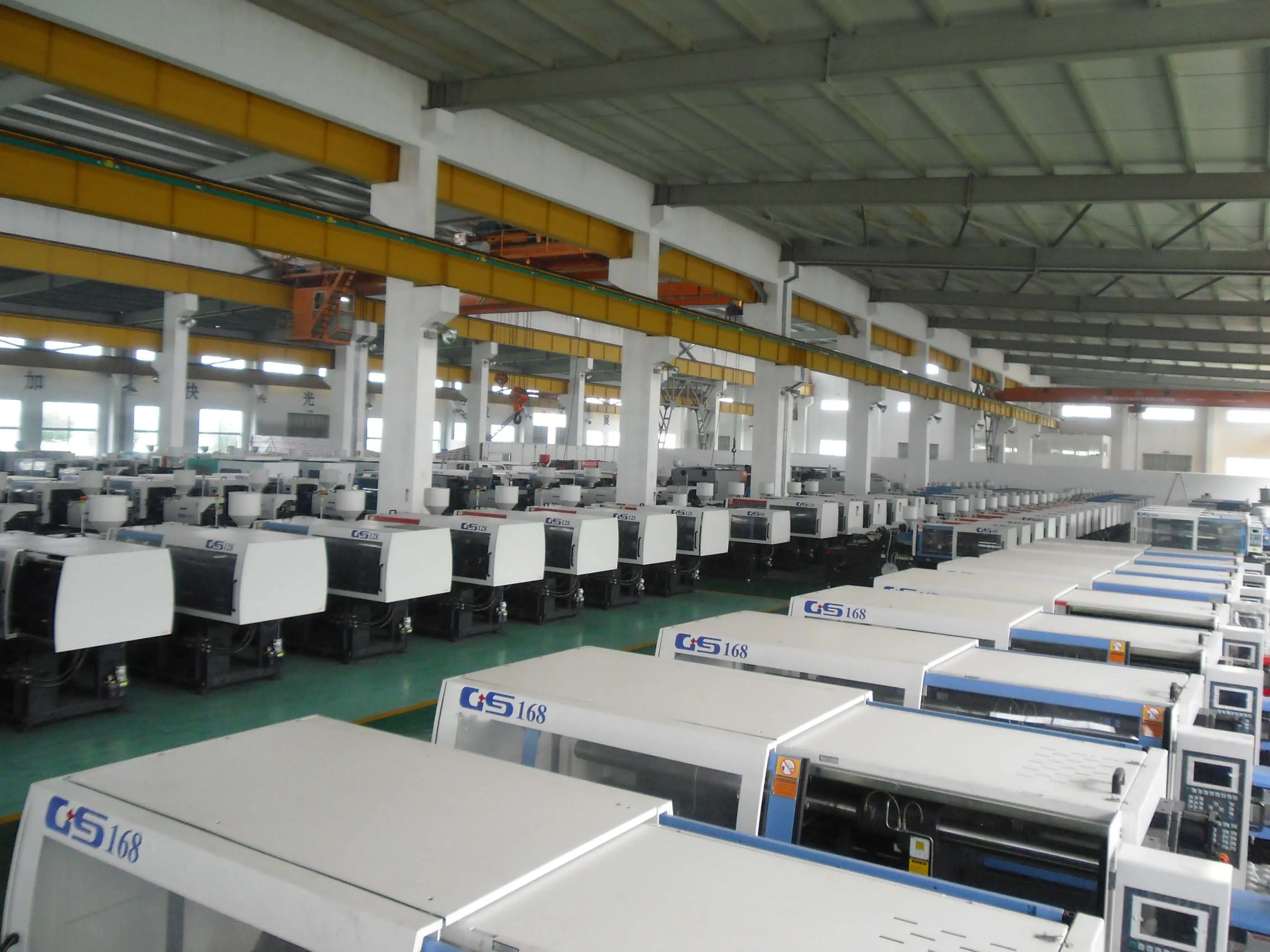

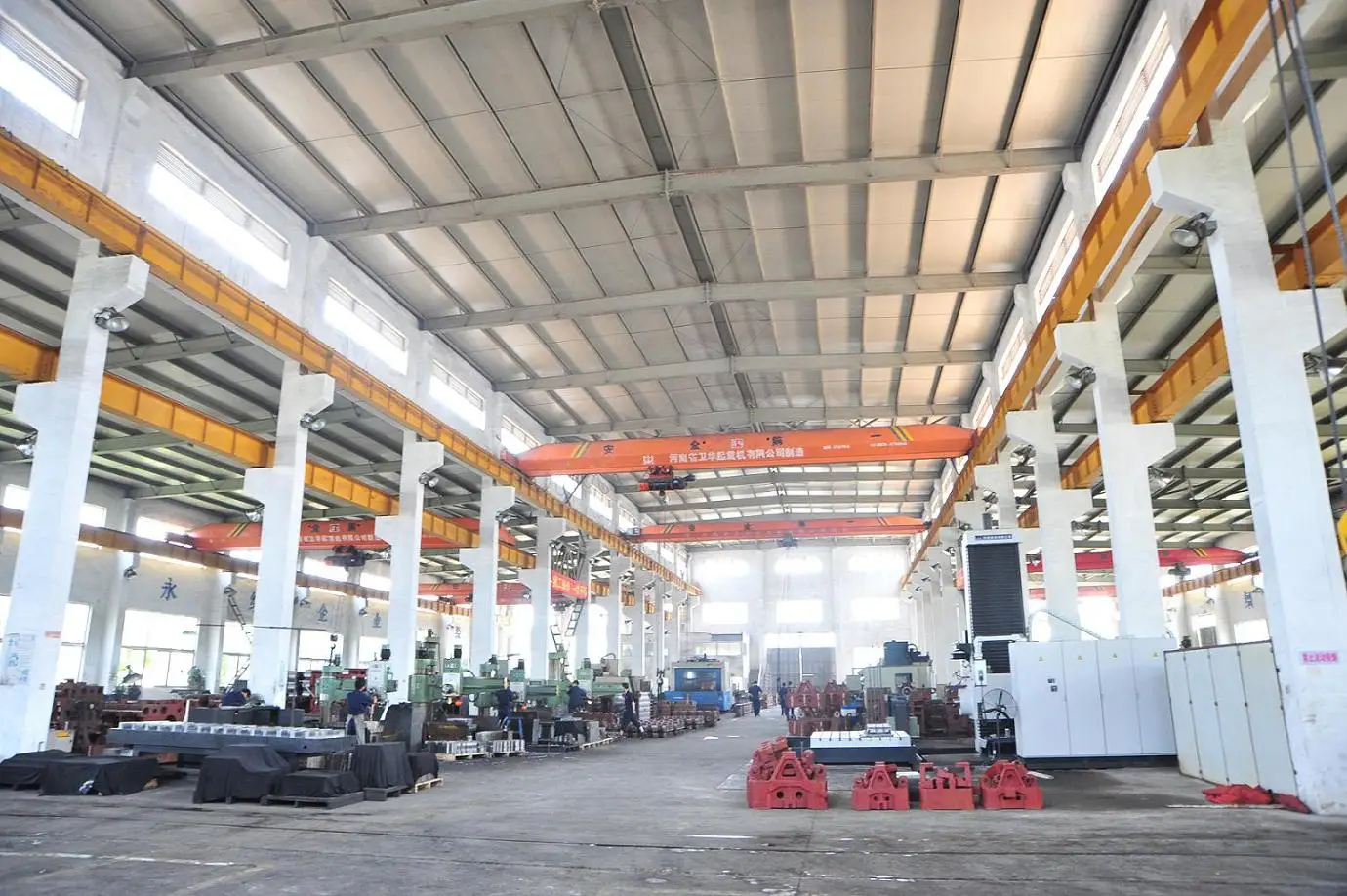

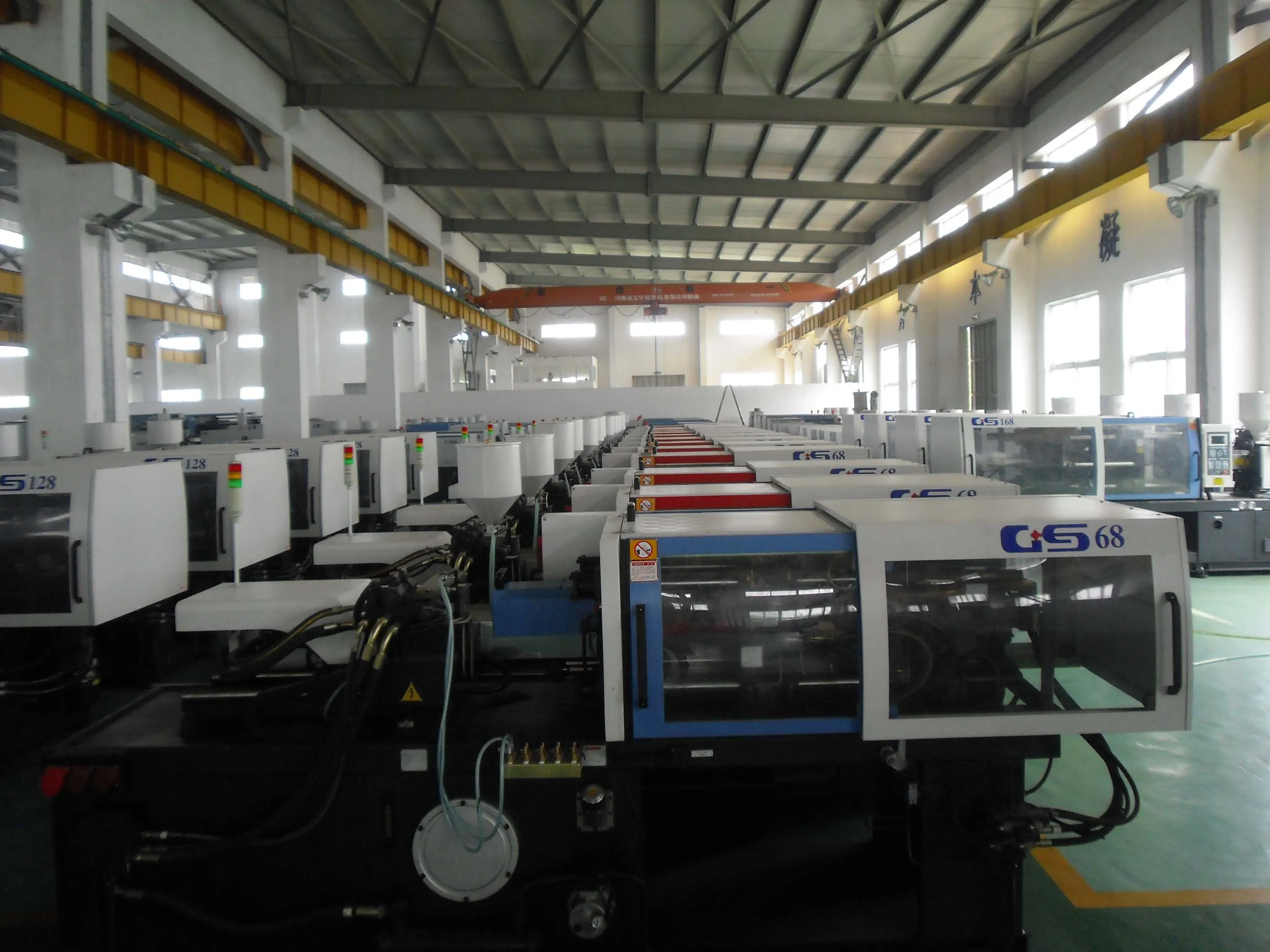

Shanghai-Plastic Machinery Manufacturing Co., Ltd. is located in Shanghai's Songjiang Science and Technology Park, with a total area of
238 acres. Its transportation is very c- onvenient, located in the Shanghai-Hangzhou Expressway and the same three motorway- at the exit
port, and is adjacent to the city of Shanghai University and Shanghai Metro Li- ne 9 Terminal --- Songjiang Xincheng Station.
