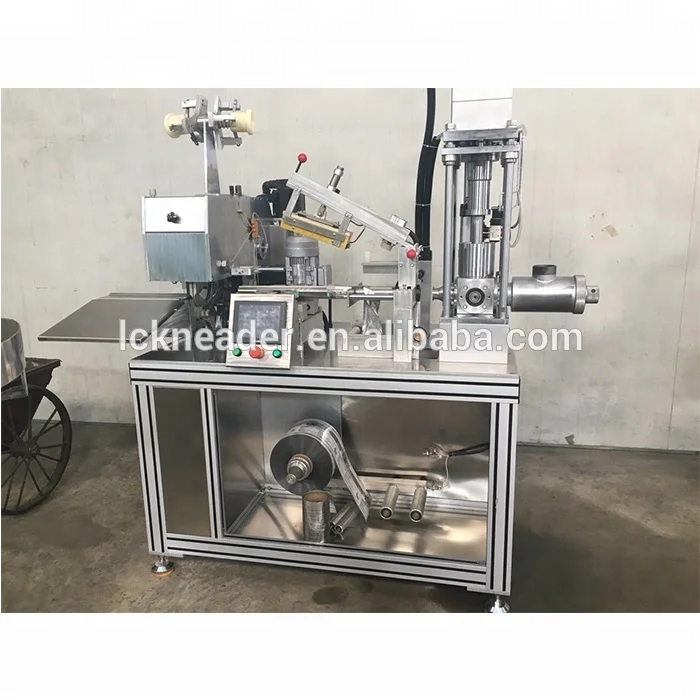

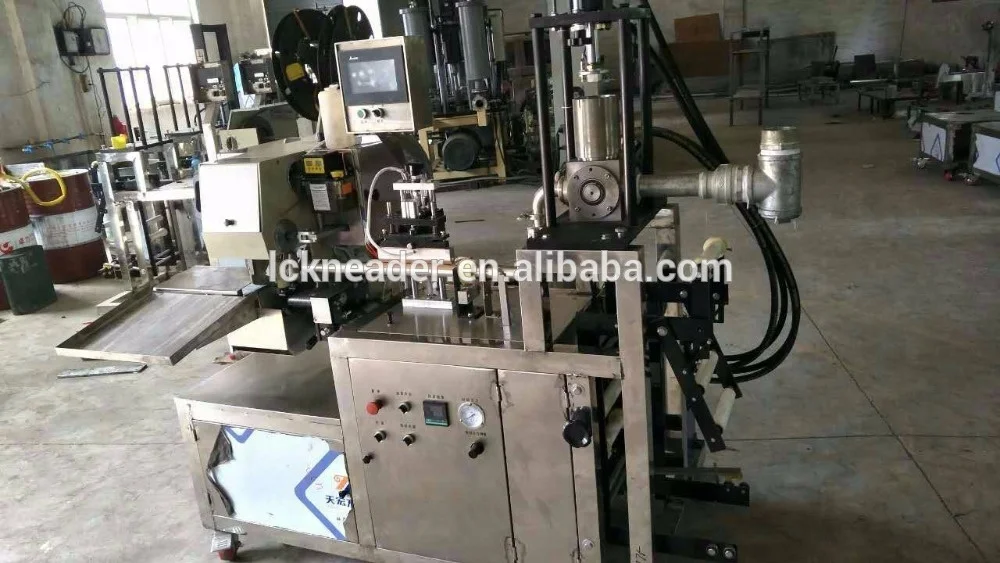

silicone sealant cartridge filling machine
- Category: >>>
- Supplier: Rugao Lianchuang Kneader Machinery Co. Ltd.
Share on (60681893744):
Product Overview
Description
Product Description
Sealant filling package machine in sealant producing line:

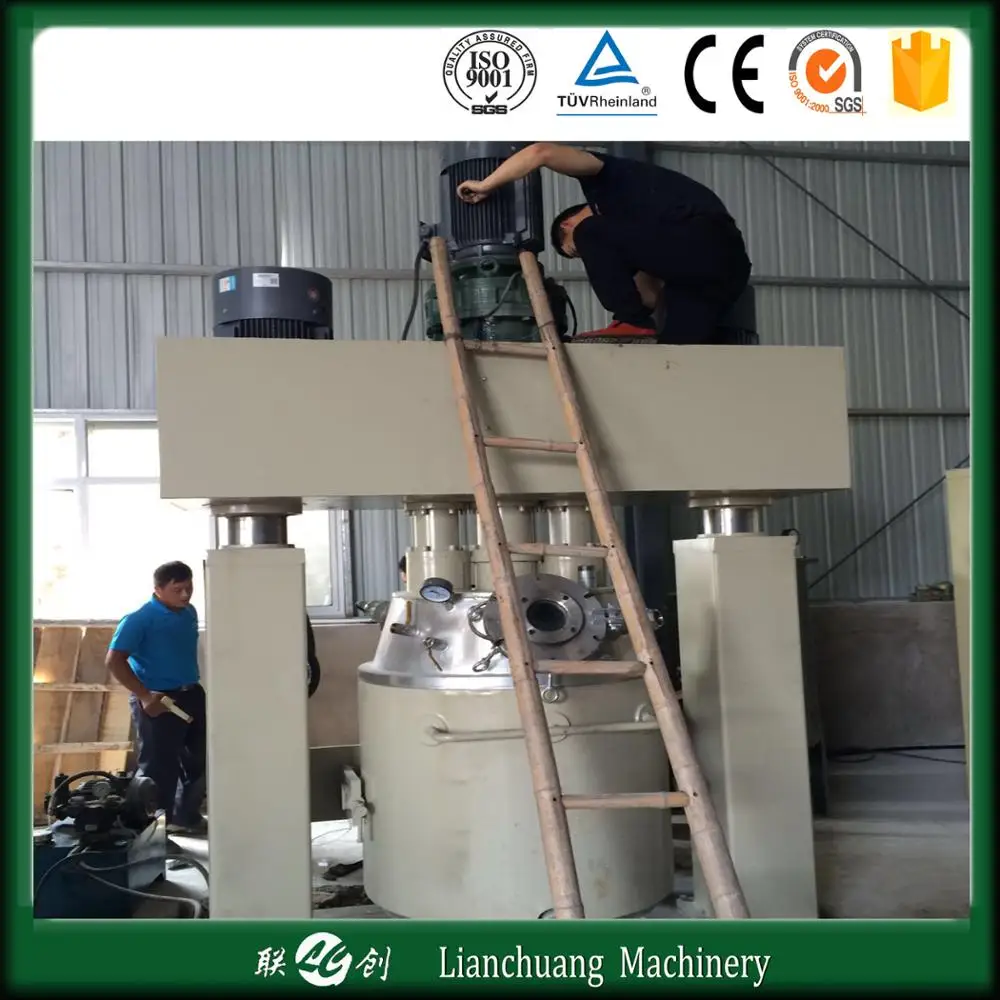

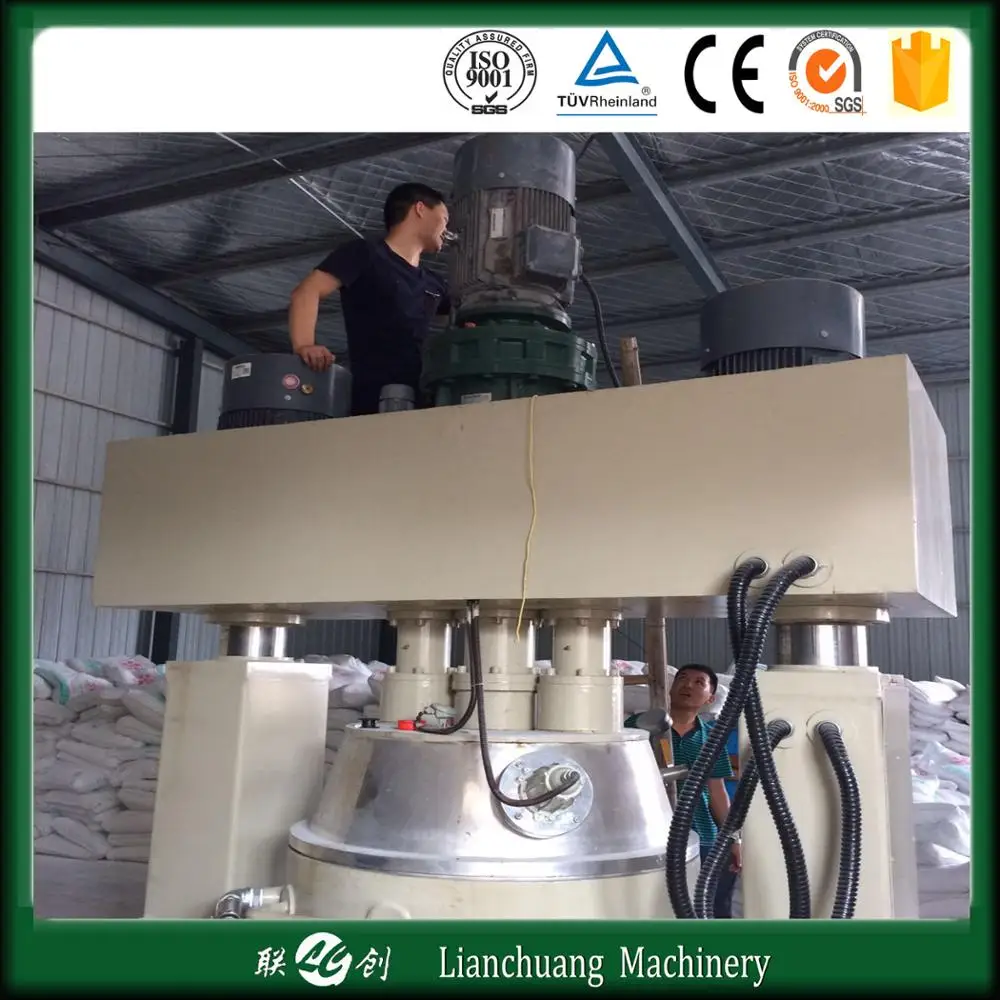

1. Dispersing machine
Specification of the Disperser Machine
| Item No | Volume | Working Volume | Power(Main Motor+2 High Speed Motors) | Vacuum | Cooling Way | Discharge |
| 1 | 300L | ≈240L | 7.5kw; 11KW, 11KW | -0.095Mpa | Cool water | Botton Valve |
| 2 | 600L | ≈480L | 18.5KW; 22KW, 22KW | |||
| 3 | 1100L | ≈880L | 22KW;37kw, 37KW | |||
| 4 | 2000l | ≈1600L | 37KW; 45kw, 45KW | |||
| 5 | 4000L | ≈3200L | 45KW; 55kw,55KW | |||
| 6 | 5000L | ≈4000L | 45kw; 55kw,55kw |

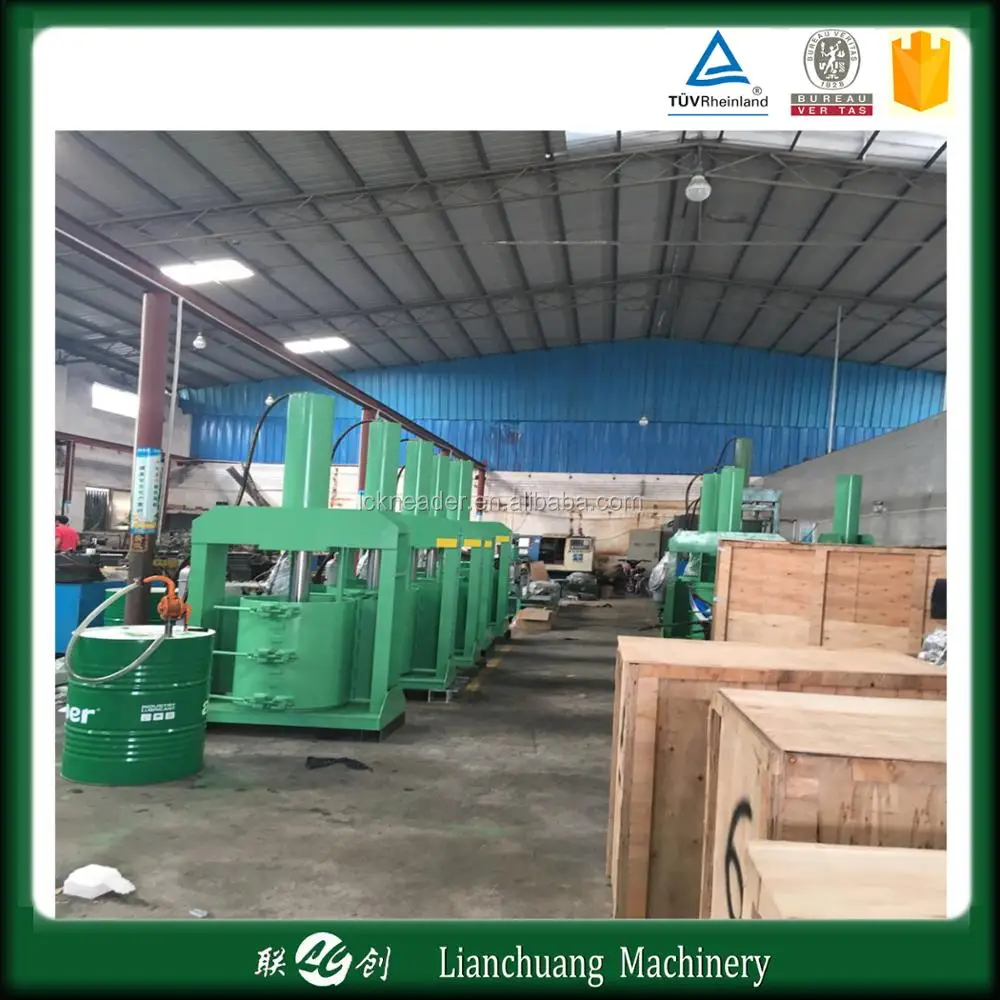

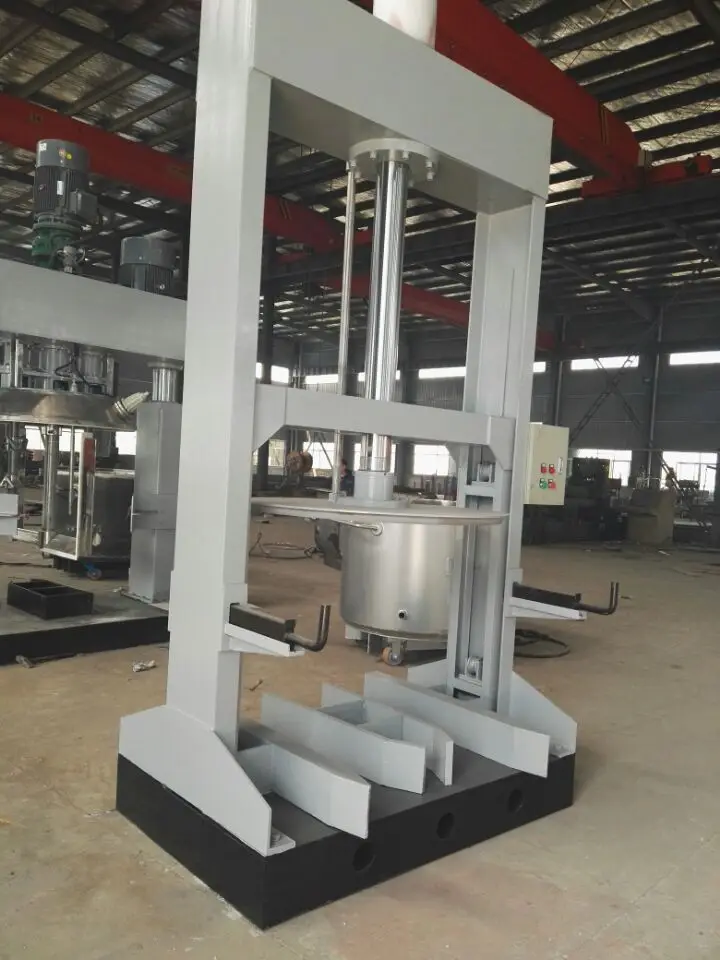

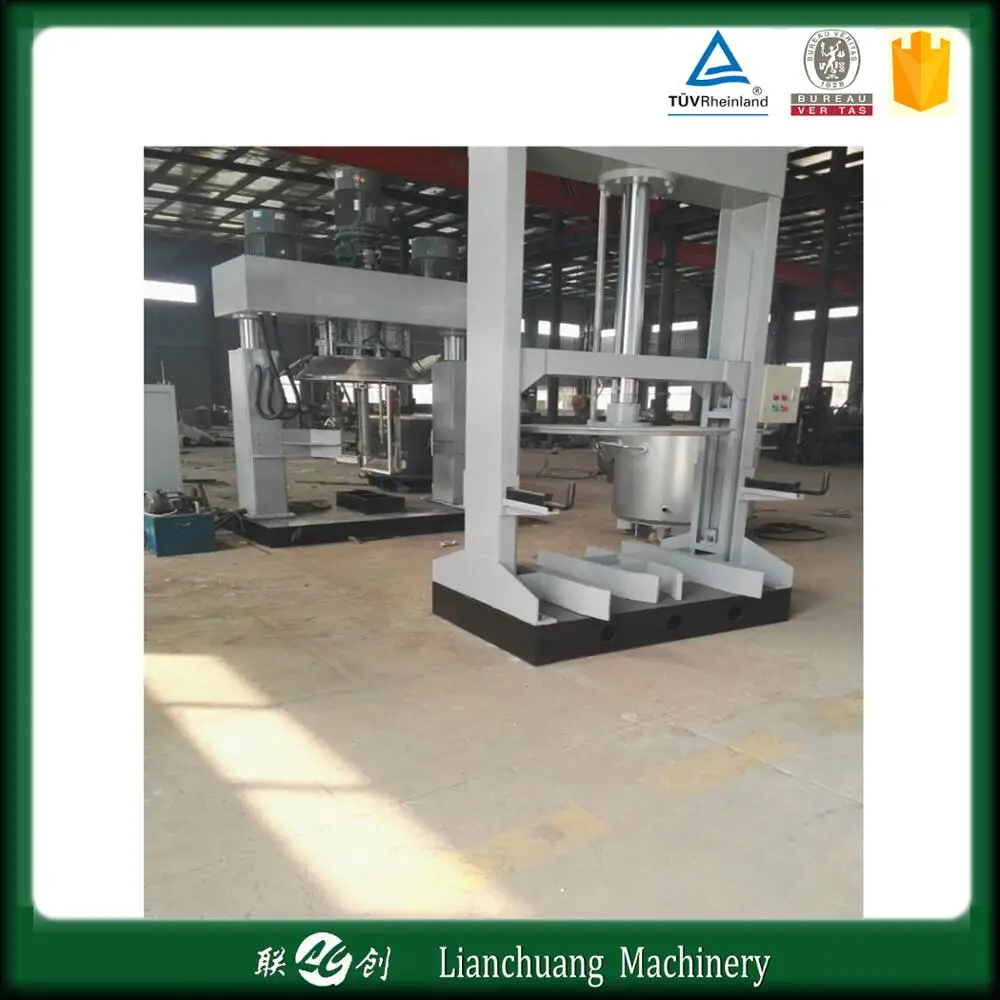

2. Pressing machine
Specification of the Pressing Machine
| Item No. | Volume | Pressue | Hydraulic Station Power |
| 1 | 300L | 80t | 5.5KW |
| 2 | 600L | 120t | 5.5kw |
| 3 | 1100L | 120t/160t | 7.5KW |
| 4 | 2000L | 160t | 11KW |
| 5 | 4000L | Viscosity Pump | 18.5kw |
| 6 | 5000L | Viscosity Pump | 18.5kw |

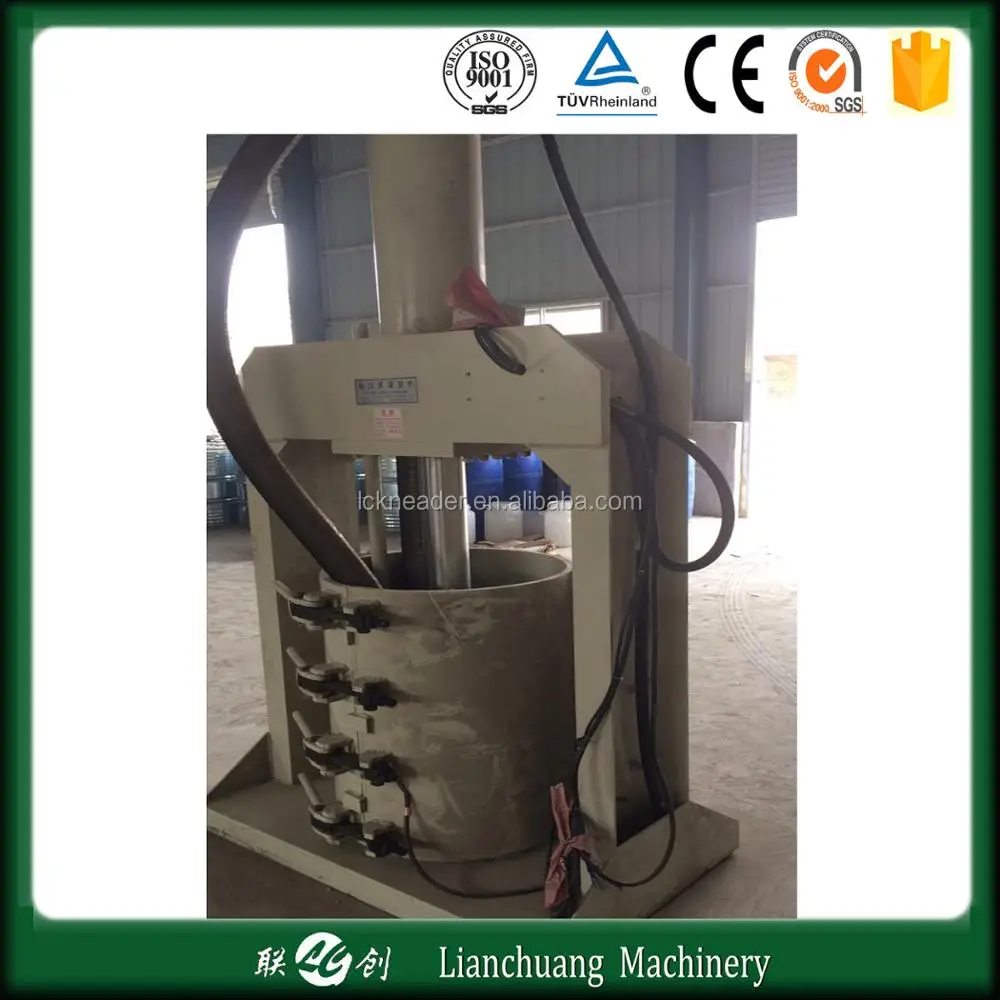

3. 200L Pressing Extruder
Specification of the Pressing Extruder
Machine name | Extruder, pressing sealant into Filling machine |
Oil-Pump electric Power | 5.5 KW, 1450rpm |
Pressure | 80 tons |
Cylinder Size | HSGK200×140×1100 |
Oil Volume | 100L |
Oil flow Volume | 10L/min |
Hydraulic Station Dimension | 500×400×700 |
Lifting Axis Material | 2cr13 stainless steel |
Hydraulic cylinder | Hydraulic oil |
Hydraulic pump Brand | China Hydraulic |
Function | Press the material from extrude continuously into valve of the Cartridge filling machine |
Dimension | 1100×700×2890 |
Weight | Appr.1000kgs |

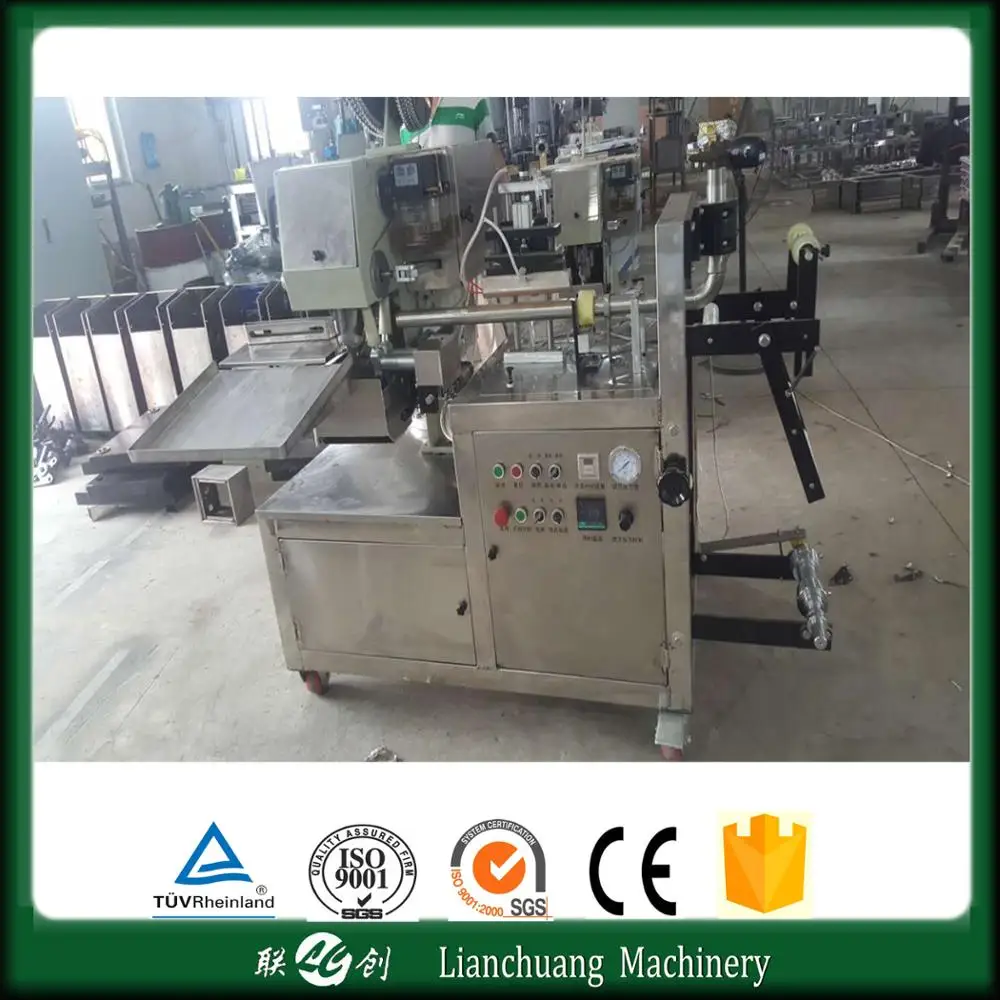

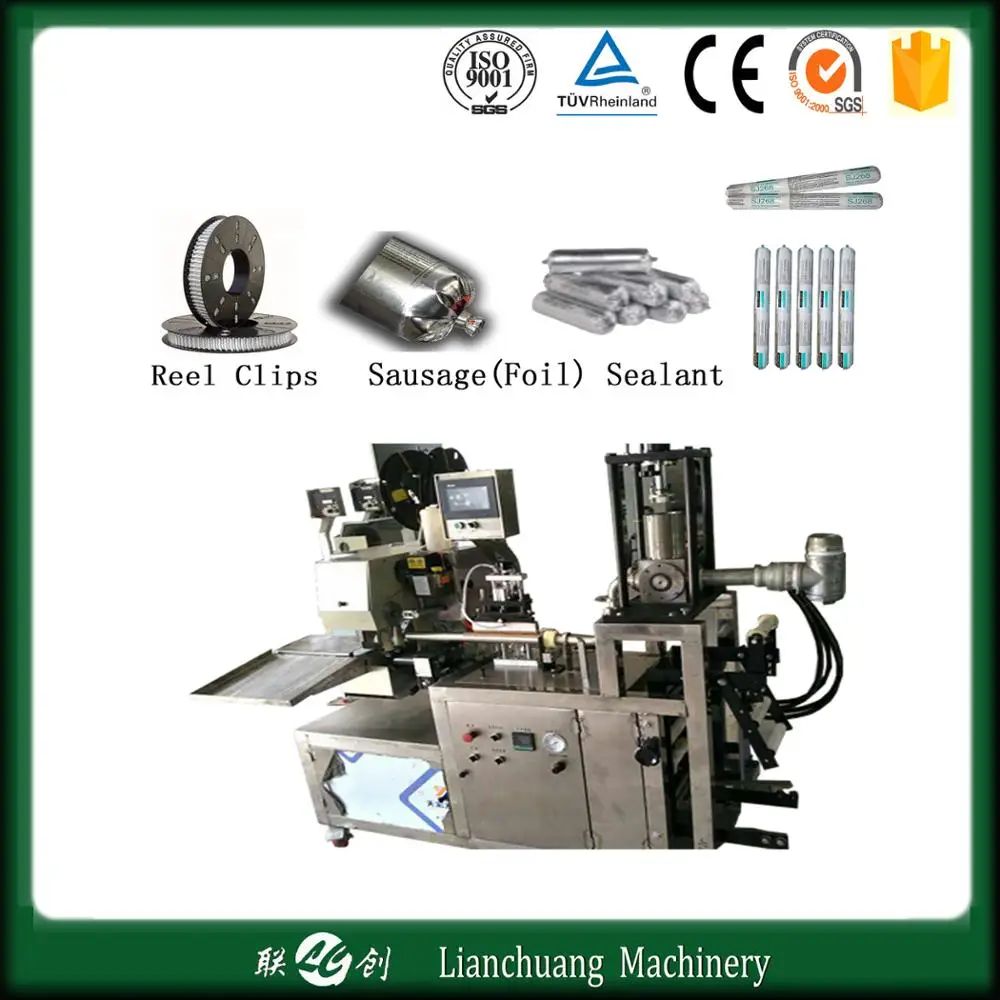

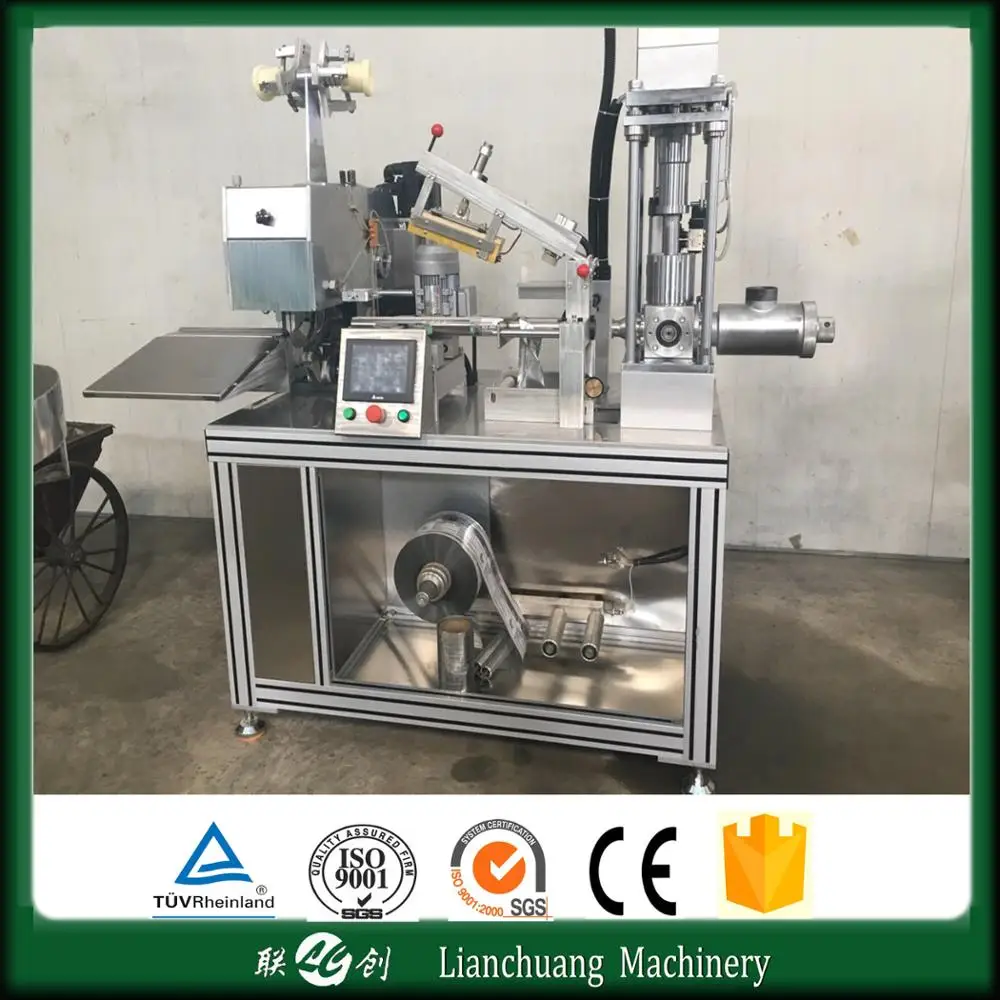

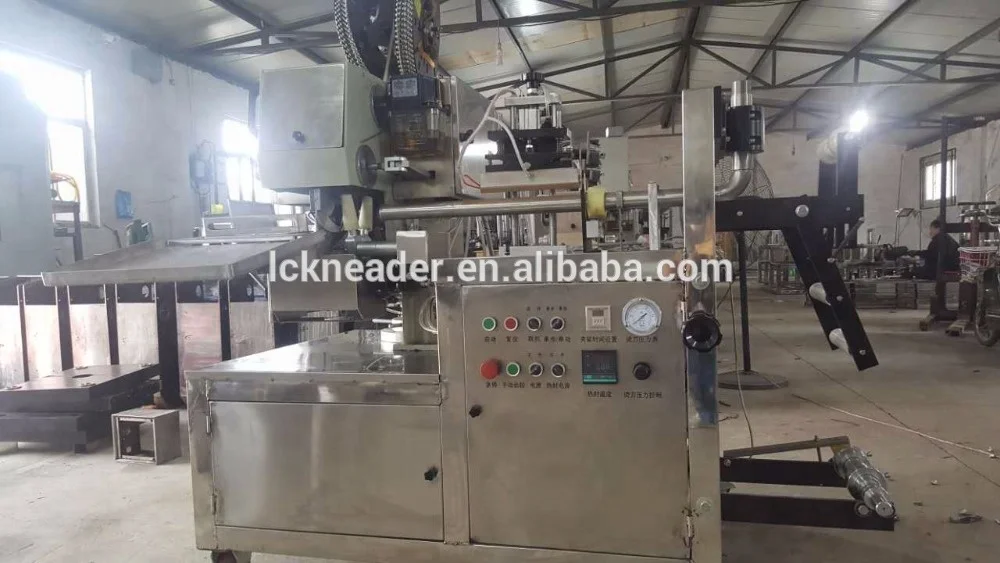

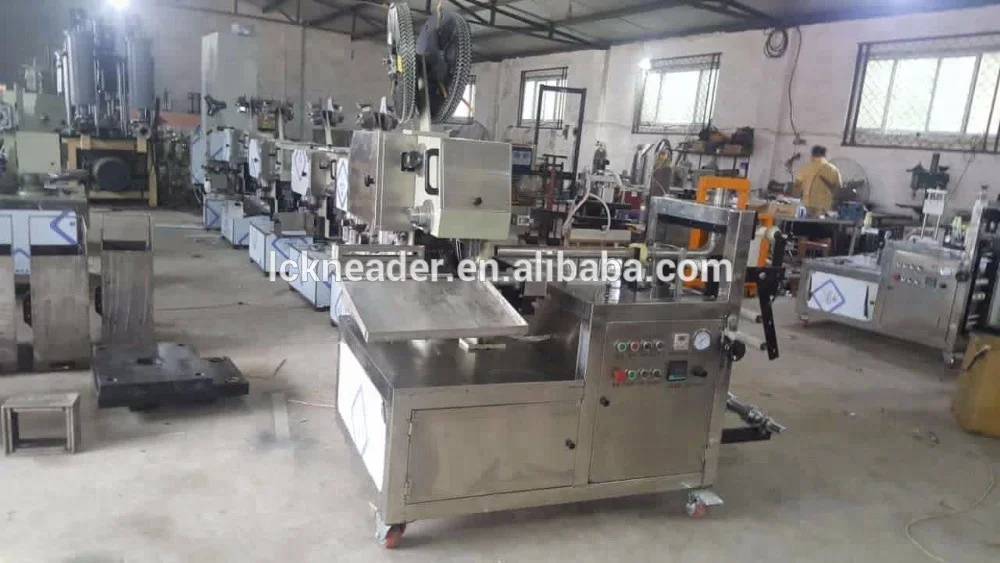

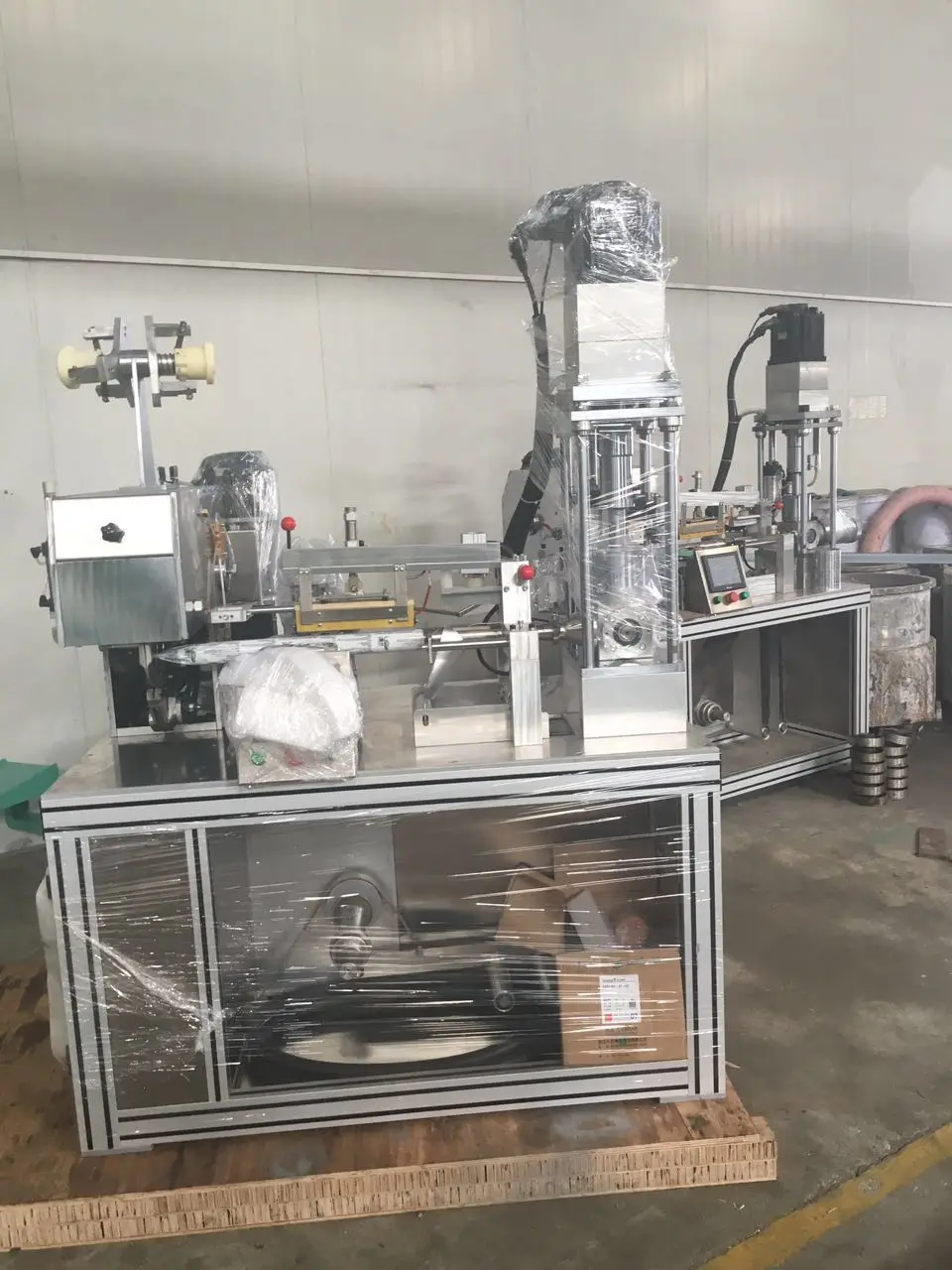

4. "Sauage" Filling machine
Specification of the "Sausage" Filling machine
Machine name | " Sausage" Sealant Filling machine |
Filling Type | Automatic |
Air content | no |
Power | 7.5 kw, 220/380V. 50/60Hz |
PLC | Zhejiang Zhentai |
Suitable film | width 152-164mm, thickness 0.05-0.07mm aluminium composite film |
Suitable Clip | Great Wall clip, U-shaped clip or other clips |
| Heating temperature | 0℃~300℃ |
Capacity | 15-35 pieces/ minute |
Size of sausage package | 300~600ml±1g, 44-48mm in diameter. |
Weight | 750-800kg |
Dimension | 1900*1500*2000cm |
