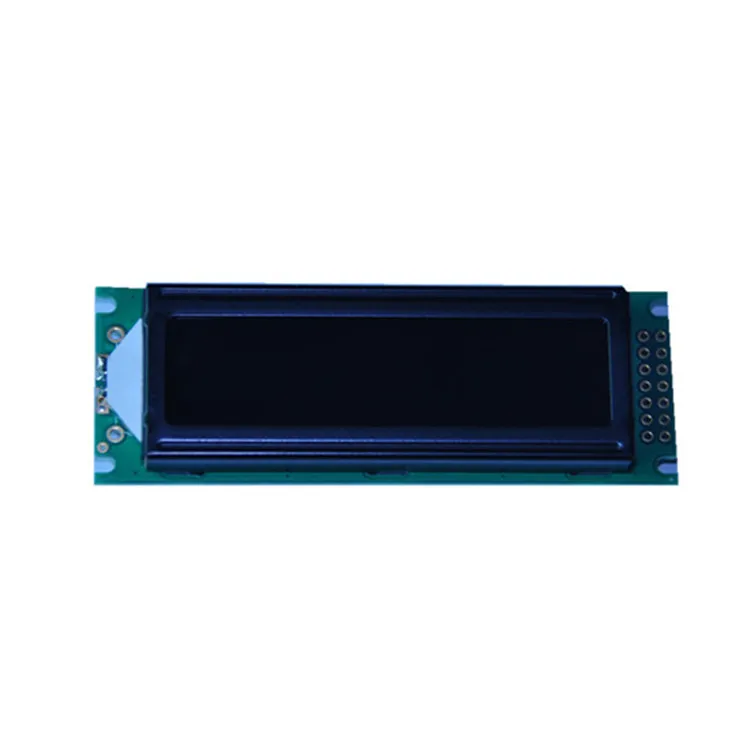

VA Black MPU interface 16X2 Character LCD module with PCB board for outdoor device
VA Black MPU interface 16X2 Character LCD module with PCB board for outdoor device
VA Black MPU interface 16X2 Character LCD module with PCB board for outdoor device
VA Black MPU interface 16X2 Character LCD module with PCB board for outdoor device

VA Black MPU interface 16X2 Character LCD module with PCB board for outdoor device

Share on (60681919451):


Price:$1.50 - $1.65

Quantity:


Product Overview

Description



Product Description












PRODUCT PARAMETERS

























































1.Product name : ENH1602H-VA
2.Size:85(L)*30(w)*11.8(T)mm
3.Viewing area :64.3*16mm
4.VOP :10.5V
5.Resolution:16 Characters x 2 lines
6.Display type :VA/Transflective/Negative
7.Viewing angle:6 O'clock
8.Drive method :1/16 duty, 1/5 bias
9.Working temp :-20℃~+70℃
10.Storage temp :-30℃~+80℃
11.Interface:8- bit MPU interface
12.Drive IC : SPLC780D
13.Backlight :White led backlight




                                                                            LCD OUTLINE SIZE










Company Introduction




CUSTOM PROCESS


(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)


1.Firstly,discuss and confirm all of the details.


2.Payment for tooling process.


3.Formal drawing will be sent within 5 days and confirmed by your side.


4.15-20 days for tooling process.


5.Samples(5-20 pcs)will be sent to you to test and confirmed.


6.Place order for mass production after samples are confirmed.
