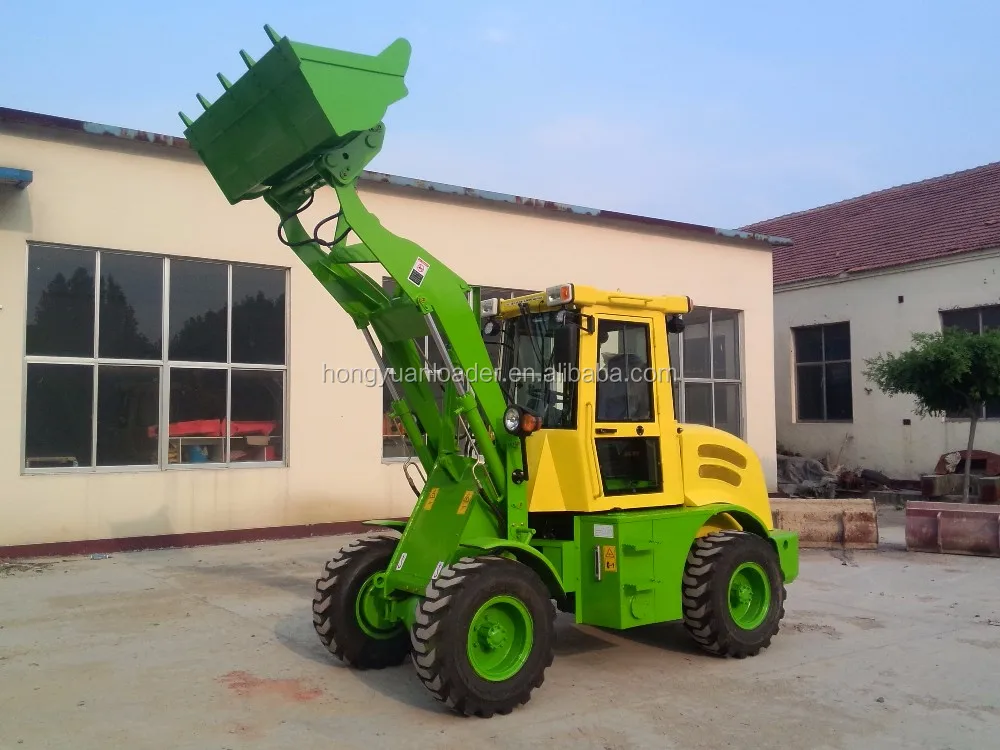

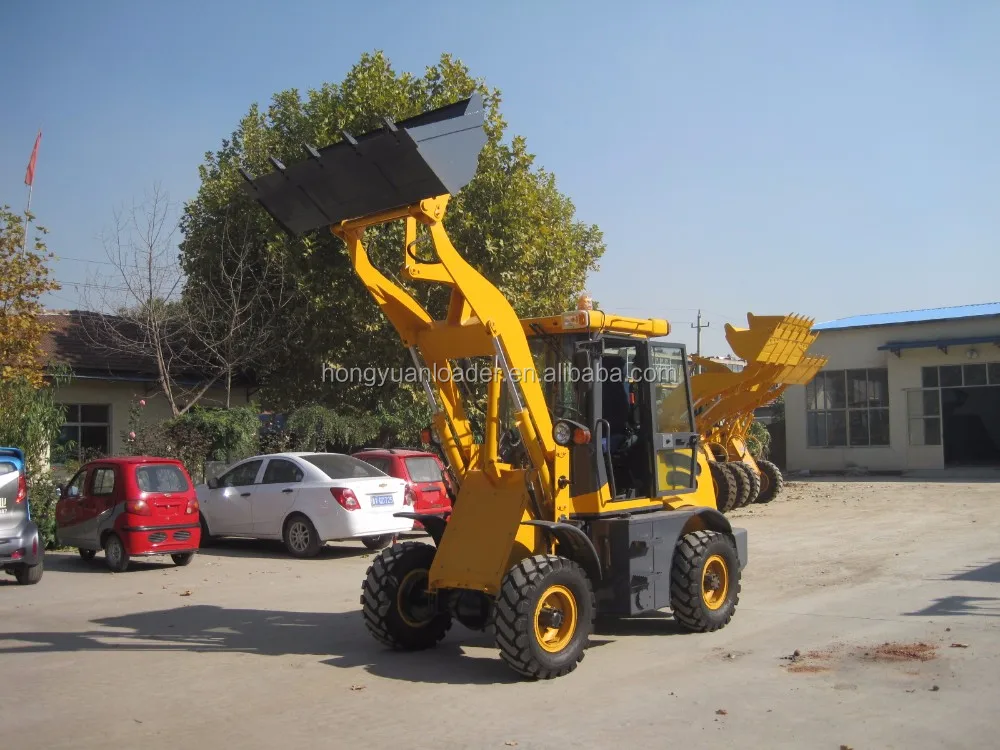

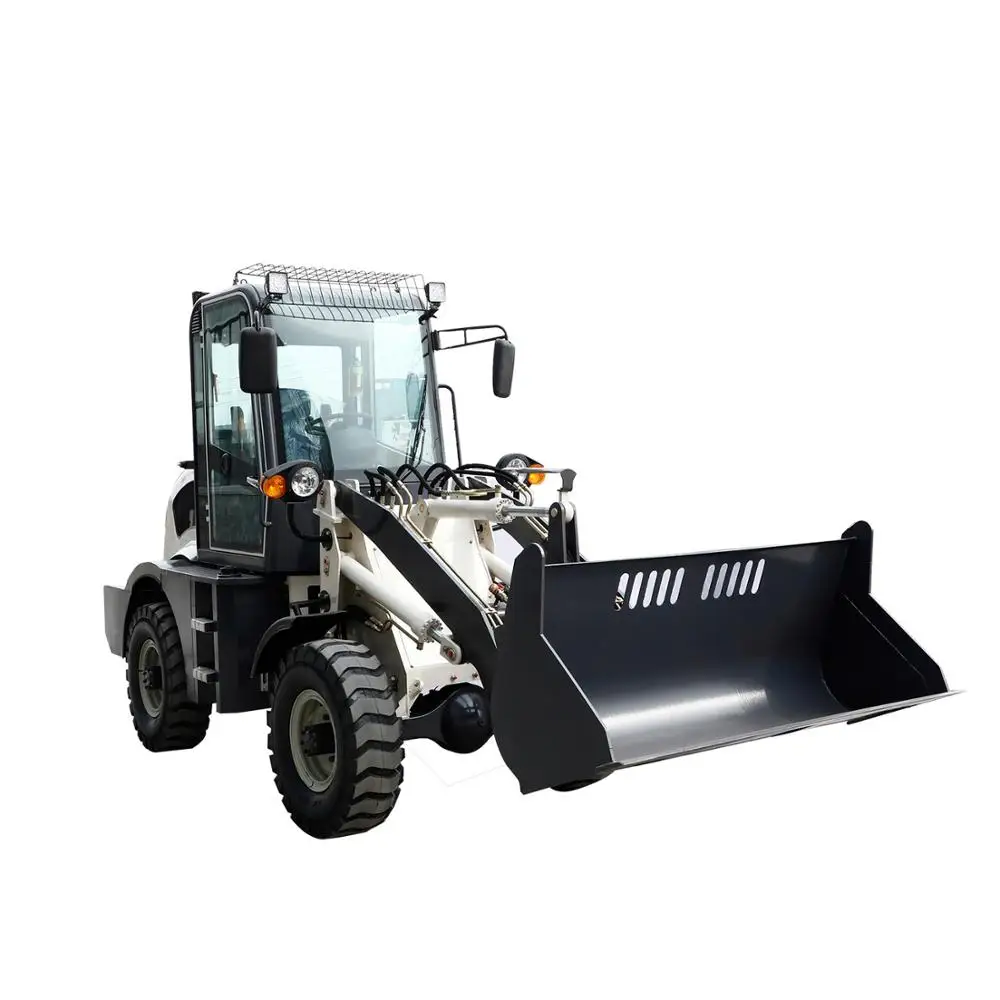

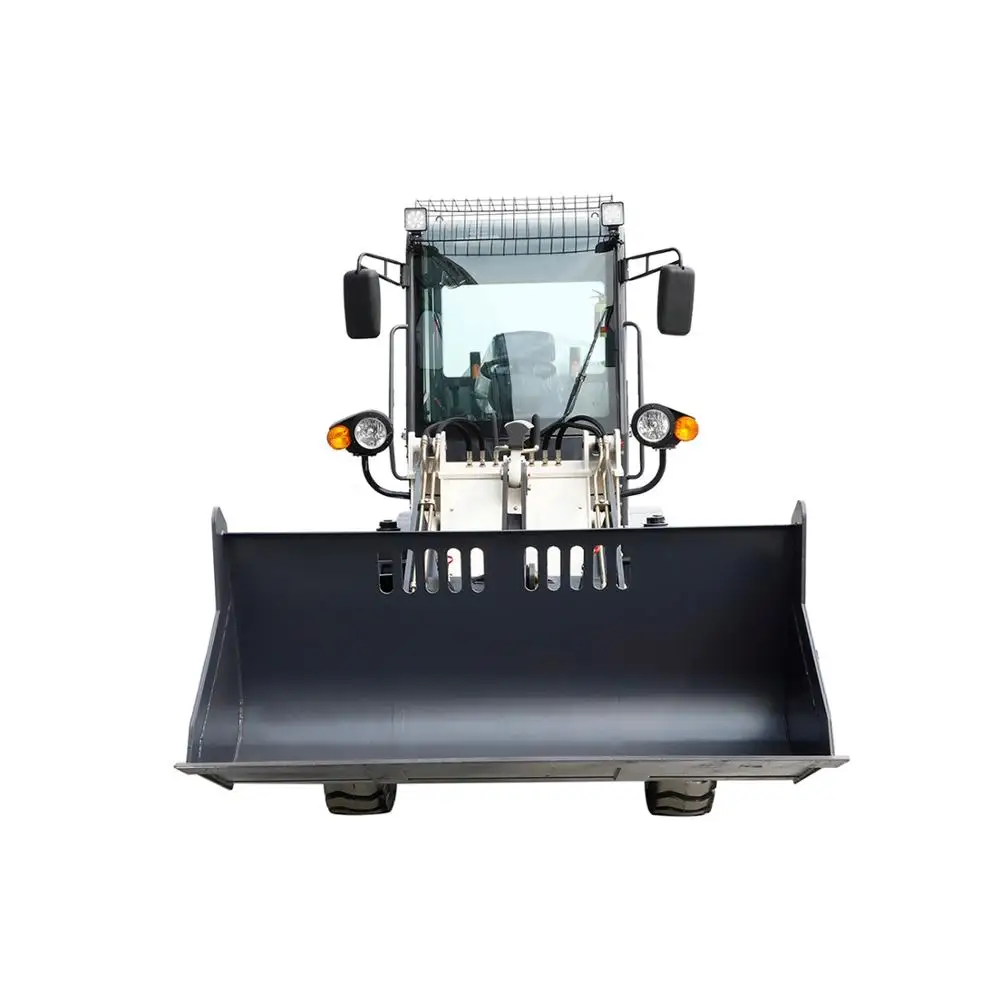

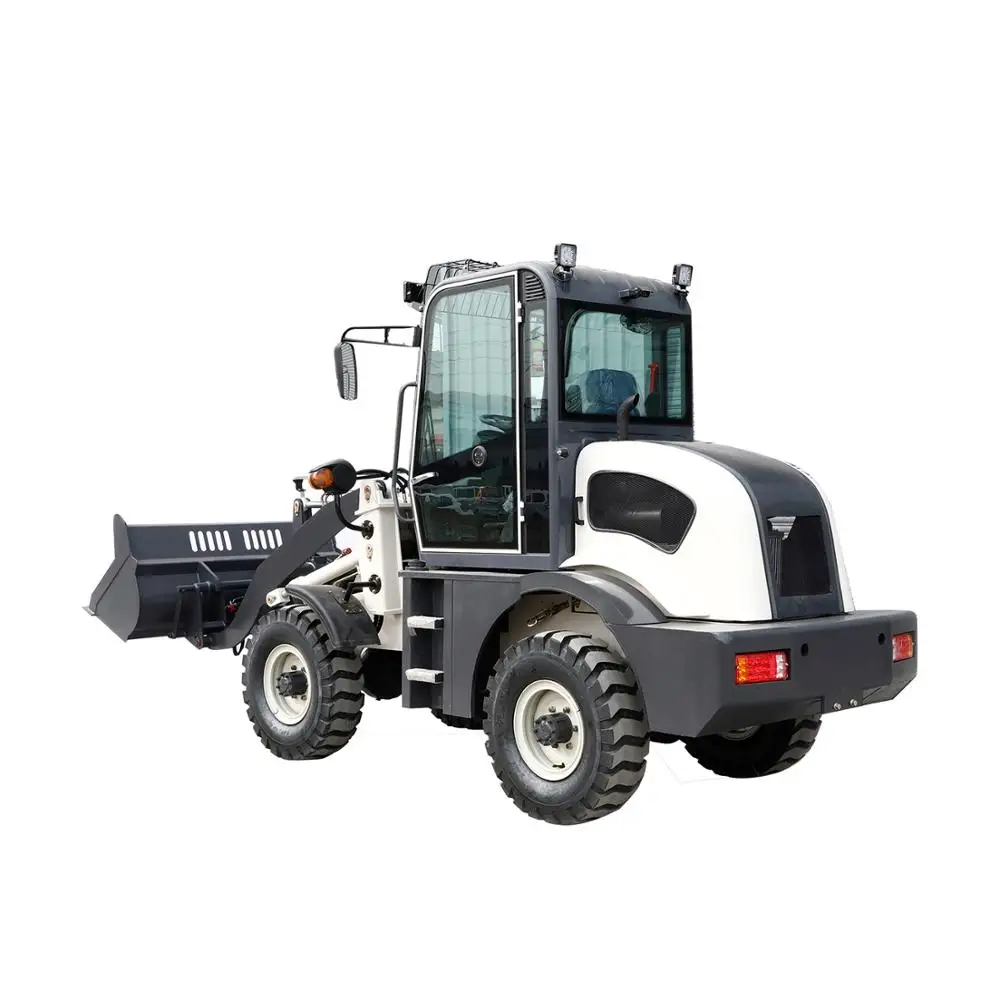

Wheel Loader ZL12
- Category: >>>
- Supplier: Qingzhou Hongyuan Vehicles Co. Ltd.
Share on (60681926852):
Product Overview
Description
Product Description
Product Application
Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
SPECIFICATION OF ZL12F WHEEL LOADER
1.0 Engine Details
(1) Model: Changchai 4L68
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37kw
(4) Rated Speed: 2200r/min(rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw.h
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5Mpa
(3) Rated input speed: 2200(rpm)
3.0 Bucket
(1) Bucket Capacity: 0.7m3
(2) Bucket Width: 1750mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Max. Breakout Force: 36KN
(5) Rated Loading weight: 1200kg
(6) Operating Weight: 3400kg
4.0 Overall Dimensions
(1) Overall Length(Bucket on ground position): 4800mm
(2) Overall Height
(a) Ground to Cab Top: 2670mm
(b) Dumping Height: 2650mm
(c) Min. Base to the Ground: 260mm
(3) Overall Width: 1730mm
5.0 Operation Specifications
(1) Steering Sytem: Articulated Frame with hydraulic power steering
(2) Min. Turning Radius: 4500mm
(3) Driving System: Hydraulic converter
6.0 Brake System
(1) Service Brake: Four wheel drive hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
7.0 Tyre Model: 12.00-16
8.0 Wheel base: 2100mm
9.0 Track base: 1500mm
Main Features
1)Front/Rear Axle
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2)Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.

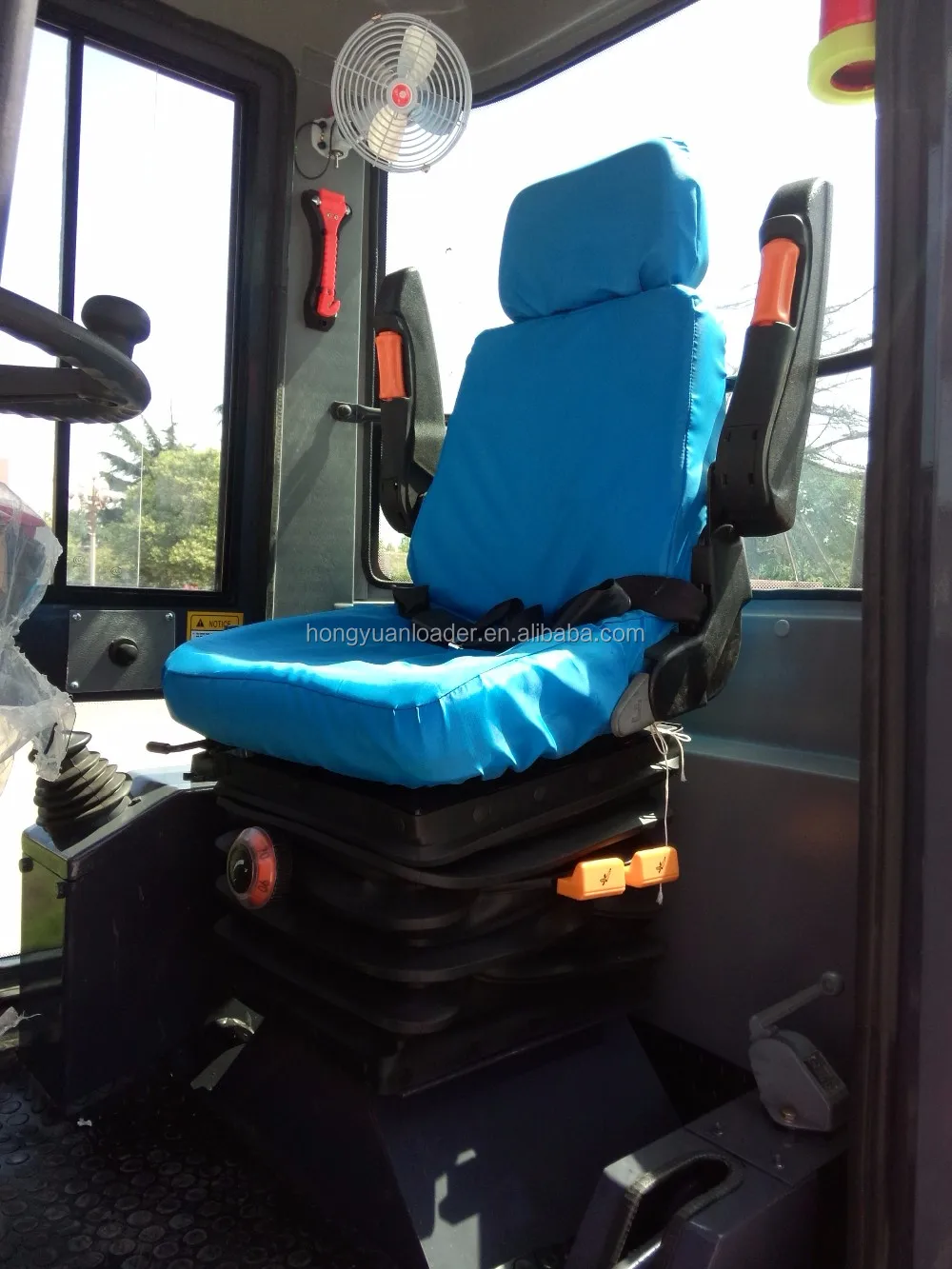

The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3)Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4)Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying
capacity and stability.
5)Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6)Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7)Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2)Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3)Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4)Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying
capacity and stability.
5)Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6)Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7)Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
Certifications
Detailed Images
Our Service
We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
Packing & Delivery
Packaging | ||
Size | 4800 (L) * 1730 (W) * 2670 (H) | |
Weight | 3.4T | |
Packaging Details | Nude packing, One 20 feet GP container can pack one unit with some accessories, but need to disassemble the cabin. We also can according to customers special request. | |
Packaging | ||
Size | 4800 (L) * 1730 (W) * 2670 (H) | |
Weight | 3.4 T | |
Packaging Details | Nude packing, One 40 feet HC container can pack three units with some accessories. We also can according to customers special request. | |
