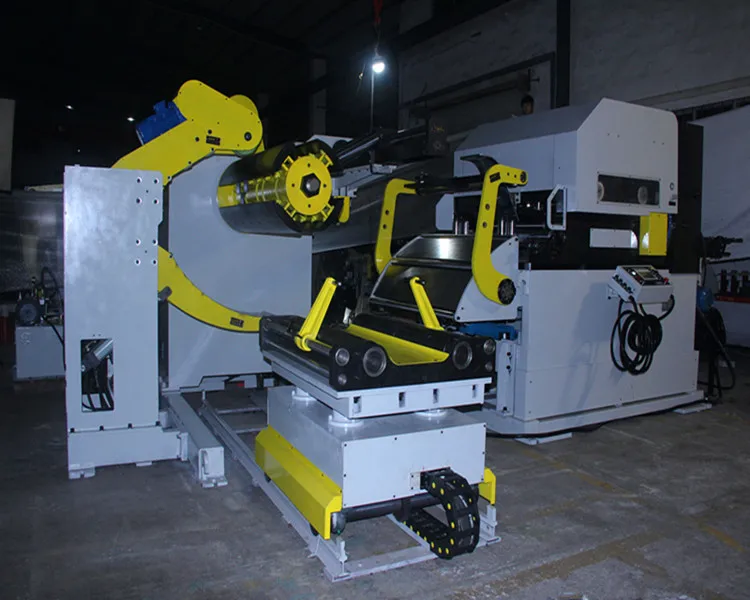

Dongguan HAIWEI 8T 3 in 1 decoiler straightener feeder for punching machine

Product Overview

Description

Dongguan HAIWEI 8T 3 in 1 decoiler straightener feeder for punching machine



1. For decoiler part:
(1). Mandrel hydraulic expansion.



(2). Motorized press arm device equipping with loop payoff tracking device.



(3). Limit arm device. Clamp & guide coil in width directly, preventing coil slid during running.



(4). Spindle was driven by AC motor+inveter, payoff strips smoothly and speed adjustable.



(5). Loop contol method: Electric eye loop control system.



(6). Pneumatic disc brake device.



(7). Hydraulic taikstock arm device(OPTIONAL part). It was mainly used to support decoiler's spindle on one end, especially coil weight is heavier than 10T, making the decoiler have enough loading capacity and long life time.

2. For straightener feeder part:

1).  Feeding and straigtening roller material is GCr15, finished heat treament, hard chrome plated, grind etc, surface hardness comes HRC 58-60.


2). Driven by servo motor+speed reducer, power transmitted via gears



3). Backup roller device. There are a column of backup roller set arranged on both upper and lower straightening rollers, enhancing machine has enough straightening capaity, especially for high tensile steel, stainless steel etc.

4). Straightening roller gap ELECTRIC adjustment device. Driven by 2 set servo motor+gear box to driven upper straightening roller up and down to adjsut straightener roller gap.



5). Bend arm device and material entrance assist device. They are mainly used to insert and guide strip head into straightener entrance automatically and conveniently.

6). Pass line height ELECTRIC adjustment device. Driven by AC motor via chains+SWL(Screw worm Lift device)

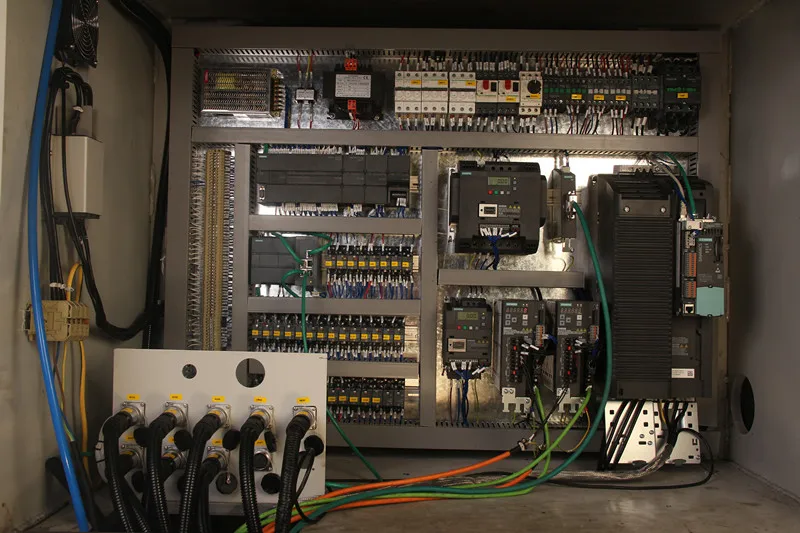

3. Electric & elctronic control system.

3 in 1 uncoiler straightener feeder machine not only combination of 3 machines, but also the 3 machine are controlled by ONE control system, the cabeniet+control box controls mechanical movement, hydraulic action, pneumatic action, electric signal etc.



Advantages of our 3 in 1 uncoiler straightener feeder than others:

1. It was designed, manufactured by ourself engineer team and workers, program also made by our engineers. We are professional on SIEMENS system and MITSUBISHI system, it also can be cutomized according to buyer's requirements.



2. Standard HMI operation manual language are English and Chinese, but it also can be made of the buyer's required language, such as Spanish, Portuguese, Polish etc(refer to the following image).



3. It was CE certificated. Reliable both on sequrity and actual usage etc.



4. It can be added strip oil feeder and customized of flip-top according to buyer's requirements and actual need in practice.



Option Accessory:

1. Auto. loading car

It was mainly used to load, carry, lift and then install coil on decoiler's mandrel automatically.

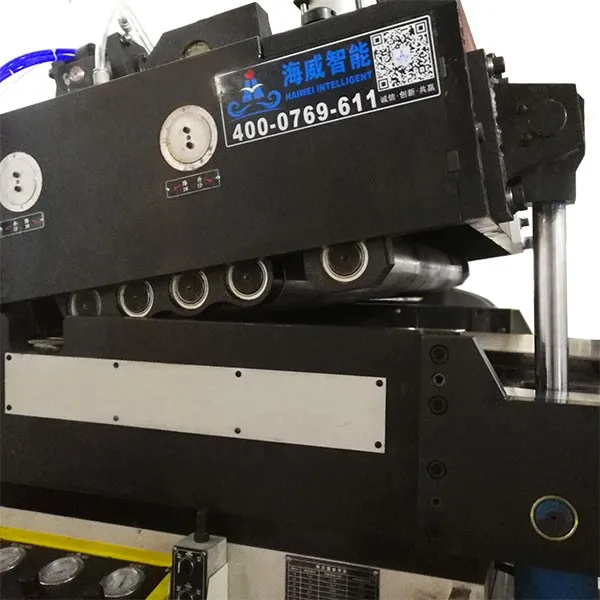

2. Flip-top device.

It was driven by 2 set hydraulic cylinder and open straightener part some angles, convenient to clean straightening rollers off impurity sticked on rollers. Especially suitable for soft material such Aluminum etc.

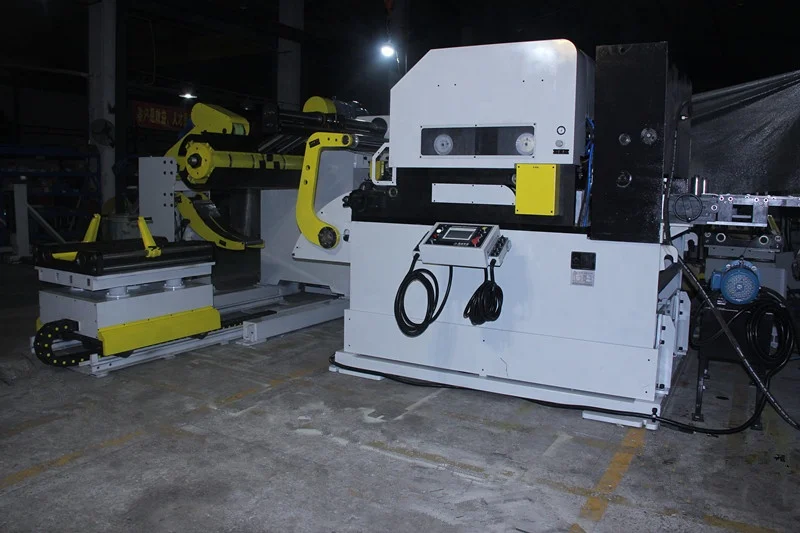

3. Scrap hydraulic shear.

It was mainly used to cut strip head and end. Upper shear blad was driven by hraulic cylinders, independent hydraulic staion provide oil pressure.

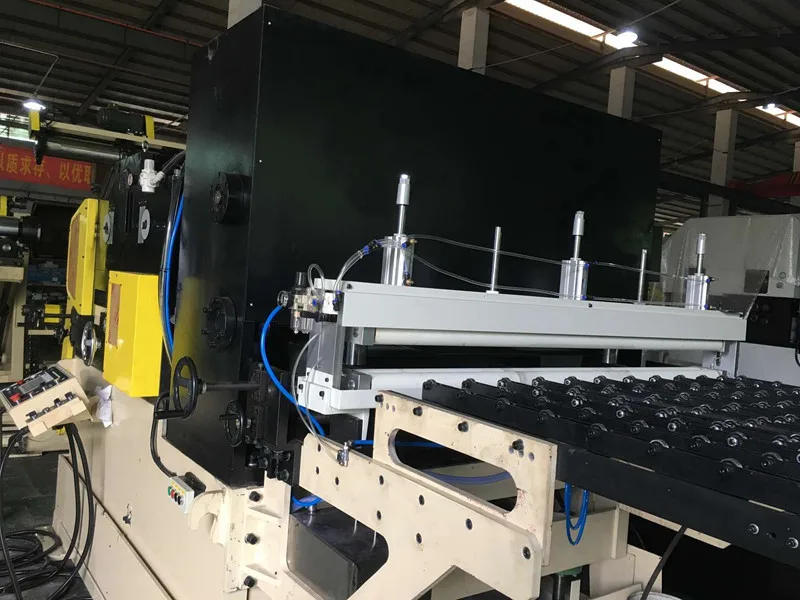

4. Oil feeder.

It was mainly used to roll or paint lubrication oil on strips both sides or single side to reduce stamping dies temperature and ensure product quality especially for deep draw products.

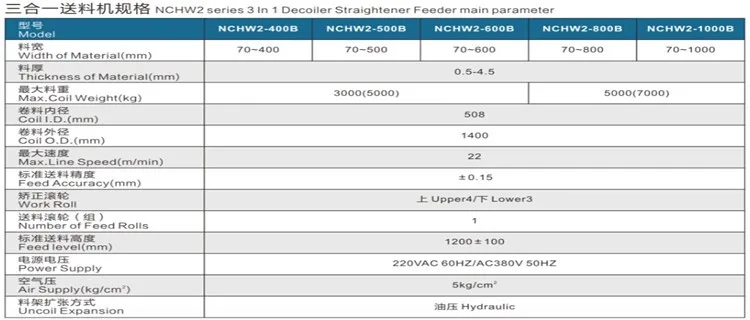

Machine Main Specification

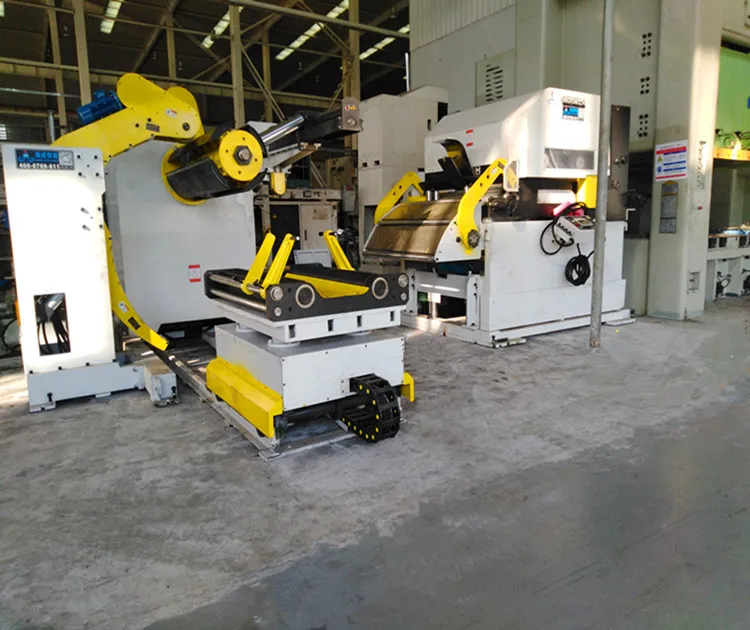

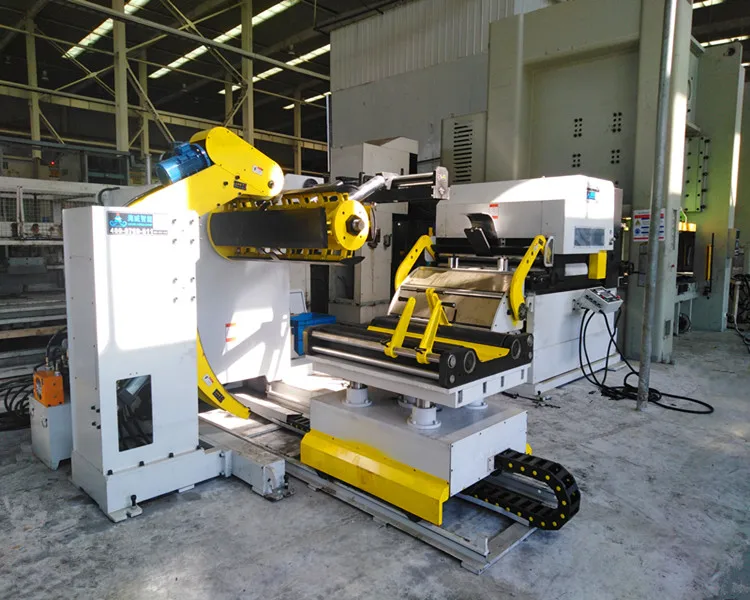

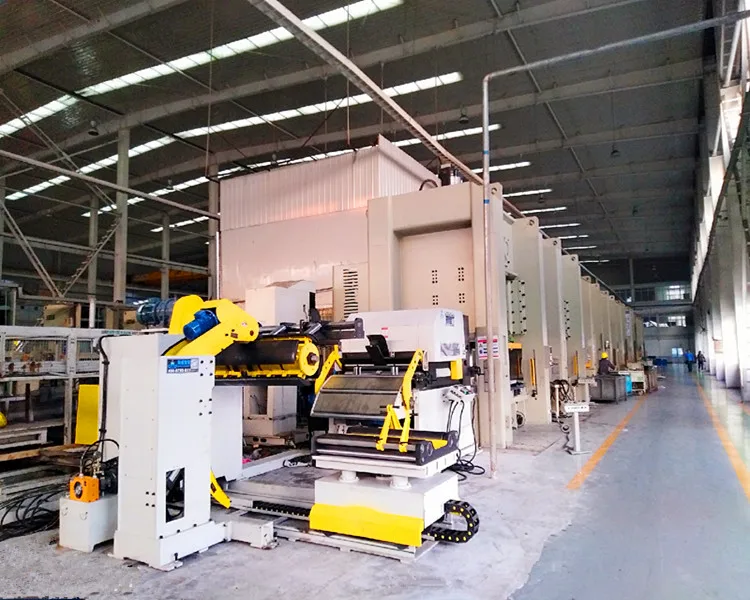

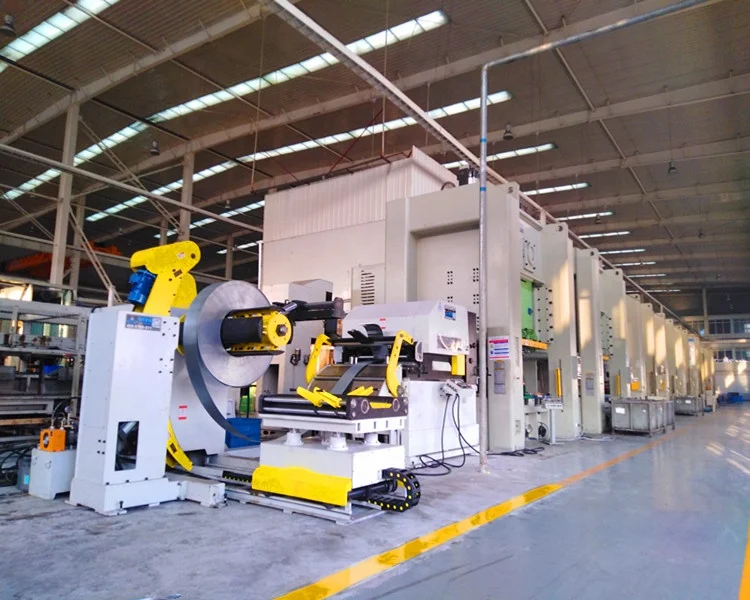

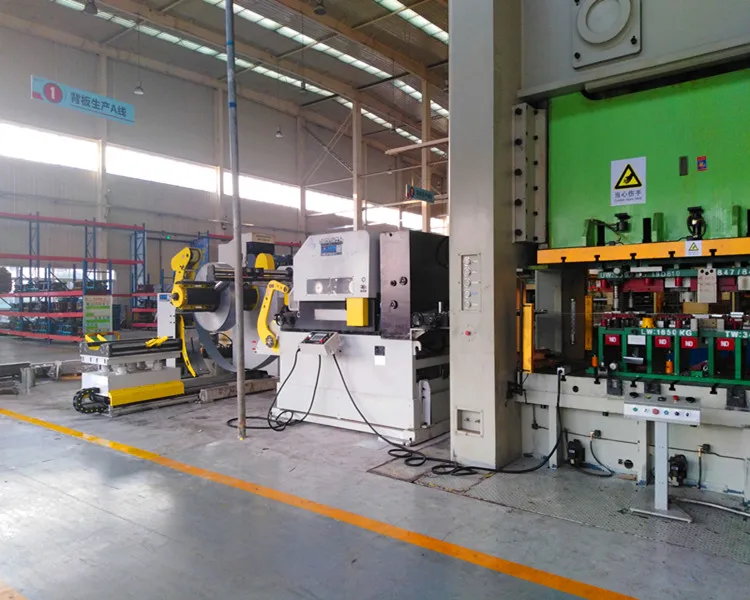

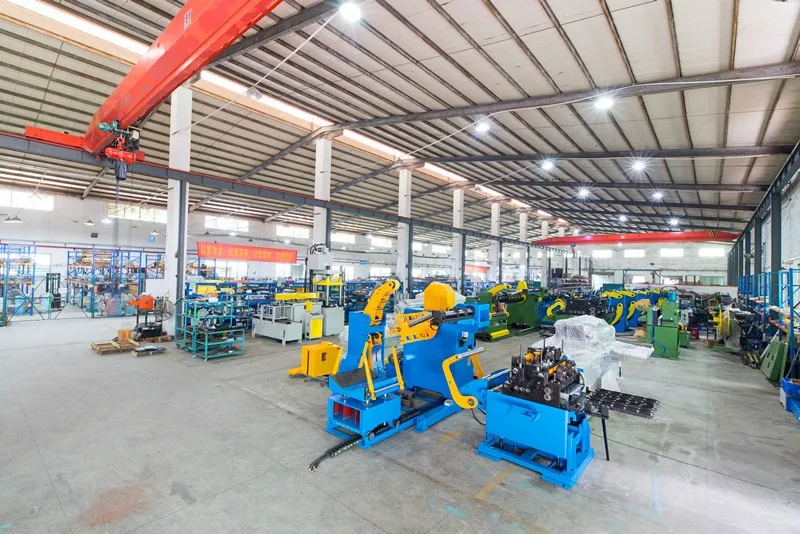

Machine at working site.











Dongguan City Haiwei Intelligent Equipment Incorporated Company(Former name: Dongguan City Haiwei General Machinery Co., Ltd)  is a professional manufacturer of peripheral equipment of press machine that integrates design, manufacturing, sales, service and trade. Our products included many kinds of automatic press feeder machine, such as NC servo roll feeder, 3 in 1 uncoiler straightener feeder, zigzag feeder, cut to length line, heavy decoiler, 2 in 1 uncoiler straightener and so on.

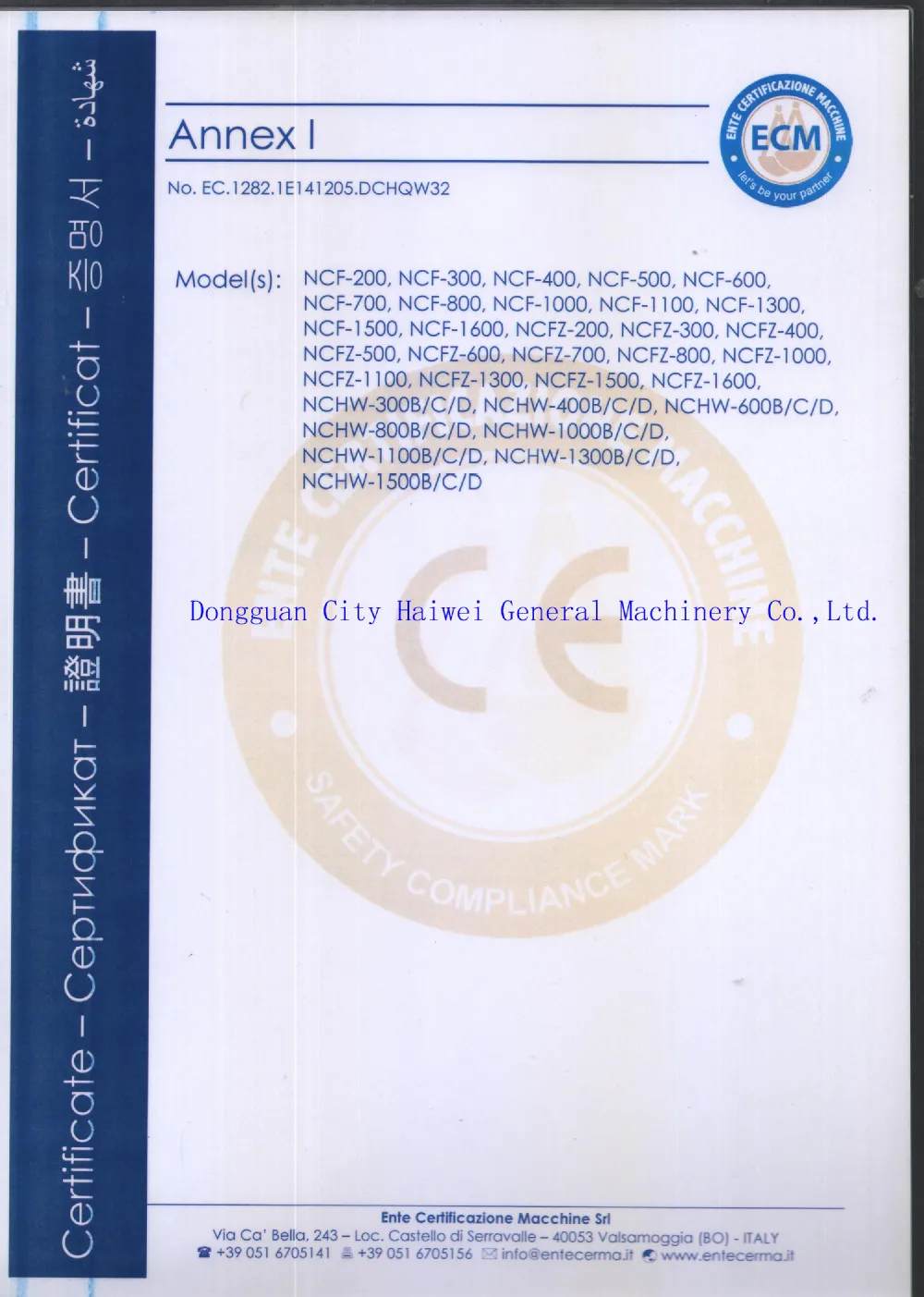

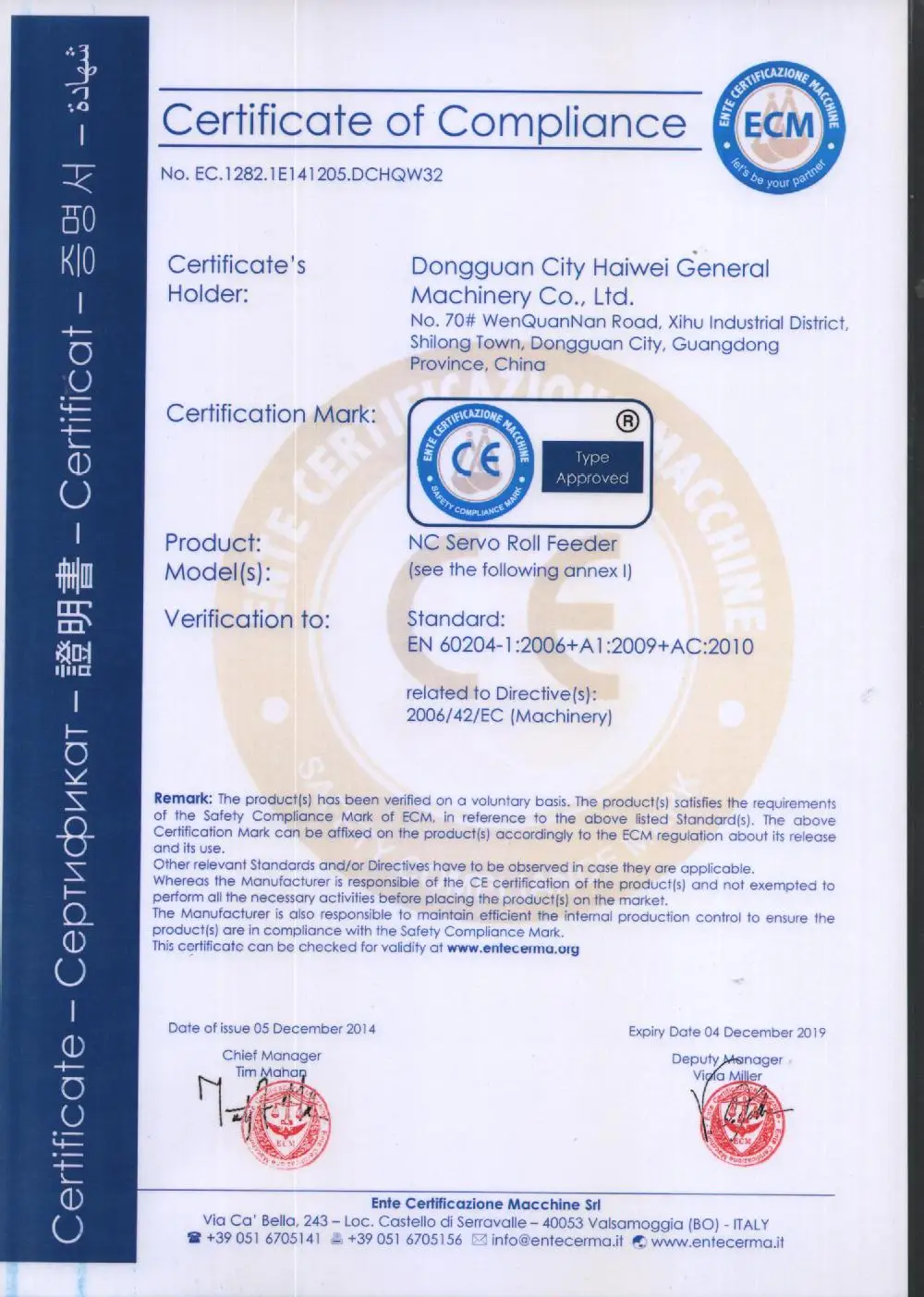

CE CERTIFICATION





 International exhibitions

Foreign Customs Using Our Products





Guarantee And After-sale Service



1. The supplier provide free technical training and consulting services to the buyer.



2. One year guarantee for whole machine , the warranty period of equipment installation and debugging start after the two sides signed acceptance document date.



3.The warranty period of non users caused damage to the equipment, the supplier provides repair services and parts required free of charge.



4.. After the warranty period, the supplier promise to provide life-long service for customer, and provide the most preferential price of the required parts.
