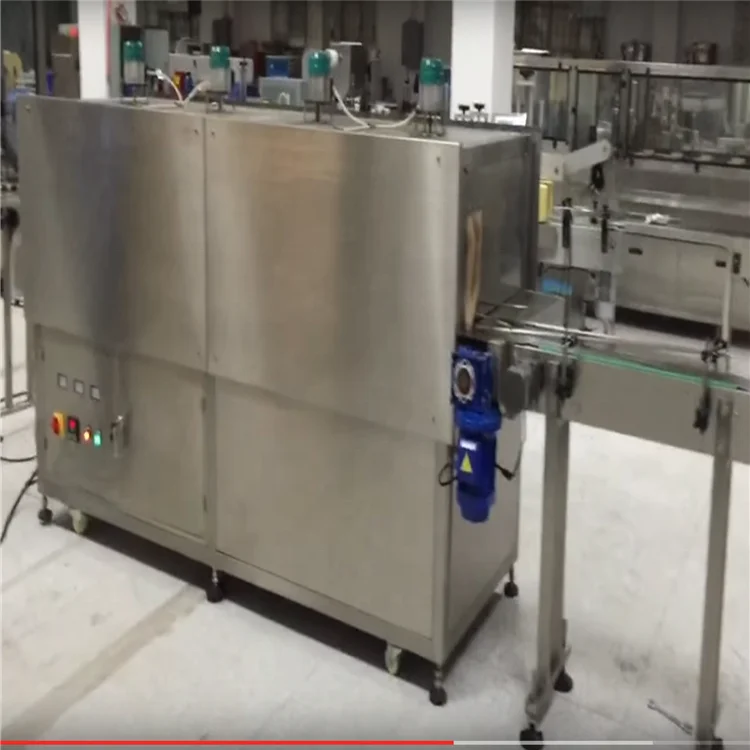

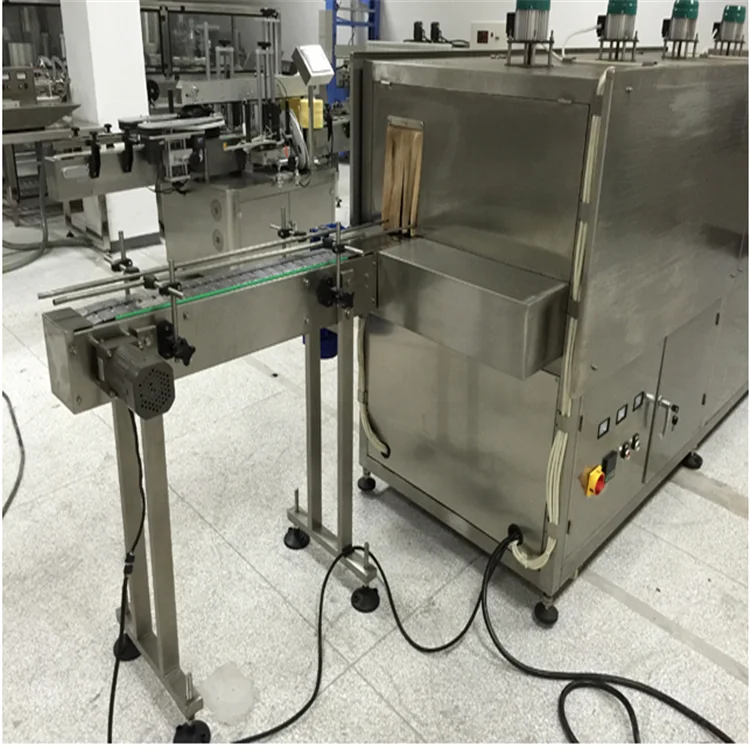

drying tunnel automatic bottles jars drier oven

Product Overview

Description

Product Description



Model WD-D12
Power supply 380V±10% 50HZ±1%
three-phase five-wire
Microwave Output Frequency 2450±50MHz
Microwave input apparent power ≤28KVA
Microwave output power ≥20KW
Microwave power adjustment range 0-30KW(adjustable)
Ambient temperature -5-40C
Relative humidity 80%, Surrounding
environment:no corrosive gas, conductive dust and explosive gas
Overall dimension(L*W*H) 2900*840*2050 mm
Transmission speed 0-10m/min(adjustable)
Height of the inlet and outlet 60 mm
Microwave leak accord with a country GB10436-89
standards(<5 mw/cm^2)
Equipment safety accord with GB-5226
Electrical safety standard accord with a country GB16798-1997
Food machinery health security index
