Оборудование для прачечной, туннельное оборудование для мойки для использования в гостиницах и больницах

Product Overview

Description

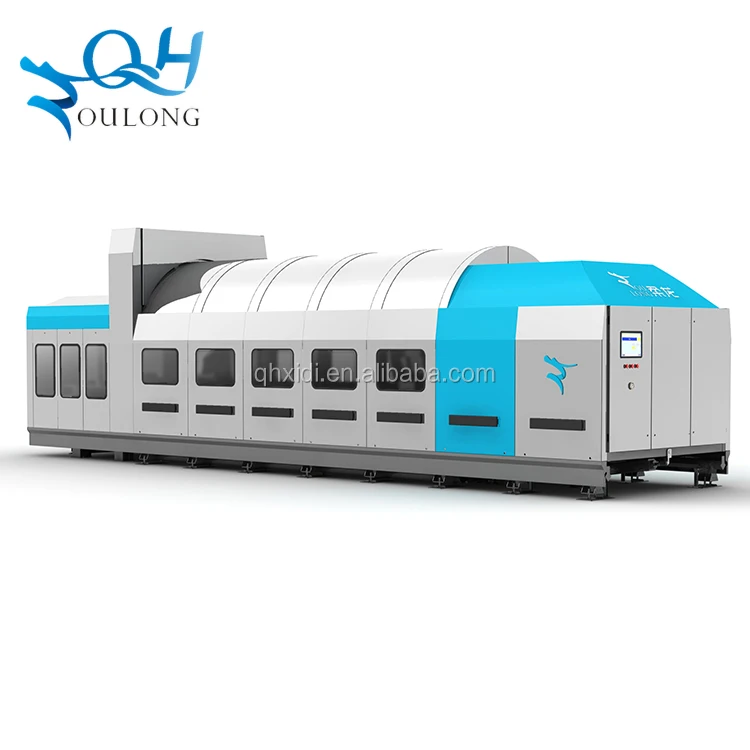

Laundry equipment tunnel washer equipment for hotel hospital use

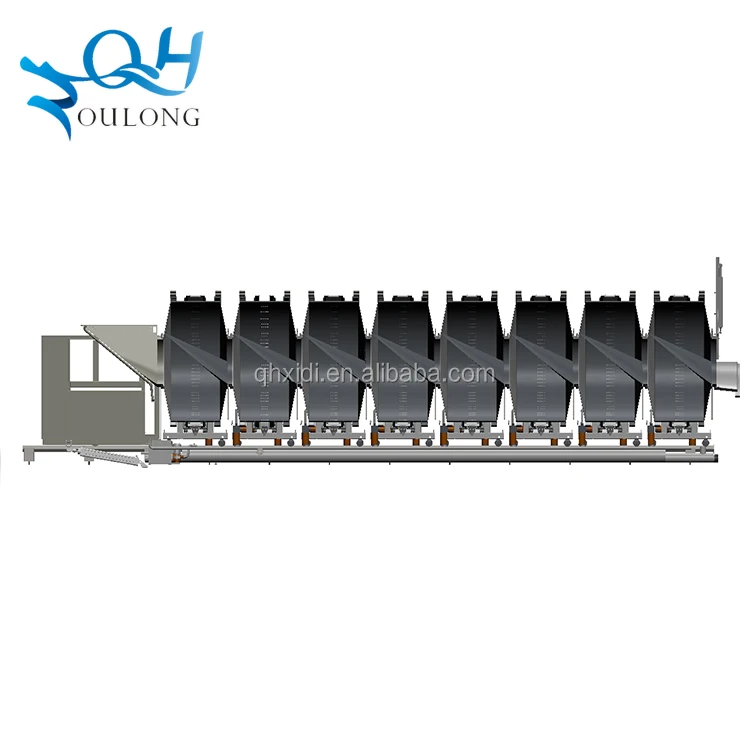

• Flexible wash modules, variable frequency drive motor adjust the washing speed (11-15rpm) for each module according to the linen type and dirty degree, so different washing mechanical force to flexibly meet different linen continuous washing requirement and fast delivery
• 360 degree round washing, 2 meter diameter drum, 43:1 loading ratio, up to 0.3G of strong washing mechanical force and erosion force to achieve higher cleaning ability, easy to deal with all kinds of linens, greatly shorten washing time, reduce consumption of water, steam, chemical (Note: compared to other tunnel washer, water reduced by 50%, steam by 20%, chemical by 30%)
• Each module is individually programmable and can include inlets for water, chemicals, drainage, temperature probes and more, washing process separation surface can be adjusted or increased or decreased
• Pre-wash module equipped with high-pressure pump for recycle scouring and washing to improve the pre-wash treatment effect

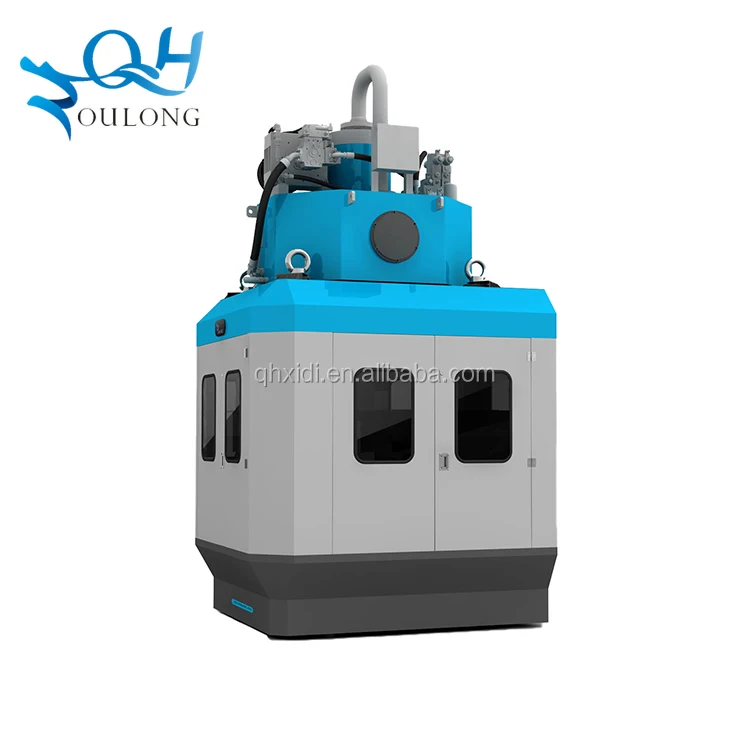

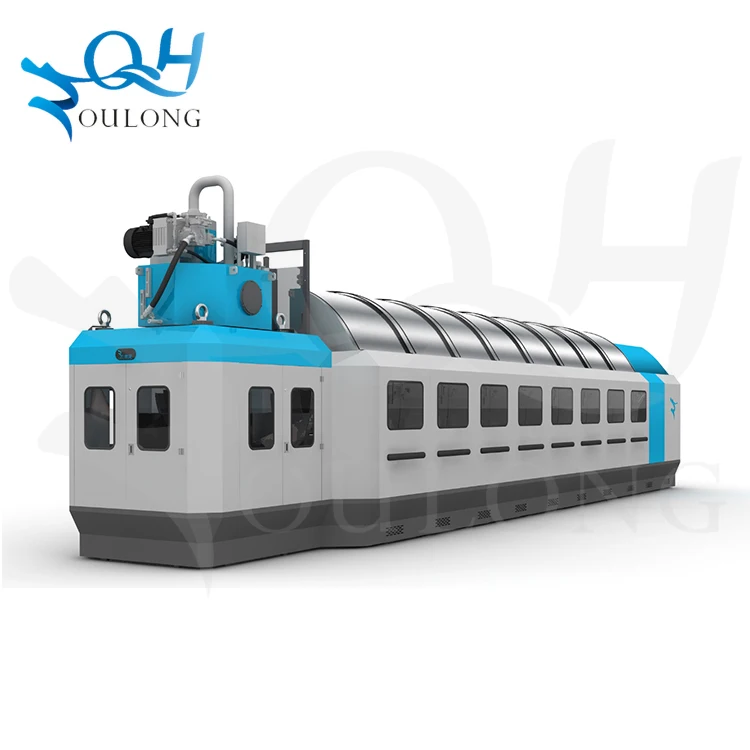

• Bullet train design concept, tunnel washer integrated with press as streamline design, stainless steel and power coating panel for option
• Independent modular design with open type panel convenient for repair and service, and easy to add module for future increasing capacity demand
• Self-developed automatic control system based on WIN7 with a strong human-computer interaction programming, data monitoring and statistics, remote monitoring, diagnosis and service

Item		Unit	FW75-5	FW75-6	FW75-7	FW75-8	FW75-9	FW75-10
Module		pcs	5	6	7	8	9	10
Washing capacity		kg/h	1071	1286	1500	1714	1929	2143
Drum diameter		mm	2010
Drum depth		mm	820
Drum volum		dm³	2670
Drum capacity		kg	60-75
Washing speed		rmp	11-18
Total power		kw	22.5	26.15	30.9	35.65	39.5	43.15
Electricity consumption		kw/h	13.14	15.34	18.13	20.91	23.11	25.31
Steam	Pressure	Bar	6
	Consumption	kg/per kg	0.4
	Pipe size		DN65
Water	Consumption	L /per kg	4
	Pipe size		DN50
Air	Pressure	bar	6
	Consumption	Nm³/h	0.04	0.05	0.06	0.07	0.08	0.09
	Pipe size		1″
Length		mm	7580	8580	9580	10580	11580	12580
Width		mm	3000
Height		mm	3345
Weight		kg	6050	7050	8050	9050	10050	11050
The above data based on 170g/cm² pure cotton fabric, washing time 21minutes
