Product Overview

Description

Product Description

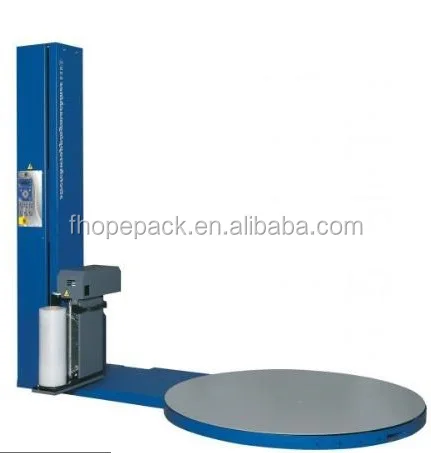

automatic pallet stretch film, pallet wrapping machine and stetch wrapper

info(at)fhopepack.com                       +86 13951501635  (Whatapp & Wechat)

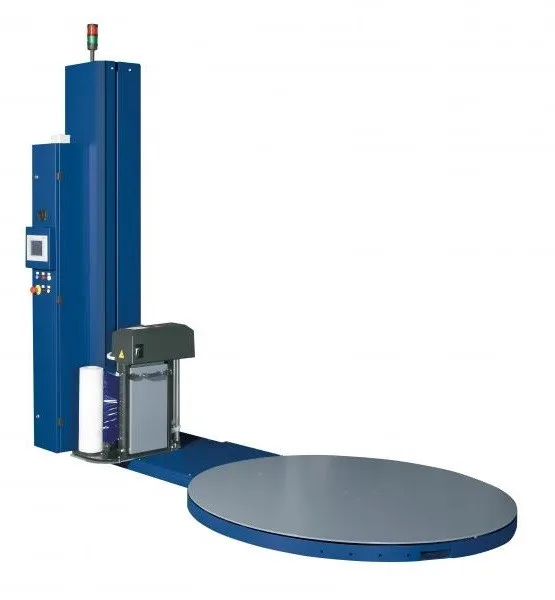

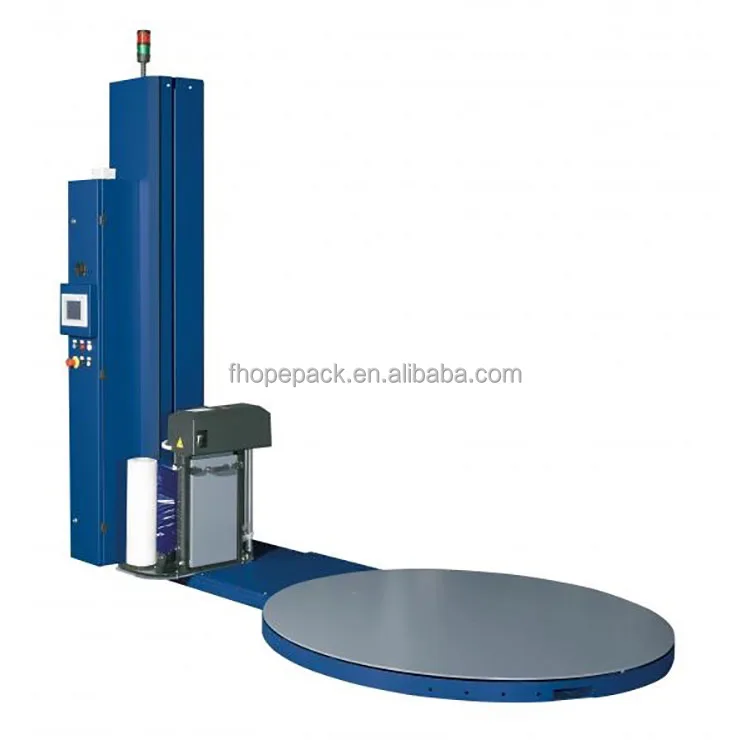

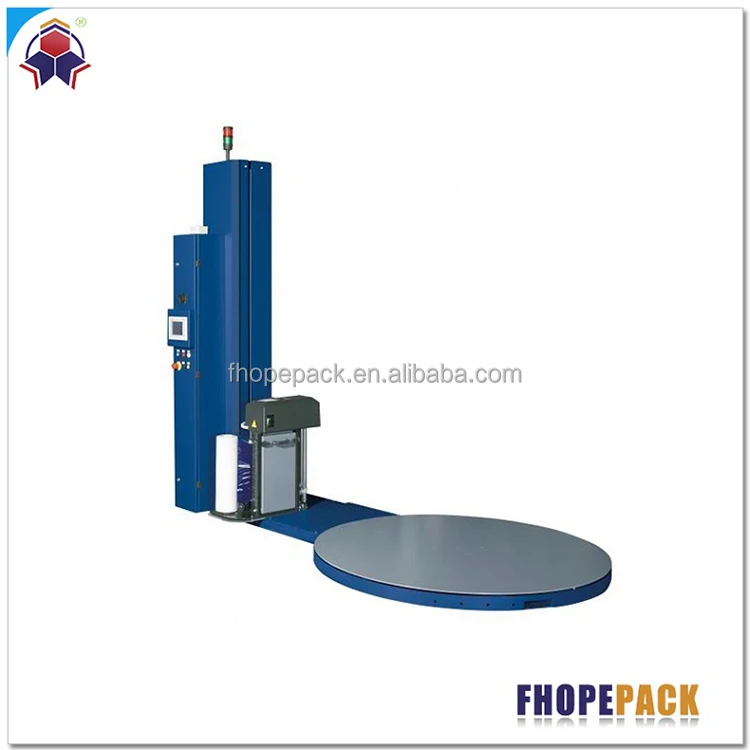

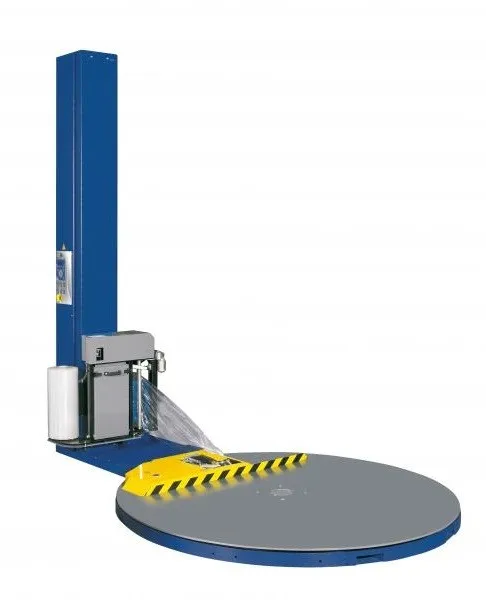

Stretch wrapper Name
FHOPE-A100
FHOPE-A200
FHOPE-A300
Working mode
Semi-auto
Auto (PLC)
Auto(PLC&HMI)
Turntable motor power
0.75KW
0.75KW
0.75KW
Up-down motor power
0.37KW
0.37KW
0.37KW
Pre-stretch moter power
Null
Null
0.37KW
Pre-stretch level
Null
Null
250%(100%-300%)

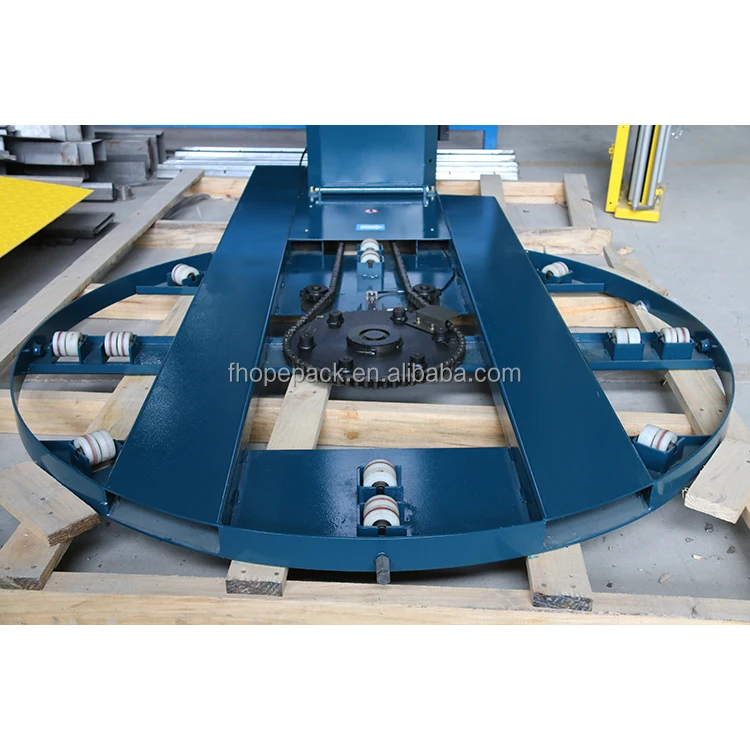

Turnable speed
0-14 r/mm
0-14 r/mm
0-14 r/mm
Packing load per hour
up to 45
up to 45
up to 45
Film Carriage speed
1-3 m/min
1-3 m/min
1-3 m/min
Turnable diameter
1500mm
1500mm
1500mm
Max load height
2000mm
2000mm
2000mm
Turnable height
110mm
110mm
110mm
Max load weight
2000KG
2000KG
2000KG

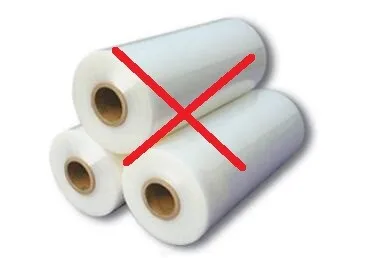

Stretch film (LLDPE)
Thickness 0.025*Width 500 * Dia 76mm, 15kg/roll
Thickness 0.025*Width 500 * Dia 76mm, 15kg/roll
Thickness 0.025*Width 500 * Dia 76mm, 15kg/roll
Tension control
Pre-stretch controller/Motor
Mechanical and Pre-stretch
Mechanical
Height control
Manual
Photocell sensor
Photocell sensor
Turnable start/stop
Soft start/ soft stop
Soft start/ soft stop
Soft start/ soft stop
Power voltage
AC 380V/50HZ (adjustable)
AC 380V/50HZ (adjustable)
AC 380V/50HZ (adjustable)

Technical Data

Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing
• Air device to blow up the film tail
• Electronic printed circuit board for the management of the cycle
• Frequency controller for carriage speed adjustment
• Frequency controller for arm rotation speed adjustment
• Power pre-stretch carriage
• Photocell to detect the pallet height
• Safety stop loop at the base of the mast
• Stop at 0 position
• Power board IP54

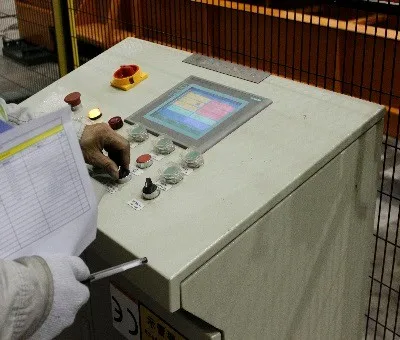

• Adjustable parameters by the control panel without password: cycle selection,
bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed,
carriage descent speed, film tension, starting wrapping height
• 3 working cycles: ascent/descent; topsheet; layers
• Storage of 32 end user programs
• 3 working ways: semimanual, semiautomatic, fixed height
• Strenghtening operation
• Acoustic warning at the cycle beginning and stop
• Autodiagnostic
• Wrapped pallet counter
• Receiver for infrared/radio remote control
• Powder coating
• Braked arm at the end of the cycle

Main option parts

Adjustable power pre-stretch
3000 mm max wrapping height
Remote control
Photocell for dark loads
Mechanical system to brake roll containers
Safety fences

Detailed Images

Our Most Popular Rotary Arm Stretch Wrapper - Floor Mounted Frame

This machine concept keeps the load to be wrapped stationary while the stretch film carriage rotates around the load to apply the stretch film. The rotary arm stretch wrapper is the perfect solution in situations where the load is very unstable (very tall, too heavy, too light) or in a washdown environment.

Easy operation 3 STEP "EASY THREAD" film Loading Ensures Safety

Re-loading the Film roll on any carriage is not an easy task with many rotary arm pallet packing machines. With our "Easy Thread" access design, we make it simple and safer.Simply unlatch and open the access door, pull film tail past open access door and close the door. It's that simple!

Strong Structurer with Tough Qaualiy for MAXIMUM STRENGHT

Strong-structual steel construction reflects the durability of this machine. HSS tubing provides a strong and light-weight arm minimizing the driving forces required to rotate the arm.
Steel weldment of arm assembly is designed form maximum strenght while keeping the rotating weight to a minimum.

Our Most Popular Rotary Arm Stretch Wrapper - Floor Mounted Frame

This Rotary arm wrapping  machine concept keeps the load to be wrapped stationary while the stretch film carriage rotates around the load to apply the stretch film. The rotary arm stretch wrapper is the perfect solution in situations where the load is very unstable (very tall, too heavy, too light) or in a washdown environment.

With 14 rpm stretch wrapping speed

The rotary arm pallet stretch wrapper is the fastest stretch wrapper in his class. Up to 35-40 pallets per hr. (based on load configuration and machine options), larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping than most competitive machines.

FILM SAVINGS - SEPARATE 1-9 TOP AND BOTTOM WRAP PROVIDES UP TO 15% FILM SAVINGS

The special designing pallet wrapping machine with separated 1-9 top and bottom wrap count provides up to 15% film savings. apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top-bottom regardless of need.
