24V 4.2A 5A switching power supply ac/dc open frame power adapter 24v dc 100 240v ac power supply
- Category: >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (60682038582):
Product Overview
Description

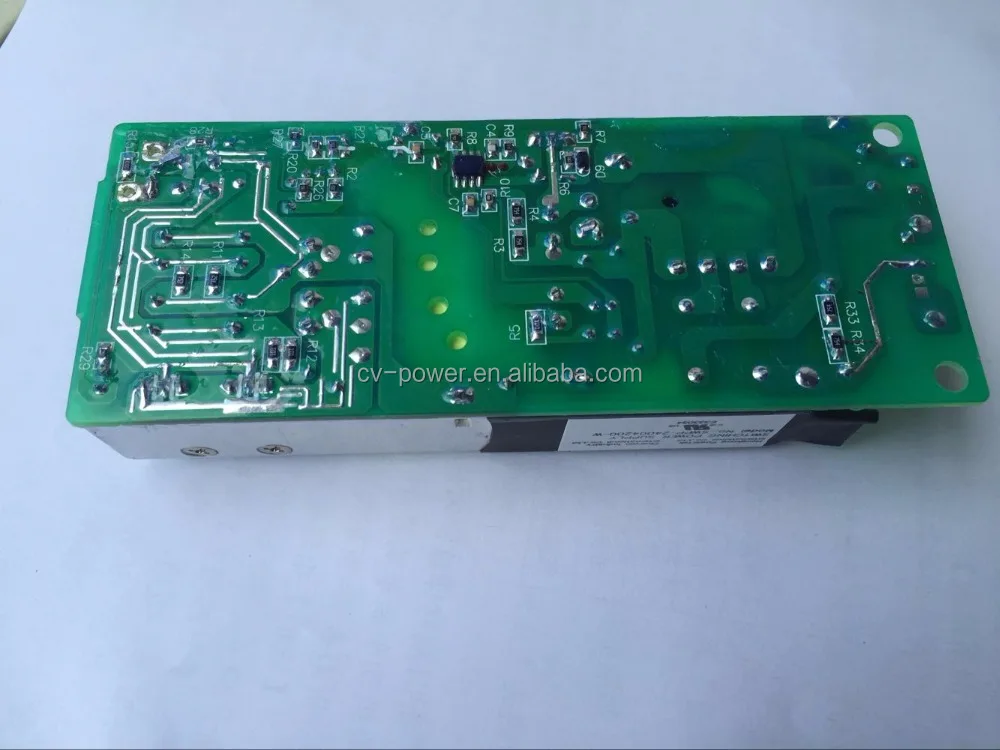

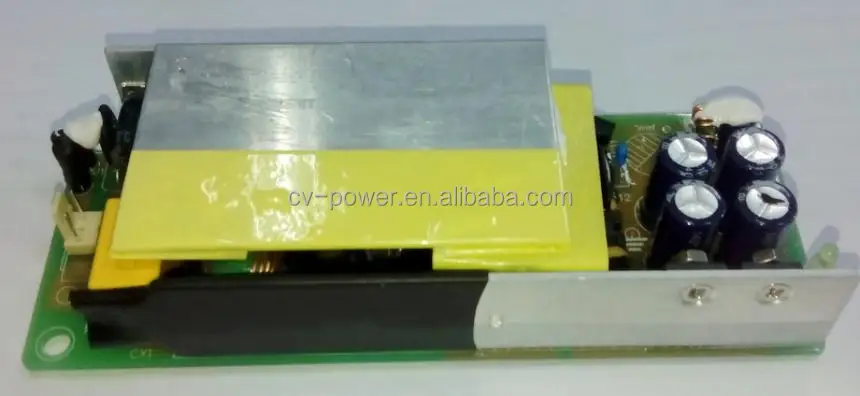

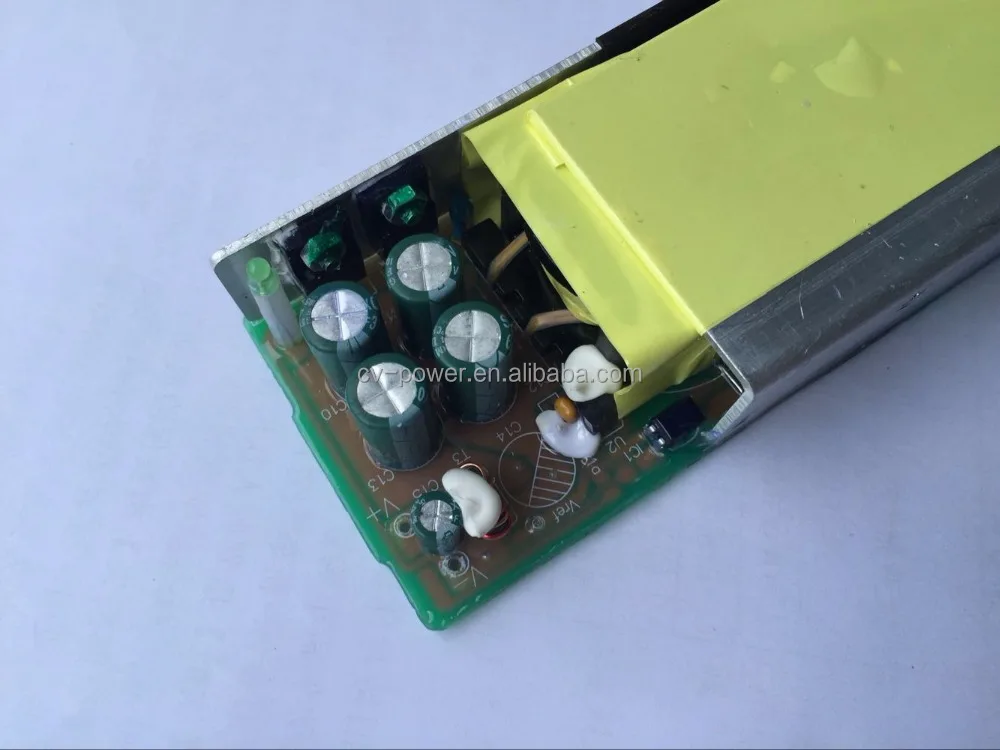

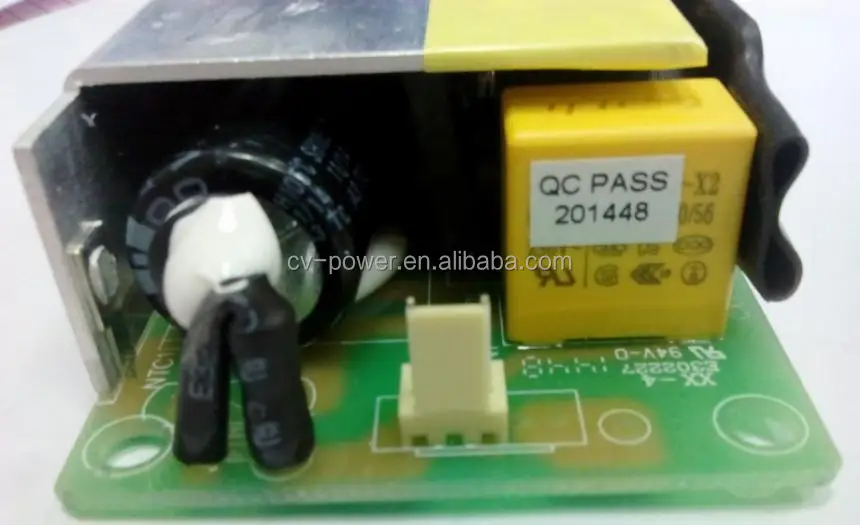

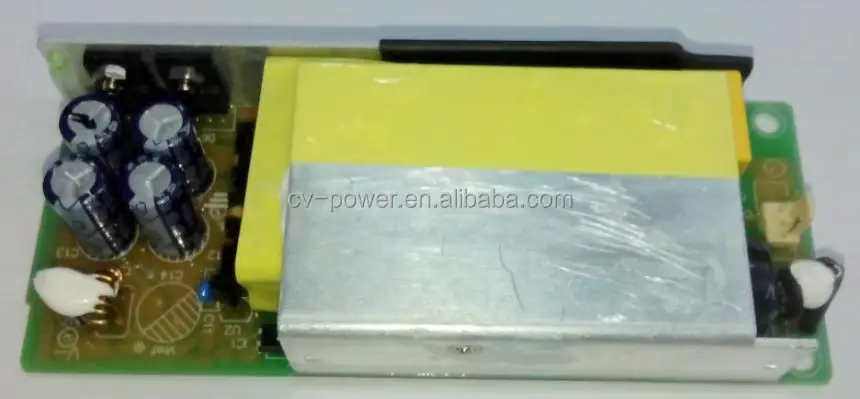

Details Images
* Input: 100-240VAC 50/60Hz. Output: 24V 5A max +/-5% tolerance
* Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
* Wide compatibilities: LED Strips, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only.
* More units for 120W series: 5V/9V/12V/15V/24V/48V 120W available
* Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
* Wide compatibilities: LED Strips, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only.
* More units for 120W series: 5V/9V/12V/15V/24V/48V 120W available

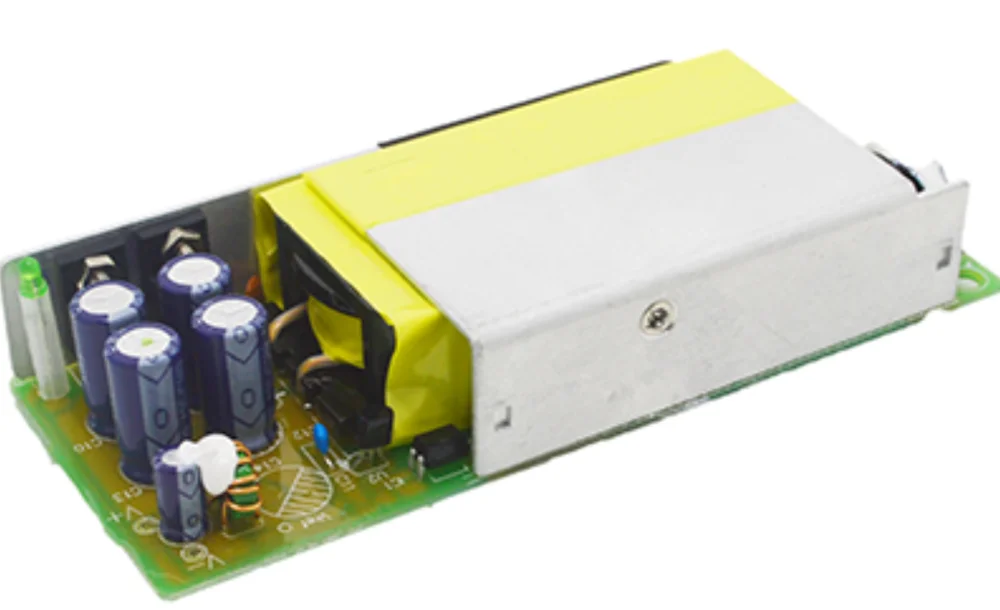

Products Description
Mechanical Details
* Measure: L138.8xW55xH28
* Weight: 180g
* Customized solution: OEM/ODM
Item | 24V 100/120W Open Frame Power Supply | ||
Model | Compatible Battery | CB-S240420 | |
INPUT | Input | 100-240VAC 50/60Hz | |
Charing output | Output | 24VDC / 4.2A | |
Features | Ripple & Noise | <120mV | |
Charging | Energy star level | Eup 2.0, Doe VI, CEC VI, CoC V | |
Efficiency | >89% | ||
Installing | Available for the system of Safety Class I/II | ||
Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing | |
Storage Temp | -20 ~ +85℃ (Refer to "Derating Curve") | ||
Storage Humidity | 20 ~ 90% RH non-condensing | ||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
Cooling Method | by NTC (natural cooling) | ||
Safety&EMC | Safety Standard | UL 62368, ETL 62368, EN 62368, EN 61558, EN 60335 | |
Safety Approvals | UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us. | ||
EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 | ||
MTBF | 5K hrs min. MIL-HDBK-217F (25℃) | ||
Machanicals | Pin location | Molex &JST pin connector, or lead wires or others | |
Dimension | 138.8x55x28mm (LxWxH) | ||
Packing | 180g; 60pcs/14.5Kg/0.056CBM | ||

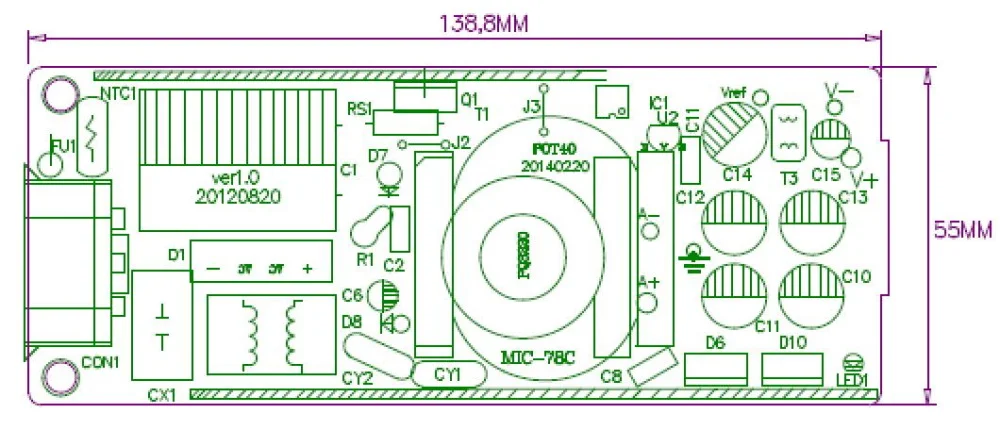

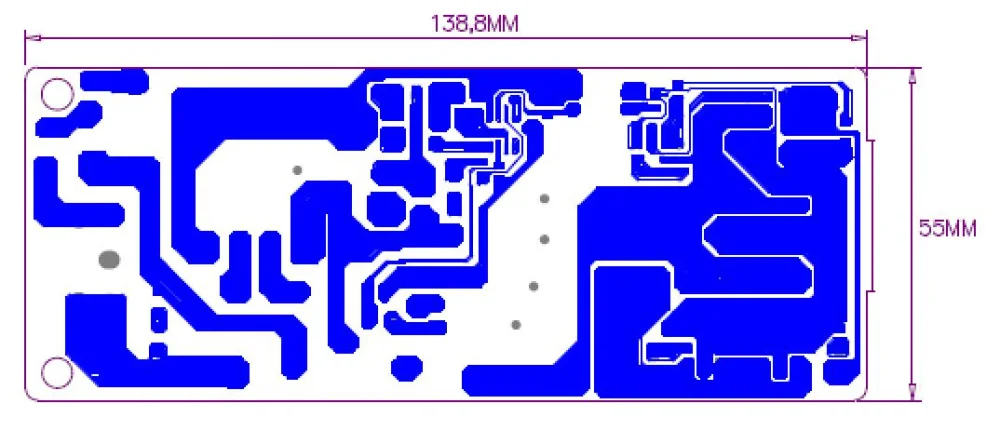

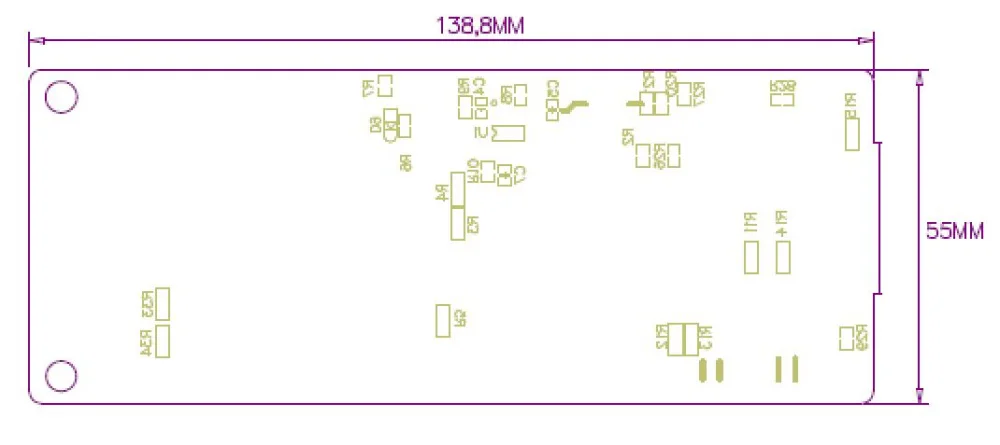

Circuit & Layout drawing
Product packaging
