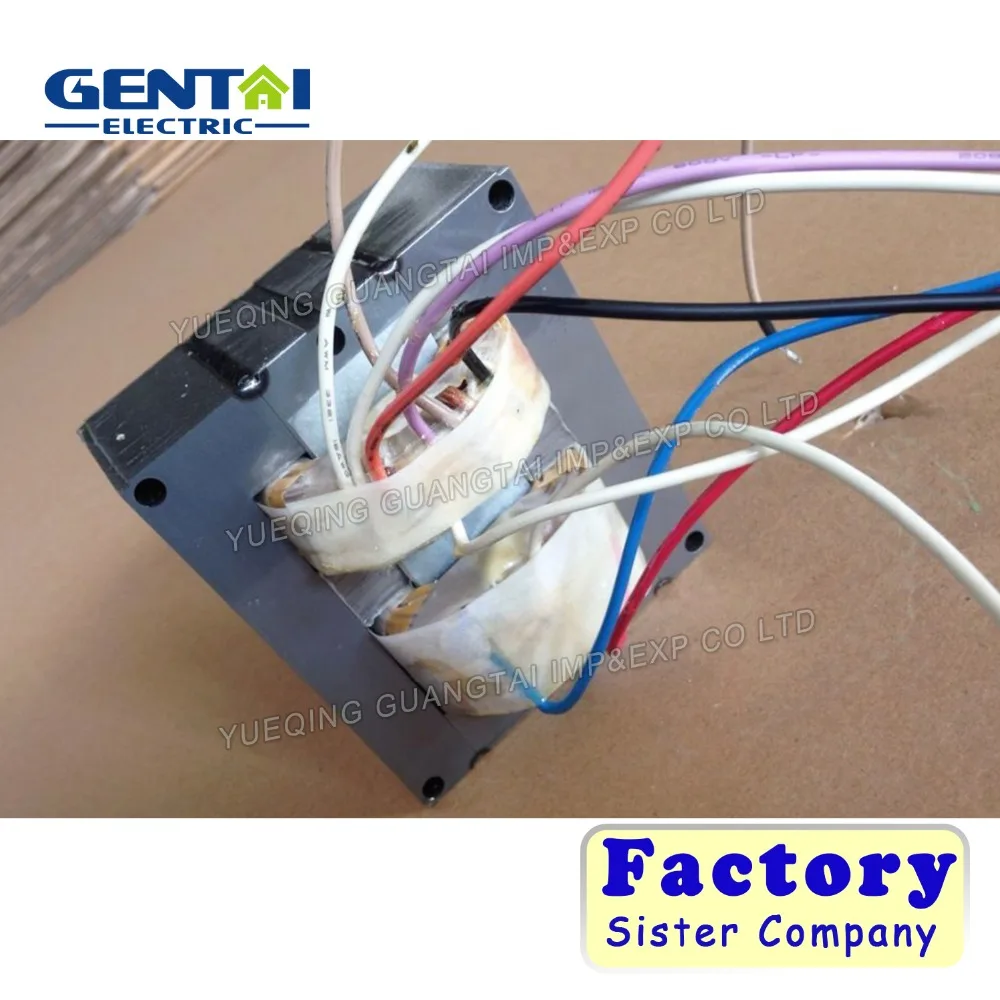

US Standard Aluminum/Copper Wire 3 / 4 / 5 tap voltage 100W 150W 200W 250W 400W 600W 1000W CWA HPS HID Magnetic Ballast Kit

 Lamp Type

1000W HPS

 ANSI Designation

S52

 Line Voltage(V)

120/208/240/277

  Regulation

10%

 Frequency(Hz)

60

 Recommended Fuse(A)

25/15/10/10

 Circuit Type

CWA

 Insulation Class

180°C

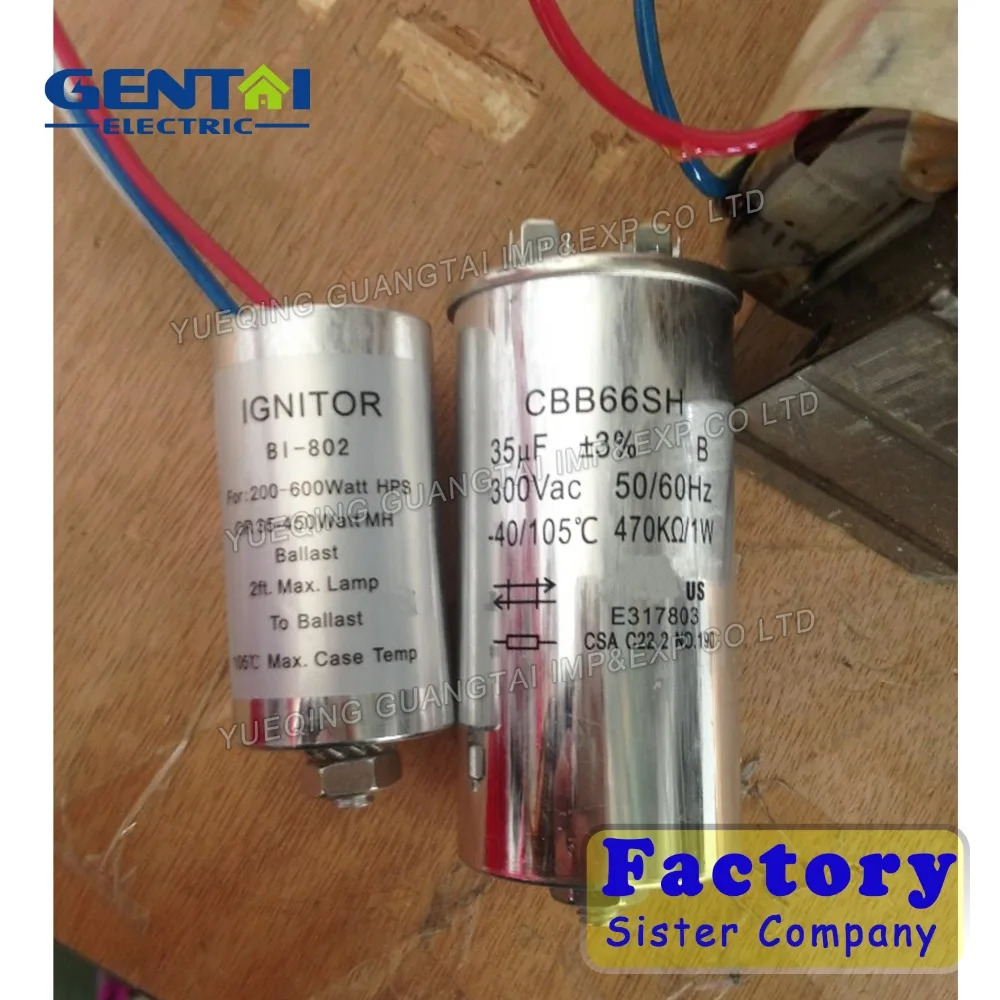

 Capacitor Value

26 MF

 Capacitor Voltage Rating

500V

 Cap.Temp.Rating

105°C

 Winding Materials(Pri/Sec)

Al/Al

 Lamp Starter

BI-803

  Agency Certification

RU,cRU

  Maximum Distance to Lamp

2FT

Overall Dimensions (Inches)

Mounting Holes

(Inches)

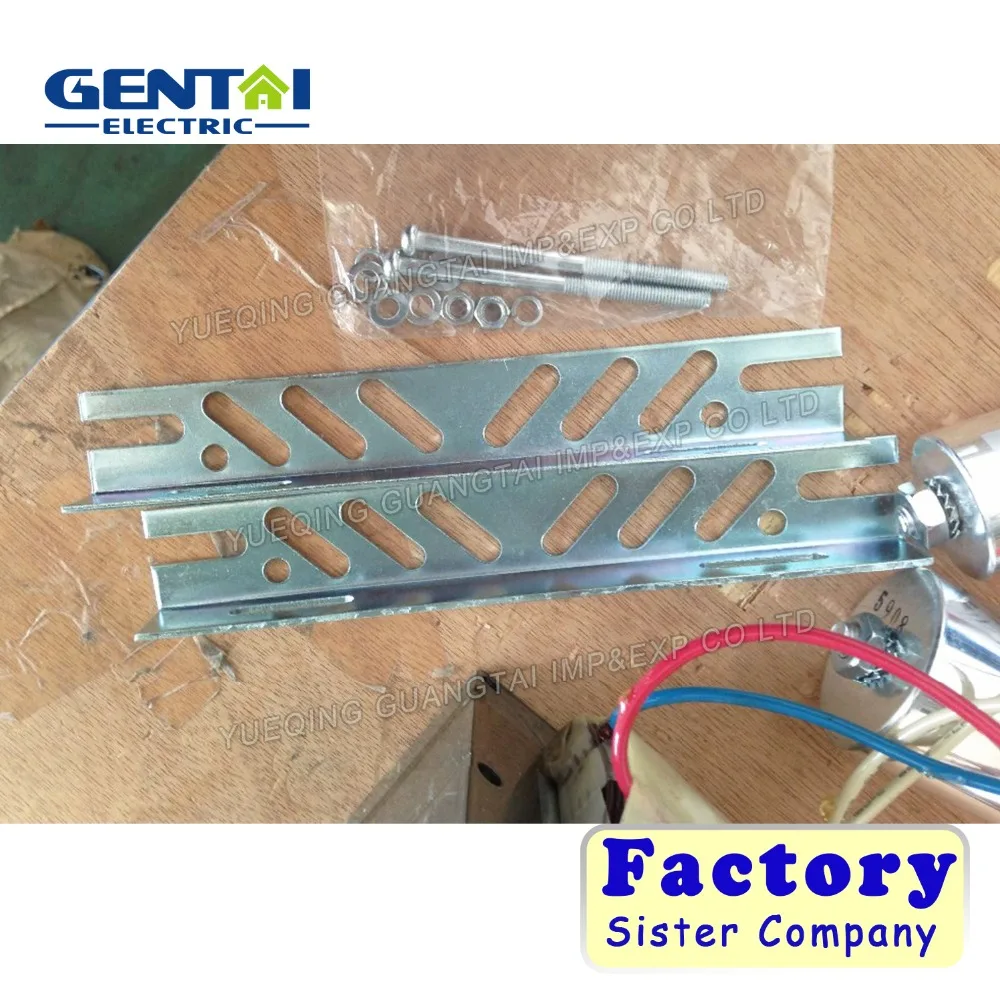

Bracket

Dimension

(Inches)

Ballast Net Weight

(KG)

Lead Length

(Inches)

Length

Width

Height

B max.

Diameter

M1

M2

Length

Width

4.30

4.33

6.02

6.18

0.25

3.89

5.37

7.25

1.11

11.75

12-14
