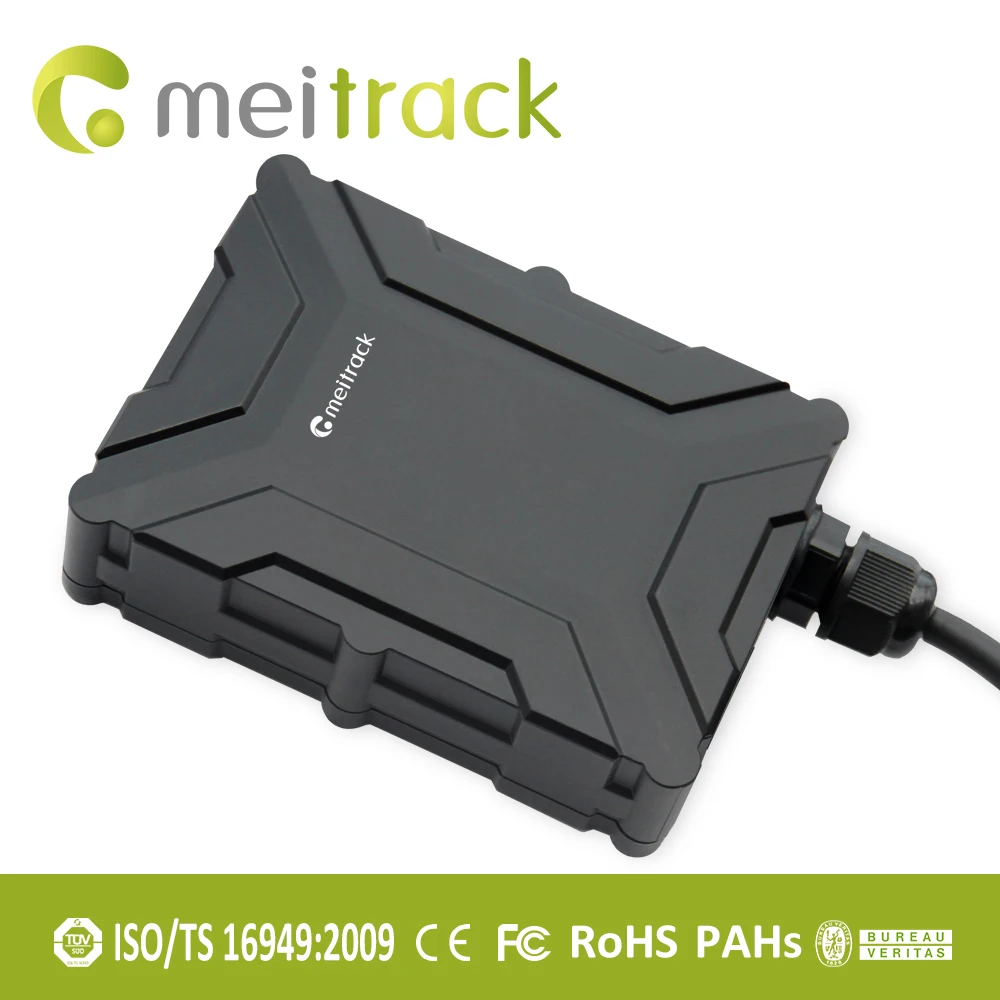

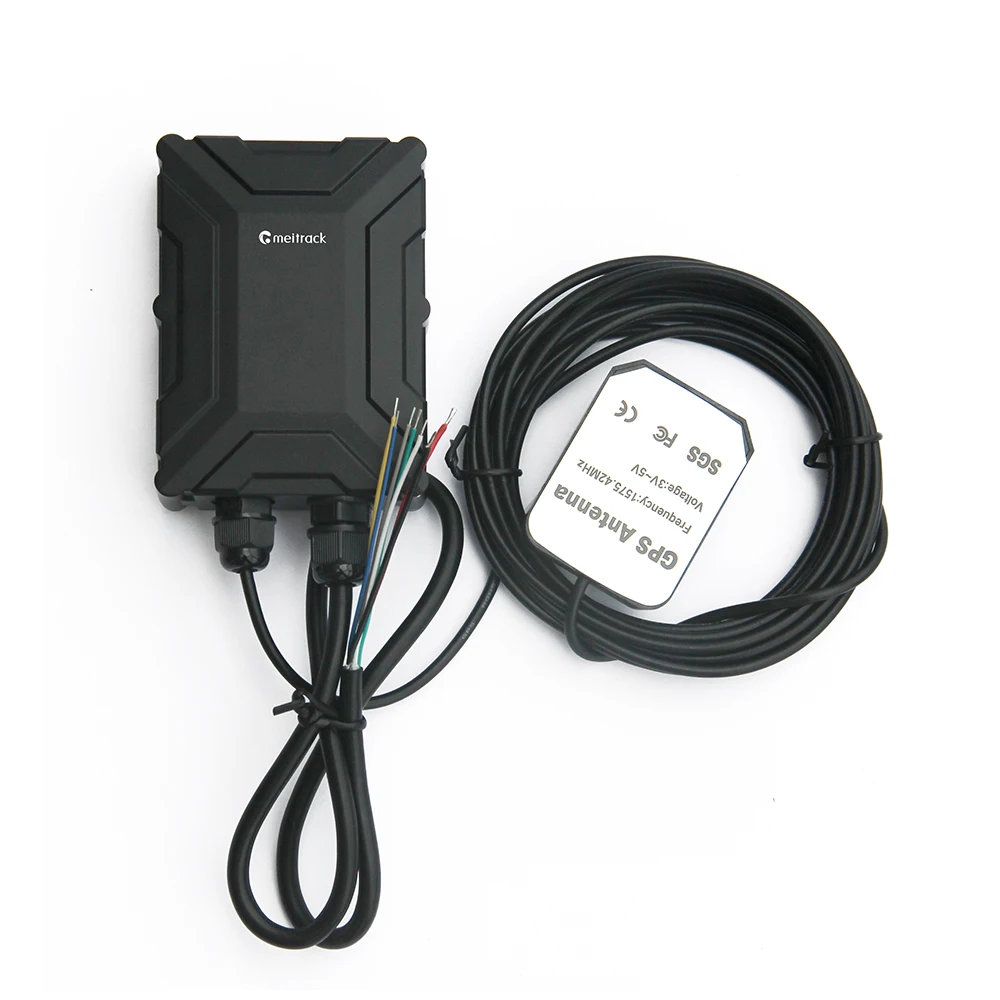

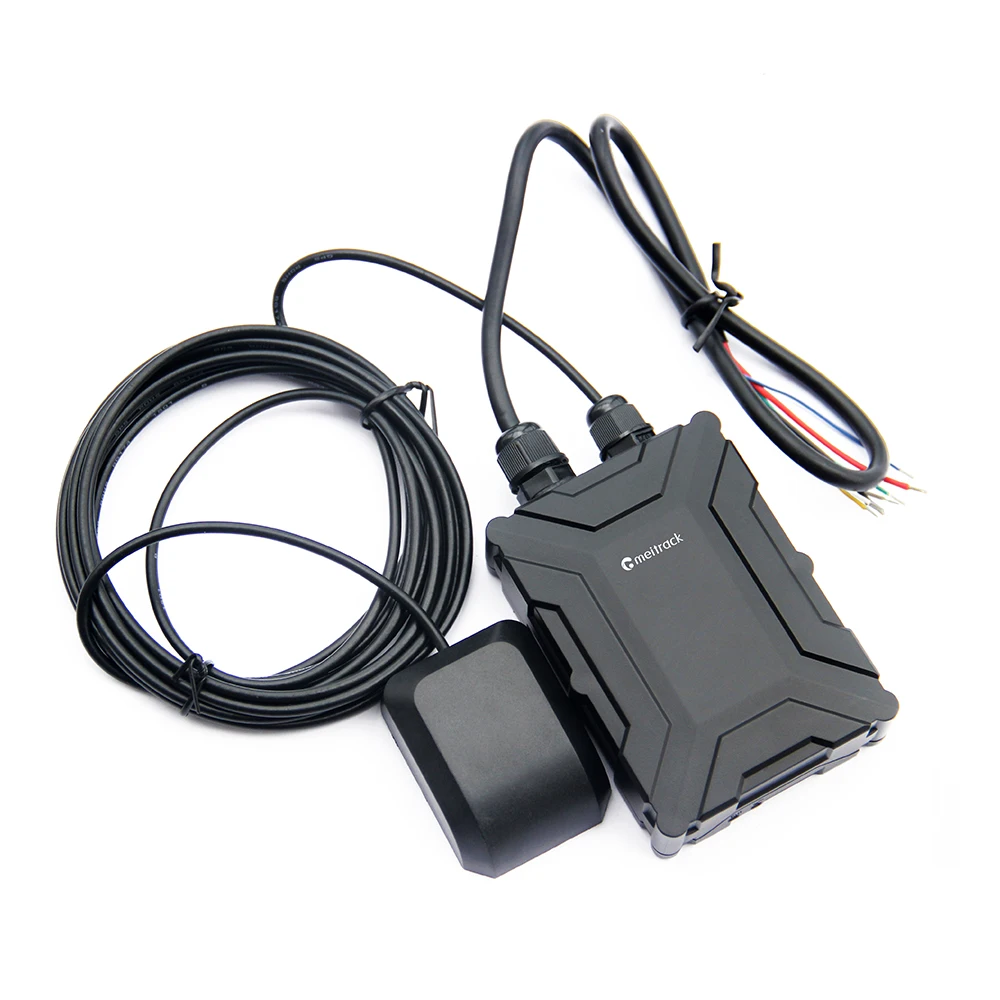

Meitrack T366G car smart GPS tracker
- Category: GPS Tracker >>>
- Supplier: Meitrack Group (Shenzhen) [Guangdong China]Meitrack
Share on (60682071522):
Product Overview
Description
| PRODUCT OVERVIEW |
Meitrack T366G
Affordable 3G Vehicle GPS Tracker
The T366G is a vehicle GPS tracker with IP67 water-resistance rating and can be installed into cars, motorcycles, yachts, and boats. It is equipped with built-in GPS and GSM antennas. The unit can work well in extreme environments.
| FEATURES |
 | Affordable Price Keep track of your cars, motorcycles, yachts, and boats for a low cost. |  | 3G (WCDMA) network Automatic transmission from 3G to 2G network adapts to actual environment. |
 | Harsh acceleration/braking alert Within 3-axis accelerometer, harsh acceleration/braking alarm can be realized. |  | IP67 water resistant |
| APPLICATIONS |
| SPECIFICATIONS |
| Dimension | 80.5 mm x 60 mm x 23.5 mm | Weight | 100g |
| I/O power cable length | 50 cm | Power supply | DC 11.4–90 V/1.5 A |
| Power consumption | Current in standby mode: 65 mA | Operating temperature | -35°C to 80°C |
| Operating humidity | 5% to 95% | LED indicator | Green indicator showing the GSM signal, Blue indicator showing the GPS signal |
| Button/Switch | 1 upgrade button (used to manually upgrade the firmware), 1 power button | Memory | 8 MB buffer |
| Sensor | 3-axis accelerometer (used to wake the device up by vibration and detect towing alerts, harsh acceleration alerts, and harsh braking alerts) | Positioning accuracy | 2.5m |
| GPS sensitivity | -165 dB | Frequency band | T366G-E: UMTS/HSDPA: 900/2100 MHz GSM/GPRS: 900/1800 MHzT366G-A: UMTS/HSDPA: 850/1900 MHz GSM/GPRS: 850/900/1800/1900 MHz T366G-T: UMTS/HSDPA: 850/2100 MHz GSM: 850/900/1800/1900 MHz Note: Select proper device according to the local frequency band. |
| I/O port | 2 digital inputs and 1 analog detection input (0–30V; selectable positive, negative, and analog detection inputs) 1 analog detection input (0–30 V) 1 output 1 USB port 1 output (voltage: 5V) 1-Wire® iButton 1-Wire® temperature sensor |
|
| ACCESSORIES |

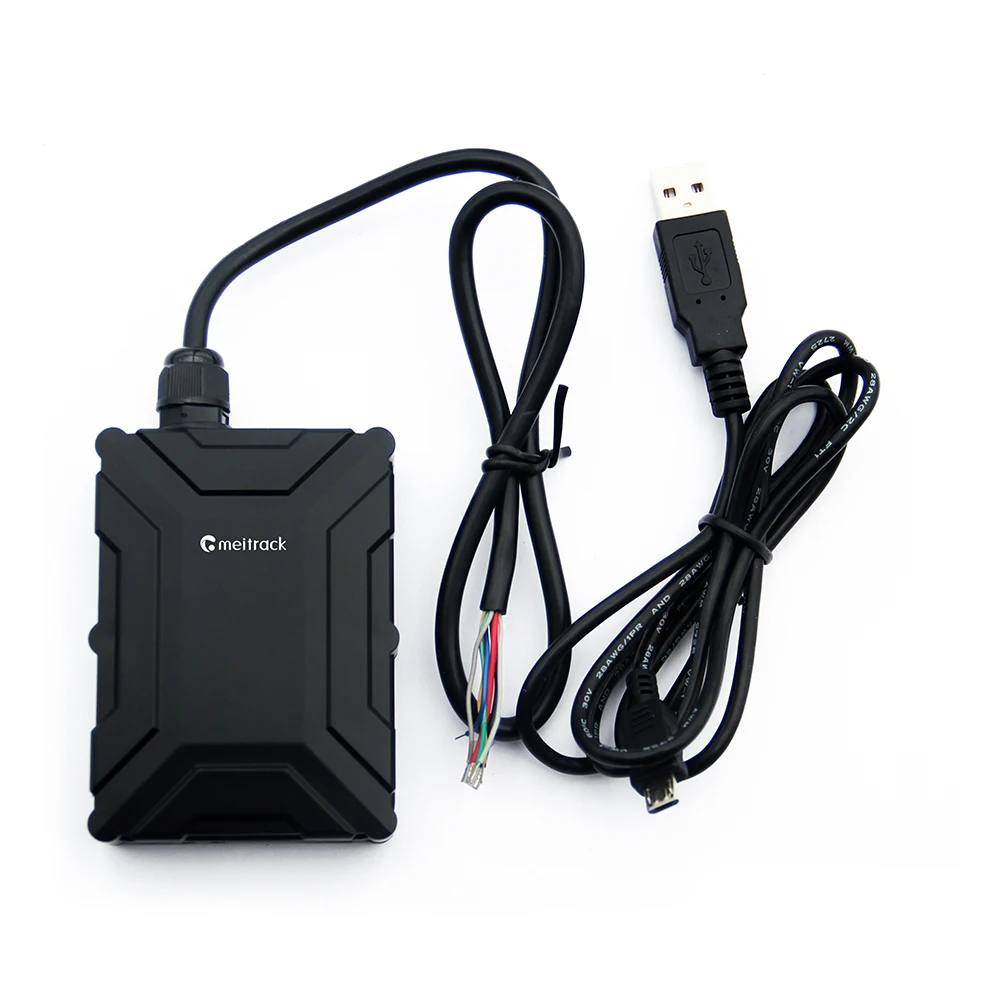

| Accesories | T366G Tracker | USB cable | L wrench | CD download card |
| Optional Accessories | iButton | Battery | A53 fuel level sensor | A52 digital temperature sensor |
| CERTIFICATES |
| MEITRACK GPS TRACKING PLATFORM MS03 |
300+functions customizable
With self-owned sourcing code, we can customize almost every function for you.
Rebrandable
Place your own logo, login in from your own website, on our serve.
Account management
Unlimited authorization to your account and sub-account.
4 configuration methods
Use our professional software Meitrack manager, or use OTA by website/APP, or simply send a SMS.
Multi-screen monitoring
Manage your fleet from anywhere, PC, Laptop, or even on your mobile phone, you can do all three at the same time.
24/7 support
Provide worldwide after service in 24 hours, 7 days a week.
| COMPANY OVERVIEW |
Since 2002.
20,000m² state of the art manufacturing facility based in Shenzhen, China.
Placed in-house R&D centers in Taiwan, Shenzhen and the United States.
Providing OEM&ODM service.
Providing software development service.
Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.
