Product Overview

Description

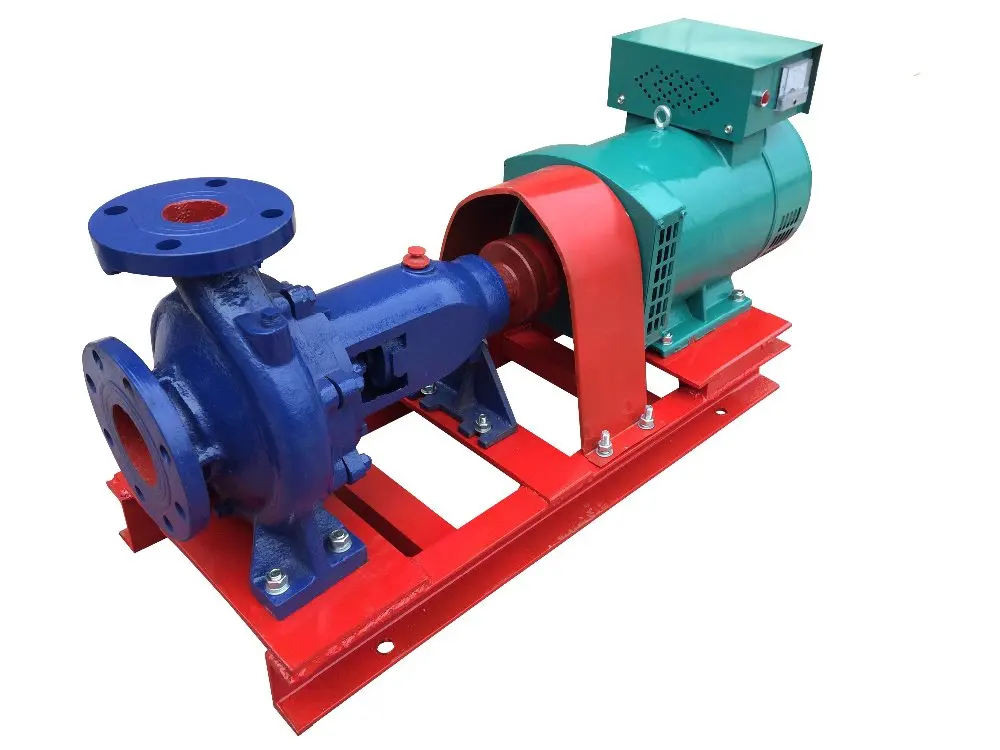

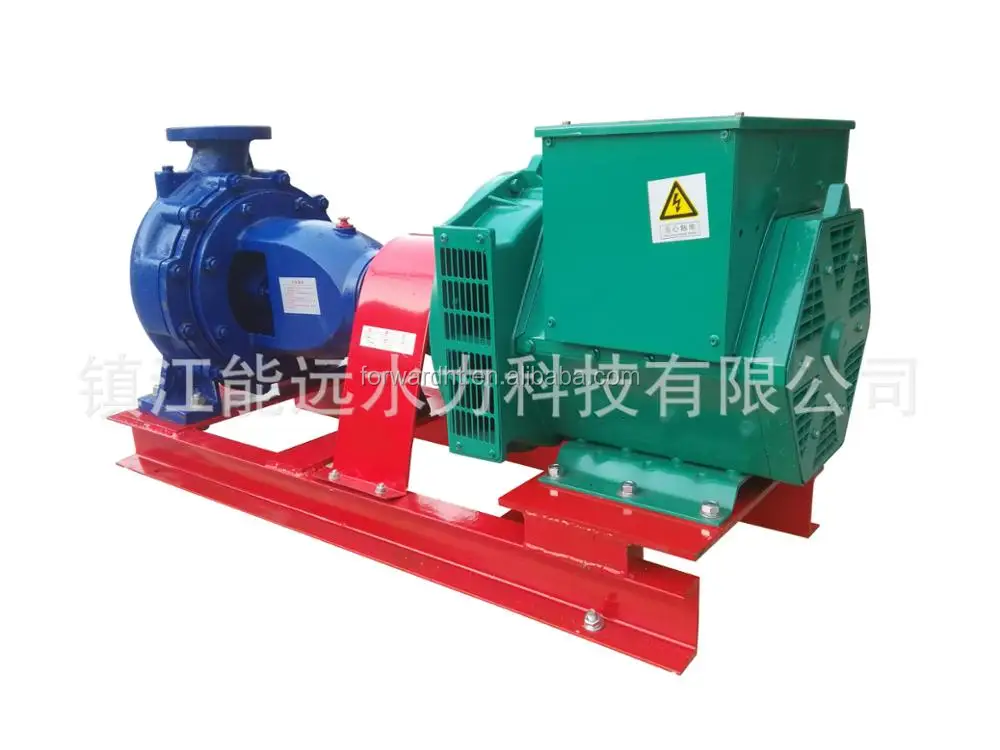

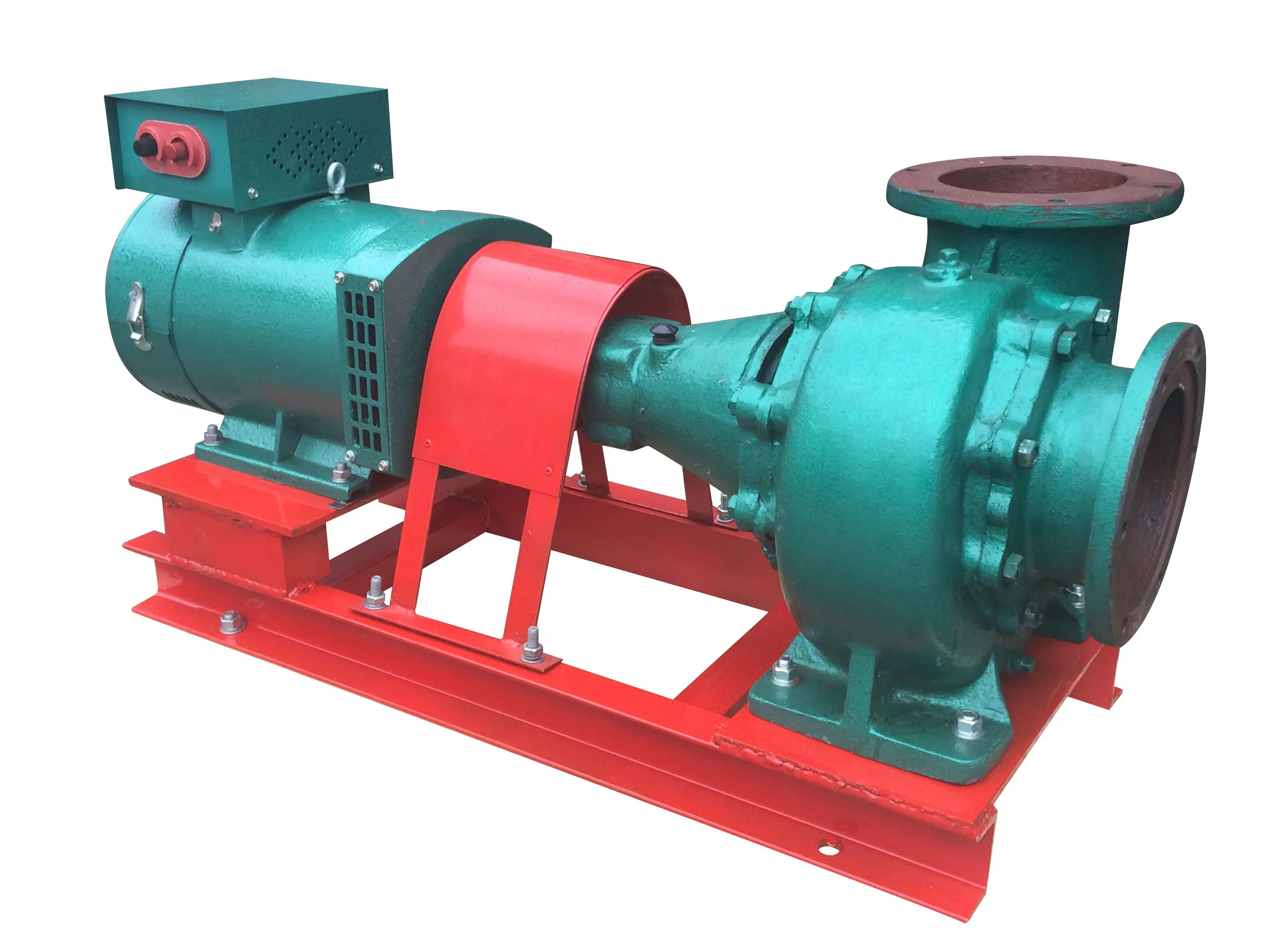

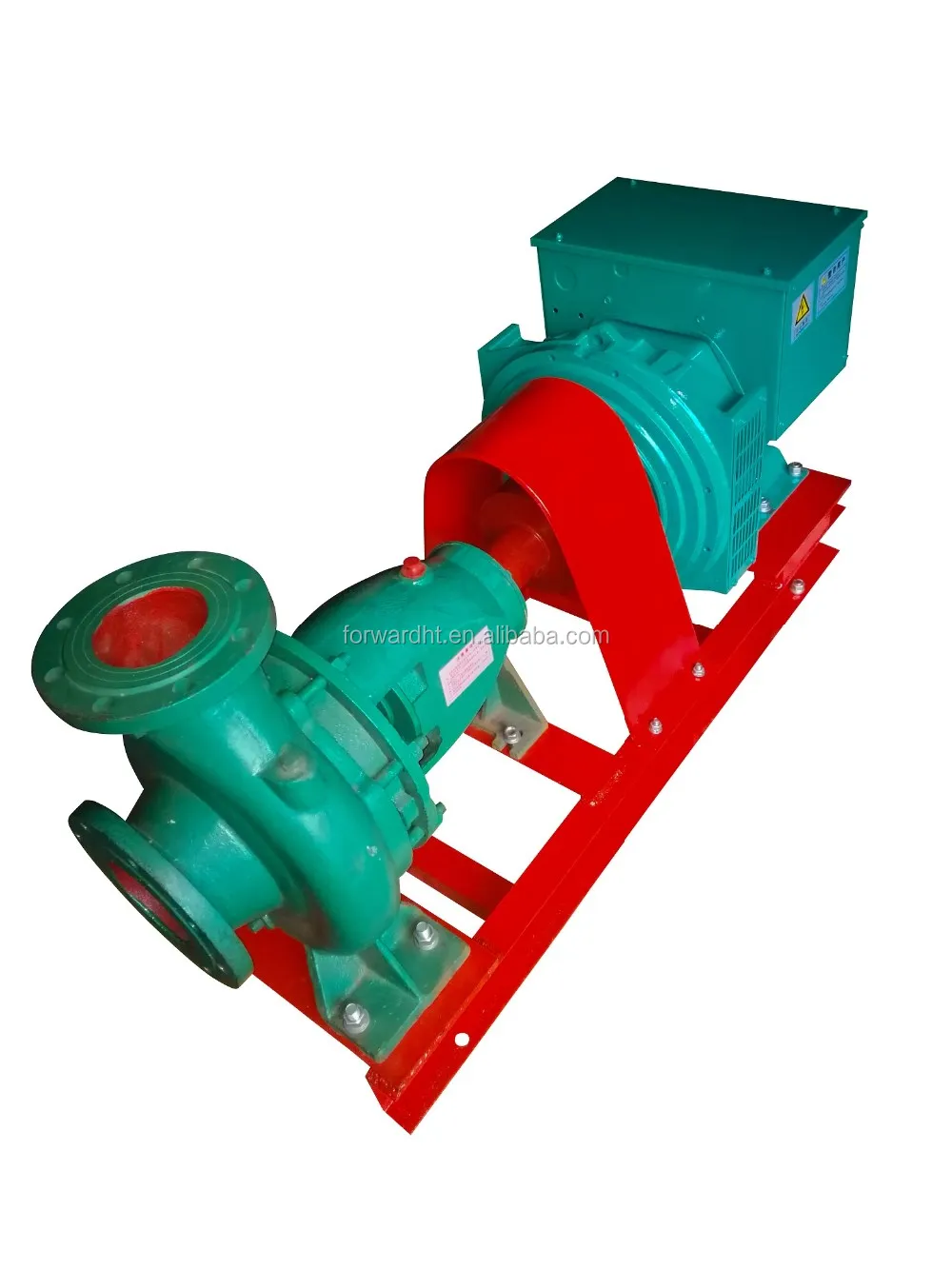

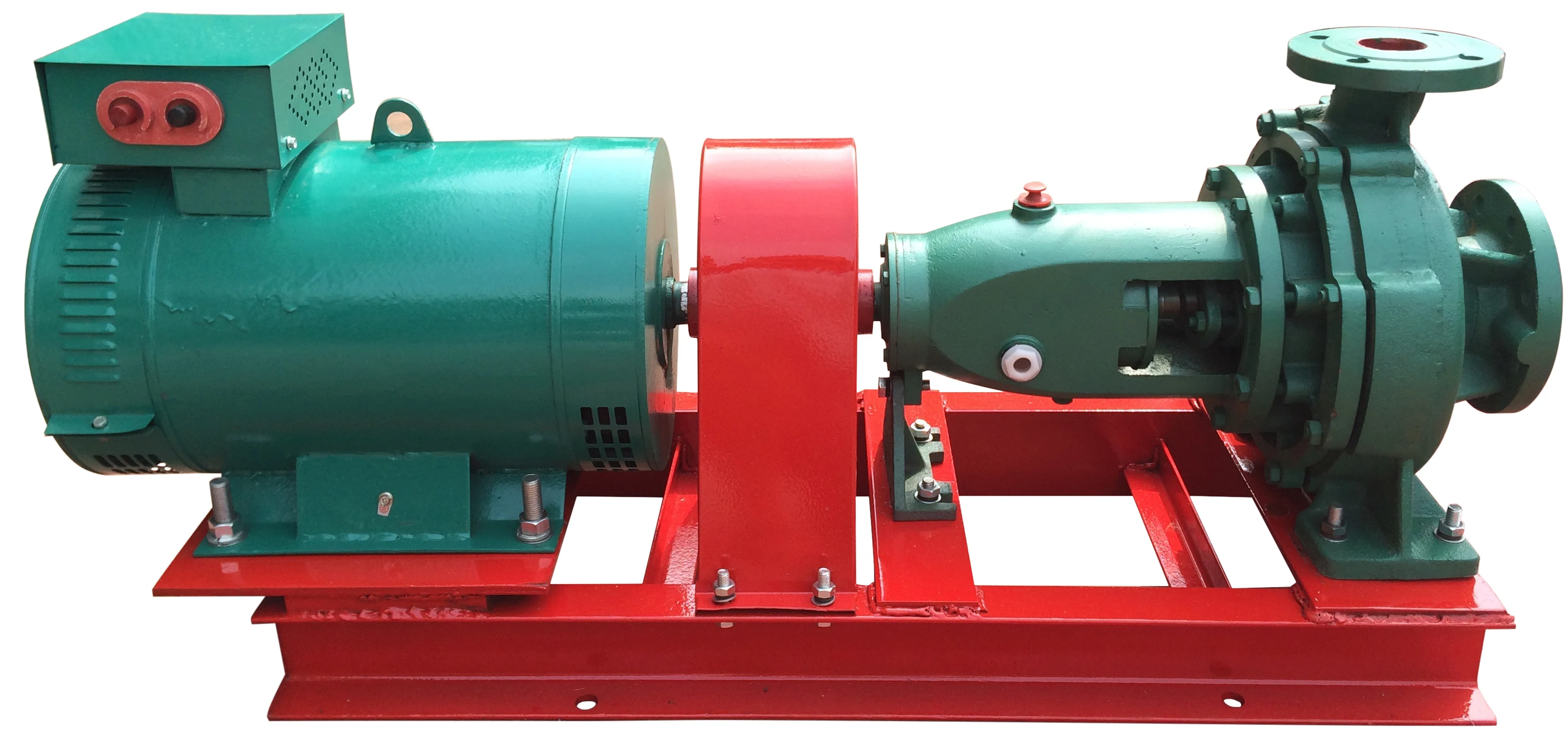

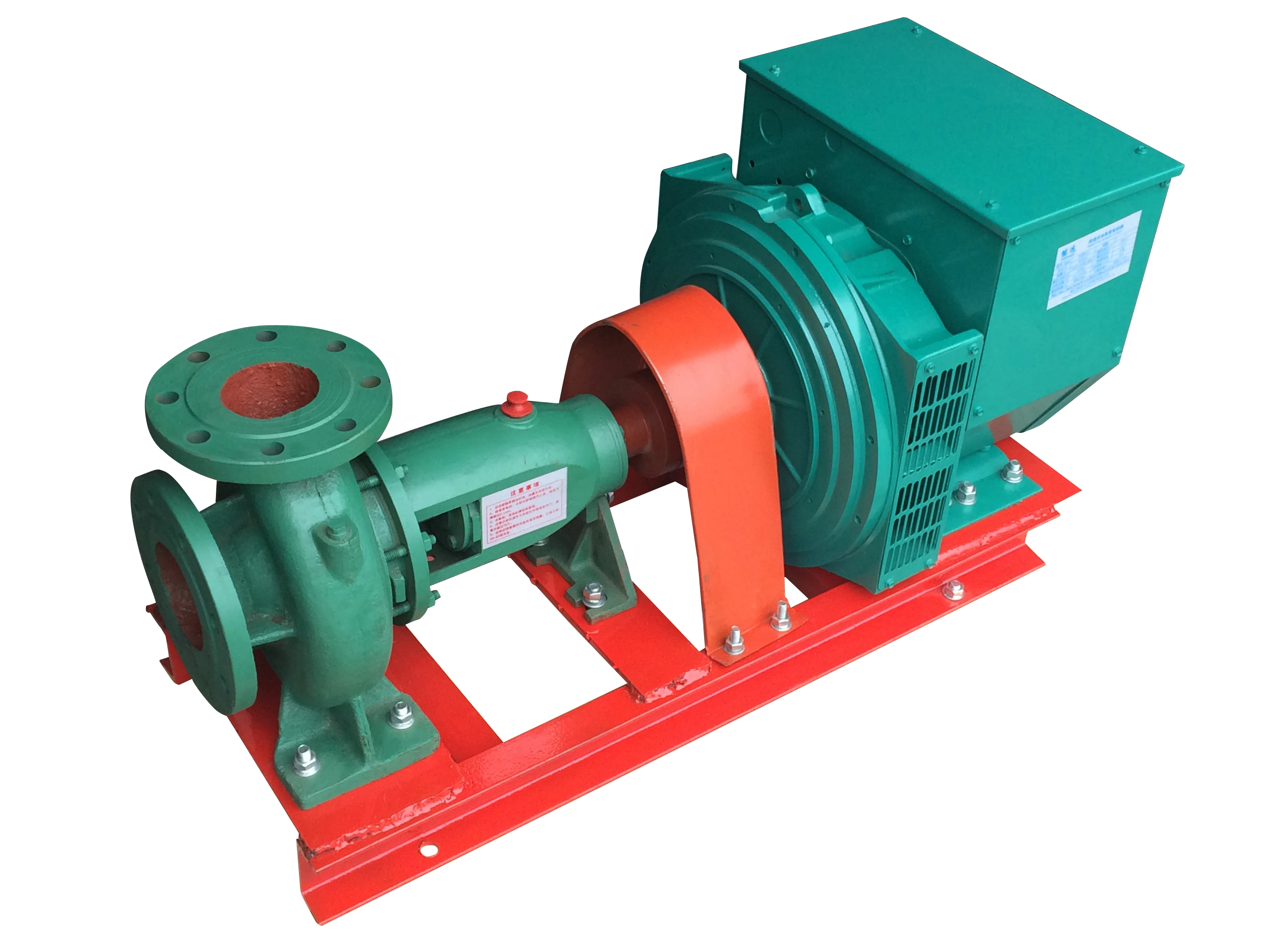

15kw brushless induction radial flow hydro turbine generator pico hydro turbine



Radial flow hydraulic turbine

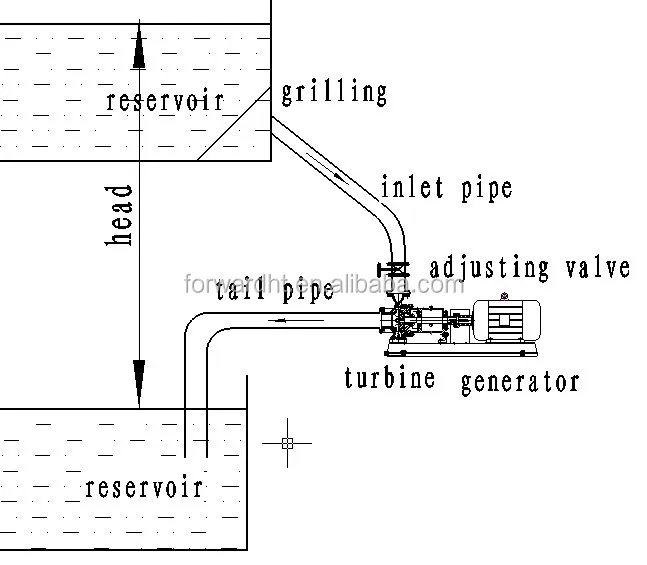

Radial flow turbine is a kind of reaction turbine suit for head over 8m, flow over 0.003m3/s. The main features are:

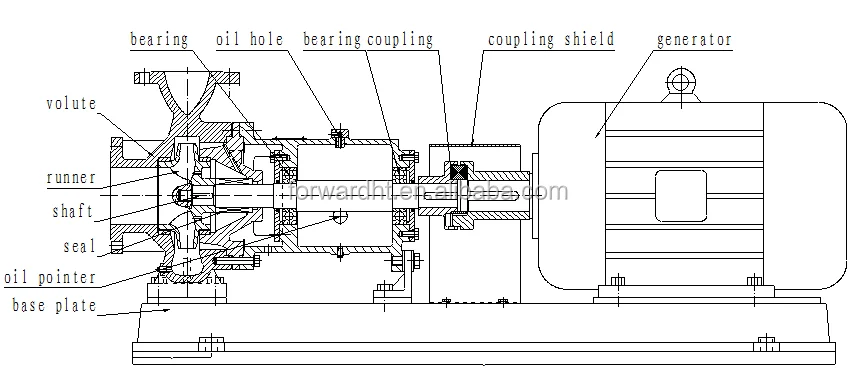

1. Turbine and generator are separated, which is more easy to install and maintain;

2. Unlike vertical turbine, this turbine is horizontal. Turbine has 2 bearings, generator has 2 bearings. The radial turbine has a separate oil lubrication system ensuring a more reliable system.

 3. The axial thrust within turbine is well balanced by a special design of axial thrust balancing device. Therefore, the structure of radial flow turbine is more reliable.

4.auto voltage rectifier is installed within generator, the voltage is more stable.

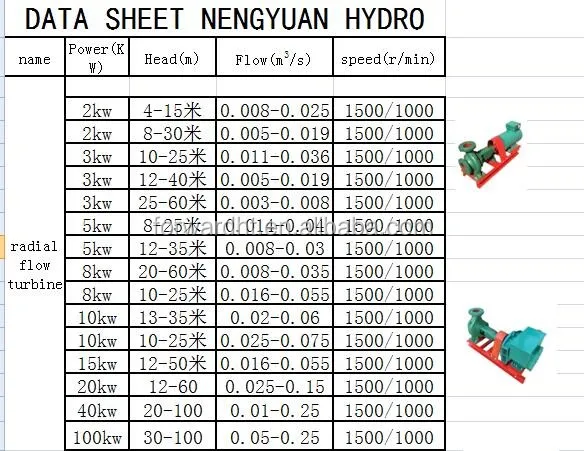

The rated power of radial flow turbine is 2kw-200kw.
