Product Overview
Description
Product Description

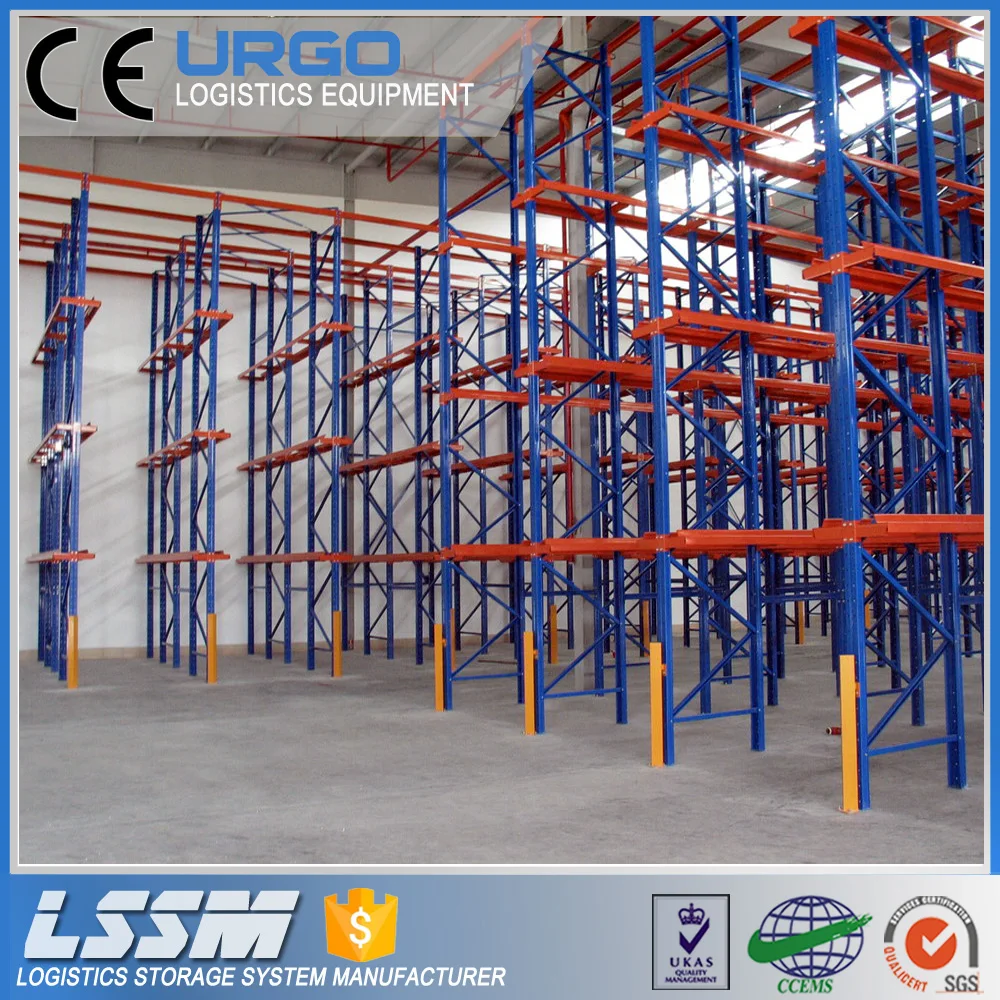

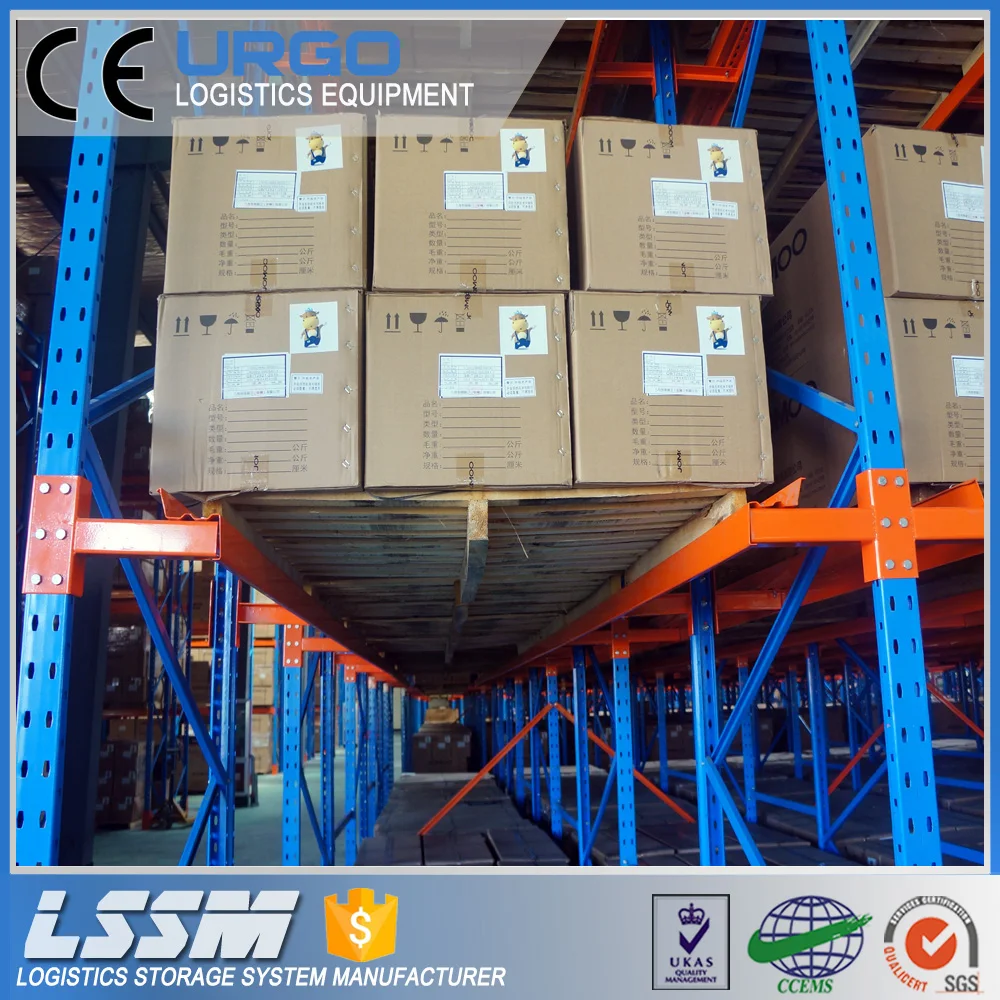

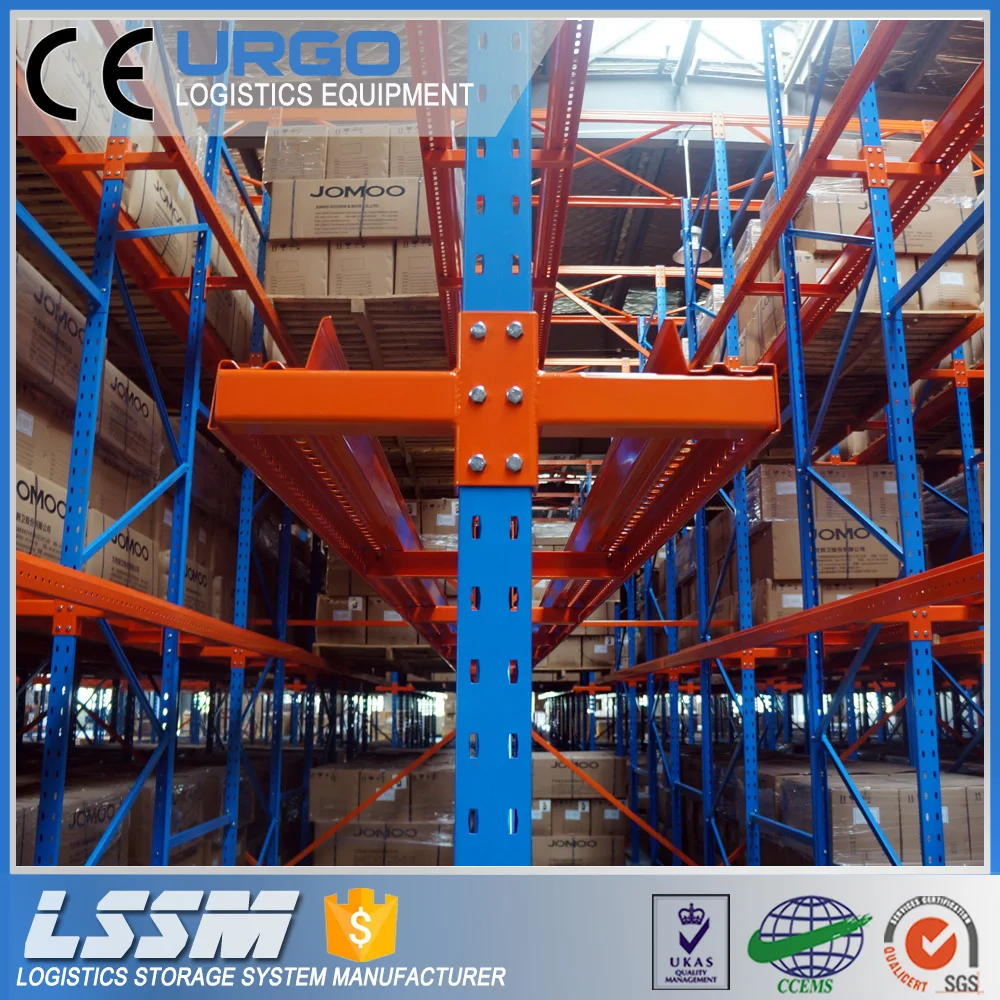

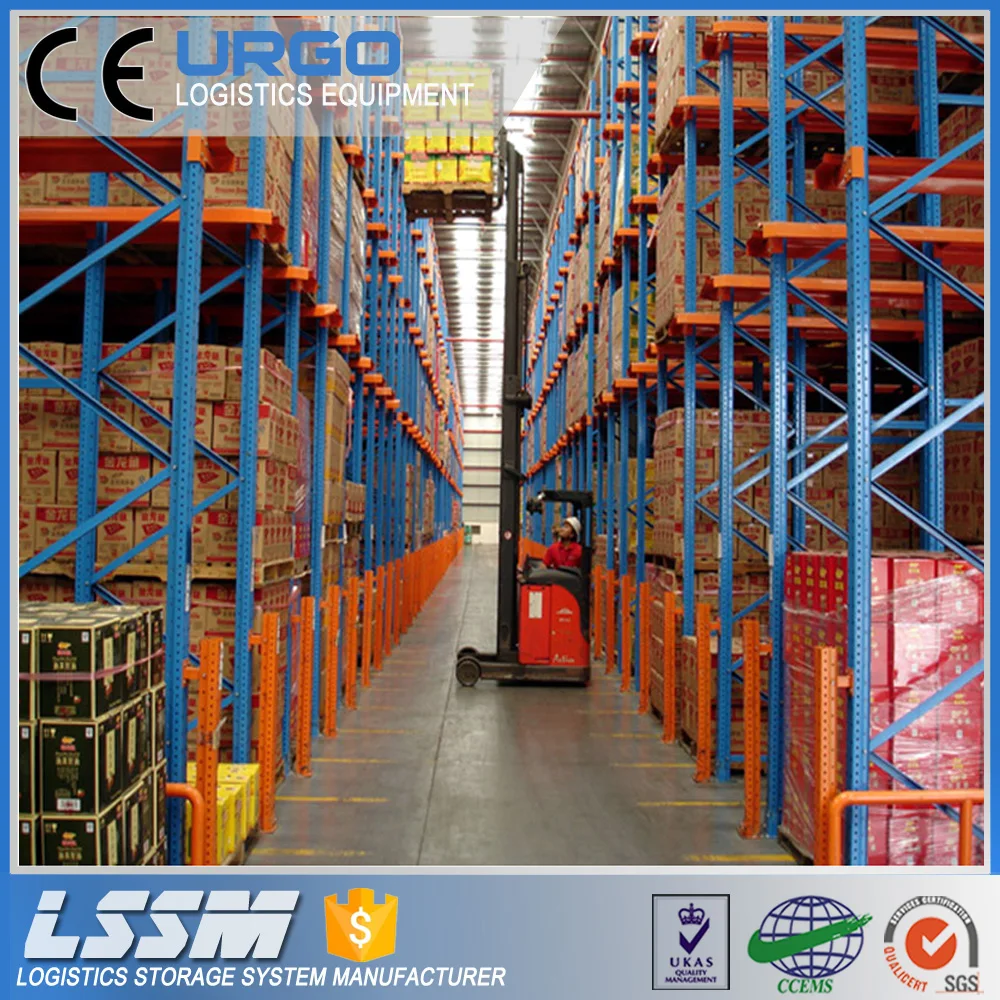

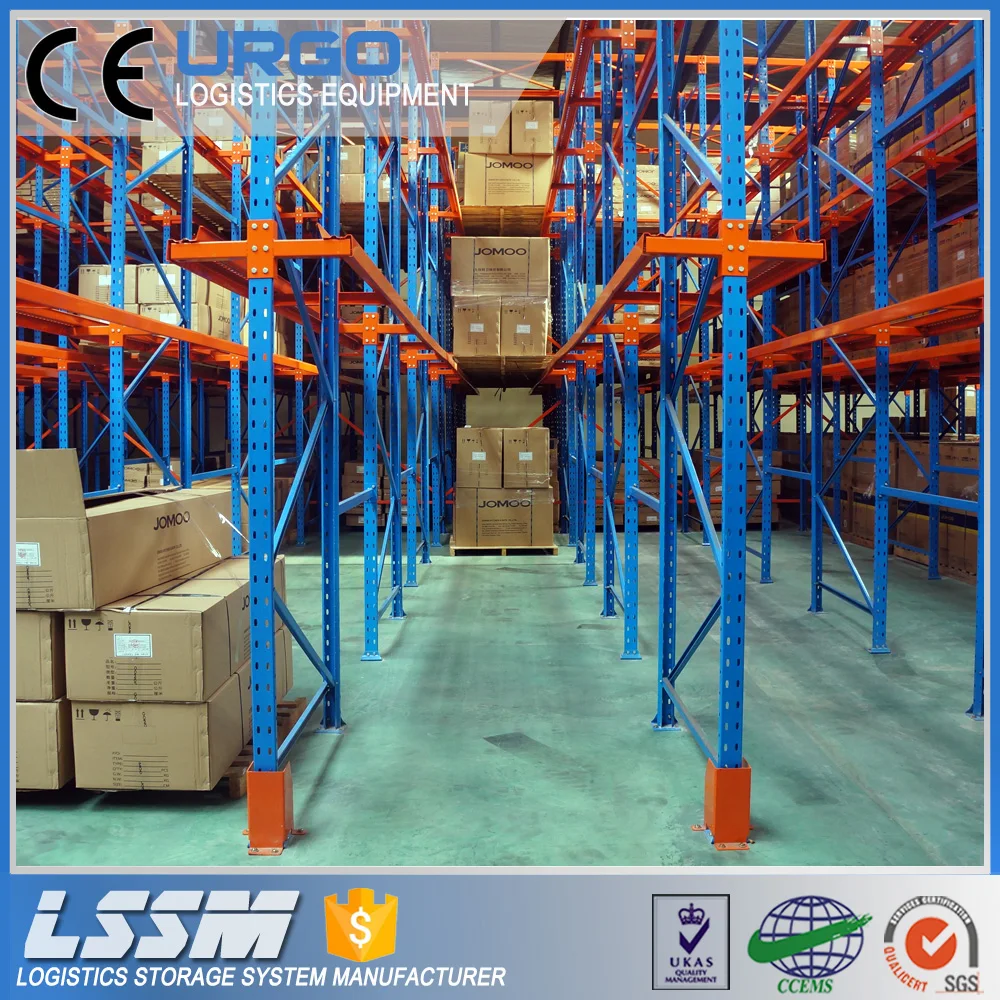

URGO Drive In Racking is the most economical high density pallet rack system designed for high volume SKU’s. Increase density by 75% over selective pallet rack. Maximize the space in your warehouse with drive in racking. It is closed at one end, allowing for last in, first out(LIFO) storage. Forklift enters the rack and picks pallets off the rails. It is available in up to 20 pallets deep by 4-7 pallets high.
The Following Related Products Show:
Product Structure
Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.
Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam:
1. High load capacity up to 5000kg.
2 .Manufactured with the highest quality steel Q235.
3. Orange epoxy coated (RAL 2004).
4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
5. Boltless connection with 3/ 4/ 5 connector hooks.
6. A security pins per beam to prevent accidental dislodgement.
Beam Profiles:
Loading (kg) Specification (mm) | The Length of Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
| 100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
| 110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
| 120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
| 140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
| 160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
| 160 x 50 x 1.8 | 4400 | 3420 | 3020 | 2590 | |||||
| 160 x 50 x 2.0 | 4130 | 4170 | 3320 | 2840 | |||||
Loading (kg) Specification (mm) | The Length of P Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
| 120 x 50 x 1.5 | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
| 140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 | |
Main Spare Parts Profiles:
