Product Overview



osb machine/osb making machine/osb machinery

Product Display



OSB(oriented strand board) is widely used in construction, packaging,furniture,decoration, etc., and OSB is also well-structured materials and outdoor materials. OSB has a series of features,such as good stability,low material  consumption, highstrength,water resistance, and environmental

protection. we can also produce the different sizes of OSB making machines as to our customers' requirements.

1. Chip preparation section                                                                                                                   Raw material is reduced into qualified chips by the drum chipper,  then the chips are transported to

the chip bin, and then feed to the  knifering flaker by which the chips are turned to flakes, then the

flake stored in wet flake bin.

2. Drying and sifting section

The flakes are discharged from the wet flake bin which are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface dry wood shavings bin to be stored.

3.sizing section

After scaled, the core and surface flakes are to be effectively  and uniformly mixed with qualified glue to achieve the uniform mixing and the sufficient sizing effect.

4.Paving and thermoforming section

The after sizing shavings are transported to the mechanical grading paving machines

by the belt conveyor.and they are paved to the uniform flat slab. After a series of processes such as pre-press, lengthwise saw, cross saw, accelerate conveyor, storing conveyor and loading conveyor,the rough boards are sent to the installed hoistingcages,then the rough boards are pressed by the hot press machine.

5. Post--processing section

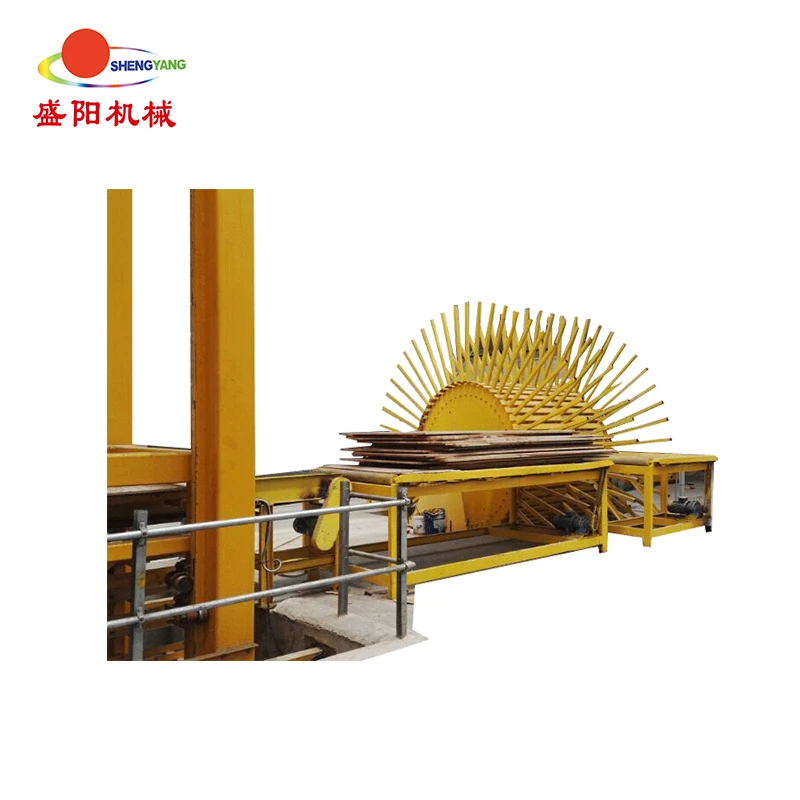

The thermofoming boards are conveyed to the panel turnover machien to become cool, then the boads are transported to the vertical and horizontal edge cutting machine by the cooling conveyor.

6.sanding section

The boards are sanded, checked and stored . PLC control is used in mat-forming section. We can provide 5000-100000 m³ OSB production line as well as a single machine supplement such as chipper, refiner, dryer, forming machine, pre-press, hot press etc.

1001Drum chiipperBX2181
1002Belt conveyer10000*500mm1
1003magnet 1
1004Chip silo50 m3  (prepared by customers)1

2001belt conveyer500×6000mm1
2003flake pipeline7000mm2
2004flake silo480m3 (prepared by customers)1
2006screw feeding out pipe4000mm1
2007belt conveyer6000mm1
2008magnet 1
2009screen6000 mm×φ1500mm1
2010belt conveyer of unqualified flake6000mm1
2011Screw conveyor4000mm1
2014hopper 2
2015Screw conveyor & belt conveyer3000mm+8000mm2
2016core flake silo30m3 (prepared by customers)1
2017Surface flake silo50m3 (prepared by customers)1
2018Screw conveyor4000mm2

Hot Sale Products


Our Clients


Company Information




Packaging & Shipping

Contact Us


1. Can you customize products for clients?

Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.

2. How can we trust your factory?

We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.


3.Why does the price often change?

 The price depends on the latest prices of the raw materials.


4. What about the contract signing?

If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.


5. How about delivery?

 when the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
