Hi Resolution IMX335 3mp 4mp 5mp IP Android External Board Camera Module IMX CMOS with WIFI Module Optional
- Category: >>>
- Supplier: Htw Tech Limited
Share on (60682295640):
Product Overview
Description
Related Products
Product Description
Product Name | 5.0mp IP Camera Module |
Model | TT-IP5MC |
Function | Onvif, WDR, 3D-NR, BLC, AWB, Audio Input, PoE Optional |
Major Features:
1/2.8" 5.0mp Sony CMOS Sensor
Support H.265/H.264
Support 3-Stream
Main Stream: 2560*1920 / 2560*1440 / 2304*1296 / 1920*1080 / 1280*720
Sub-Stream 1: 448P (800 * 448) / 704 * 576 / 640 * 360 / 352 * 288;
Sub-Stream 2: 640 * 360 / 352 * 288
Support WDR, 3D-NR, BLC, AWB.
Support ONVIF protocol, can access any third-party NVR
Support ICR filter for Day/Night Function
Support Screen Mast, 4 blocks.
Support Audio Input
Support Motion Detection, Mobile detection alarm automatically send email alert
Support OSD, Support network time;
Support Mobile Smart Phone Monitoring (iOS, Android), Web, VMS
Support automatic maintenance function;
Support PoE power supply (optional);
Support FTP function;
Supports electrodeless infrared dimming, electrodeless white light dimming
Support H.265/H.264
Support 3-Stream
Main Stream: 2560*1920 / 2560*1440 / 2304*1296 / 1920*1080 / 1280*720
Sub-Stream 1: 448P (800 * 448) / 704 * 576 / 640 * 360 / 352 * 288;
Sub-Stream 2: 640 * 360 / 352 * 288
Support WDR, 3D-NR, BLC, AWB.
Support ONVIF protocol, can access any third-party NVR
Support ICR filter for Day/Night Function
Support Screen Mast, 4 blocks.
Support Audio Input
Support Motion Detection, Mobile detection alarm automatically send email alert
Support OSD, Support network time;
Support Mobile Smart Phone Monitoring (iOS, Android), Web, VMS
Support automatic maintenance function;
Support PoE power supply (optional);
Support FTP function;
Supports electrodeless infrared dimming, electrodeless white light dimming
Product Specifications
Camera | ||
DSP | Hi-3516EV300 | |
Sensor | 1/2.8” Sony CMOS Sensor IMX335 | |
Functions | ||
Day/Night | Support IRC | |
Shutter | 1/25-1/10000 | |
White balance | Automatic White Balance (AWB) | |
BLC | Support Backlight Compensation (BLC) | |
Digital noise reduction | Support 3D Noise Reduction (3D-NR) | |
Wide dynamic | Support for Digital Wide Dynamics (WDR) | |
Motion Detection | Support Motion Detection | |
Privacy mask | Support for 4 areas | |
Mirror | Support Mirror Image | |
OSD | Support OSD Settings, OSD interface free moving | |
Timed restart | Support for scheduled restart | |
Video | ||
Compression | H.265/H.264； | |
Resolution | Main Stream: 2560*1920 / 2560*1440 / 2304*1296 / 1920*1080 / 1280*720 | |
Sub-Stream 1: 448P (800 * 448) / 704 * 576 / 640 * 360 / 352 * 288 | ||
Sub-Stream 2: 640 * 360 / 352 * 288 | ||
Video Frame Rate | 15fps(50HZ), 15fps(60HZ) | |
Bit Rate | 128Kbps~12Mbps CBR/VBR adjustable | |
Video Adjustment | Brightness, Saturation, Chroma, Contrast, Sharpness Adjustment | |
Ethernet | RJ-45 (10/100Base-T) | |
Wi-Fi | Optional | |
Network Protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search (Support P6S IP camera, DVR, NVS and etc.) | |
Access Protocol | Support ONVIF 2.4/P6S Private Protocol / Hikvision Protocol | |
Maximum No. of Users | 4 | |
Client | iPhone, iPad, Android, Windows | |
Audio | ||
Audio | G.711U | |
Audio Input | 1 Channel Audio Input | |
Audio Output | 1 Channel Audio Output | |
General | ||

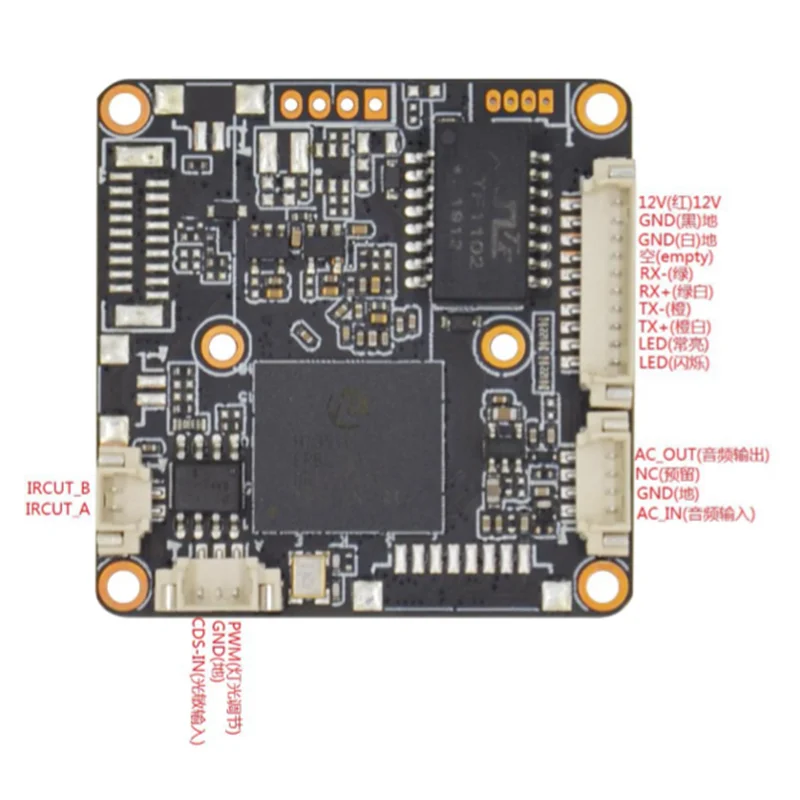

Board Size | 38 * 38 Single Layer PCB | |
Temp. and Hum. | -20℃～+65℃ | |
Power | DC12V 5W | |
