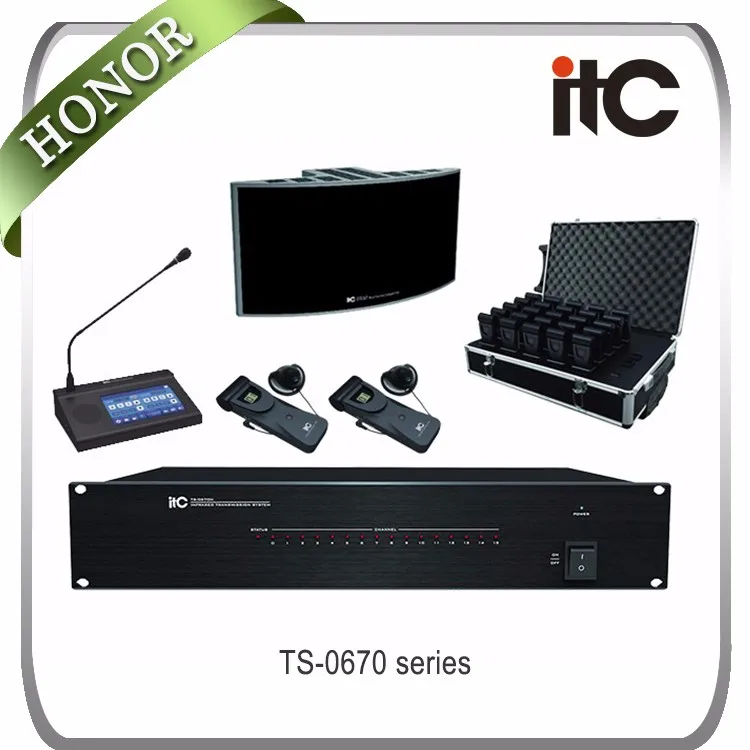

ITC tracking recording pa conference wireless interpreter system for meeting
Your Preferred Choice for Economical Conference System
Descriptions
TS-0670H series digital infrared emission controller is the core part of digital infrared voice distribution system. Fully digital DQPSK modulated transmission with digital audio compression coding
system, the system can simultaneously transmit 16 channels language at the same time.. Infrared emission controller can be installed in standard 19-inch rack, easy for storage and safekeeping.

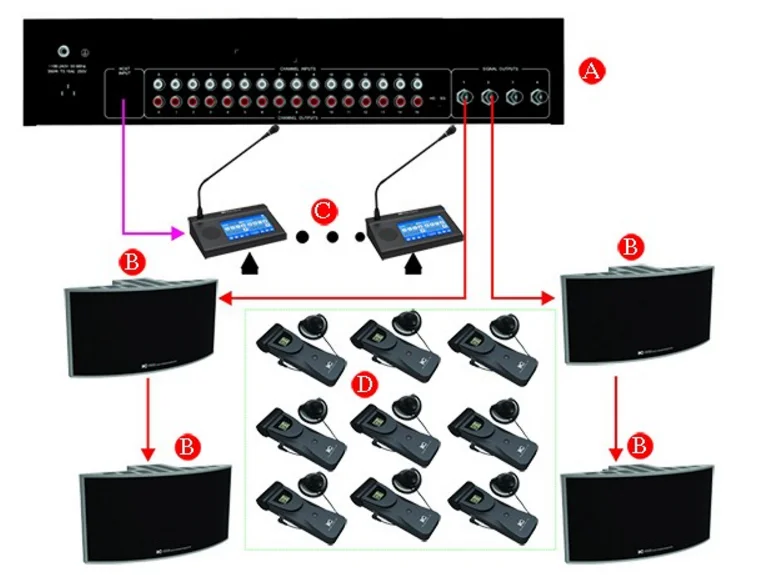

Infrared Wireless Simultaneous Interpretation System
Product List
(A) Wireless Simultaneous Interpretation System Controller
2) Using encryption mediation technique to process audio signal
Using DQPSK to ensure the high confidentiality; with internal DSP to make the sound in CD level
3) Wireless signal is excellent

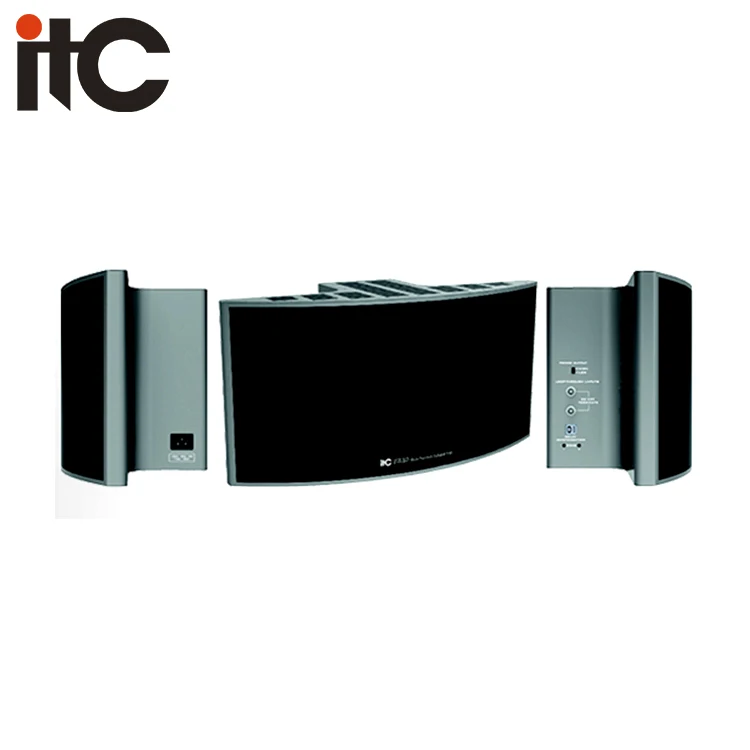

The emissive distance of the radiator is up to 40m. After cascaded, the distance is up to 500m. And the covering angle is ±135° vertical

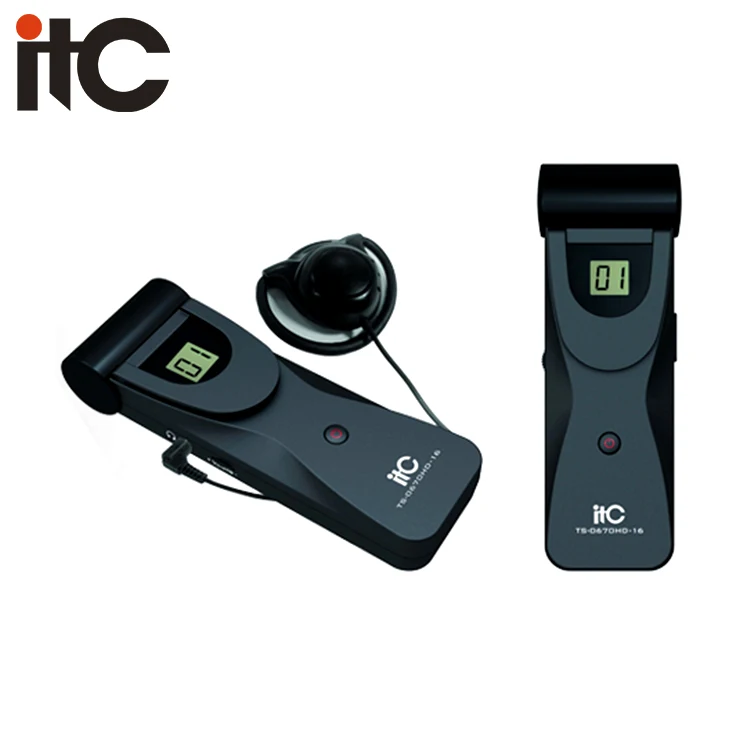

4) It’s easy for participants to use the receiver
Participants are free to move in the large signal range; What’s more, the receiver could be added without limit
5) Could work with the third-party sound system easily
With 16 sets of audio input and audio output to work with various system, such as ITC conference system, professional sound system, recording system, etc
6) In according to the standard of IEC 61604-7 and IEC 60914
International certification, worthy of trust
Specifications
Model
TS-0670H
Interpreter Unit Capacity
≤128
Number of Channels
16CH
Frequency Response
30 ~ 20KHz
S/N Ratio
>75 dB(A)
Dynamic Range
>80 dB
Channel Crosstalk
>80 dB
Total Harmonic Distortion
<0.05%
Input Voltage
~96V-264V 50/60Hz
Audio Input
LINE IN 0-15: 350mV Unbalanced
MIC IN 1-15: 70mV Unbalanced
Audio Output
LINE OUT 0-15: 1V Unbalanced
LINE OUT 1-15: 1V Unbalanced
Output Load
>1KΩ
Static Power Consumption
25W
Output Power Consumption
Not available
Connection
Special cable (6-pin) + BNC (75Ω)
Joint Reliability
reliable
Standard
IEC60914
Working Temperature
-10℃~+60℃
Working Humidity
20%~80%relative humidity, non-condensing
Color
Black
Weight
4.23Kg
Dimension
484 x 305 x 88mm
Installation
19-inch standard rack
* Compliance with IEC 61603-7 and IEC 60914.
* With 16 channel audio outputs for monitor or recording by connecting deck.
* With 2 channel signal output connector (BNC), for connecting the radiation panel.
* Using digital DQPSK modulation technology with high confidentiality.
* High-speed DSP processing and wonderful sound effects.
* It adopts high transmission frequency (2-6MHz, IEC61603 BAND4 band), without high frequency drive light interference.
* With support of input level indicator, the LED lights on the front panel of controller can display the status of the corresponding input channels.
* With support of 16 channel external audio inputs, it is suitable for large international convention.
* It supports Link TS fully digital conference system audio and digital 16 channel audio inputs.

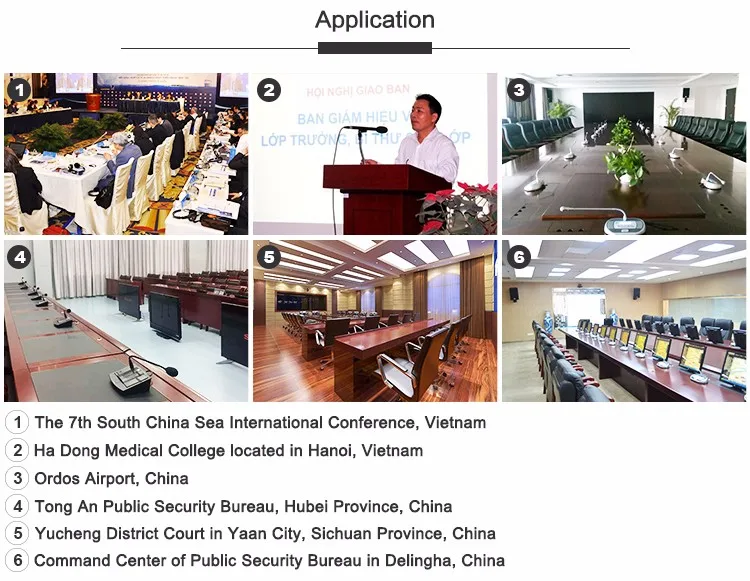

Application
Main Product
