Honghua Plastic Cup Forming Machine Plastic Cups making machine
- Category: >>>
- Supplier: Zhejiang Honghua Machinery Plastic & Rubber Co. Ltd.
Share on (60682399165):
Product Overview
Description
Our Advantages
1. We are manufacturer with production experience for more than 20 years
2. We own CE certificates
3. We accept OEM and ODM
4. Our salesman is with rich experience in foreign trade and efficient work efficiency
5. High-quality after-sales service to solve all your doubts
2. We own CE certificates
3. We accept OEM and ODM
4. Our salesman is with rich experience in foreign trade and efficient work efficiency
5. High-quality after-sales service to solve all your doubts

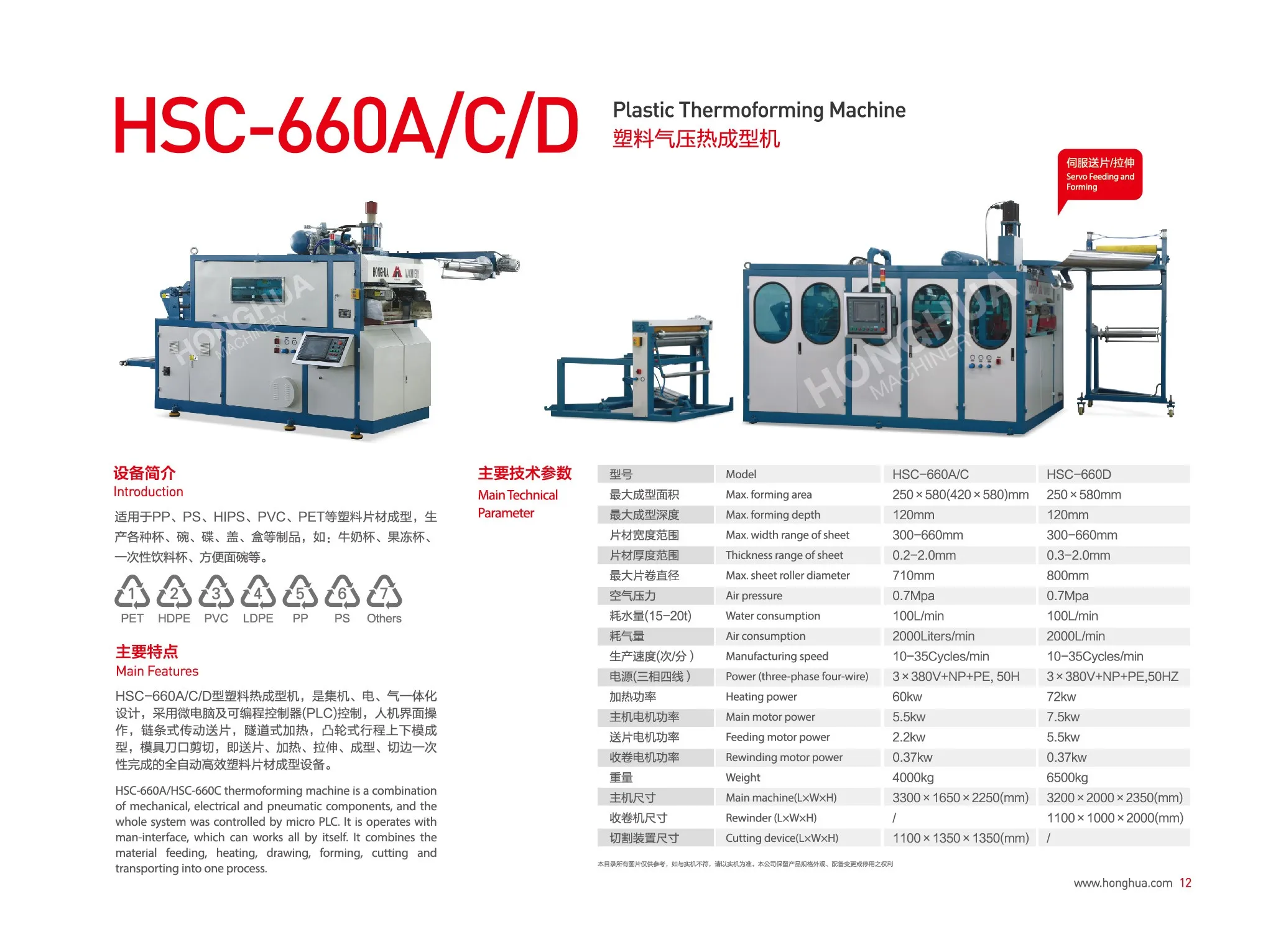

Product Paramenters
Forming area | 250X580mm |
Forming depth | 120mm |
Sheet thickness | 0.2-2mm |
Sheet roller diameter | 710mm |
Width of sheet | 300-600mm |
Air pressure | 0.7Mpa |
Water consumption | 100L/min |
Air consumption | 2000L/Minute |
Speed | 10-35cycle per minute |
Power | 380V,50HZ |
Heating power | 60kw |
Main motor power | 5.5kw |
Feeding motor power | 2.2kw |
Rewinding motor power | 0.37kw |
Weight | 4000KG |
Products Description
INTRODUCTION:

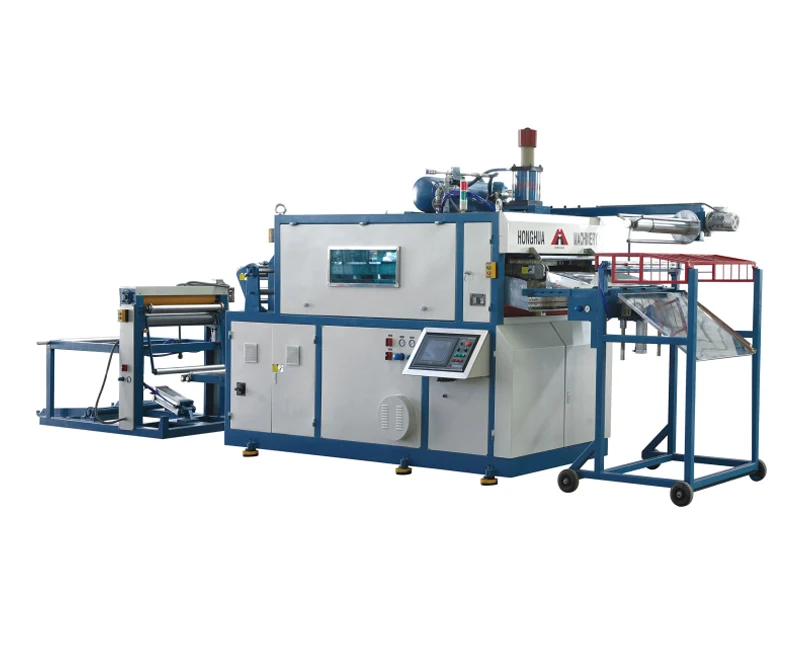

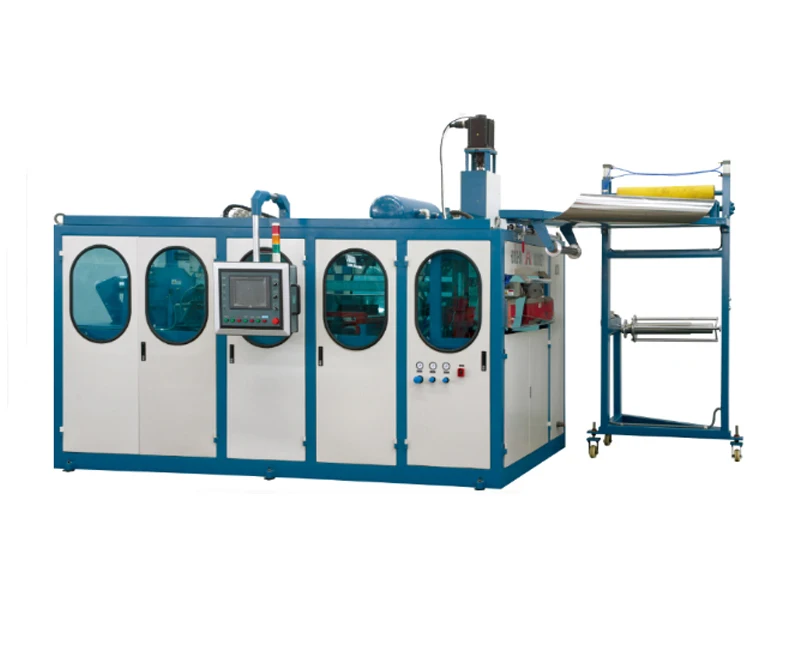

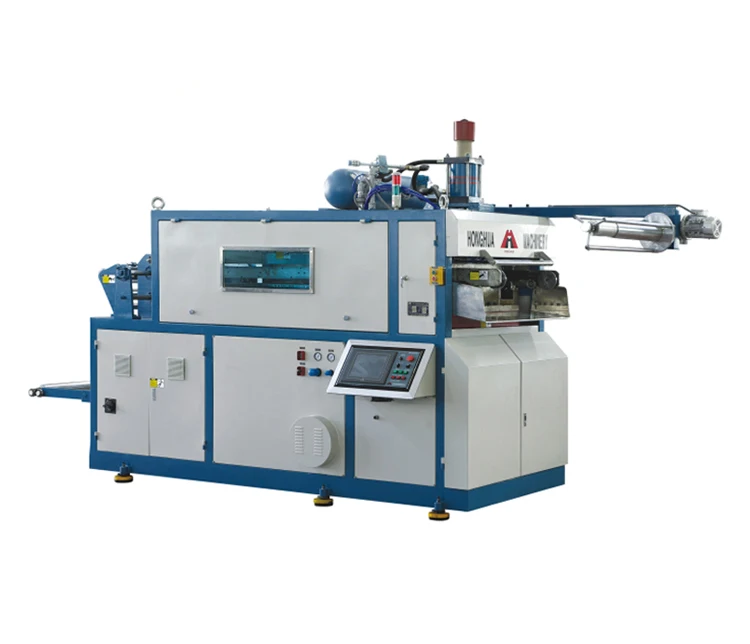

HSC-660A thermoforming machine is a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by micro PLC.it is operates with man-interface,which can works all by itself.it combines the material feeding,heating,drawing,forming,cutting and transporting into one process.
HSC-660A thermoforming machine is a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by micro PLC.it is operates with man-interface,which can works all by itself.it combines the material feeding,heating,drawing,forming,cutting and transporting into one process.
APPLICTION AREA：

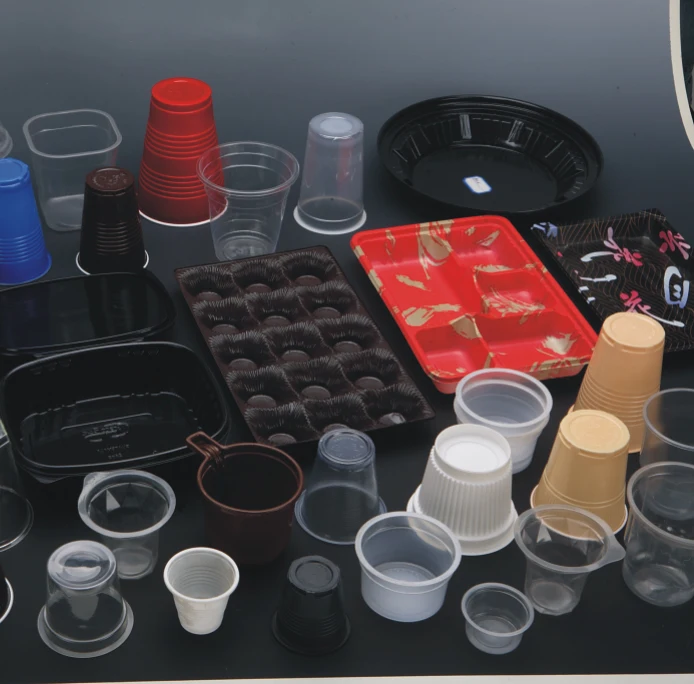

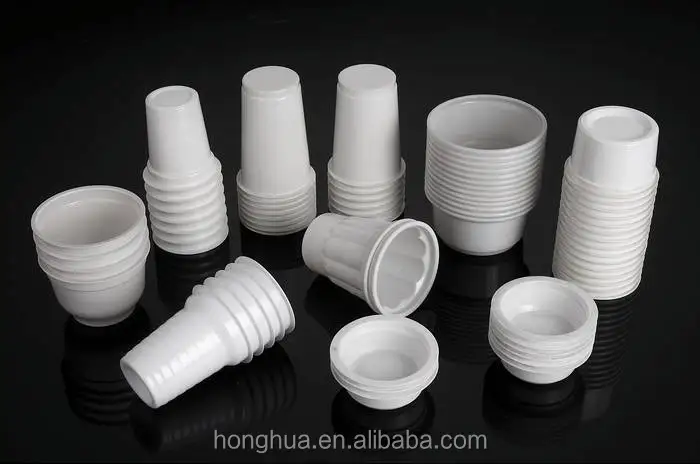

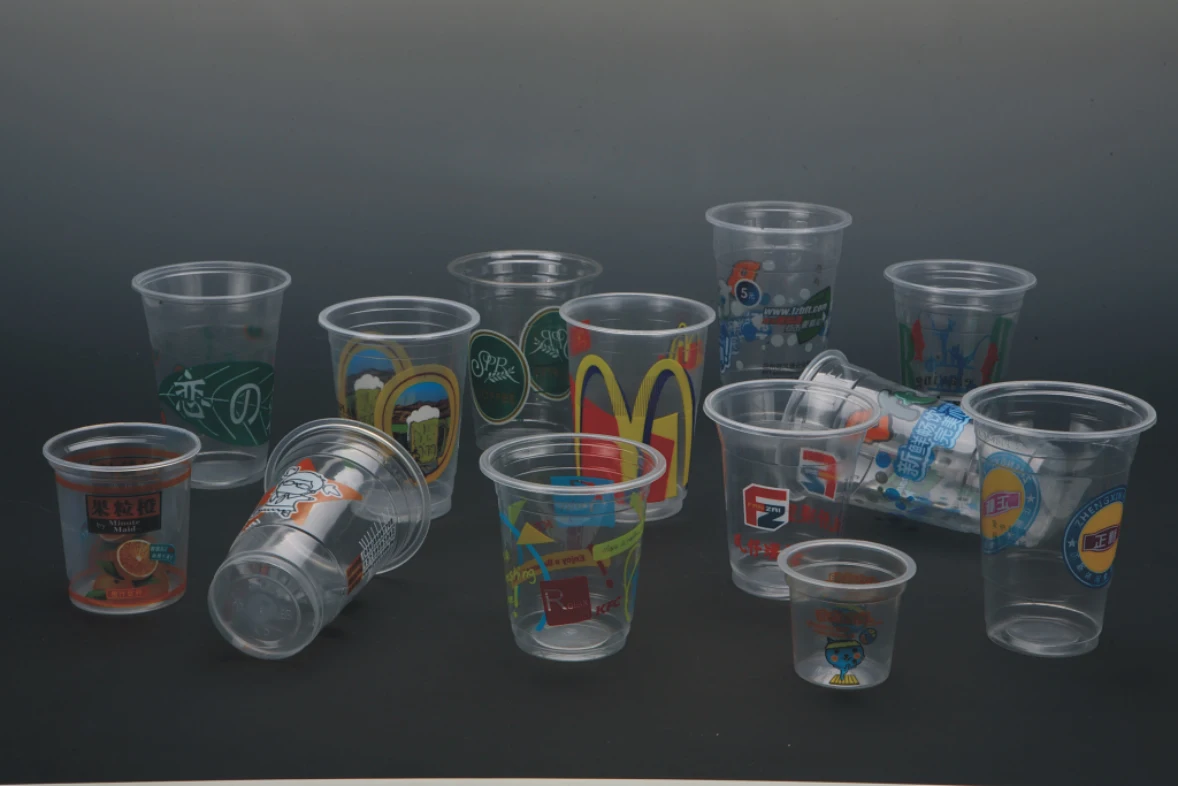

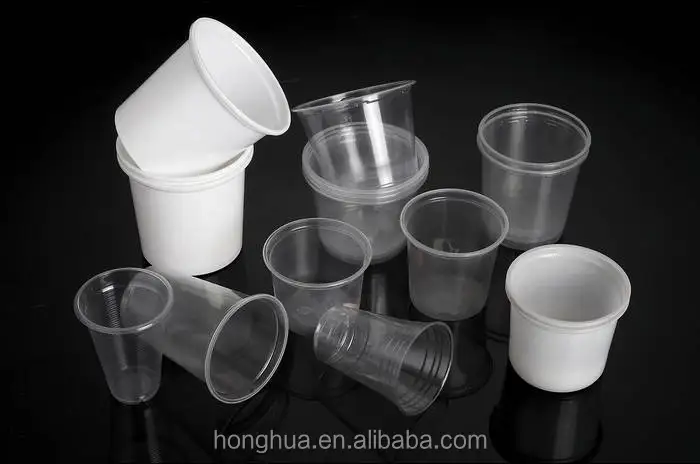

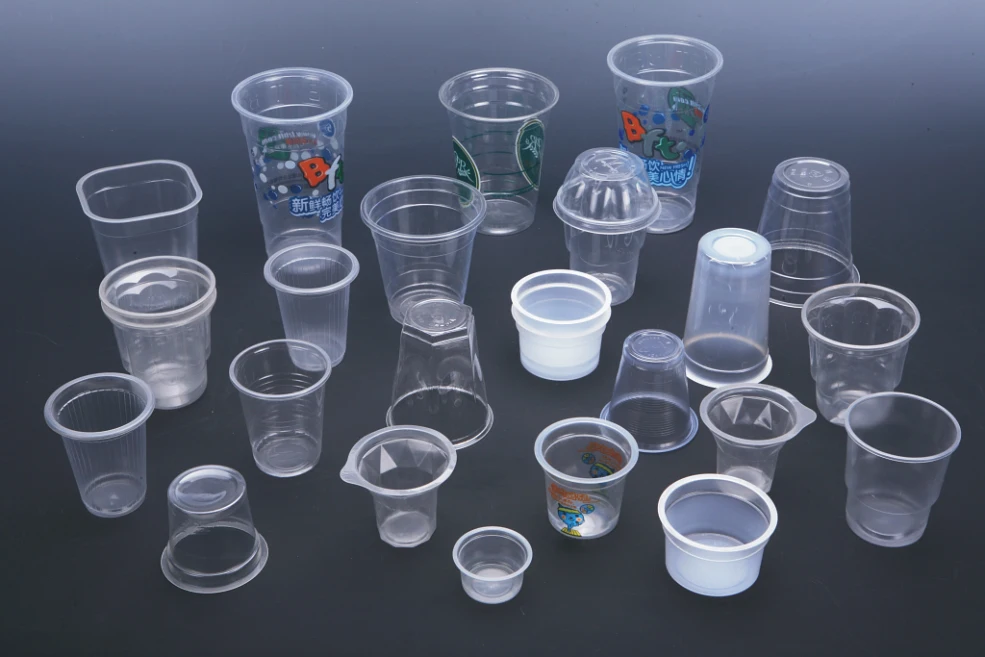

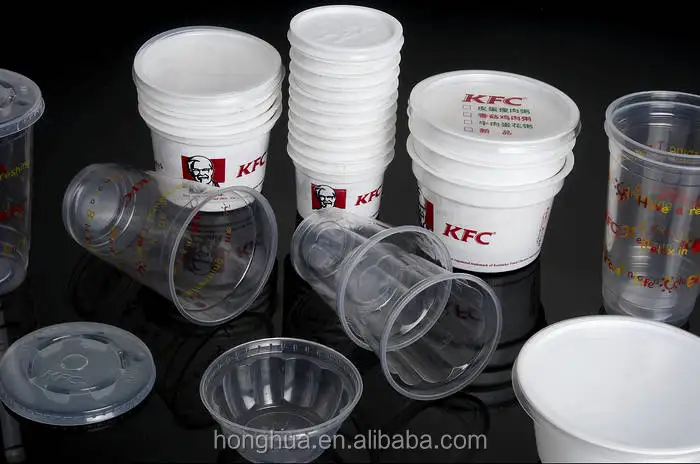

It is used for forming PP PS HIPS PVC and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast-food boxes etc.
It is used for forming PP PS HIPS PVC and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast-food boxes etc.
Our Workshop
Certifications
FAQ
1. Q: Are you a factory or trading company?
A:We are a factory,and I'm Eddie,my email address is eddie@honghua.com,0086-18758917681 is my phone number.
A:We are a factory,and I'm Eddie,my email address is eddie@honghua.com,0086-18758917681 is my phone number.
2. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
