Main Application: Available as a fully stainless steel unit with contact parts to suit all your separation requirements. It is applied for continuous screening of powder and granulates within the pharmaceutical, chemical, foodstuff, agriculture and related industries.

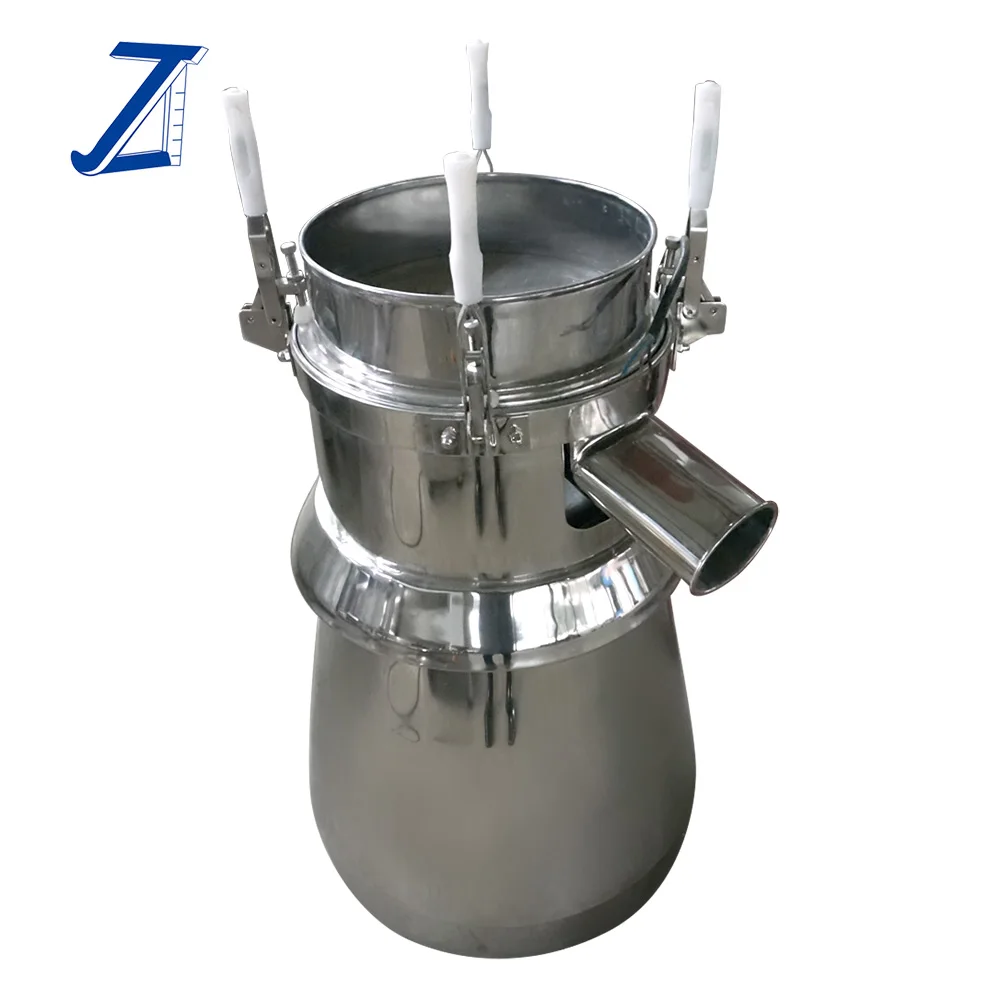

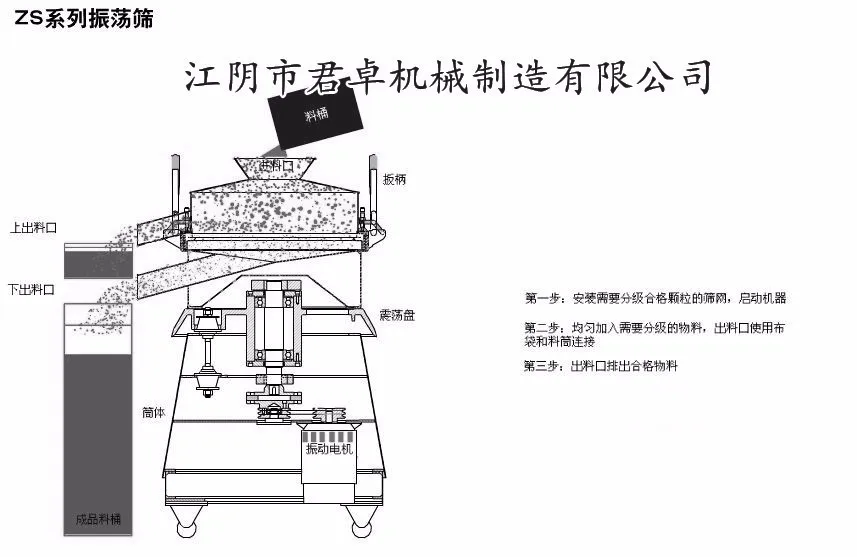

Working Principle: This machine is comprised of an inlet hopper, vibrating drive, screen frame assembly, coupling and motor. The vibrating screen frame assembly is fitted up to the vibratory motor spindle and bearing. When eccentric weight is conveyed to the centerline of the spindle through the motor drive, it generates centrifugal force under an unbalanced state by which material is forced to form regular eddies inside. The amplitude of the weight adjustment can be regulated according to different materials and screens.
Salient Features:
• Convenient operation
• High efficiency, low noise
• Fit neatly into production lines
• Little or no maintenance needed
Technical Parameter
Model
ZS-350
ZS-515
ZS-650
Capacity(according to different materials)
15-150kg/h
100-1350kg/h
180-1350kg/h
Speed
1380r/min
1370r/min
1370r/min
Screen Mesh
12-300Mesh
12-300Mesh
12-300Mesh
Power
0.55kw
0.75kw
1.5kw
Overall Dimension
550×1000
800×1290
900×1350
Approx Weight
120kg
250kg
300kg
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.

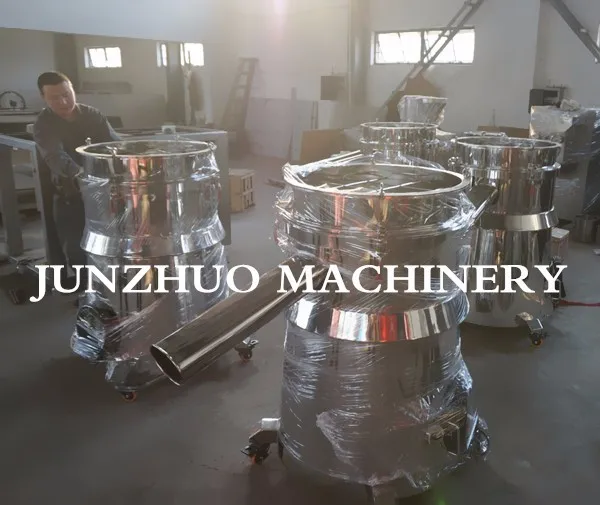

Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
