Product Overview

Description

Fast Response Resettable Reset Polymer PTC Fuse JK30-160



Description



The 30R Series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V)
applications where space is not a concern and resettable protection is preferred.



Features



• Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
• Fast time–to-trip
• RoHS compliant, Lead-Free and Halogen-Free*



Application



These devices are often used in computer power supplies, largely due to the PC 97 standard (which recommends a sealed PC that the user never has to open), and in aerospace/nuclear applications where replacement is difficult.[citation needed] Another application for such devices is protecting audio loudspeakers, particularly tweeters, from damage when over driven: by putting a resistor or light bulb in parallel with the PPTC device it is possible to design a circuit that limits total current through the tweeter to a safe value instead of cutting it off, allowing the speaker to continue operating without damage when the amplifier is delivering more power than the tweeter could tolerate. While a fuse could also offer similar protection, if the fuse is blown, the tweeter cannot operate until the fuse is replaced.



• USB hubs, ports and peripherals
• Computers & peripherals
• Motor protection
• General electronics
• Automotive applications

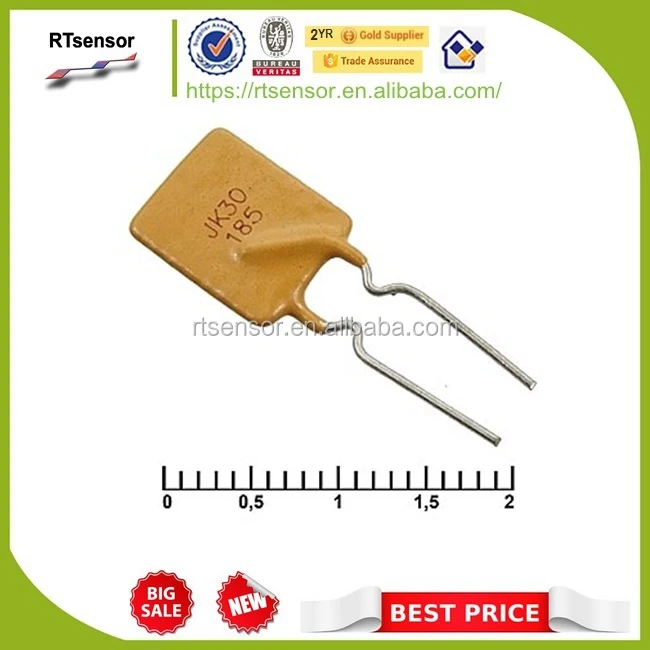

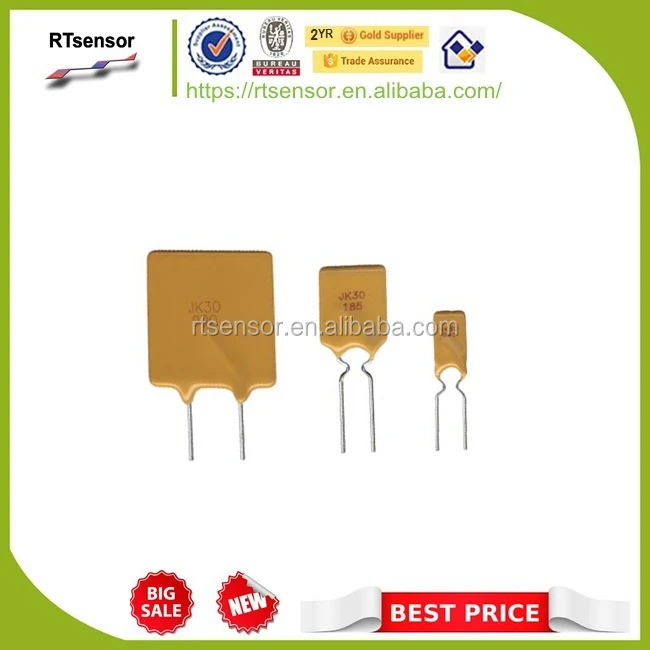

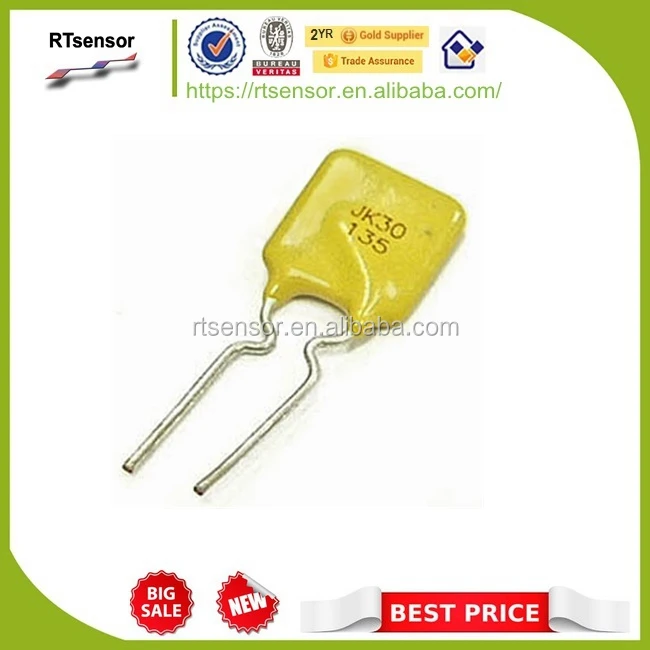

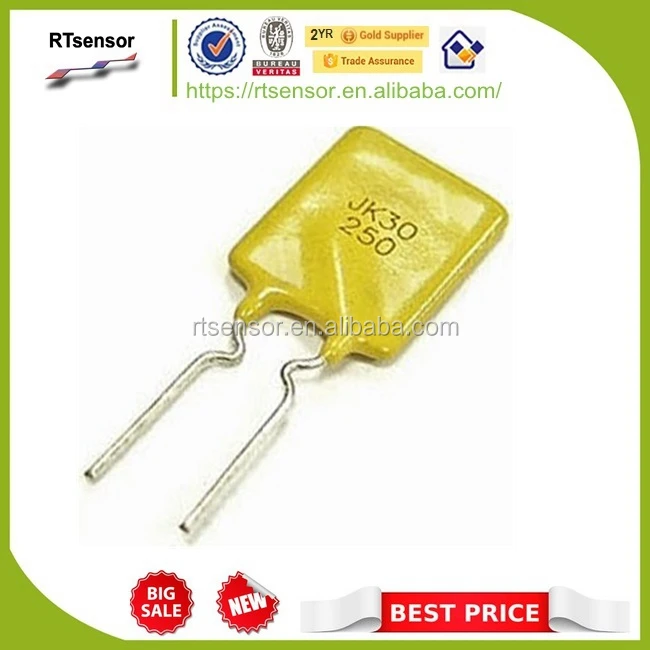

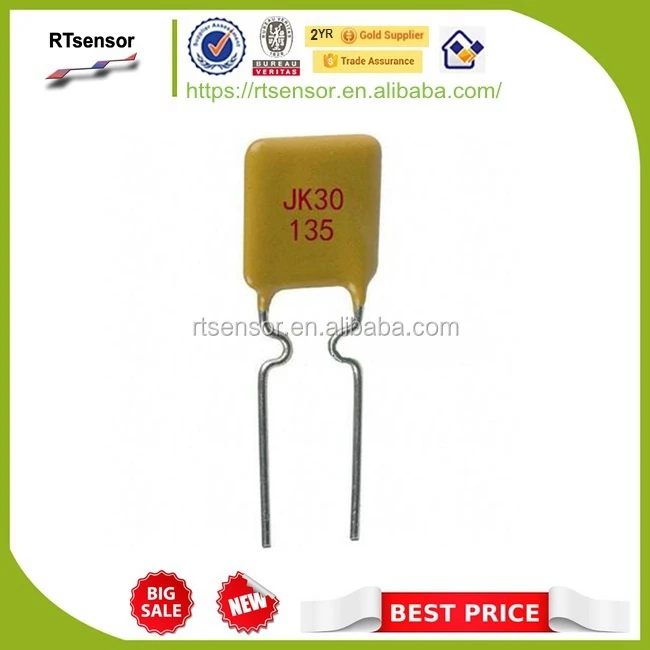

General datas and actual photos





Appearance



Electrical characteristics(25℃) Model Vmax (V) Imax (A) Ih (A) Rmax (Ω) Rmin (Ω) Fig. Pd(W) Maximum Contour Size(mm) A B C D JK30-075 30 40 0.75 0.37 0.2 3 0.60 7.40 12.2 3 5.10 JK30-090 30 40 0.90 0.22 0.1 1 0.60 7.40 18.5 3 5.10 JK30-110 30 40 1.10 0.20 0.07 1 0.70 7.40 18.5 3 5.10 JK30-135 30 40 1.35 0.16 0.07 1 0.80 9.20 17.6 3 5.10 JK30-160 30 40 1.60 0.14 0.06 1 0.90 9.20 20.2 3 5.10 JK30-185 30 40 1.85 0.12 0.05 1 1.00 9.20 20.2 3 5.10 JK30-200 30 40 2.00 0.10 0.04 1 1.20 15.2 20.2 3 5.10 JK30-250 30 40 2.50 0.08 0.03 1 1.20 13.2 22.4 3 5.10 JK30-300 30 40 3.00 0.07 0.03 2 2.00 13.2 20.4 3 5.10 JK30-400 30 40 4.00 0.06 0.010 2 2.50 14.0 23.7 3 5.10 JK30-500 30 40 5.00 0.05 0.010 2 3.00 14.0 23.7 3 10.2 JK30-600 30 40 6.00 0.04 0.005 2 3.50 17.2 27 3 10.2 JK30-700 30 40 7.00 0.03 0.005 2 3.80 17.2 27 3 10.2 JK30-800 30 40 8.00 0.025 0.005 2 4.00 23.5 29.2 3 10.2 JK30-900 30 40 9.00 0.02 0.005 2 4.20 23.5 29.2 3 10.2   I hold = Hold current: maximum current device will pass without tripping in 20°C still air. I trip = Trip current: minimum current at which the device will trip in 20°C still air. V max = Maximum voltage device can withstand without damage at rated current (Imax) I max = Maximum fault current device can withstand without damage at rated voltage (Vmax) Pd= Power dissipated from device when in the tripped state at 20°C still air. R min = Minimum resistance of device in initial (un-soldered) state. R 1max = Maximum resistance of device at 20°C measured one hour after tripping. Caution: Operation beyond the specified rating may result in damage and possible arcing and flame.
