Busbar Processing Machine punching dies, punch molds
US $110.00-$115.00

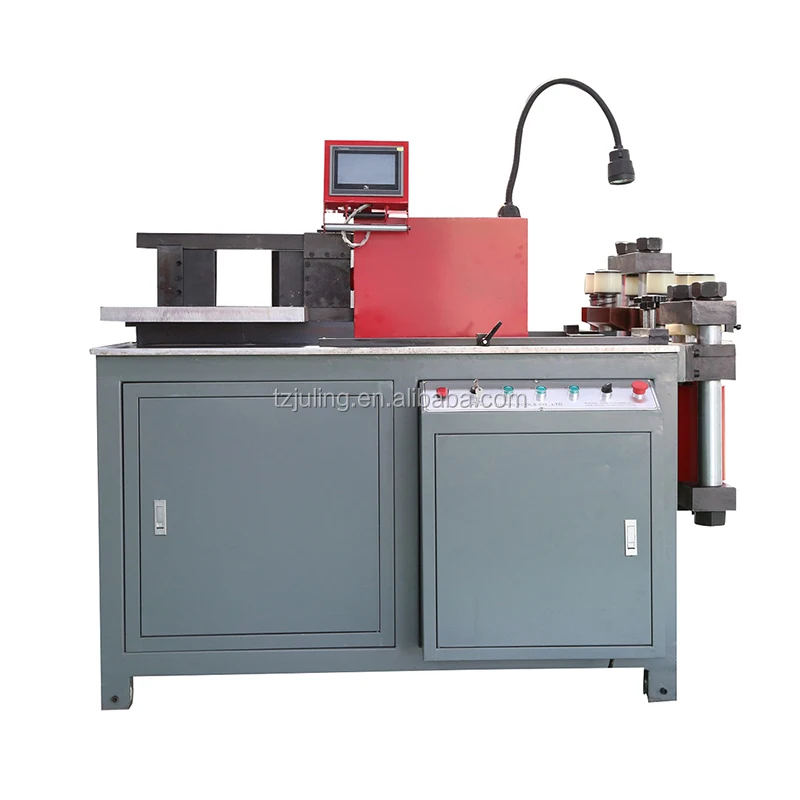

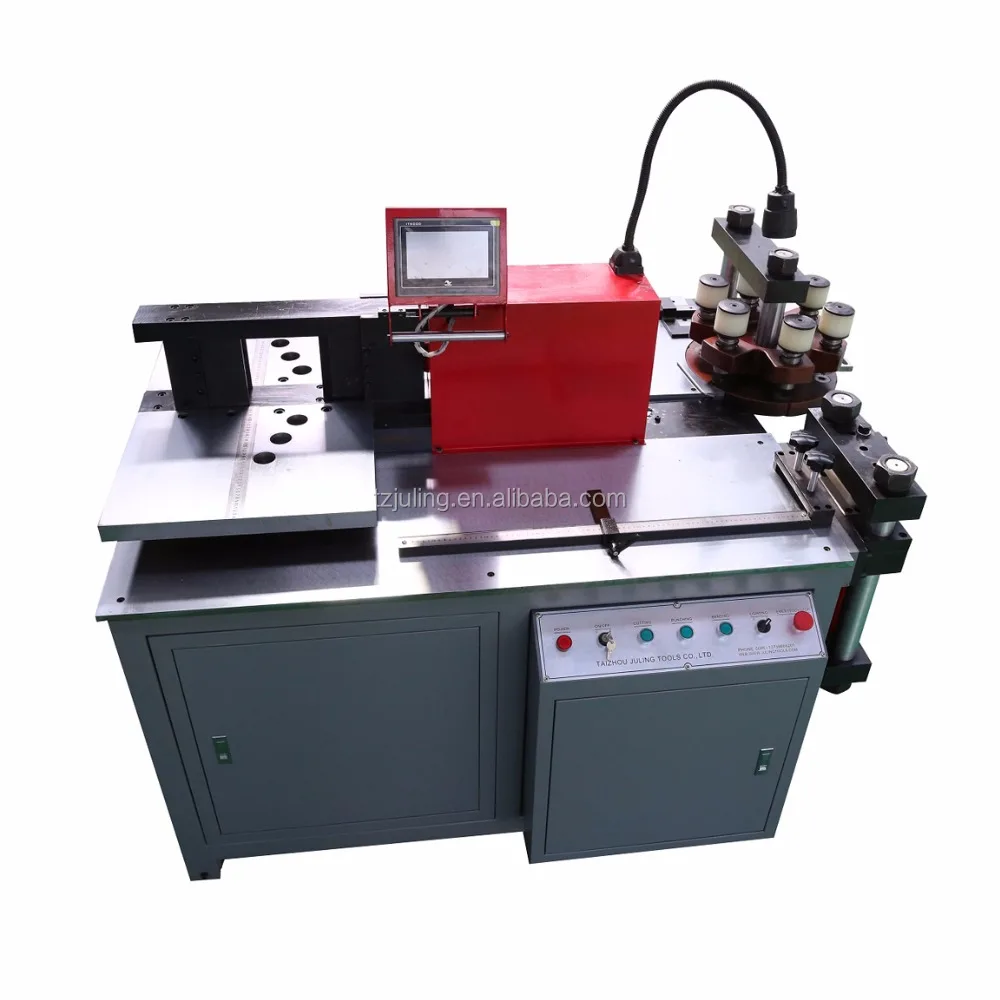

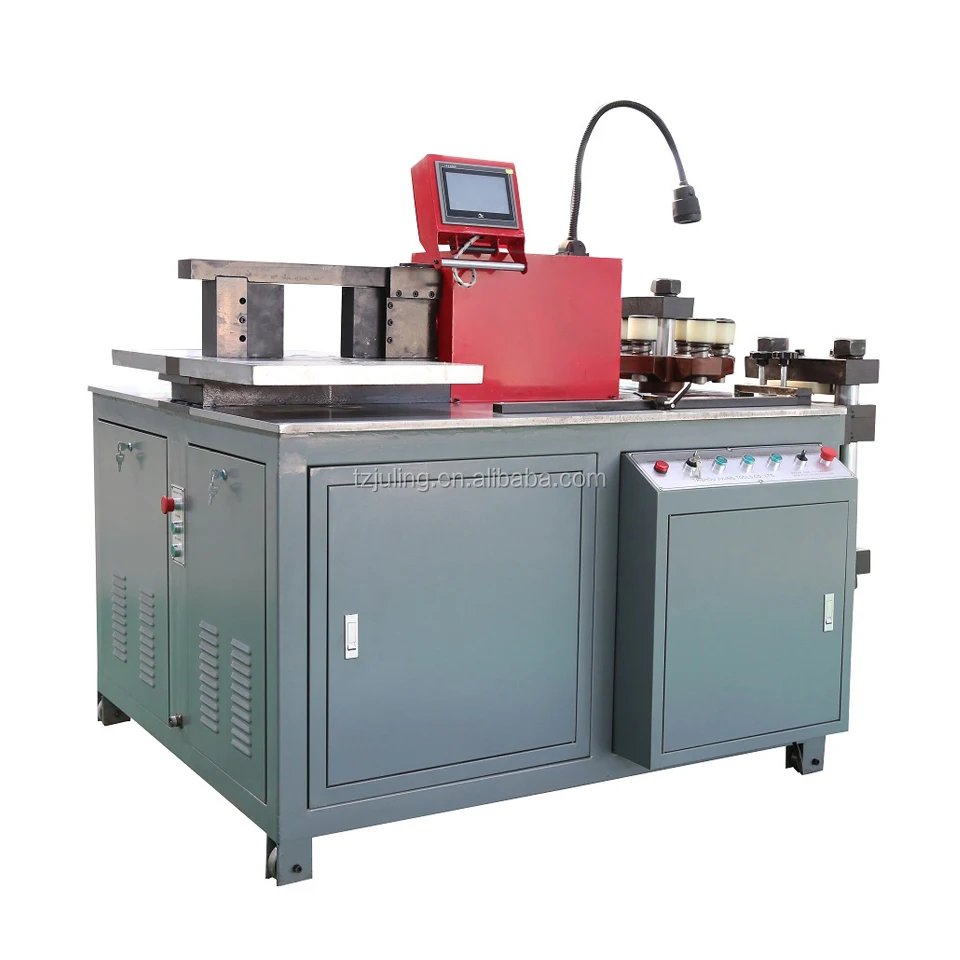

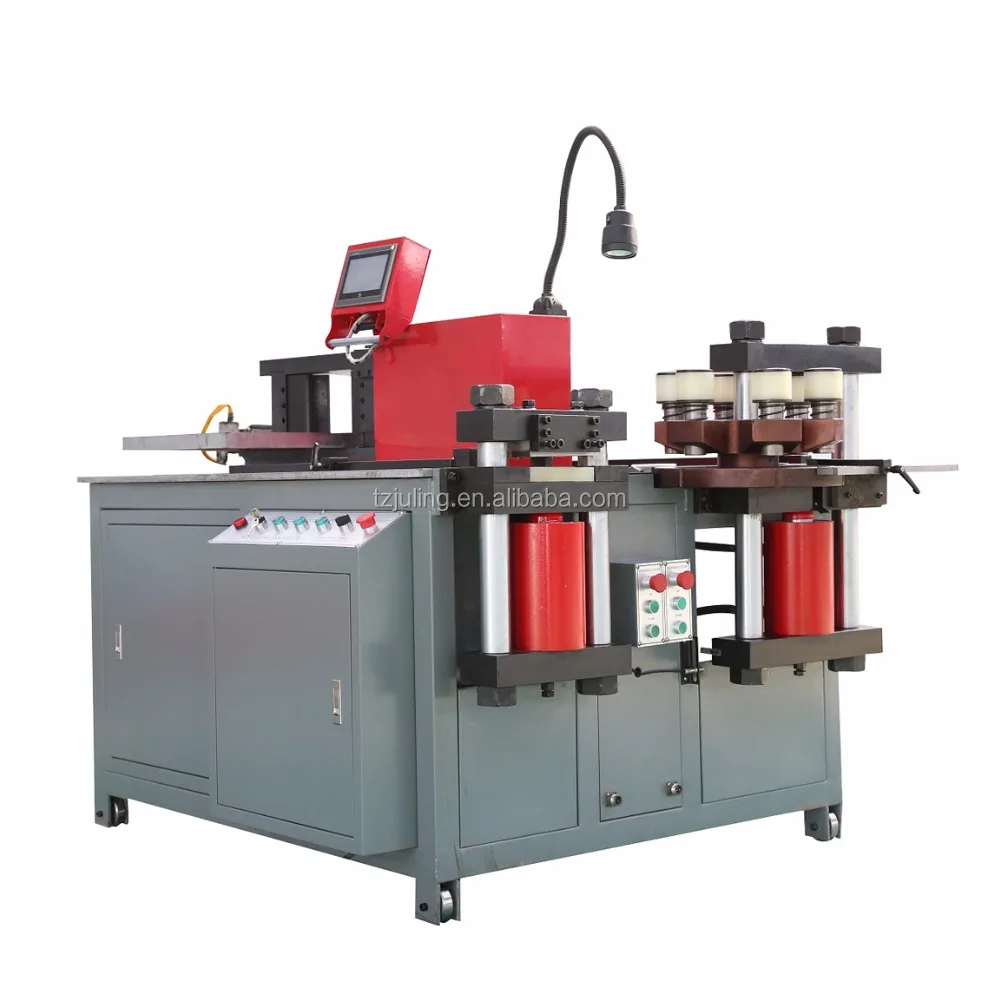

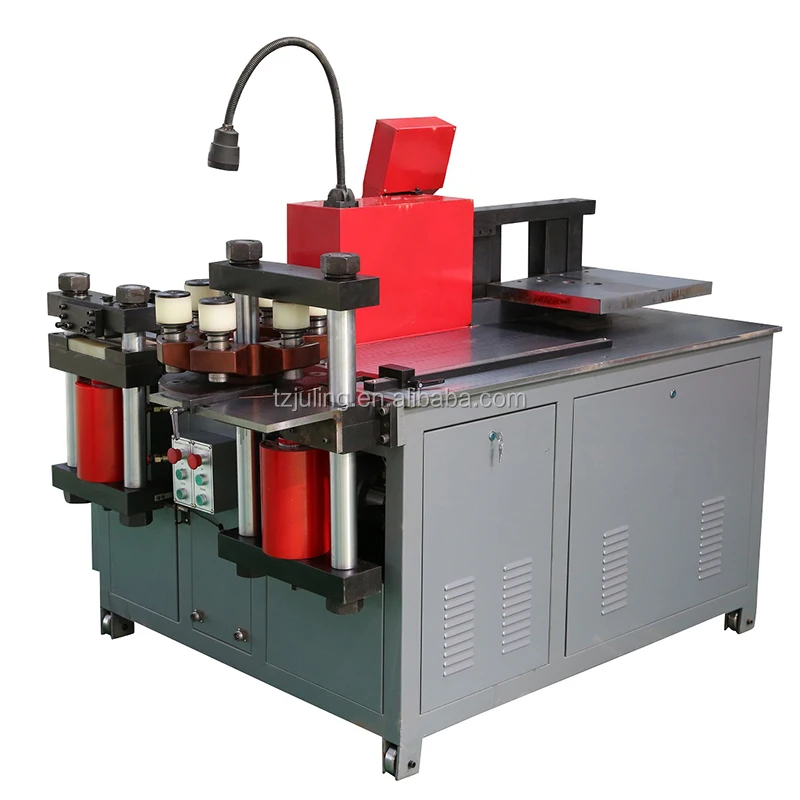

16*200mm CNC hydraulic busbar bending cutting punching embossing busbar machine
- Category: Busbar Machine >>>
- Supplier: Taizhou Juling Tools Co. Ltd.
Share on (60682460211):
Product Overview
Description
Click me to learn more about TRADE ASSURANCE.

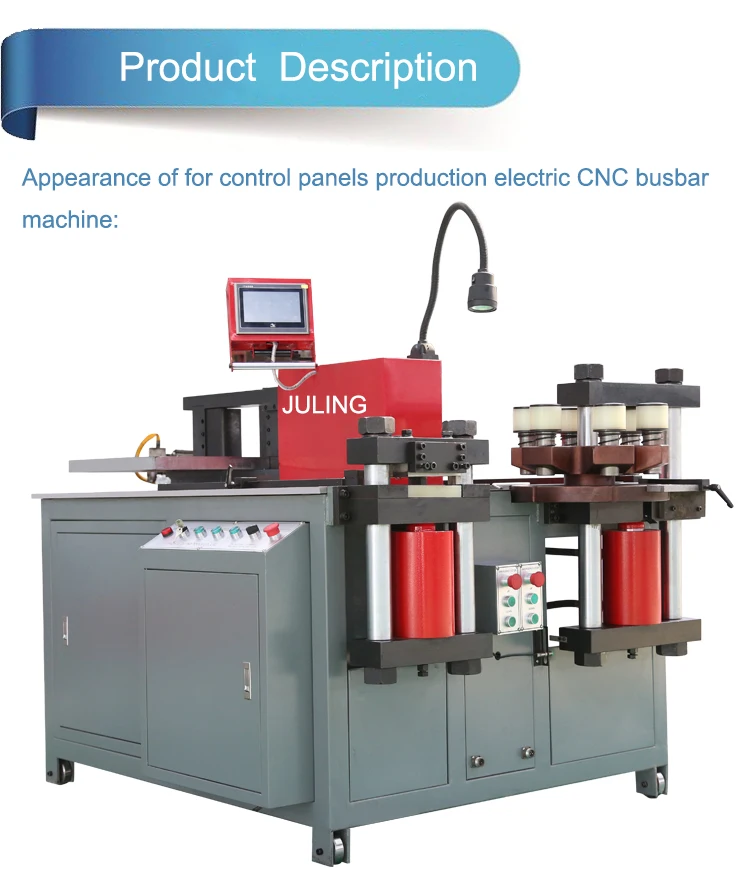

Working Unit: Bending, punching and cutting, can work in the same time.
Material Processed: Brass/ Copper busbar and Aluminum busbar.
Function:

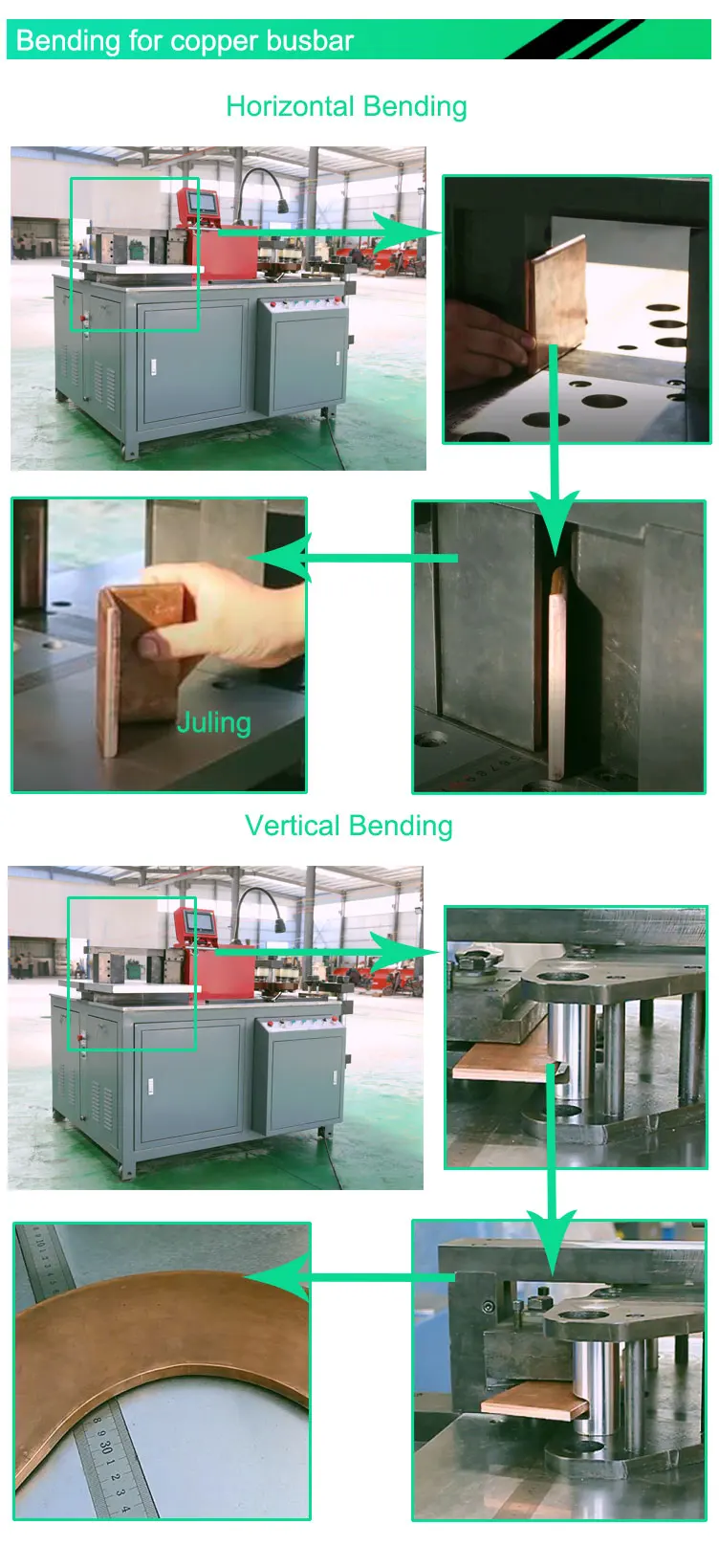

1.bending at vertical and horizontal direction.

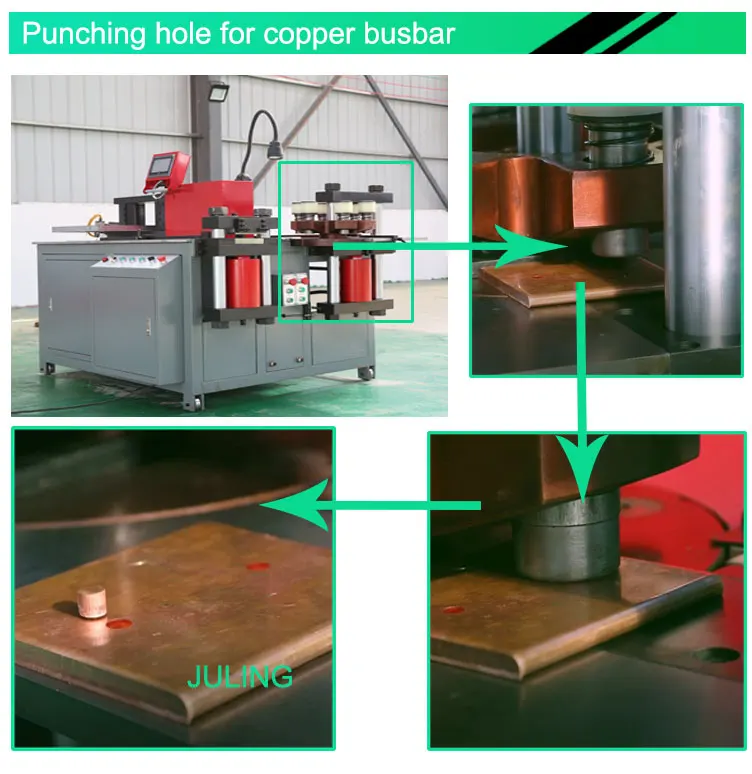

2.punching for round and oblong hole.

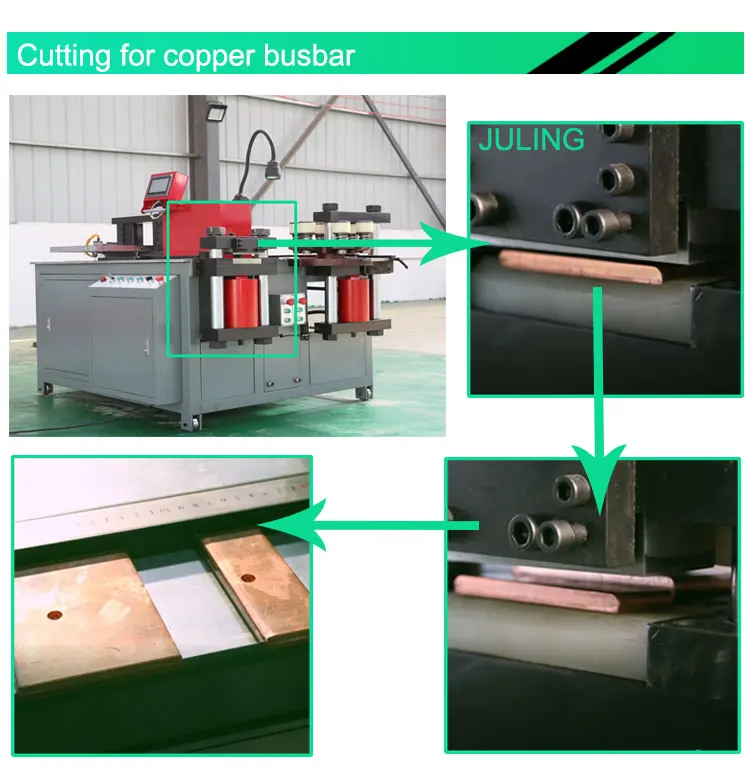

3.cutting busbar.

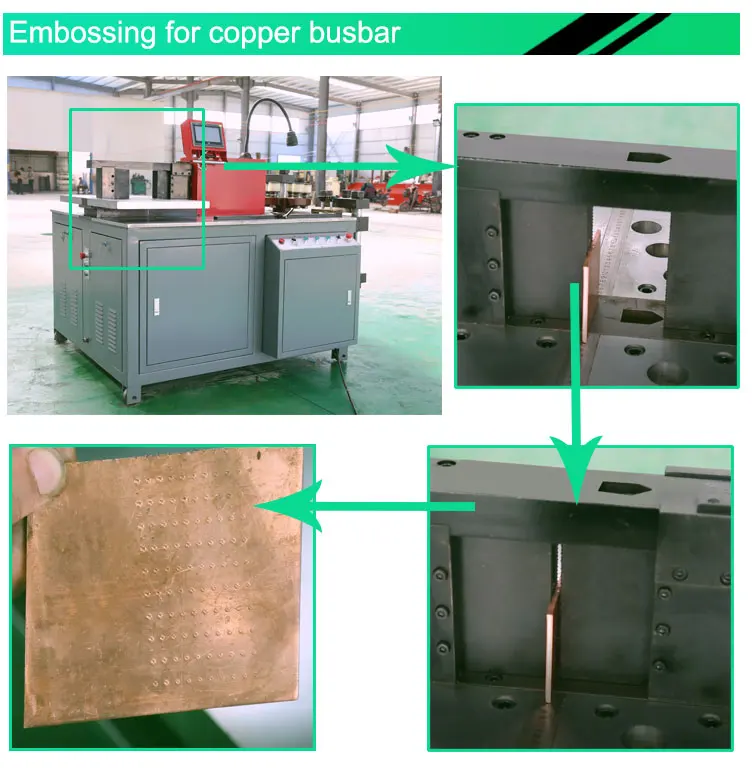

4.special for embossing, knurling, twisting, cable joints pressing.
Features:
1.Low maintenance, longer service life.
2.The cut surface is smooth and neat, no droop, no burrs, no waste.
3.Rotary turret punching unit installed 6pc (4pcs and 8pcs ) dies, less replacing, high efficiency.
4.It can punch cut and bend in the same time.
5.Contacted by PLC system, bending precision at ±1°,repeat precision at ±0.3°.
6.Easily to be moved with four casters.
7.Manual button and foot switch are optional.
8.Can customize the punching dies you need.
| Function | Item | JL-200160 | JL-200200 | JL-200260 |
| Punching | Max. Punching Force (KN) | 300 | 500 | 800 |
| Punching Diameter Range (MM) | Ø4.3-Ø25 | Ø4.3-Ø34 | Ø4.3-Ø36 | |
| Max. Thickness (MM) | 12 | 16 | 20 | |
| Max. Width (MM) | 160 | 200 | 260 | |
| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 16 | 20 |
| Max. Shearing Width (MM) | 160 | 200 | 260 | |
| Vertical Bending | Max. Bending Force (KN) | 300 | 500 | 800 |
| Max. Thickness (MM) | 12 | 16 | 20 | |
| Max. Width (MM) | 160 | 200 | 260 | |
| Horizontal Bending | Max. Width (MM) | 120 | 120 | 120 |
| Max. Angle (Degree) | 90° | 90° | 90° | |
| Out Dimension | MM | 1750*1350*1420 | 1920*1550*1500 | 2150*1750*1500 |
| Power | KW | 3*4kw | 3*5.5kw | 3*5.5kw |
| Weight | KG | 1400kg | 1650kg | 1970kg |
| CNC Precision | Bending Precision | ±1° | ±1° | ±1° |
| Repeat Bending Precision | ±0.3° | ±0.3° | ±0.3° |
1. What is your payment terms?
1) Trade Assurance, 2) L/C, 3) T/T, 4) Western Union, 5) Paypal
2. What is your delivery time?
Usually within 7-15 days after the deposit.
3. What is your power supply?
In usual, we produce the voltage in 220V&380V&415V,50HZ&60HZ,also we can adjust according to your countries power supply. No problem.
4. What is the warranty time?
1 year.
5. What is your requirement for exclusive / sole agent?
We are looking for sole agent in world market.
If the importer credit is good and reliable. And the monthly order quantity meet local market demand.
We will come to further association.
