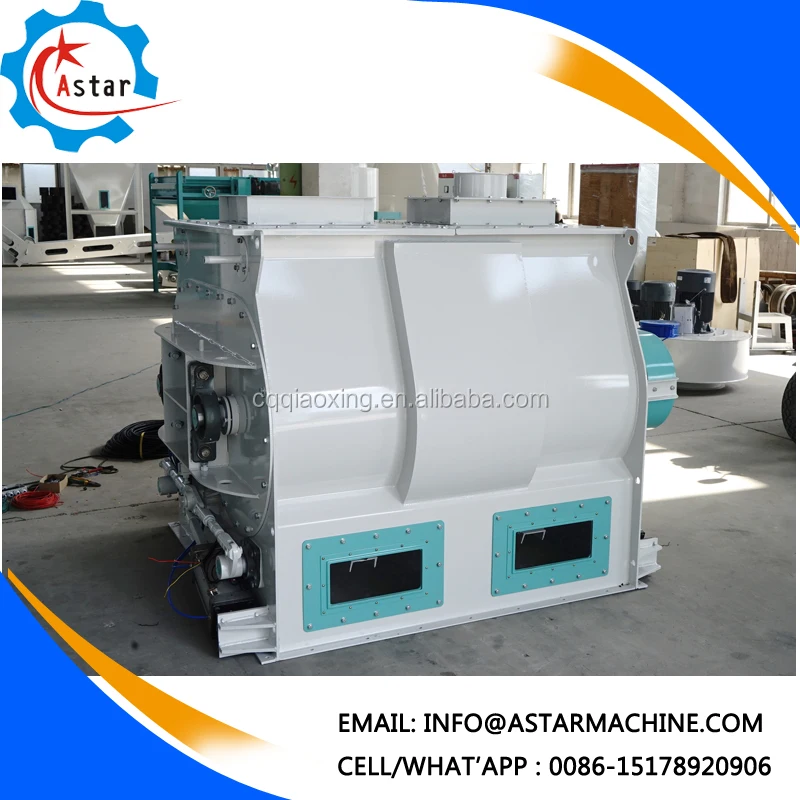

Excellent quality feed mixer wagon/poultry feed hammer mill

Share on (60682495388):


Price:$5,000.00

Quantity:


Product Overview

Description


Product Description

Specification feed mixer wagon/poultry feed hammer mill  :


1:widely used in feed, food, chemical industry, chemical fertilizer industry in the powder, granular, flaky, lump material mixture.
2:fast mixing speed, short mixing cycle,30-120 seconds / batch;
3:high mixing uniformity, CV ≤ 5%, and does not generate the segregation;
4:the machine is gentle mixing process, filling the volume of large variable range (0.4-1);
5:the bottom type electric or pneumatic door discharging, discharging speed, low rate of residual material;
6:set the return air duct leakage, dust, and fully meet the requirements of environmental protection;
7:with the compressed air cleaning system, the residue to the lowest possible level;
8: can be customized special spray system; molasses, grease and other more uniform;
9: carbon steel, stainless steel, composite materials and other body can be optionally.
10:100-3000kg/ batch production, power: 3-30kw, the effective volume:0.2-6cubic meters

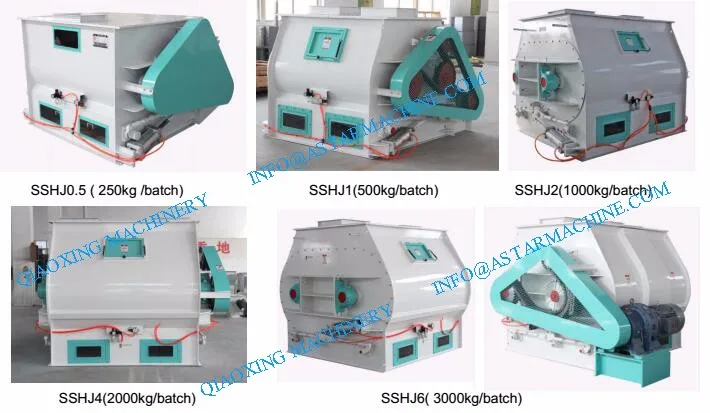

Main Data
\t
Model
\t
Volume
\t
Mixing capacity per batch
\t
Mixing time per batch
\t
mixing uniformity
\t
Power
\t
\t
(cubic meters)
\t
(kg)
\t
(s)
\t
(cv%≤)
\t
(kw)
\t
SSHJ0.5
\t
0.5
\t
250
\t
30~120
\t
5
\t
5.5
\t
SSHJ1
\t
1
\t
500
\t
30~120
\t
5
\t
11
\t
SSHJ2
\t
2
\t
1000
\t
30~120
\t
5
\t
18.5
\t
SSHJ4
\t
4
\t
2000
\t
30~120
\t
5
\t
30
\t
SSHJ6
\t
6
\t
3000
\t
30~120
\t
5
\t
45
Detailed Images

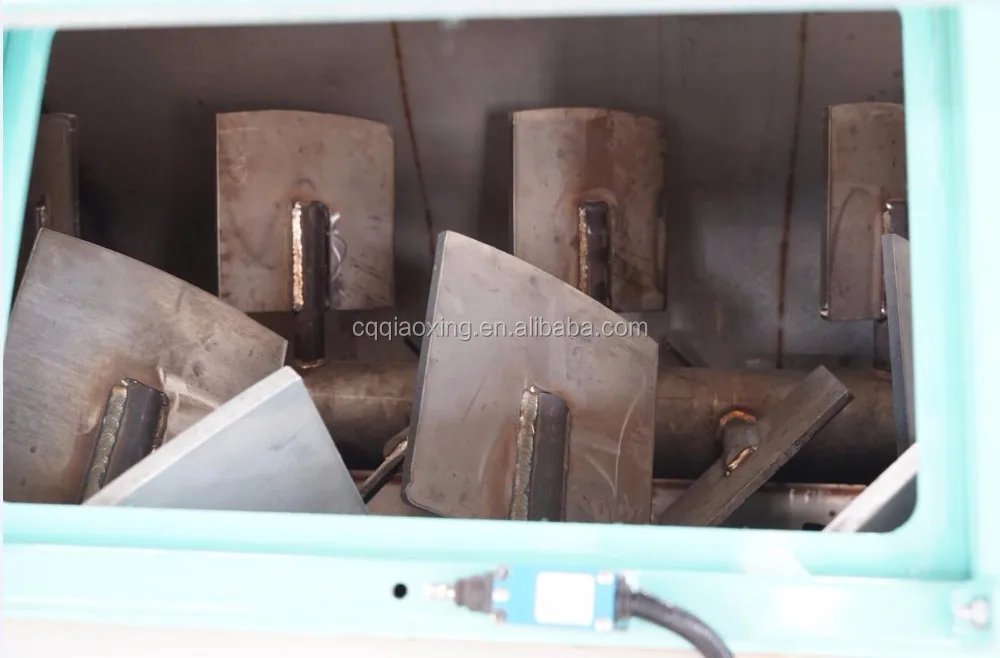

feed mixer wagon/poultry feed hammer mill Inner

inner double shaft can use by  stainless steel or cabon steel .

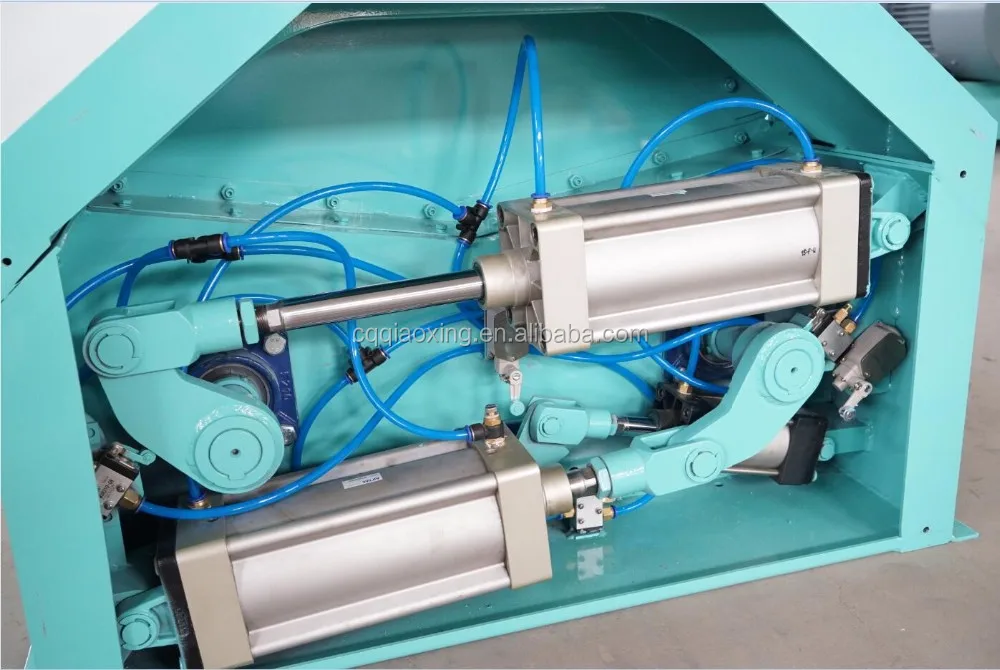

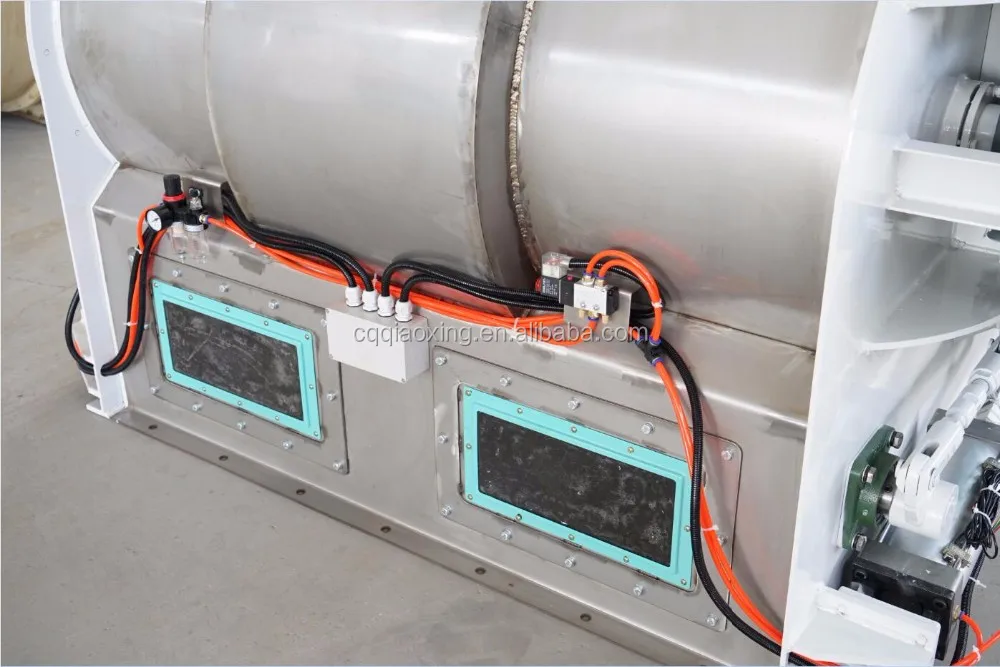

air cylinder connect pipes with feed mixer wagon/poultry feed hammer mill

this machine need match with air compressor when use .

as when discharge, materials will discharge from bottom part. air cylinder use for open the discharge door .

 air cylinder

matched with mixer

Packing & Delivery

feed mixer wagon/poultry feed hammer mill

the mixer we can make according to customer requirement .

Wooden Case Packing

all machines we will use plastic film wrap, then use wooden case packing

Contact Information

Any More Info of feed mixer wagon/poultry feed hammer mill  you want to know, pls contact below :

Contact Person: Mrs Anni

E-mail: info(at)qiaoxingmachinery.com

Cell/What's APP/Viber: 0086-15178920906

Skype: winni.duan
