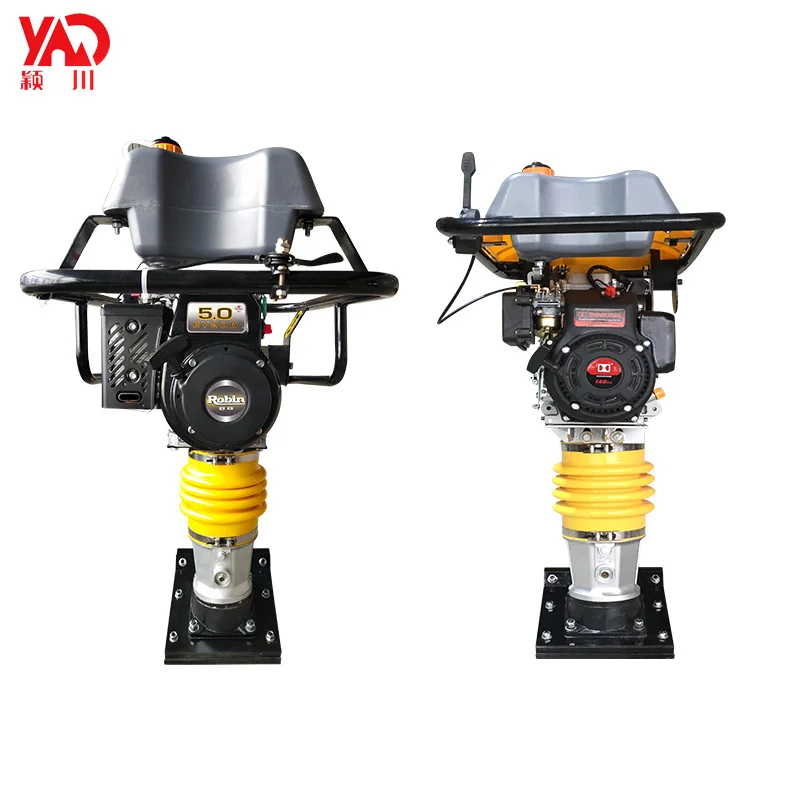

Technical Parameters of Motor Robin 4.0 Tamping Rammer With Robin Eh12 Manufacturer Supply Vibrating Tamping Rammers:
Model | HCR80 / MR80 |
Engine Model | Robin / Honda / Loncin / Lifan |
RATED POWER | 3.0-6.5HP |
Jumping height | 40-60mm |
Impact number of times | 600-700 times/min |
The impact | 1 0 kn |
Foward speed | 10-13m/min |
Ram plate size | 280*3 5 0mm |
Operating Weight | 78 Kg |
Fuel Type | Regular unleaded Gasoline |
Engine Oil Capacity | 400ml |
Gas tank volume | 3.0liter |
Dimension | 610* 51 0* 98 0 / 1200*485*800 mm |
What else can we do for you?
1. We can change the color according to your actual requirements.
2. We can offer different engine brands according to your requirements (Robin / Honda / Loncin / Lifan).
Our advantage:
Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
1. Robin / Honda / Loncin / Lifan gasoline engine designed for tamping rammer.
2. No need to mix fuel and oil, easy starting, low-noise operation, low maintenance and reduced fuel consumption comparing to 4-stroke engine.
3. Vibration damping block, spring and other key parts quality meets the standard requirements, anti fatigue, anti-aging performance is better than similar domestic products.
4. Heavy shock mount system to reduce hand-arm vibration and improve comfort.
5. Rammer shoe made of steel plate with wooden insert offers economical usage.
6. Special protective frame for engine, prevents any possible damage on tough job site.
7. Additional built-in air filtration.
Application
1. Compaction of this series is suitable for sand, gravel, gravel, asphalt concrete, lean concrete and clay,
2. Widely used in road construction, bridge foundation, housing construction, dam reservoir, the construction of farmland reservoir.
3. Especially suitable for indoor ground, yard and trench and other narrow ground construction.
4. Can be competent for large and medium compaction machinery can not complete the construction tasks.
