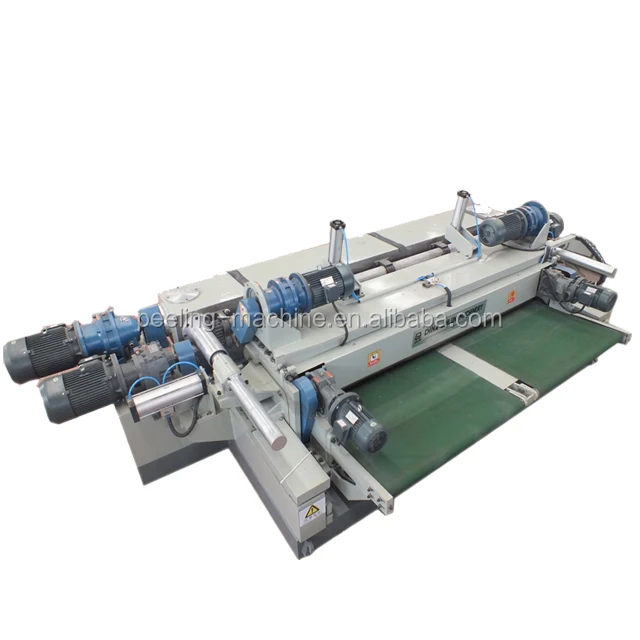

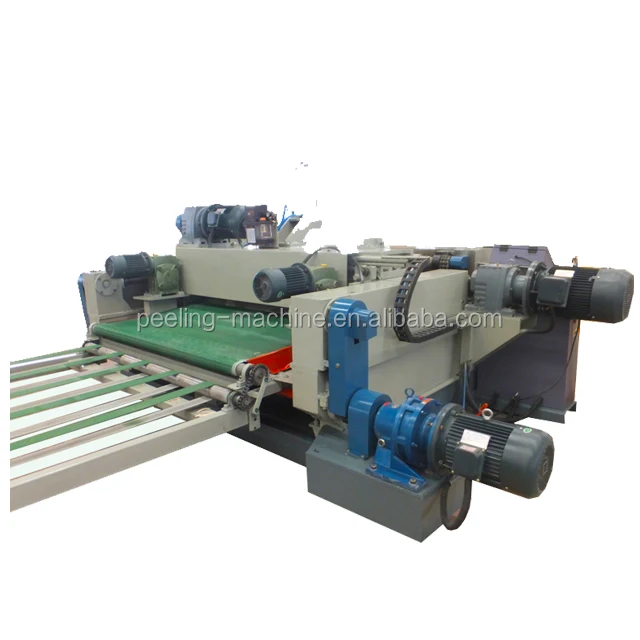

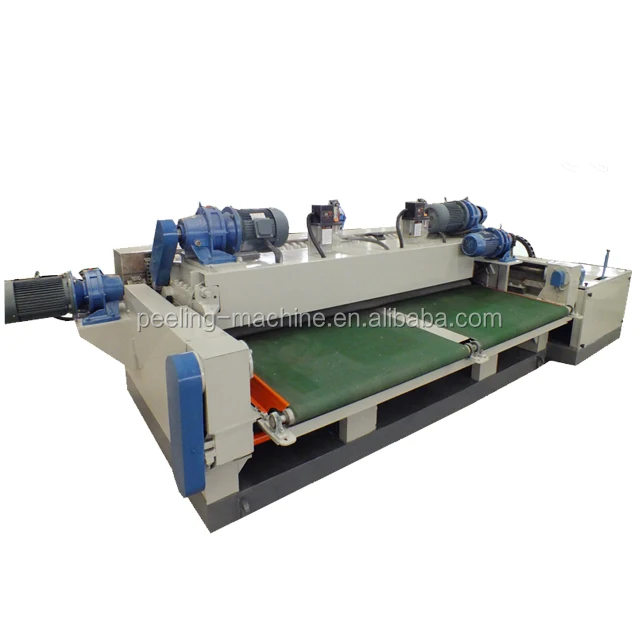

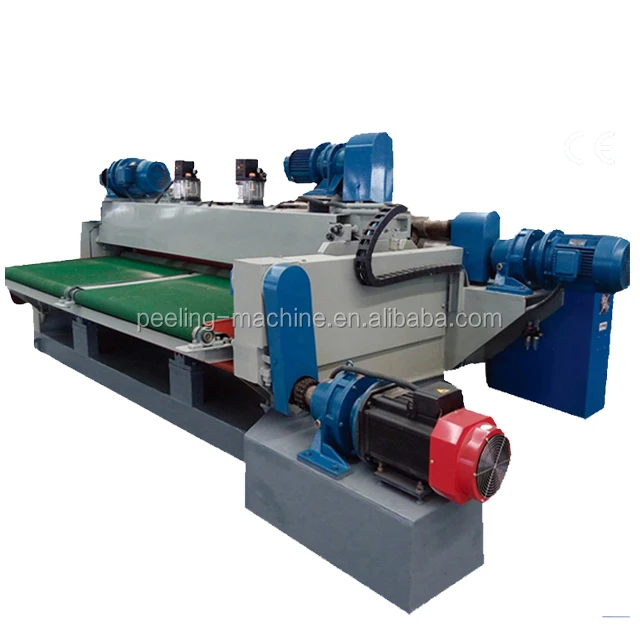

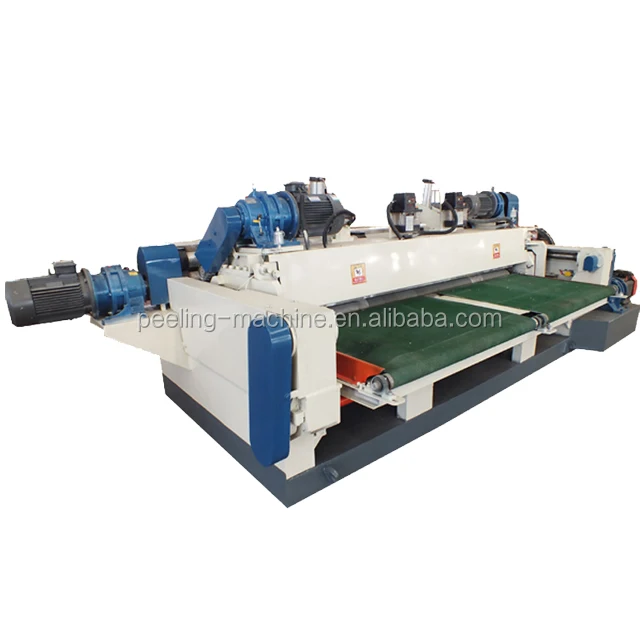

4 feet /5 feet/8feet/10 feet peeling and cutting together wood veneer making machine/veneer rotary cutting machine
- Category: >>>
- Supplier: Shandong Jinlun Machinery Co. Ltd.
Share on (60682510869):
Product Overview
Description
company information

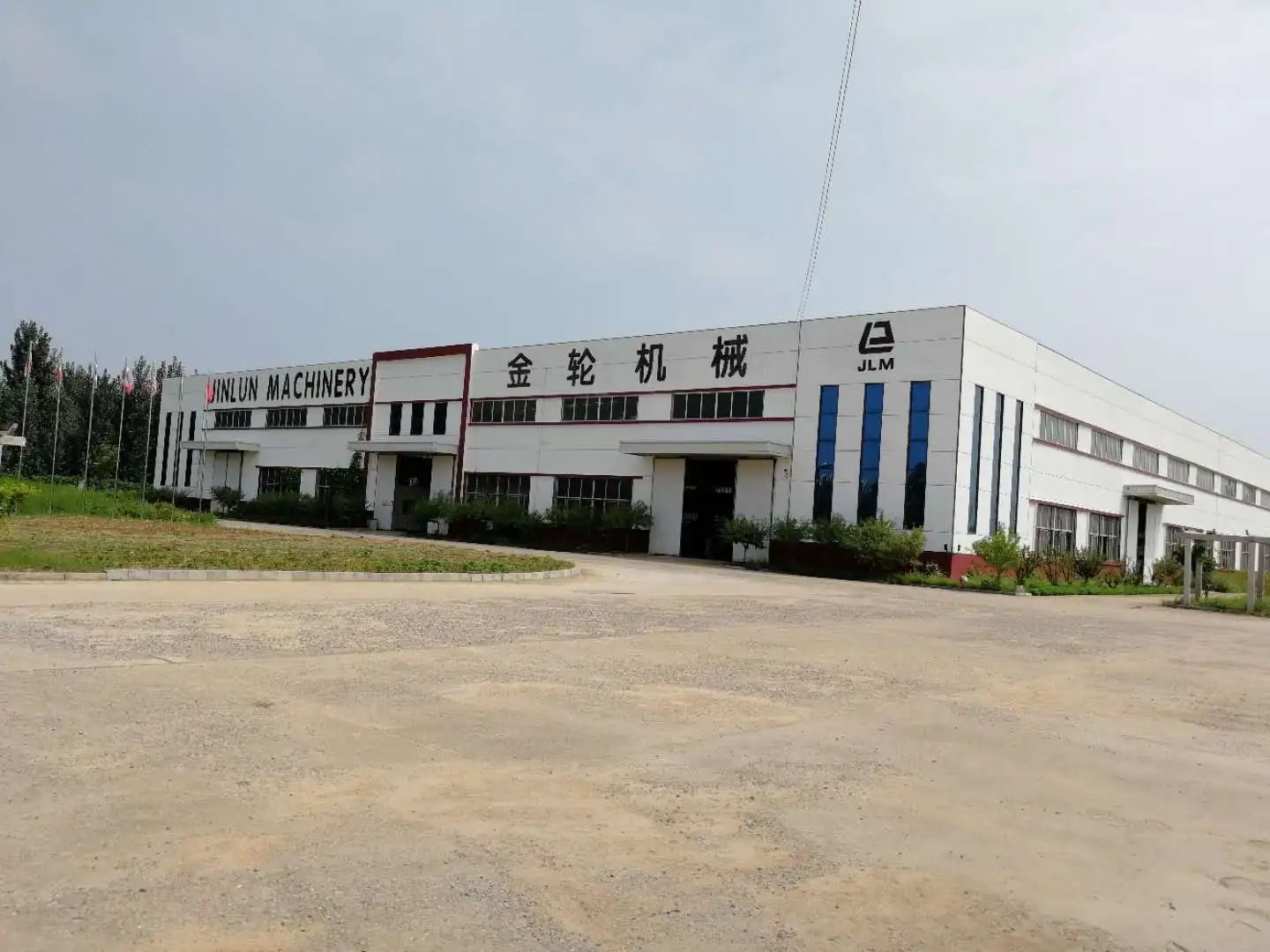

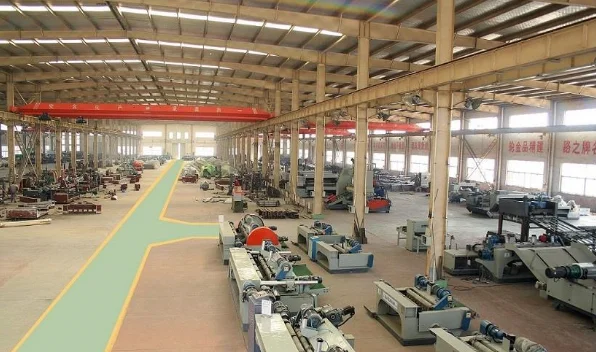

Shandong Jinlun machinery Co., ltd was initiated and established since 1997 , We specialize in manufacturing woodworking peeling machinery ,such as 4 feet ,8 feet ,10 feet of peeling machine for spindle and spindleless. We are one of the largest professional manufactures factory in China . Our machines own the highest domestic market share and exported to more than 60 countries, such as Vietnam, Thailand, Indonesia, Malaysia, Philippines, India, Pakistan, Turkey, Russia, South Korea, Brazil, Paraguay, Nigeria and so on .
Welcome to visit our company for cooperation.
2.6 spindleless
Model:2600mm spindless log peeling machine | Parameters |
Max peeling length of peeler log | 2700mm |
Max diameter of peeler log | 400mm |
Left log diameter | 35mm |
Veneer Cutting thickness | 1.0-3.0mm |
Size of peeler blade | 2700x180x16mm |
Cutting speed | 36meters/min |
Total Power 35.2kw | Single roller motor 7.5kw |
Double roller motor 7.5kw (2set ) | |
Feeding motor 7.5kw | |
Slitting motor 3 kw | |
Conveyor motor 2.2kw | |
Total weight | 8000kgs |
Overall size | 5200x2150x1600mm |
Related Products

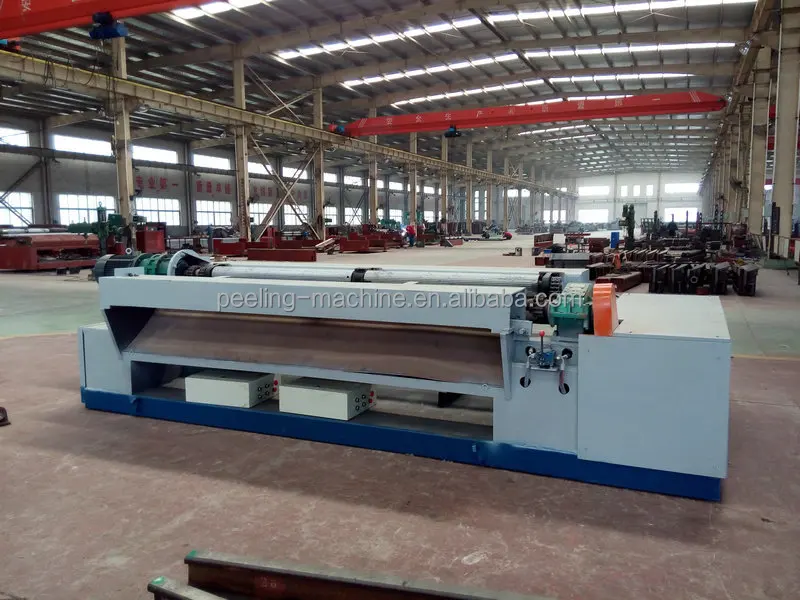

Debarker is used for log for round before peeling. And it is suitable for the eucalyptus,
pine, cotton wood .with principle of peeling, removing the log’s skin and
straighting logs. hydraulic driven feed mechanism,can quickly, efficiently put log
removal of bark, round. One set debarker can supply 2 set peeling machine .it saves the original manual peeling, rounding procedure, save 5-6 human .
2600mm debarker | parameters | |
Diameter of log | 200mm-550mm | |
the longest length of log | 2600mm | |
Cutter size | 2700x180x16mm | |
The speed | 50 meters/min | |
power | Double roller motor | 11KW |
Single roller motor | 11KW | |
Hydraulic motor | 4KW | |
Dimensions | 4900x2200x1450mm | |
Weight | About 4.8tons | |
Advantages
1, driven by servo motor and precision screw feed.
2, replacing the log’s thickness only enter the thickness of veneer numbers,
without changing the gear, rotary cutting in high precision.
3, using microcomputer control system, the operation is easy and simple
4, surface finish is good , and without sensitive reaction for wood’s different surface..
After-Sales Service
1.engineers avaliable to services machinery overseas ,The buyer should pay the round-trip air tickets, foods, accommodation and service fee. The services include fixing, debugging, operating, maintaining and workers’ training.
2. we change the motor and reducer for free in one year
3. The buyer sends workers to seller’s factory for study,he buyer should pay for the round-trip air tickets. The seller arrange for food and accommodation. The services include fixing, debugging, operating, maintaining.
