High Quality Parking Sensor With Camera For Truck

High Quality Parking Sensor With Camera For Truck

Model No.: VEW21-4-TM0

1) Video Parking Sensor System for truck;
2) Sensor detection range: 0cm~3m;
3) distance readout range from 30cm-3M;
4) Advanced self-diagnosis with error indication;
5) 4*TM0 double angle sensor, 22mm plastic flat,5m corrugated harness with IP68 waterproof air connector
6) 7 inch monitor built in buzzer, Equipped with 15m display cable,Video parking sensor intergtates the parking distance data to the OSD signal,OPS output without camera;
7)Supports virtual car mode,LED color bar,distance data and rear image output
8).IP69k waterproof rate for control box,IP68 for night version rear camera and cables
9) CMOS 7070 PAL&NTSC camera; Third party camera original camera and monitor supported
10) Power Input:16~28V DC.
11) Three years warranty.

Specifications:
Rate voltage: 24V DC
Rate operating range: 12V - 30V DC
Rate current: 100mA - 300mA
Detecting distance: 0.3 - 3m
Ultrasonic frequency: 40KHz
Control moudle working temperature: -30 - 80 celcius degree
Monitor working temperature: -30 - 80 celcius degree
Monitor weight: 500g
Main control box size: 11* 9* 2.5cm
Main control box weight: 320g

Package:

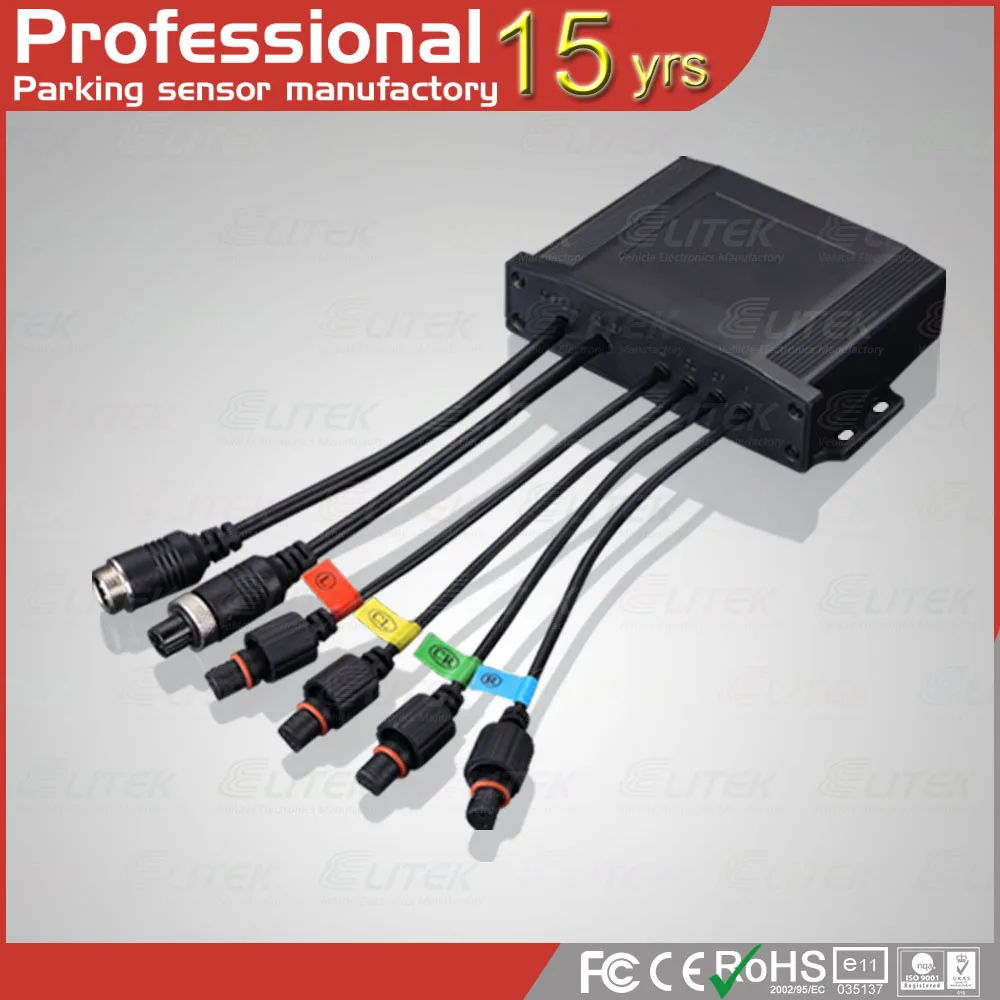

1 * Main Control Box

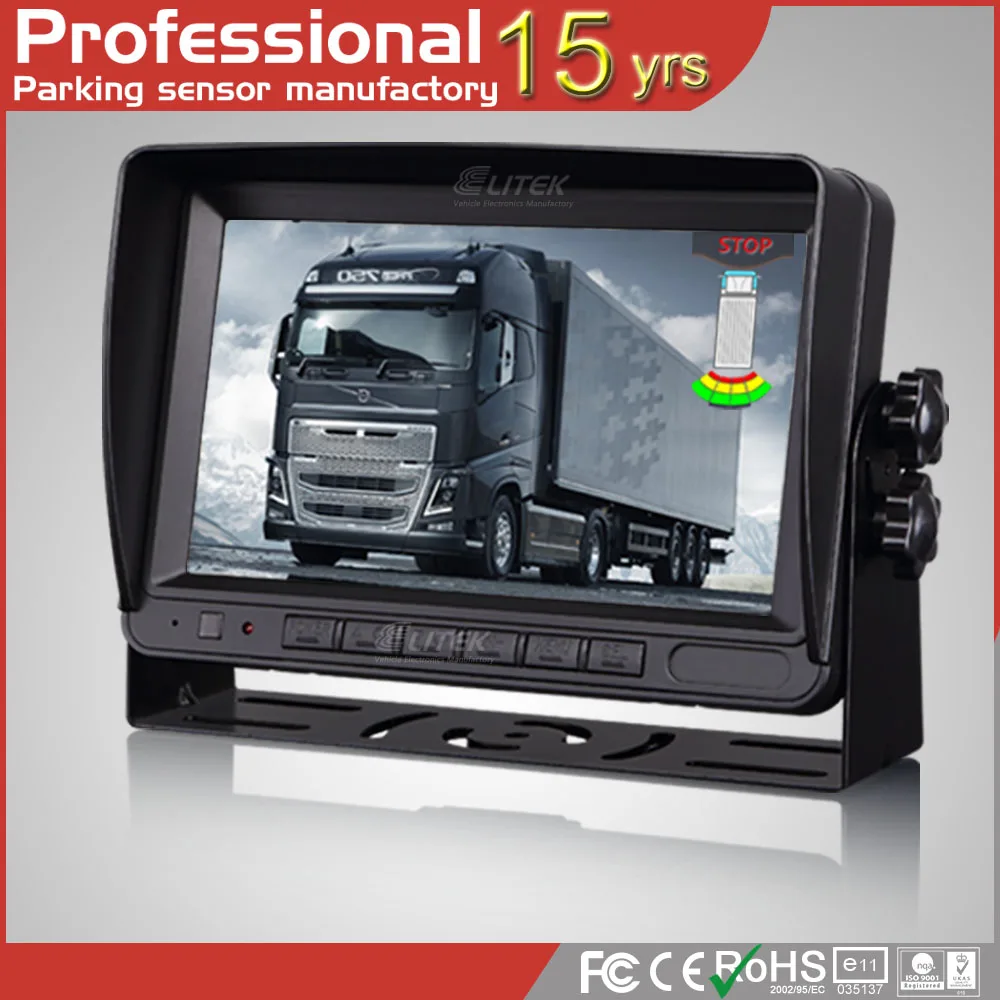

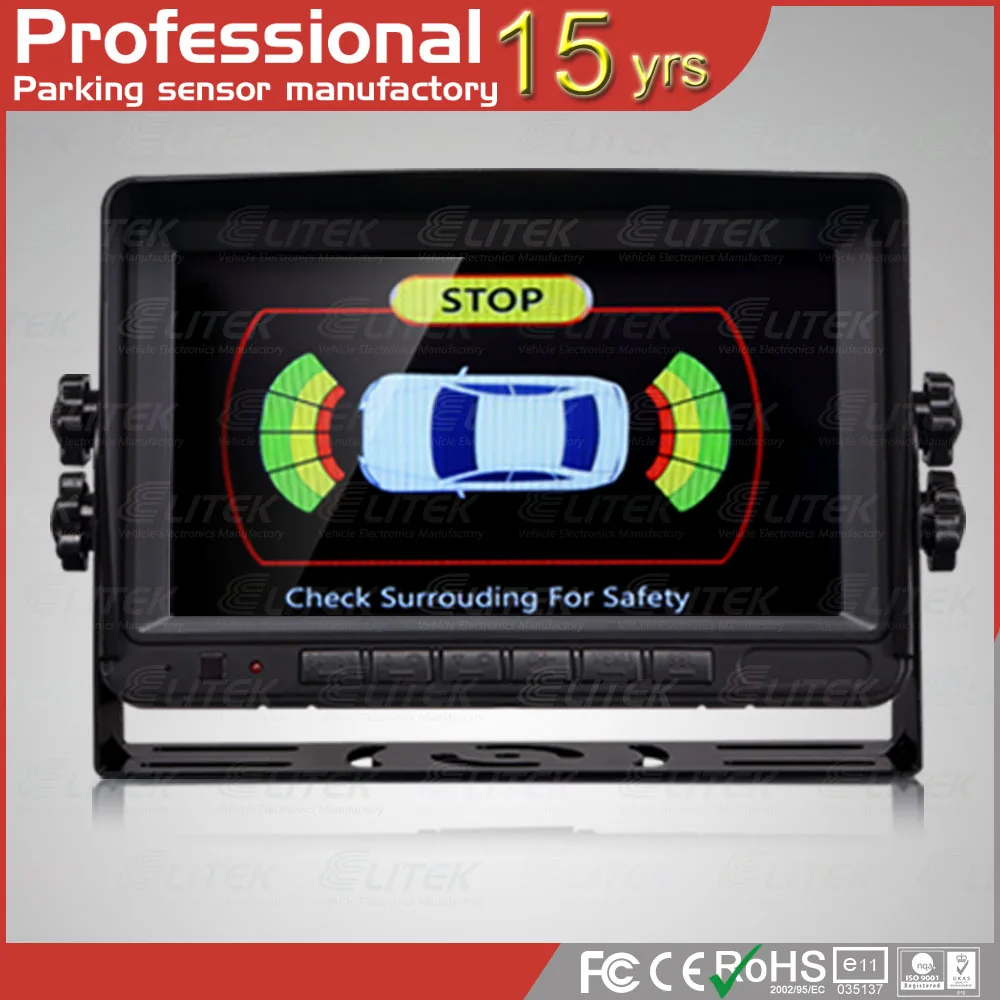

1 * LCD 7 Inch Monitor

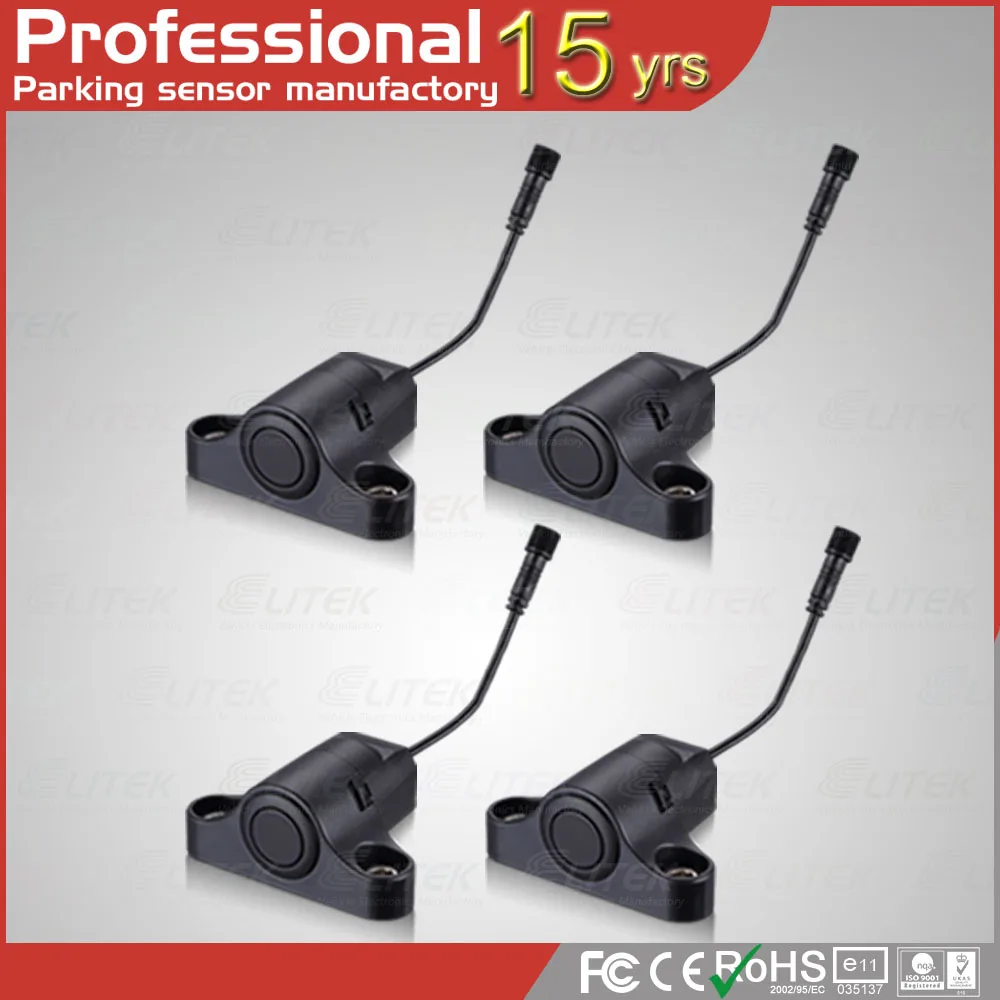

4 * Sensor

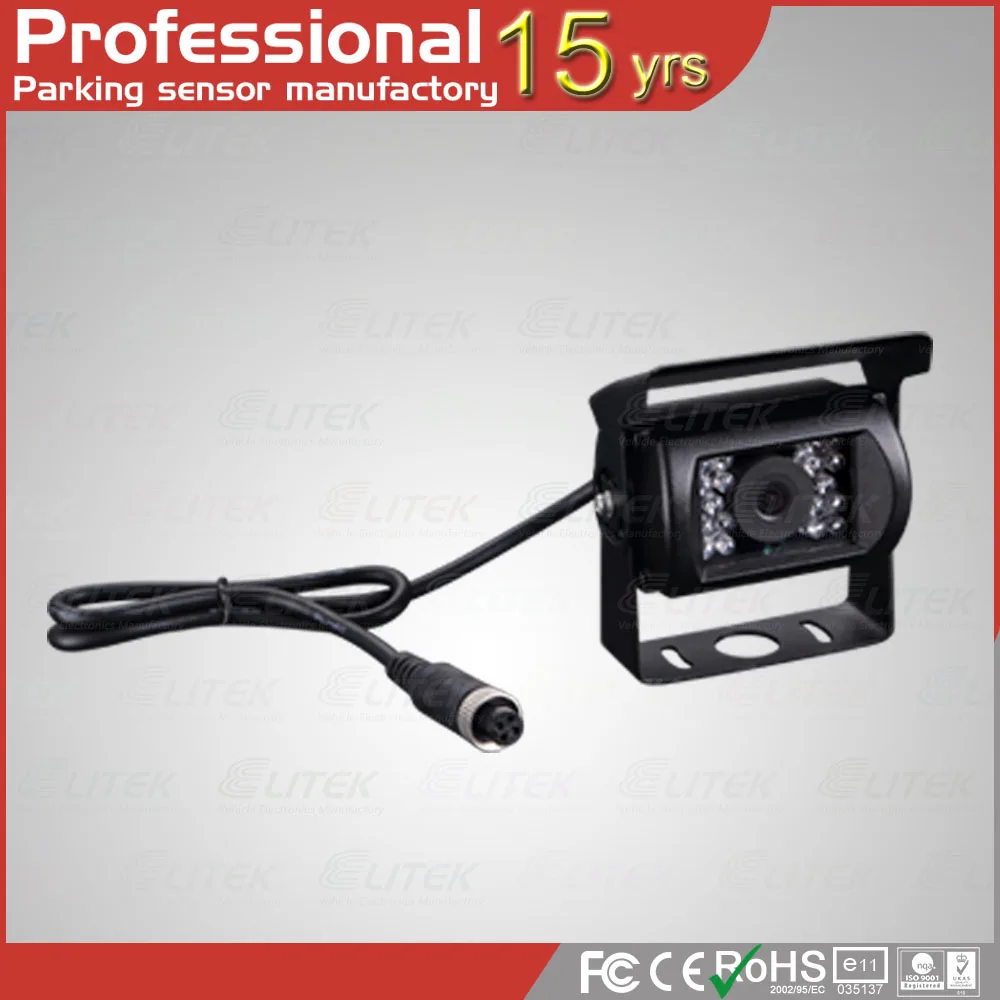

1 * Night Vision NTSC Or PAL Camera
1 * Integrates Harness
1 * Double Side Sticker
6* Nylon Tie
2* Red Clip

Neutral Packing:
Q'TY: 8 SETS
N.W.: 25.8 KGS
G.W.: 27.8 KGS
MEAS.: 69.5*56.5*29.5CM=0.116CBM

1.Reply your enquiry in 12 hours.

2.Experienced staffs answer your entire questions professional.

3.Customized design is available. OEM&ODM are welcome.

4.Top 10 car parking sensor system manufacturer in china.

5.Offer 12-36 months warranty.

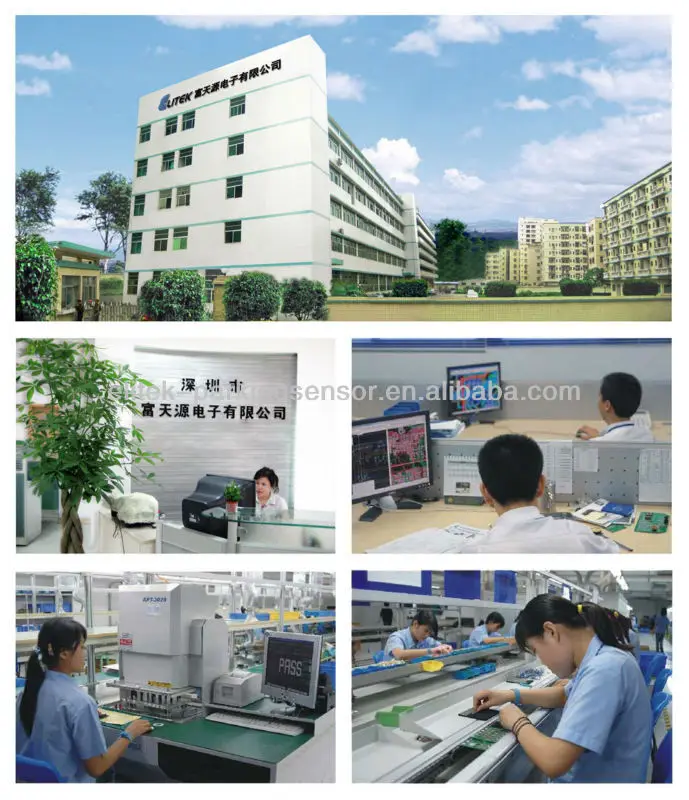

Founded in 2003, Shenzhen Elitek Electronics Co., Ltd. is specialized in the developing, designing and manufacturing of parking sensor system. Our talented engineers & skilled workers have more than 10 years of design & manufacturing experience in transducers, sensors and electronic control unit (E.C.U.) as well as the entire system, which ensures our parking sensors system always in high quality & most reliability.

We hold the belief of "Best quality, Best service" in Elitek. So we try to open our own mould and make out our own components when we choose the best quality components from domestic and aboard to make out credit and rest assured products.

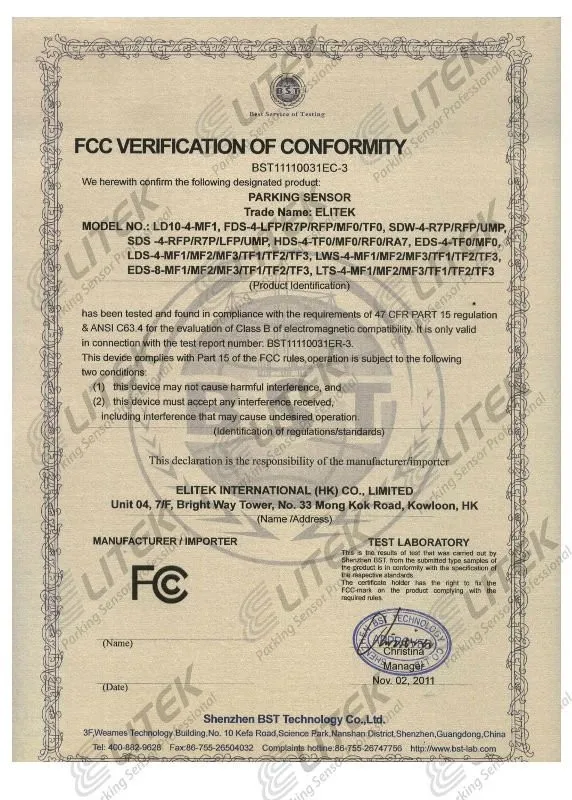

We do carry out ISO9001:2008 requirement in the practice of our manufacturing & quality inspection process, and we do have our own relative CE&ROHS&FCC certificates to offer the best service to our customers sincerely.

1. Trade Term:   EXW Price Term

2. Payment: T/T, L/C, Paypal, Western Union ect.

3. Lead Time:5-15 days after receipt of down payment for regular orders

4. Aftersales Guarantee: One to Three years Gurarantee for different products

5. The reversing sensor system fails to start when reverse gear is engaged?

    Wrong connection of the power lead? Please check the power lead.

    Wrong jack connection? Please check the connectors.

6. The reversing sensor system always detects the same distance?

A. Parking sensor detects the ground? Please check and adjust the vertical parking sensor angle

7. The reversing sensor system fails to detect the obstacles?

A. Wrong parking sensor connection, please check and reset the system.

8. False alarm?

A. Reversing sensor detects the ground, please check and adjust the vertical reversing sensor.
