RGN 66 Air 2 Finger Pneumatic Robot Gripper

Product Overview

Description

PRODUCT DESCRIPTION

• How Gripper Works: Wedge - hook kinematics


• Gripper Material: Anodized aluminum alloy


• Jaw Material: Steel


• Drive: Pneumatic-filtration of compressed air (10mm); dry, lubricated or non-lubricated pressure medium (Compressed air qualified by DIN ISO 8573-1:644).


• Gripping Force Safety Device: Internal mechanical gripping safety device or mechanical external SDV pressure safety valve.





COMPARISON CHART



Gripper Brand Name	LTIC	Other Brand
Gripper Model Number	RGN + 66-1	PZN + 64-1
Gripper Stroke per Jaw	6mm	6mm
Gripper Gripping Force	300[N]	250[N]
Gripper Workpiece Weight	3KG	2.5KG







TECHNICAL DATA



Model	Unit	RGN + 66-1	RGN + 66-2
Stroke per Jaw	mm	6	3
Closing Force	N	300	670
Opening Force	N	325	725
Closing / Opening Time	s	0.03 / 0.03	0.03 / 0.03
Repeatability	+/- mm	0.01	0.01
Min. Pressure	bar	3	3
Max. Pressure	bar	8	8
Min. / Max. Temperature	ºC	5 - 80	5 - 80
Compressed Air Consumption	cm3	10.1	10.1
Weight	Kg	0.27	0.27
Recom. Work Piece Weight	Kg	1.4	3.2

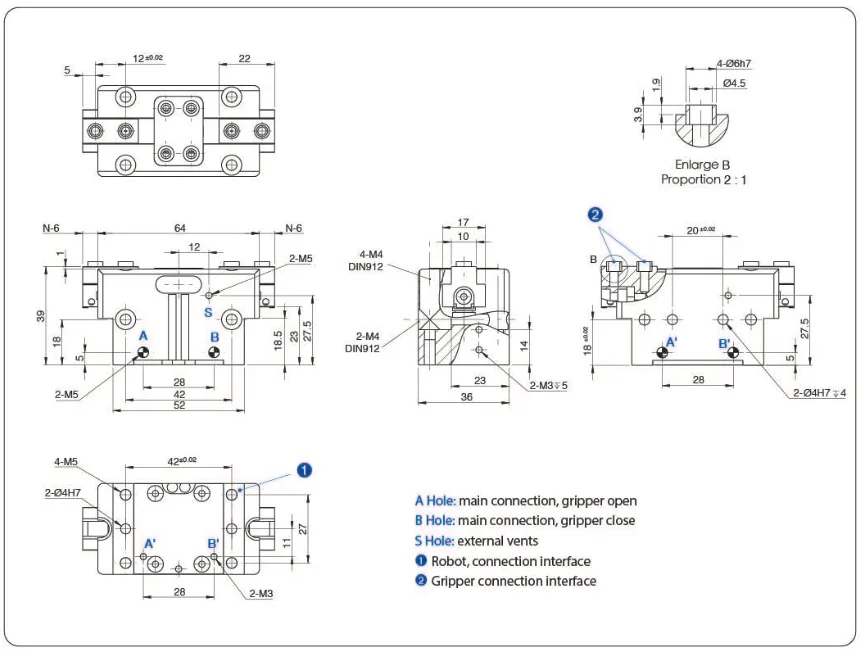

DIMENSION





MOVEMENT DESCRIPTION

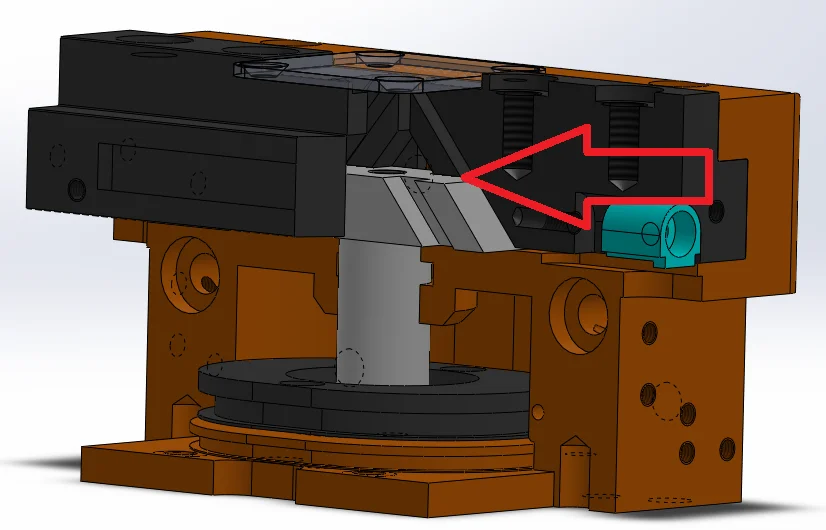

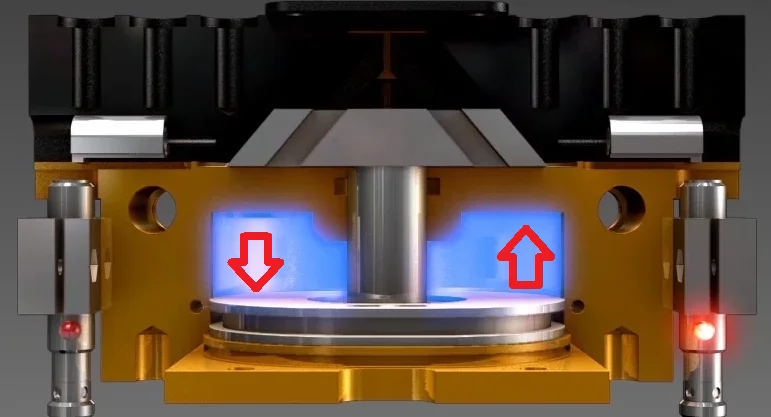

Compressed air will push and press the oval piston.

With tilting surface, the wedge hook will transfer the movement to side movement, and initiate the action of the  two base jaws simultaneously.

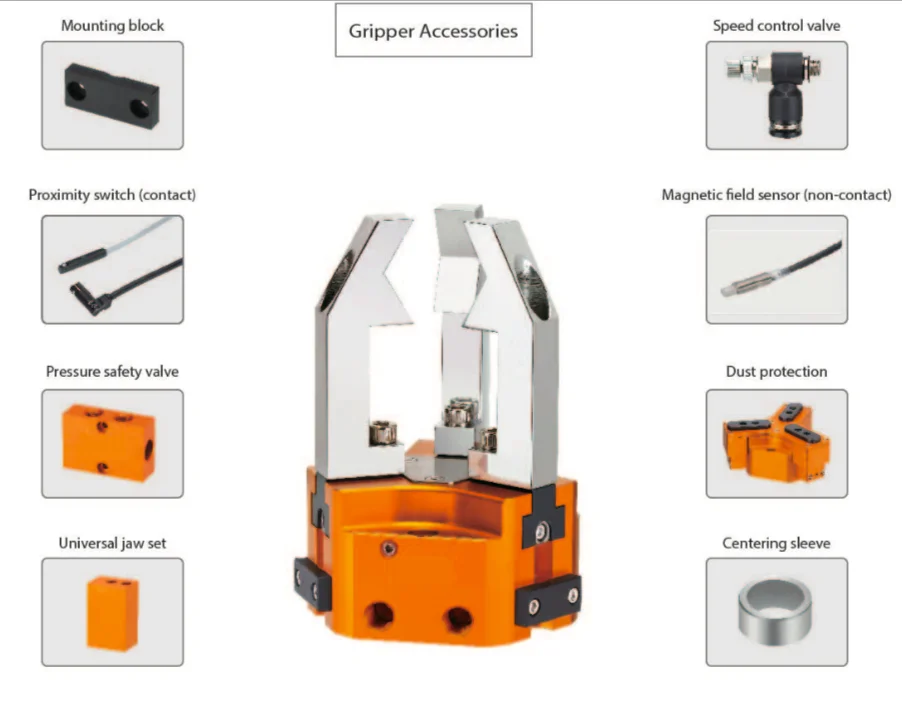

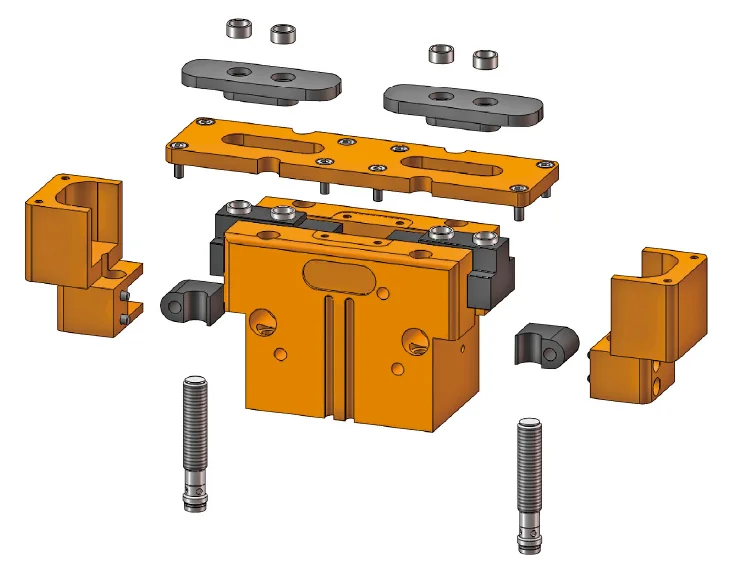

GRIPPER ACCESSORIES

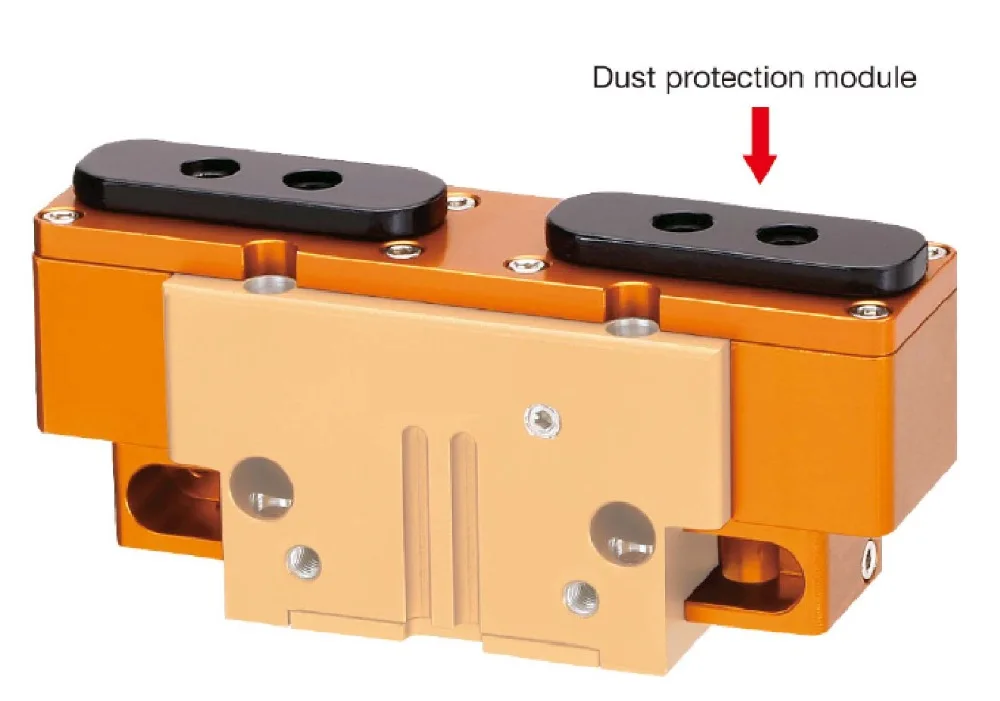

Valve, sensor, plain jaws, Dust protection and sleeve.









FULL TYPES

RGN+50   2 Finger Gripper

RGN+66    2 Finger Gripper

RGN+80    2 Finger Gripper

RGN+100  2 Finger Gripper

RGN+125  2 Finger Gripper

RGN+160  2 Finger Gripper



RZN+50    3 Finger Gripper

RZN+66    3 Finger Gripper

RZN+80    3 Finger Gripper

RZN+100  3 Finger Gripper

RZN+125  3 Finger Gripper

RZN+160  3 Finger Gripper







ABOUT LTIC

Our Gripper Technology

Gathering years of experience and industry knowledge, our pneumatic gripper, electric gripper and automated system are much more outstanding among the top providers.







Standard Gripper System                                                                                                                                 We have more than 200 kinds of standard gripper systems, positioning systems and robotic systems. We have full range of cutting-edge products and are able to deliver the products to the customers on time.



Non-Standard Gripper System

We have more than 200 kinds of standard gripper systems, positioning systems and robotic systems. We have full range of cutting-edge products and are able to deliver the products to the customers on time.



Customized Gripper System

Tailored system is one our strengths. We can develop gripper systems, robotic application systems and vacuum handling system according to customer’s onsite need.





FAQ

Q1: Minimum order quantity?

A1: One.



Q2: Quality?

A2: We test it before shipment. The life cycles is 10,000,000 times for standard situation.



Q3: Quotation?

A3: We quote within 12-48 hours after we get your inquiry.



Q4: Payment?

A4: T/T, L/C and Paypal.



Q5: Shipment?

A5: We send the goods by DHL, FedEx, UPS, TNT, or air and sea delivery as you require. After we shipped your goods, we will send you the tracking number by E-mail. If you do not receive it within 7 business days after shipping, please contact us.



Q6: Delivery?

A6: We prepare stocks for 1 week delivery. Otherwise, the delivery period is 4 weeks.
