ZYM Chinese Manufacturer Laboratory Water Deionizer
- Category: >>>
- Supplier: Sichuan Zhuoyue Water Treatment Equipment Co. Ltd.
Share on (60682757500):
Product Overview
Description
HOT sale machine
ZYCGF Iron box ZYPFT ABS plastic ZYCGF ABS plastic ZYMICRO ABS Plastic
Product Description

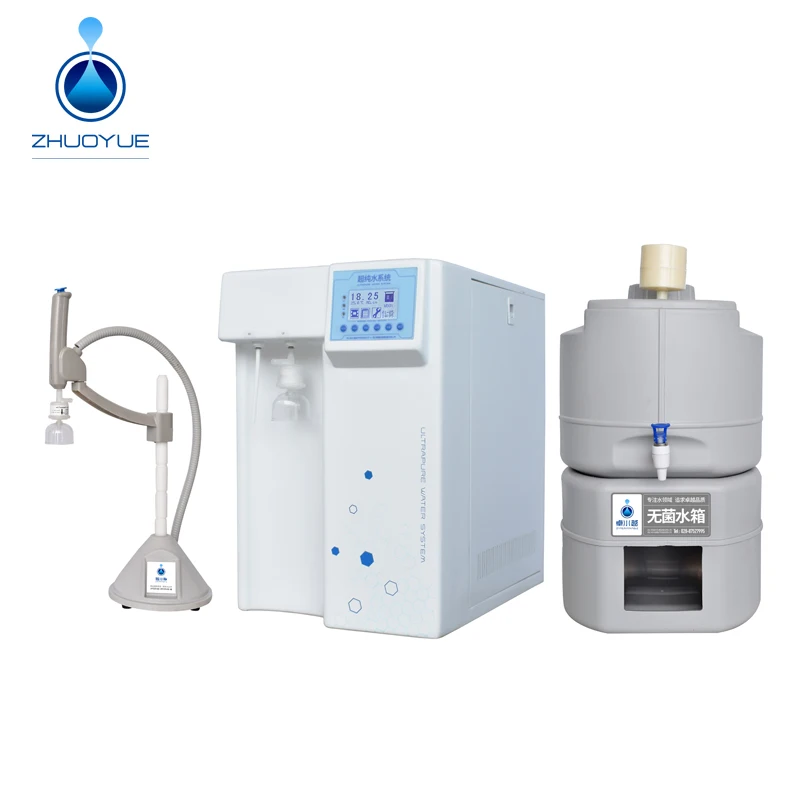

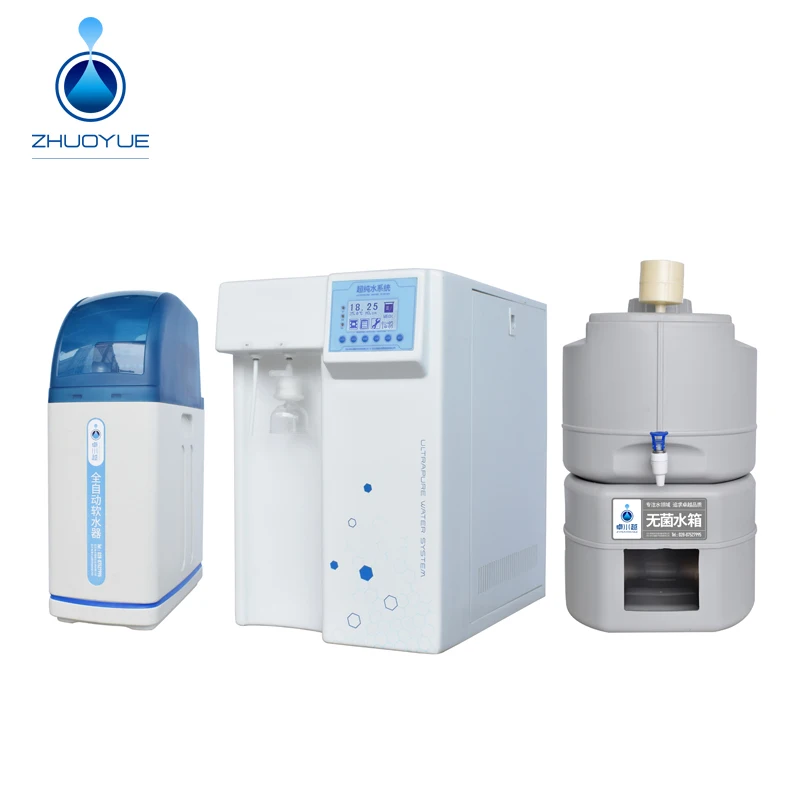

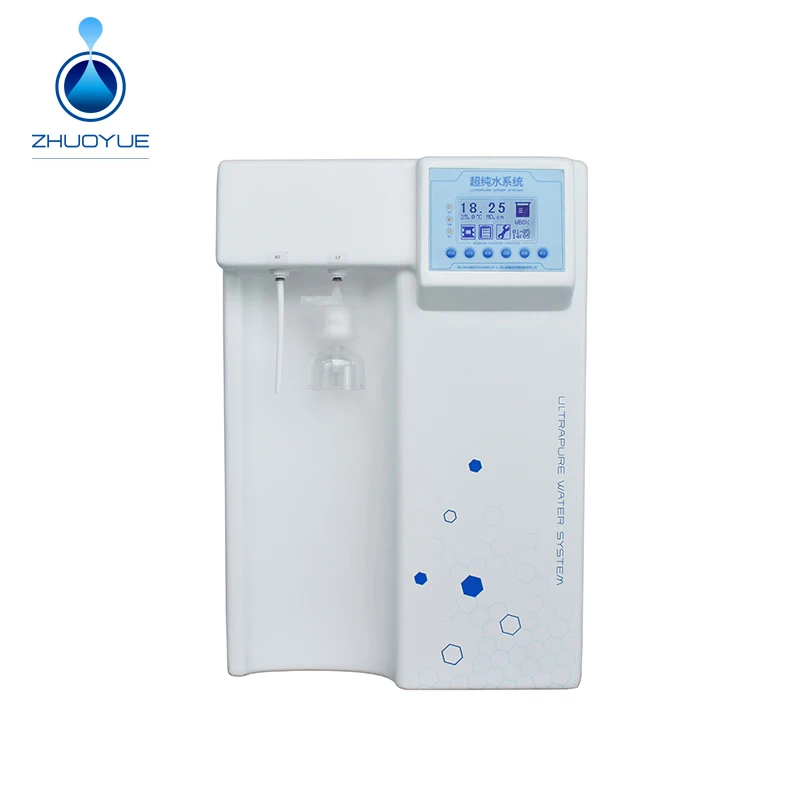

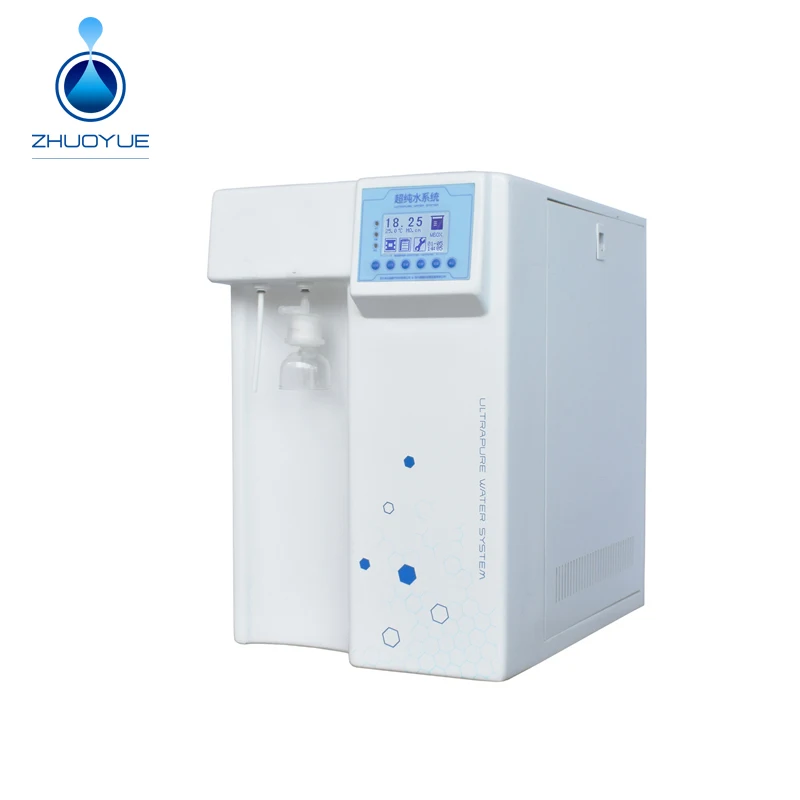

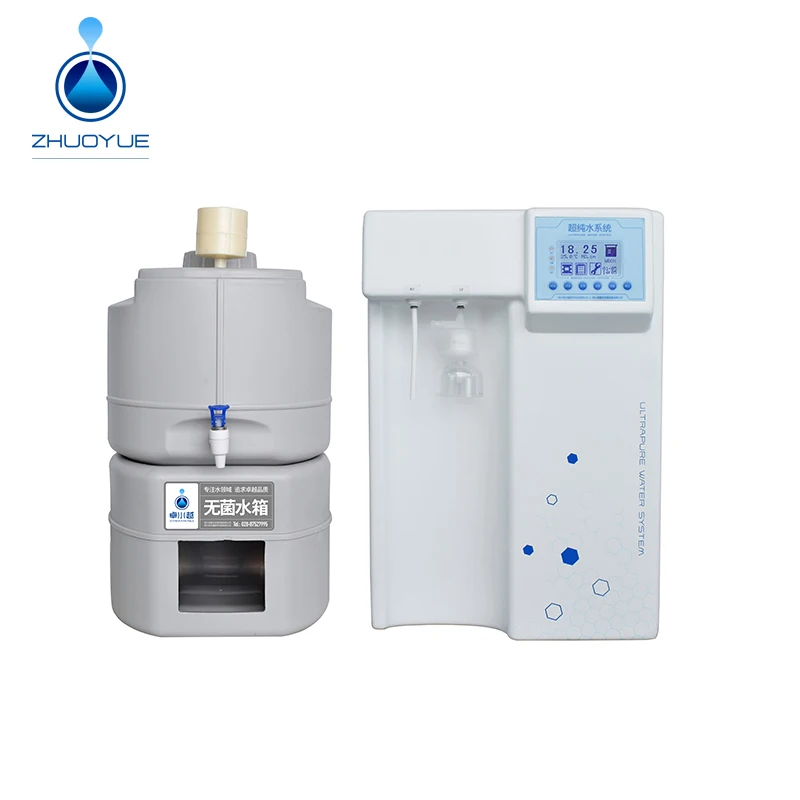

ZYM Laboratory Water Deionizer
Our model ZYM analysis of laboratory water deionizer design streamlined, LCD liquid crystal display, PLC automatic control, laboratory pure water and ultra-pure water online monitoring to ensure water quality reliability, is both energy efficient and cost-effective laboratory ultra-pure water system.
| model | ZYM-I-10L | ZYM-II-10L | ZYM-III-10L | ZYM-IV-10L |
| output(25℃) | 10liters/hour | |||
| flow rate | up to 1.8liters/minute(with pressure tank) | |||
| feed water requirements | tap water;5-45℃;pressure:1.0-4.0kgf/cm² | |||
| RO water quality(us/cm) | ||||
| conductivity(25℃) | 2-10us/cm | |||
| lonic rejecction rate | 99%(new ro membrane) | |||
| organic rejection rate | >99%,when mw>200dalton | |||
| particles and bacteria rejection rate | >99% | |||
| ultrapure water quality | ||||
| resistivity at 25℃ | 18.2mΩ.cm | |||
| Bacteria*** | <1cfu/ml | <1cfu/ml | <0.1cfu/ml | <0.1cfu/ml |
| particles(>0.1um) | <1pc/ml | |||
| heavy metal ion | <0.1ppb | |||
| endontoxin (pyrogens)**** | N/A | ≤0.001EU/ml | ||
| toc lvel*** | <10ppb | <10ppb | <5ppb | <5ppb |
| dimension and weight | 530*400*590mm,40kg | |||
| electrical requirements | AC110-240v,50/60Hz | |||
| terminal disinfection filter | N/A | yes | yes | yes |
| UV lamp | N/A | N/A | yes | yes |
| UF | N/A | N/A | N/A | yes |
| Standard configuration | main body(including 1 set of cartrige)+10 liters pressure tank | |||
| can be selected flow rate(L/H) | 10L/H,20L/H,40L/H,60L/H,80L/H,100L/H,120L/H | |||
1.Ultra-pure water circulation to extend the life span of consumable parts within ultra-pure water purification system.
2.Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
3.Comprehensive system maintenance and safety alarm:
4. Equipped with USB Host interface to support historical alarm records and water taking record data export function, to facilitate the later access to historical operation conditions data.
5.Adopt more advanced, user-friendly membrane push button to take water.
6.Semi-transparent medical grade PP material do not produce secondary pollution.
7.Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (0.1-18.25MΩ.cm)
Technological proces
Technological process flow of laboratory water deionizer:
The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter (including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.
Installation Images
Company Information
Sichuan Zhuoyue Water Treatment Equipment Co., Ltd. was established in 2009. It is a comprehensive water treatment manufacturer integrating R&D, production, sales and after-sales. It specializes in R&D and production of laboratory ultrapure water systems, medical pure water systems, and pharmacopoeia purified water systems. , industrial ultra-pure water system, commercial pure water system, waste water treatment system, membrane separation system and related water treatment system. At present, the company has a 4000M2 modern production base and marketing service center in Chengdu, Sichuan, and has established perfect after-sales service network.
Certifications
Exhibition
Packaging & Shipping
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
