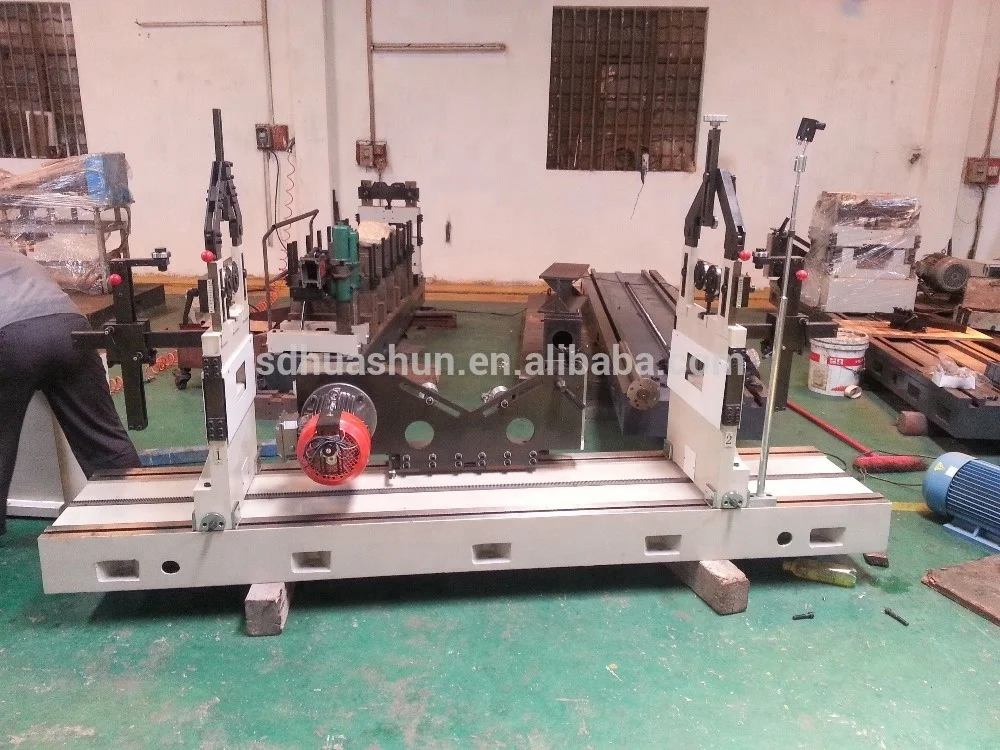

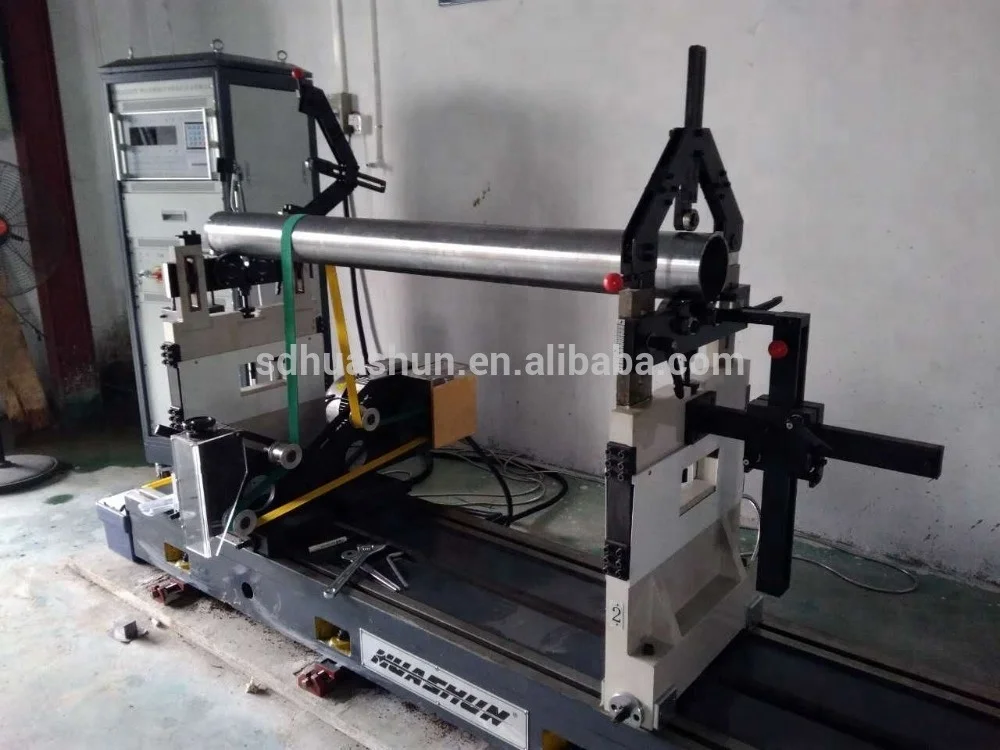

HUASHUN Universal Belt Drive Balancing Machine for crankshaft
- Category: >>>
- Supplier: Foshan City Huashun Motors Co. Ltd. [Guangdong China]Foshan
Share on (60682798130):
Product Overview
Description

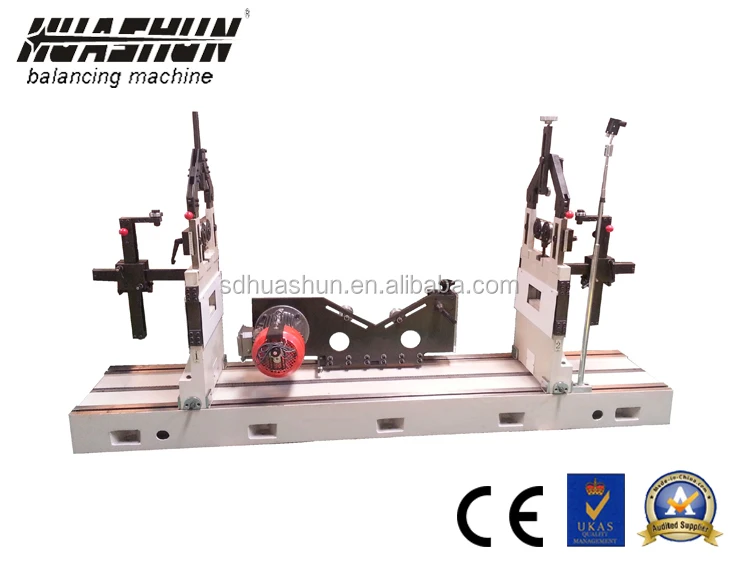

HB500-PI Universal Hard Bearing Belt Drive Balancing Machine
Application areas:

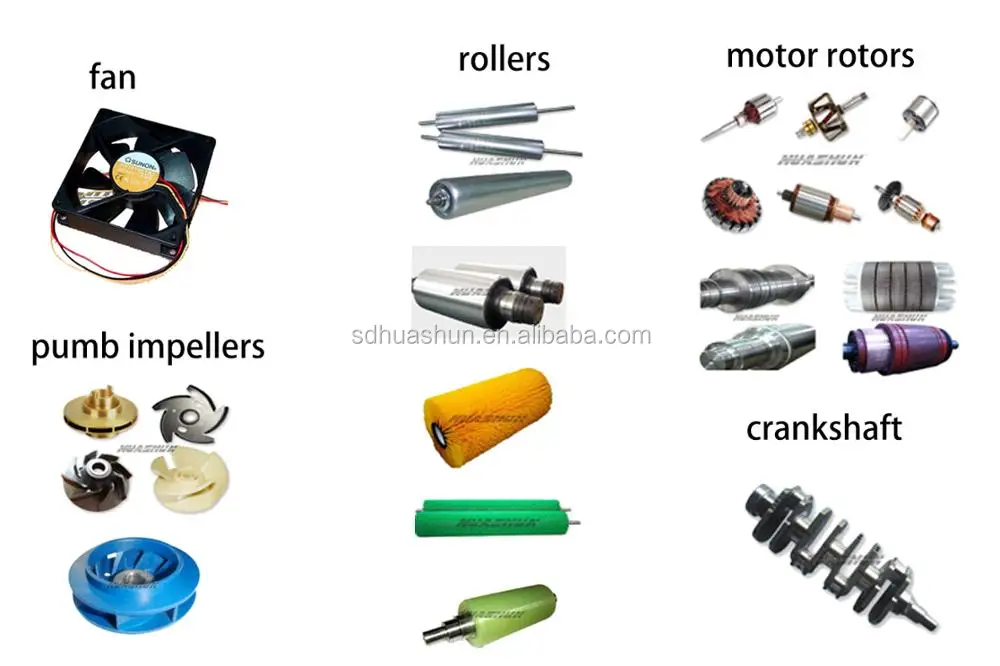

motor rotors, rollers, fans, pump impellers, turbocharger rotors, crankshaft, etc.
Structure:
Belt drive, the distance between supports can be enlarged to 7.7m/11.7m
With piezoelectric sensors, very high stability

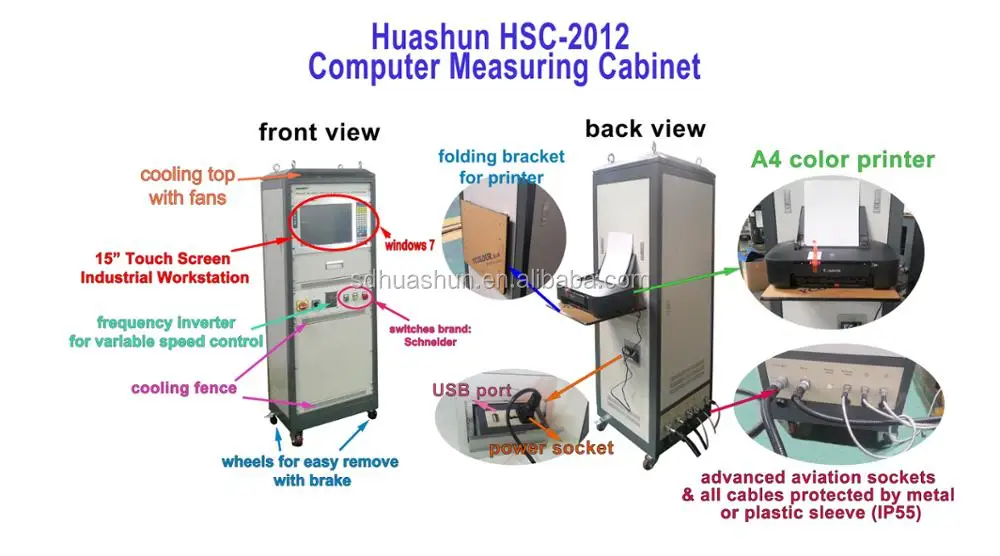

HSC-2012 Latest Touch Screen Industrial Computer measuring system with mega data storage capacity
Technical Parameters:
| Type of balancing machine | Special Balancing Machine Series |
| HB Series | |
| Specifications/Type | HB500-PI |
| Max.mass of workpiece(kg) | 500 |
| Max.dia of works(mm) | 1560 |
| Balancing speed(RPM) | 350-2500 |
| Motor power(KW) | 5.5 |
| Min.achievable residual unbalance amount emar(g.mm/kg) | ≤1 |
| Unbalance reduction ratio URR(%) | ≥85 |
| Distance between supports(mm) | 300-3700 |
| Journal dia of supports(mm) | 10-180 |
| Journal dia of belt drive(mm) | 100-800 |
