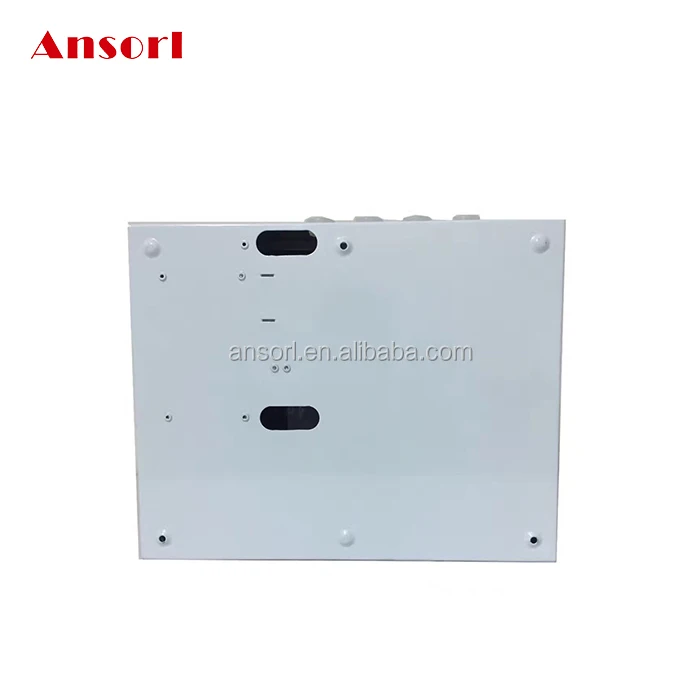

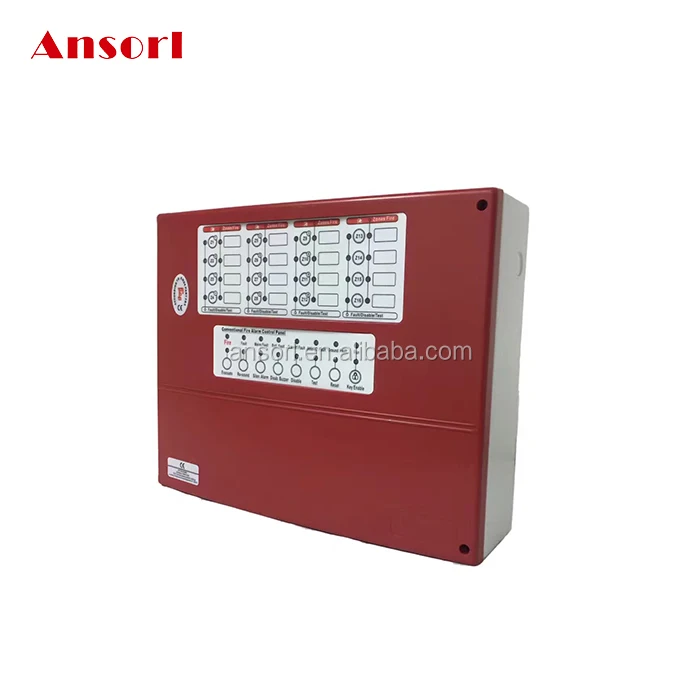

8 Zone Conventional Fire Alarm Control Panel
- Category: >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (60682829846):
Product Overview
Description
Product Description
8 Zone Conventional Fire Alarm Control Panel
Product Features:
4, 8, or 16 conventional input zones.
2 notification appliance circuits (NAC, Sounder) with built-in synchronization for ANSI 3.41and Gentex.
The panel comes with a 3 amp power supply.
Dedicated alarm and fault relays.
1 RS485 can be able to connect repeaters.
Enclosure supports two 12V, 7Ah backup batteries.
Electrical Specifications:
| Primary AC | 200 to 240VAC 50/60 Hz |
| Standby current | 50mA@220VAC, Alarm current: 85mA@220VAC |
| Power supply rating | 3 Amps @ 24VDC |
| Maximum Battery Charging Current | 0.98 Amps @ 26VDC |
| Initiating Device Circuits 4 Zones | Alarm Zone 1, 2, 3, & 4 |
| Initiating Device Circuits 8 Zones | Alarm Zone 1, 2, 3, 4, 5, 6, 7, & 8 |
| Initiating Device Circuits 16 Zones | Alarm Zone 1, 2, 3, 4, 5, 6, 7, 8,9,10,11,12,13,14,15, &16 |
| Normal Initiating Operating Voltage | 23VDC, Maximum 26VDC, regulated |
| Short Circuit Initiating Current (per zone) | 35mA Maximum |
| Maximum Initiating Resistance (per zone) | 10 ohms |
| Initiating End-of-Line Resistor | 4K7 ohms, 1/2W 5% |
| Standby Detector Current (per zone) | 4mA maximum |
| Maximum Detector Count (per zone) | 30 detectors |
| Initiating Cabling Type | 18AWG Twisted Shielded pair (14 – 18 AWG) |
| Detector Base Impedance | 430 ohms |
| Notification Appliance Circuits(Sounder) | 2 NACs, Special Application |
| Maximum NAC Current Rating | 1 Amp maximum per circuit |
| NAC End-of-line Resistor | 10K ohms 1/2W 5% |
| FAULT Relay rating | 2A & 30VAC, resistive |
| Alarm( Auxiliary ) Relay rating | 2A & 30VAC, resistive |
| Enclosure Dimensions | 353mm(L)×282mm(H)×101mm(W) |
| Net Weight | 3.1kg (Without batteries) |

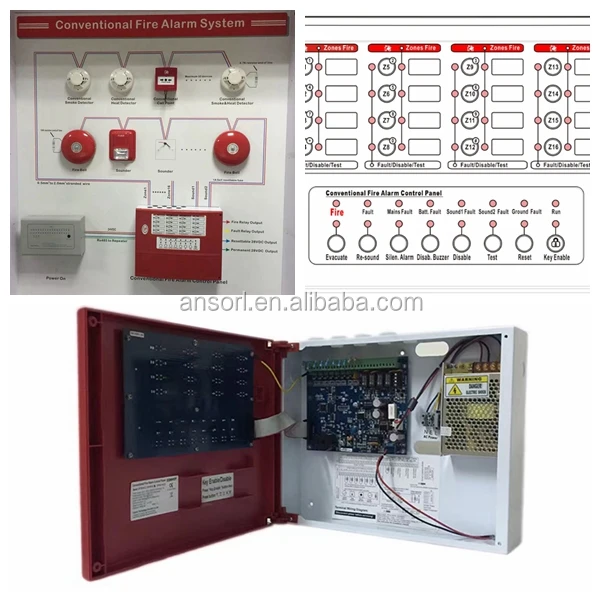

Product Details:
Packaging & Shipping
Our Services
1. The Professional OEM & ODM Service.
2. Prompt Response.
3. Support Factory Quality Inspection.
4. Standard Quality Control System.
5. Sample&Customized Order Can Be Supported.
6. Independant R&D dept, Designing Dept,to Service you.
7. Whole Set Of Technical And Solution Supports .
8. Manufacturer Is With Offer Better Price&Service.
9. Direct Control On Materials, Production Status, Quality Checking.
10. Reliable After-sales Service, With One Year Waranty.
Company Information
ANSORL LTD is a building automatic control system and fire alarm system solution provider. Over the past years, We have always been dedicated to serving the diverse needs of our customers. Although we started out as a tiny engineering and manufacturing company in China and have grown into a global player in the international safety market, Ansorl continues to work hard to earn your trust and retain your confidence in our product line.
We focuse on providing advanced buidling automatic control system and fire alarm / fire fighting system. Ansorl works harder to tailor our solutions to meet your needs.
Ansorl is an ISO 9001:2000 certified manufacturer with number of testing facilities. We are also planning to expand our manufacturing and testing facilities in China to ensure that our products and manufacturing practices continue to meet the highest standards.
We invite you to get to know Ansorl better. Experience the best fire alam technology and solution. We are convinced that you will find Ansorl superior to any other detector company in China. You'll see it in our facilities, in our people, and in the products that Ansorl makes. It's our uncommon commitment to excellence and quality, and to the automation and productivity of our customers.
