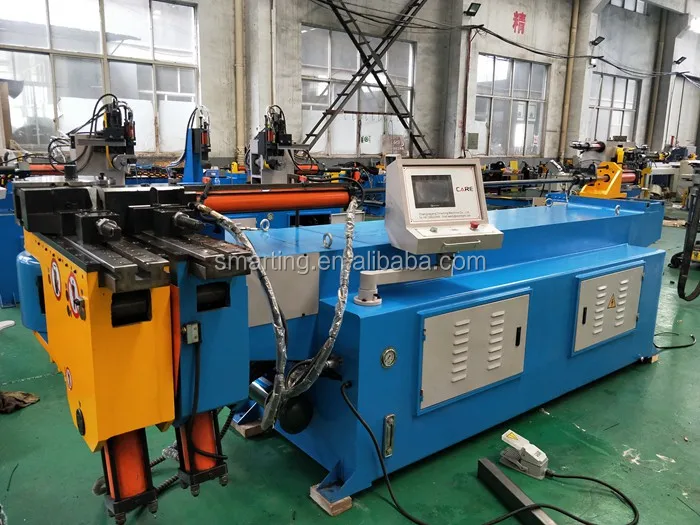

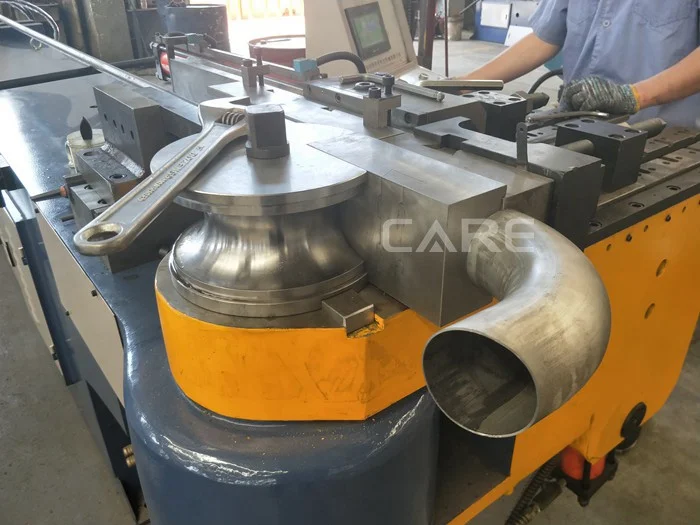

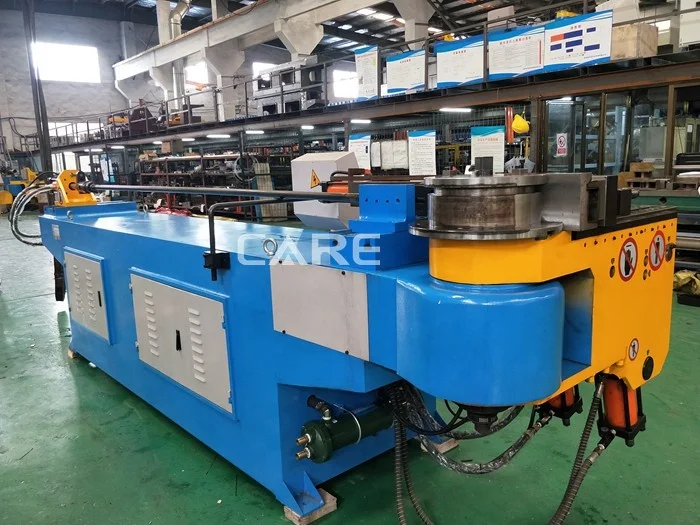

DW89NC Manual feeding hydraulic rectangle pipe and tube bending machine for fitting equipments
Main specification
1. The machine is controlled by PLC control and driven hydraulically. That can bend various types with different bending angle.
2. It applies English language display and man-machine conversation operation, and can be operated manually, semi automatic and fully automatic mode.
3. It applies hydraulic and electrical elements with high performance.
4. Cooling system with large capacity is provided to control working temperature effectively.
5. The machine has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.
6. The movable foot switch has three functions, automatic startup, emergency stop and emergency stop continuity, which ensure high safety.
Technical parameter
Specification/Model
Unit
DW89NC
Remark
Max bending capability
mm
Φ89×3.5t
1. The Minimum bending radius based on the pipe diameter
2.The Max bending radius can according to the customer’s requirement
3.The Max length of mandrel can according to customer’s requirement
