CE Plastic pipe making device PE HDPE pipe manufacturing machine

Product Overview

Description

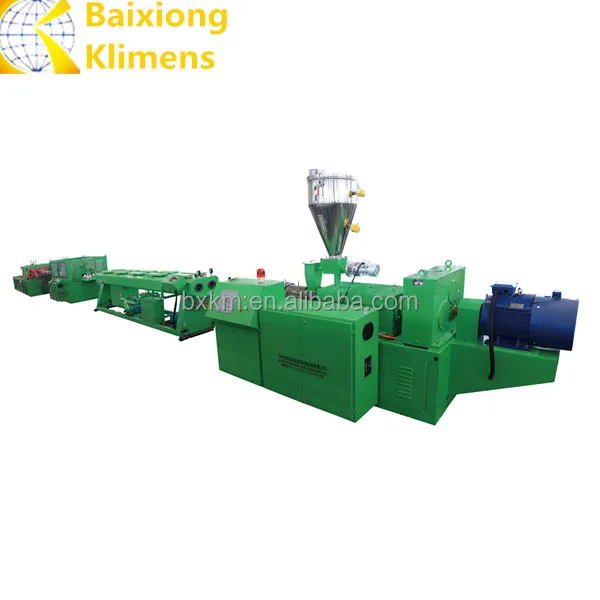

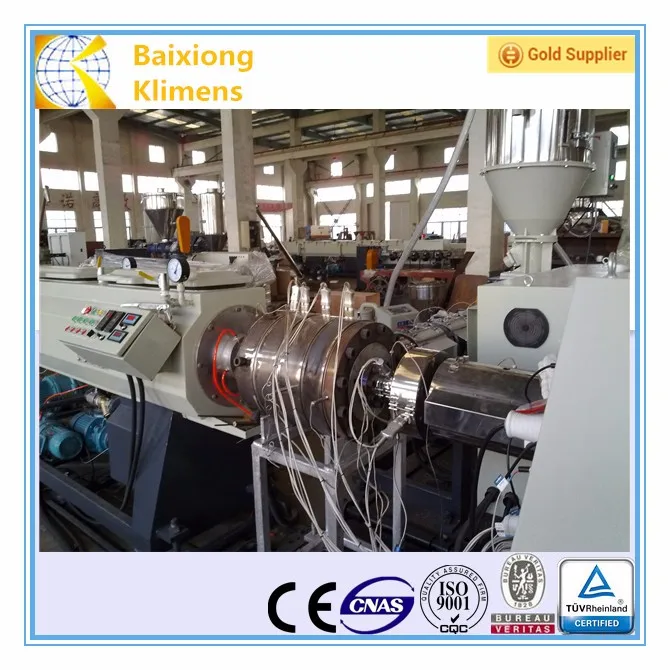

Plastic pipe making device PE HDPE pipe manufacturing machine



The extrusion line is newly developed based on European technique and systemic study and research of new type pipe production line; It’s suitable for PE,PP and other polyolefine pipes high-speed extrusion. The extrusion line has many advantages, such as, neat outline, highly automatic control, stable performance, It’s greatly reputed by the customers due to” European performance and domestic price”, and it’s the best option as the substitute of the imported one.

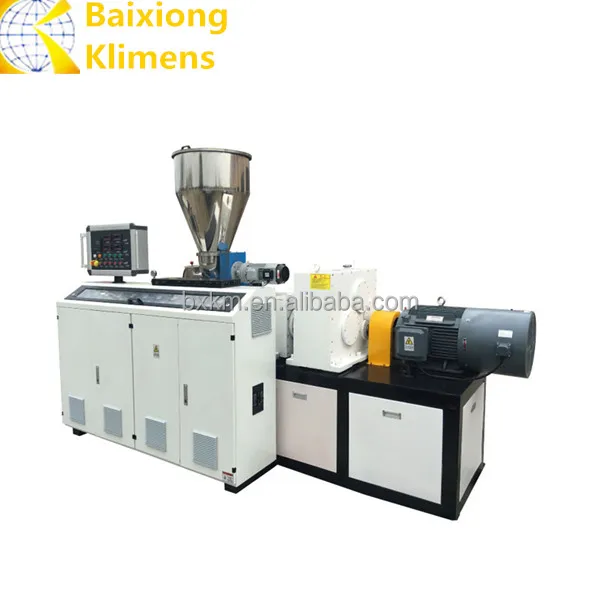

Hight-efficiency single screw extruder has 8 strandard sizes:Φ30, Φ45, Φ65, Φ75, Φ90, Φ105, Φ120, Φ150mm, and the L/D ratio is 30:1D-37:1D Effective length. All the equipments are controlled by the PLC/PCC smart modular, further more the automatic control, real-time data record and closed-loop control are realizd. The advantage are high output, high adaptability for differnt raw material, highly stable good-quality extrusion and soon.



 Process Flow:

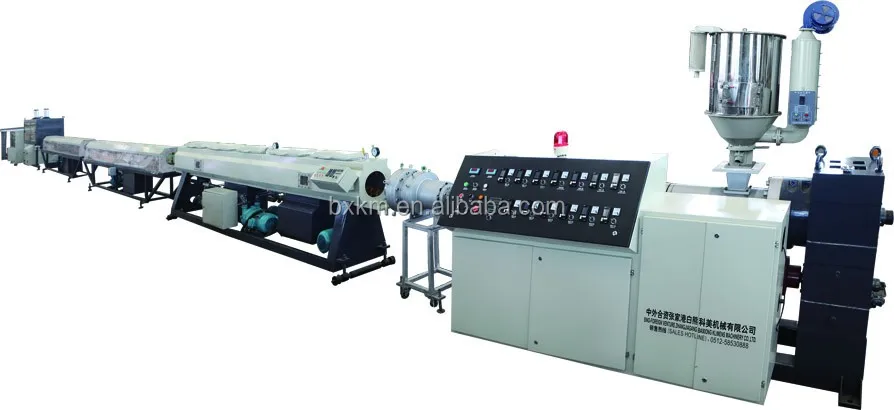

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack

 .

Production Line Configuration Reference:

Item	component	quantity
1.	single screw extruder	1set
2.	co-extruder(for marking color line)	1set
3.	mould	whole 1set
4.	vacuum calibration tank	1set
5.	vacuum spraying  tank	1set
6.	hauling machine	1set
7.	cutter	1set
8.	stacker	1set



Technical  Parameter:

Main Extruder	45/33	75/33	60/33	75/33	90/33	90/33	120/33	120/33	150/33	150/33	150/33
Pipe diameter	16-63	16-63	32-125	75-250	110-450	160-500	160-500	250-630	315-800	450-100	630-1200
Die Head	Single outlet	Double outlet	Single outlet
Down-stream Equipment	LG63	SLG63	LG125	LG250	LG450	LG500	LG500	LG630	LG800	LG1000	LG1200
Total power	70	125	150	230	380	380	550	550	800



Advantages:

1. Waterproof;

2. Able to withstand axial forces initiated by axial moments of the pipe in the ground;

3. Able to withstand radial forces and bending forces;

4. Able to withstand effects of temperature and temperature variations.

5. Have the same thickness of the pipeline insulation layer.

6. Perfect product instead of Heat Shrinkable Sleeve.





Detailed photos

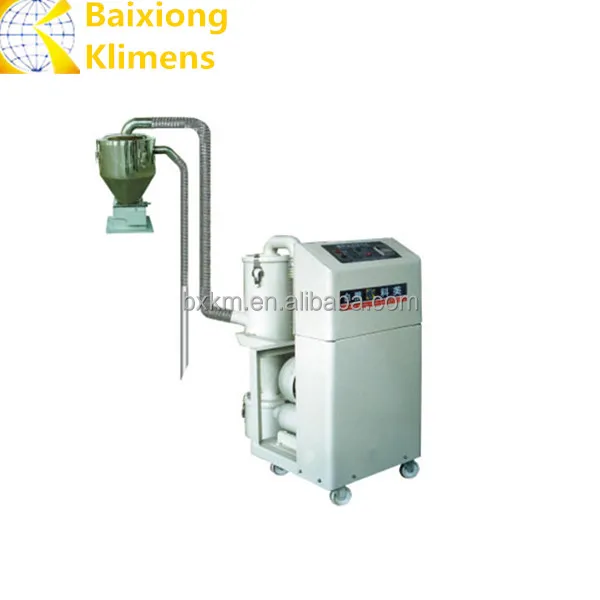

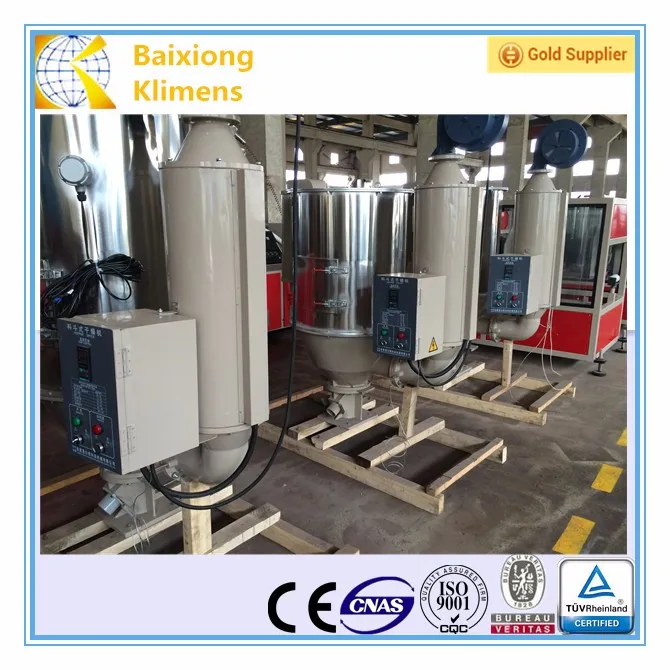

--vacuum loading and drying system

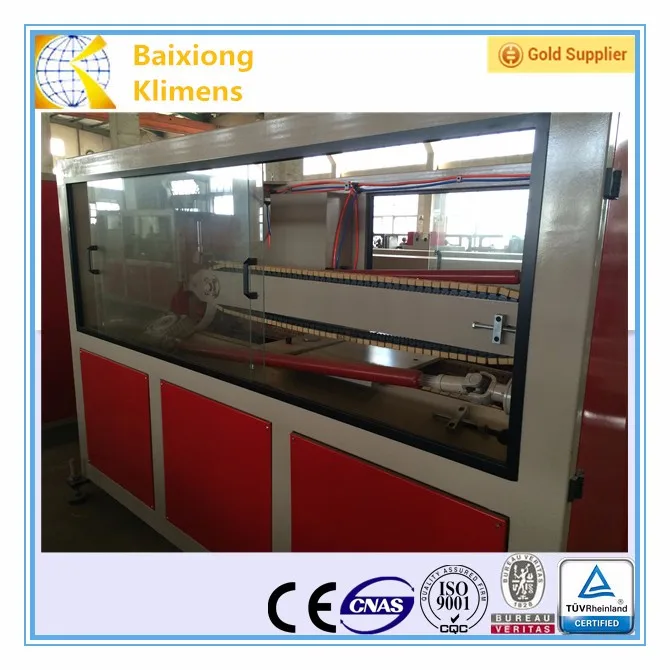

--haul-off machine

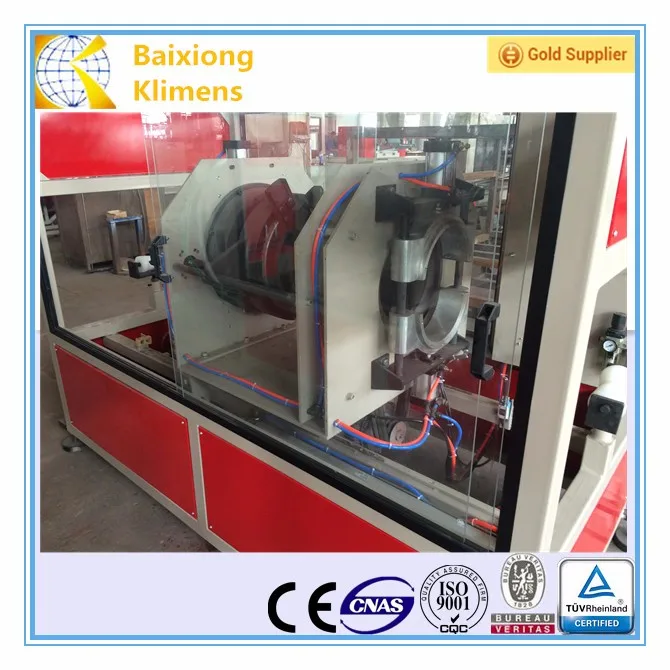

--cutting unit

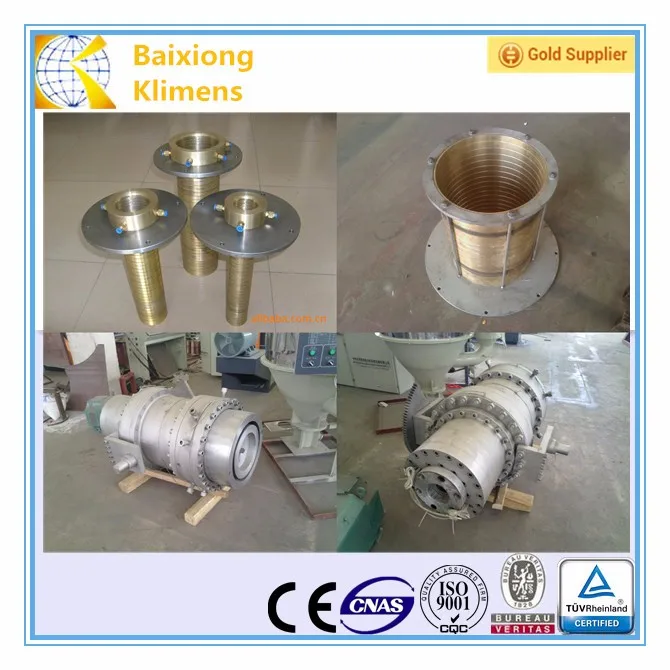

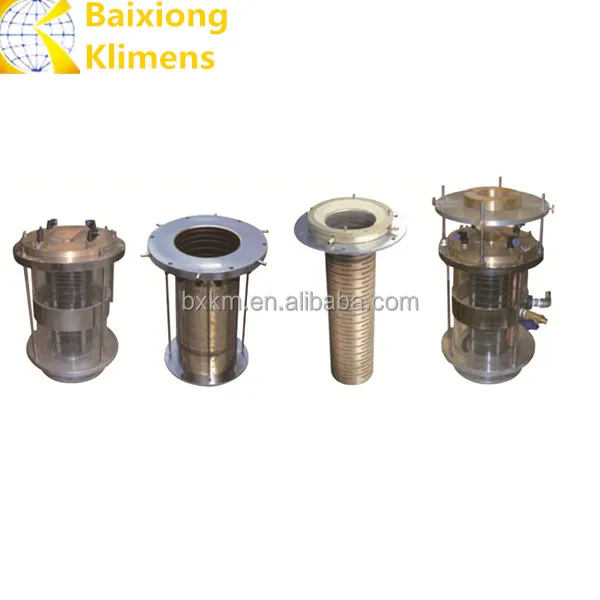

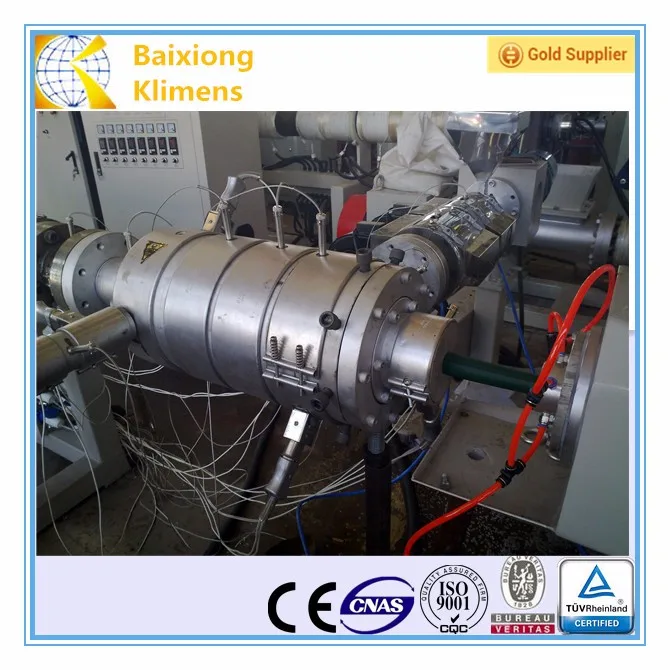

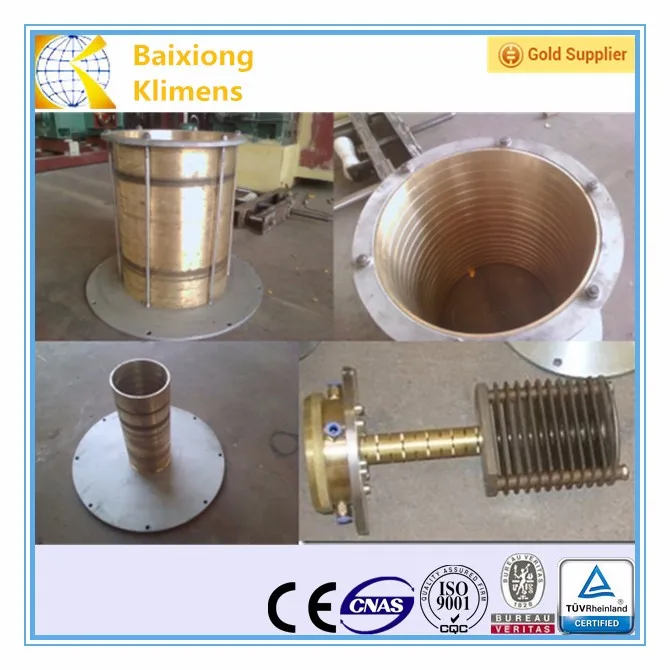

-----calibrator, molds, die head

Work flow
