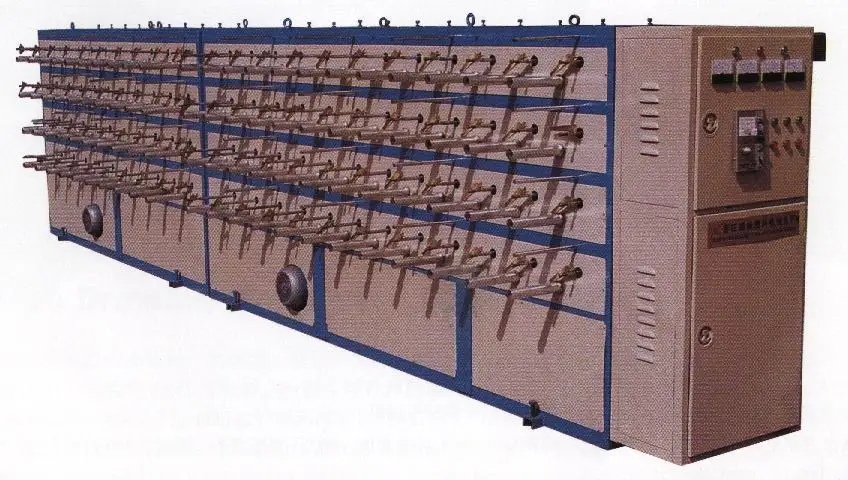

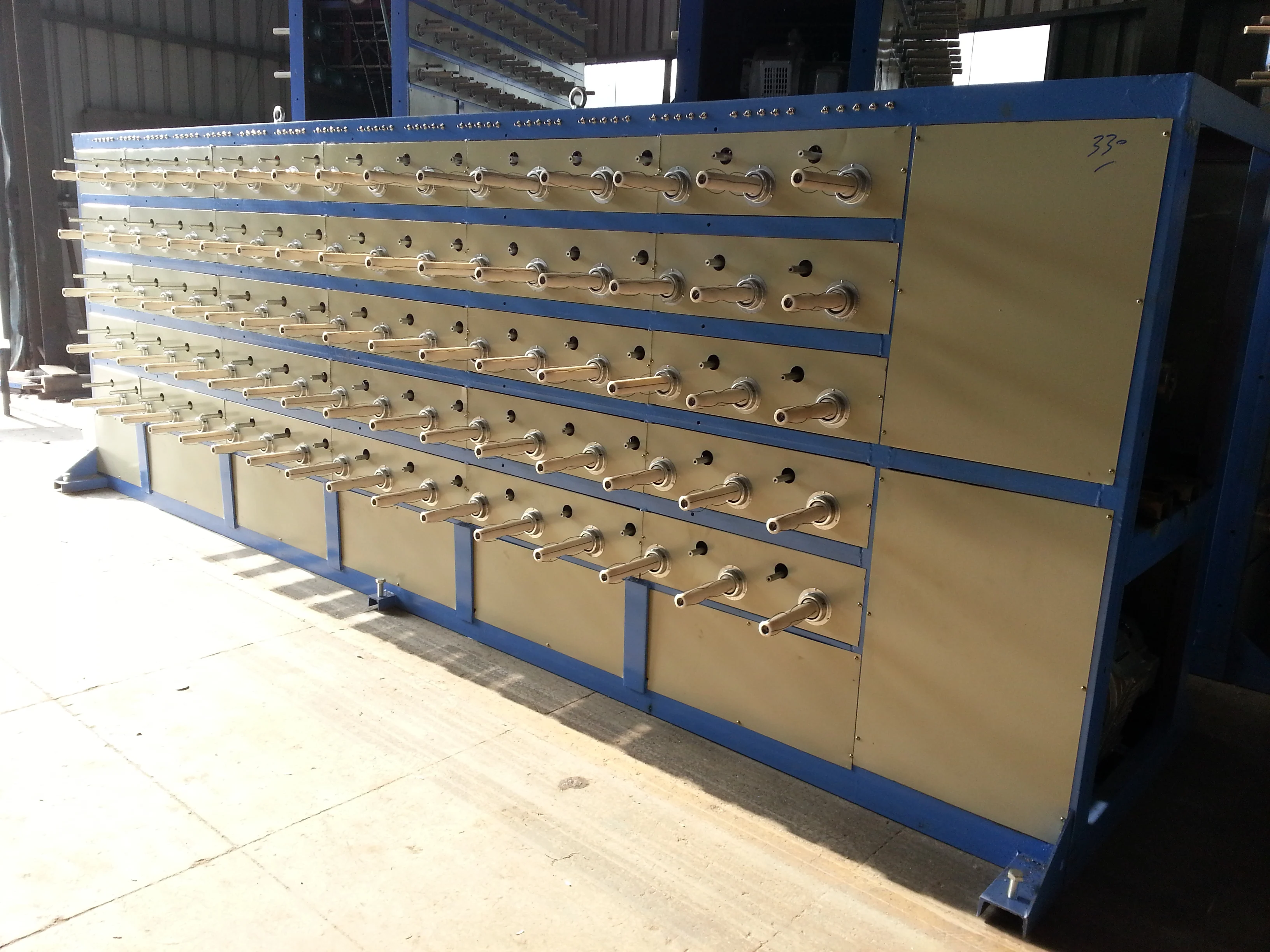

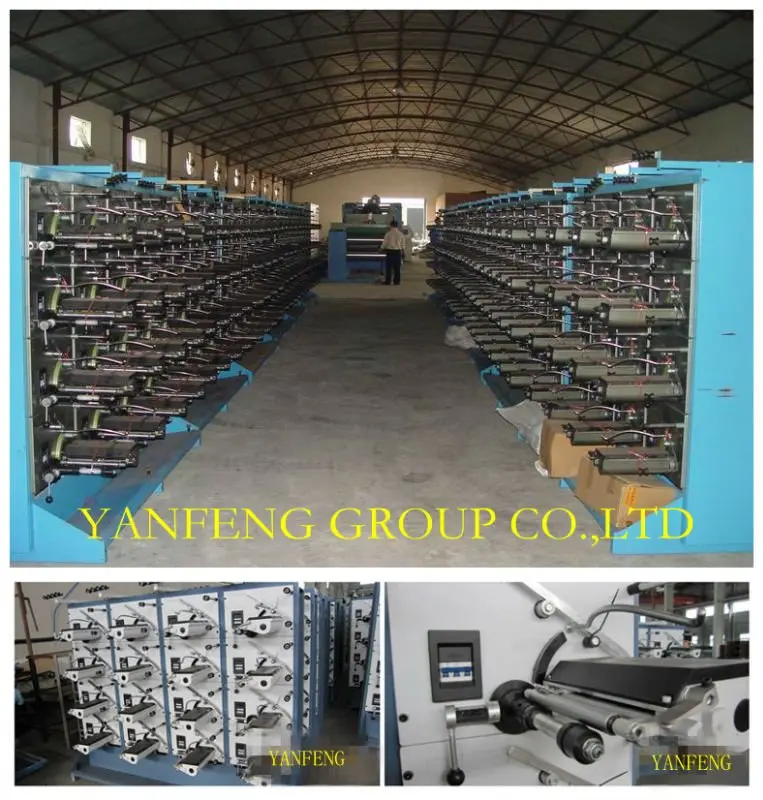

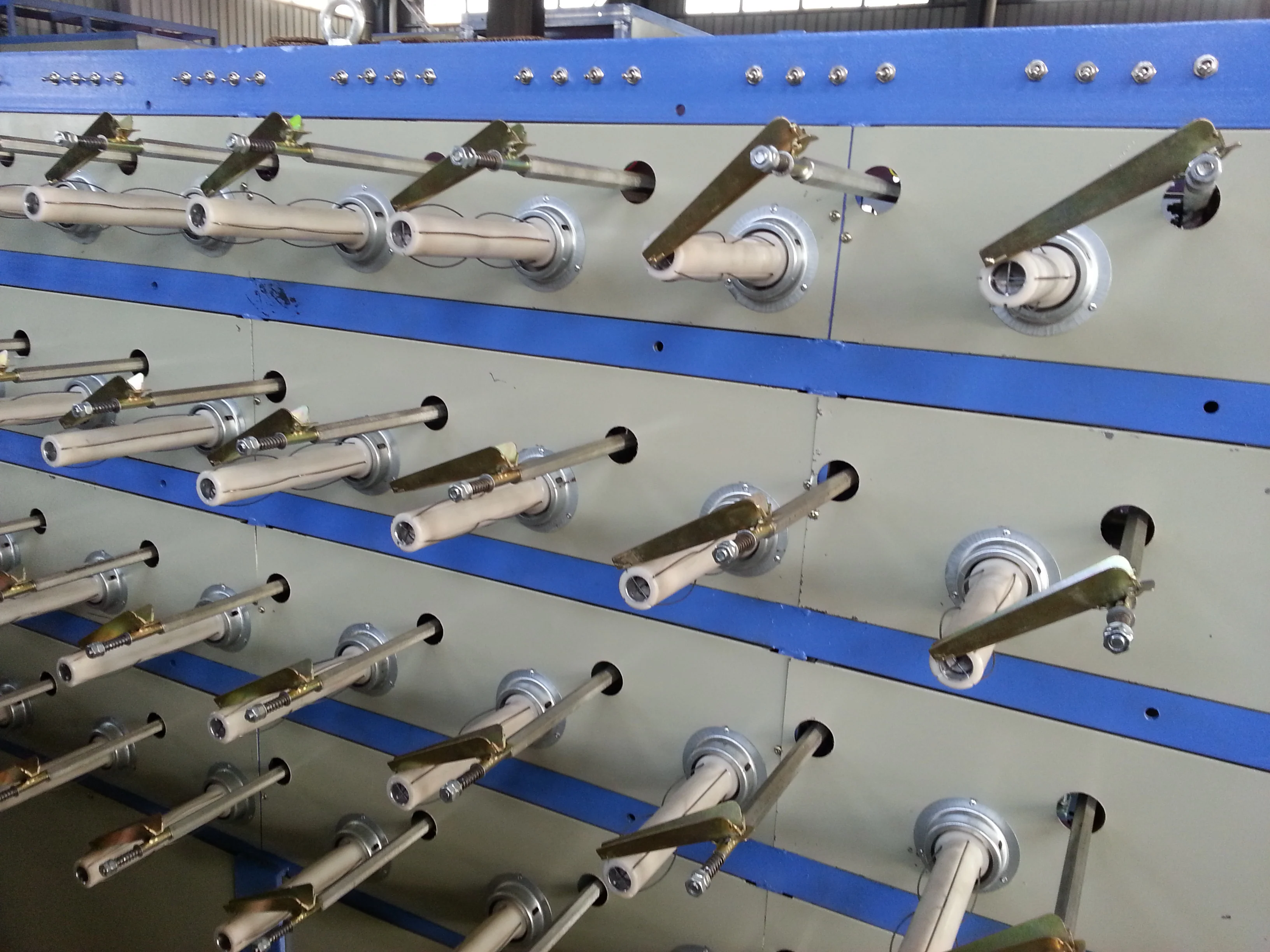

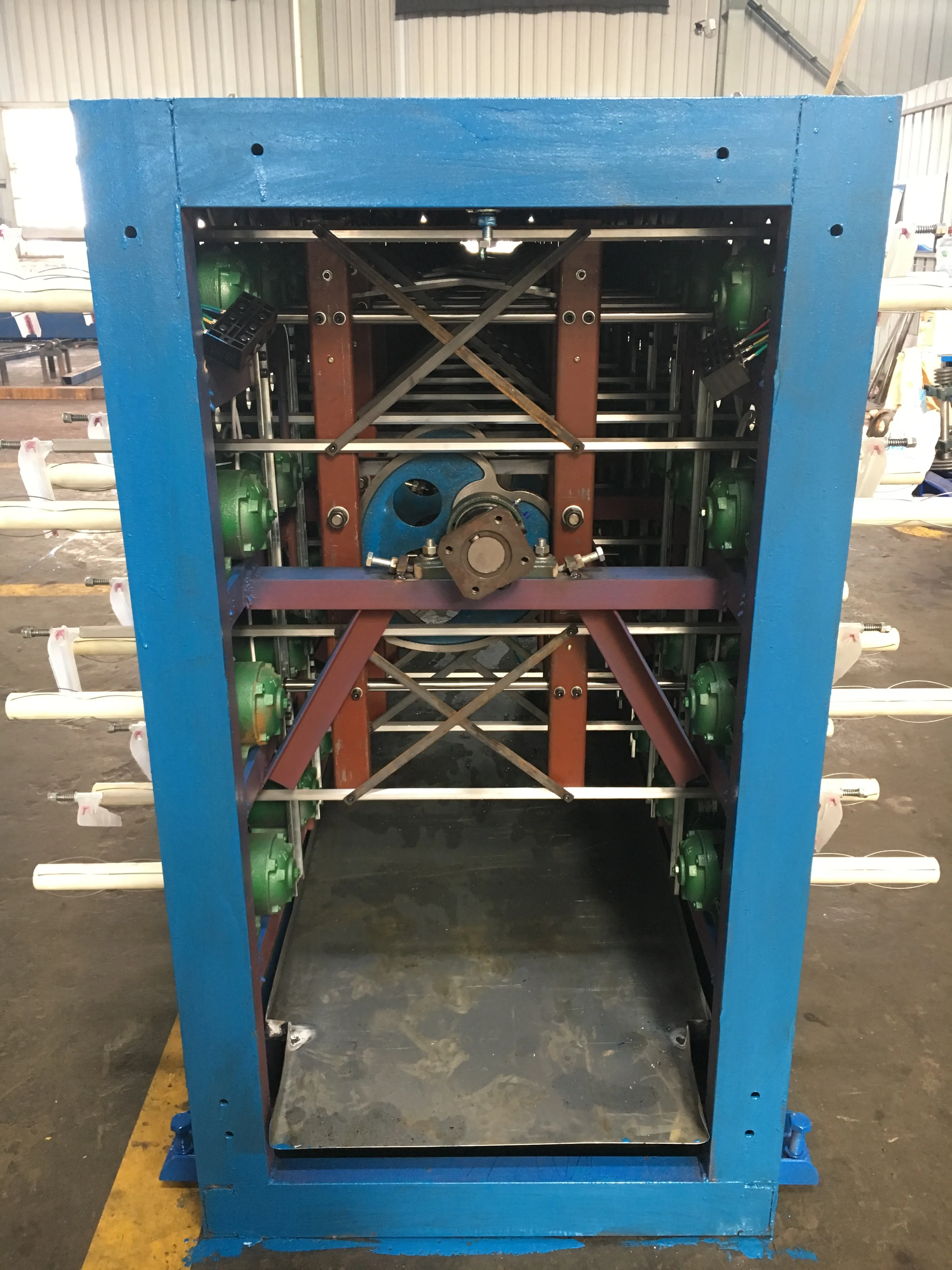

Cam type automatic bobbin winding machine for pp pe flat yarn

Product Overview

Description

Model No.	Layer No. of Spindle	No. of Spindle	Bobbin Dimension (D×L)(mm)	Linear Speed of Tape Winding(m/min)	Main Motor Power(kw)	Winding Motor Power(kw)	Installing Dimensions(L× W× H)(mm)	Weight(kg)
S-STL-II/190	5	190	38× 230	80-150	2.2	9	5700× 1500× 1700	3400
S-STL-II/240	5	240	38× 230	80-150	3	11	7000× 1500× 1700	4300
S-STL-II/290	5	290	38× 230	80-150	3	14	8500× 1500× 1700	5200
S-STL-II/390	5	390	38× 230	80-150	3	17	10500× 1500× 1700	7000
S-STL-II/430	5	430	38× 230	80-150	4	19	11500× 1500× 1700	7500
S-STL-II/480	5	480	38× 230	80-150	4	22	13000× 1500× 1700	8600
S-STL-II/520	5	520	38× 230	80-150	4	24	14000× 1500× 1700	9300
S-STL-II/600/II	5	600	38× 230	80-150	3×2	27	8800× 4500× 1700	10800
S-STL-II/720/II	5	720	38× 230	80-150	3×2	32	10300× 4500× 1700	13200
S-STL-II/760/II	5	760	38× 230	80-150	3×2	33	10800× 4500× 1700	13800
