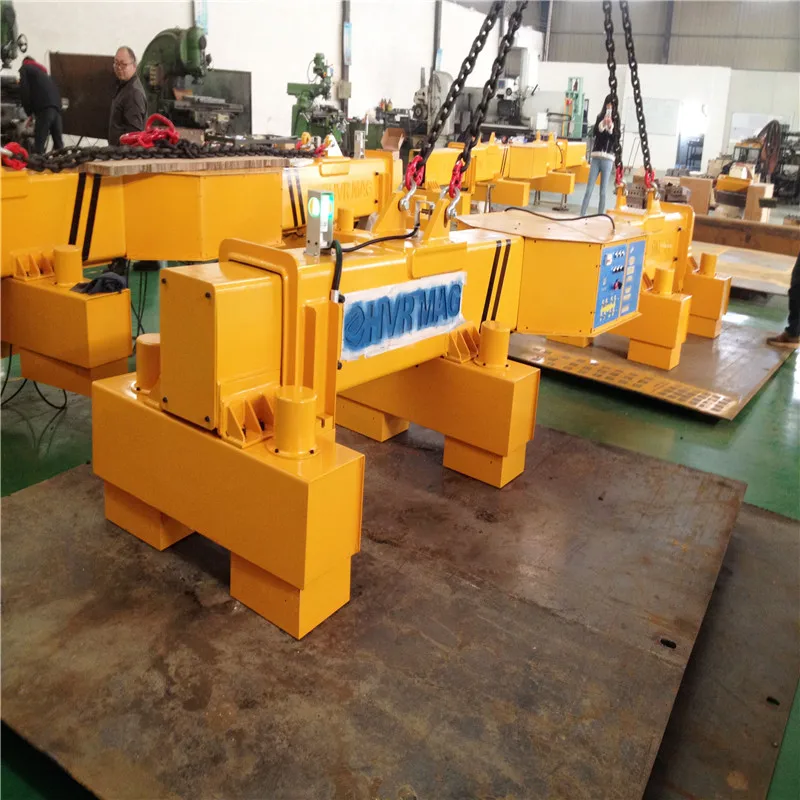

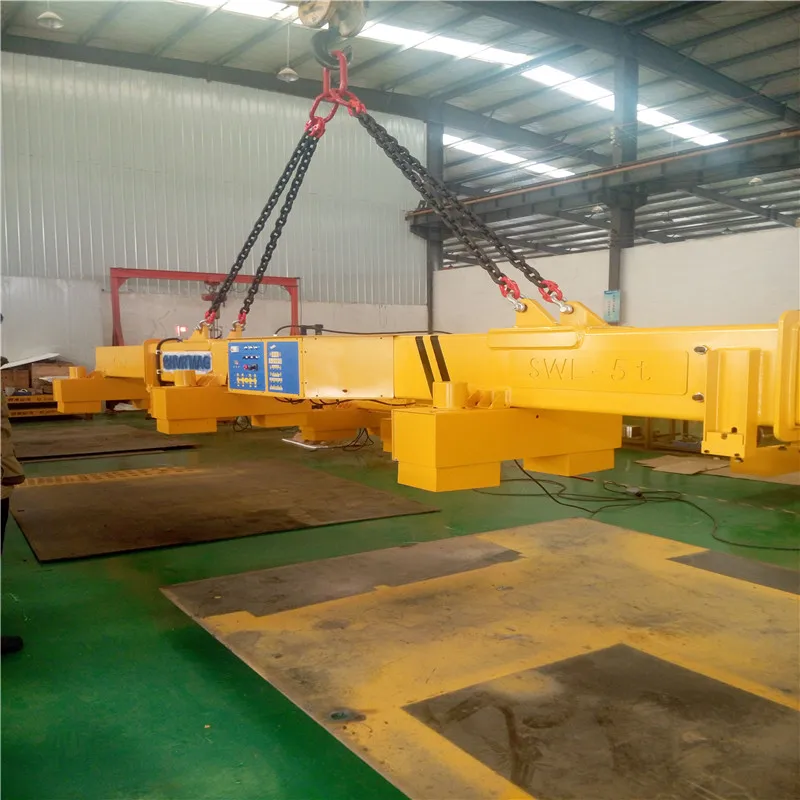

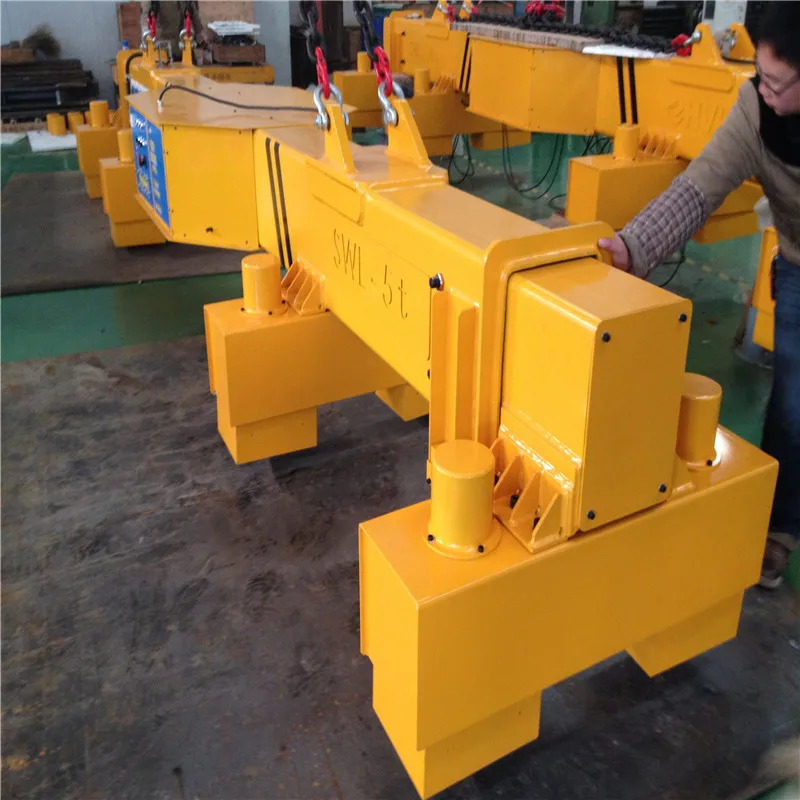

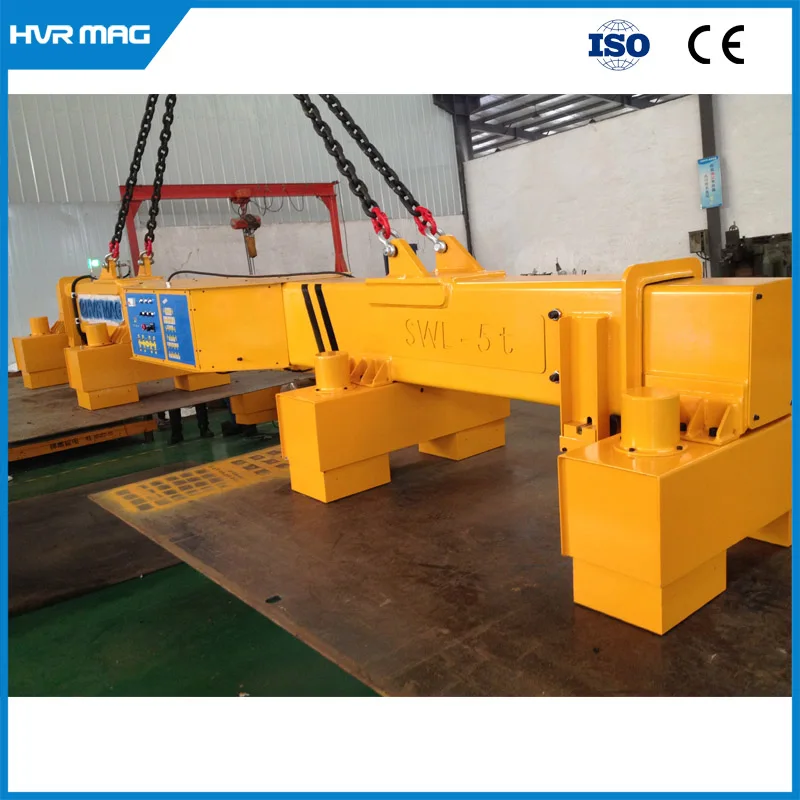

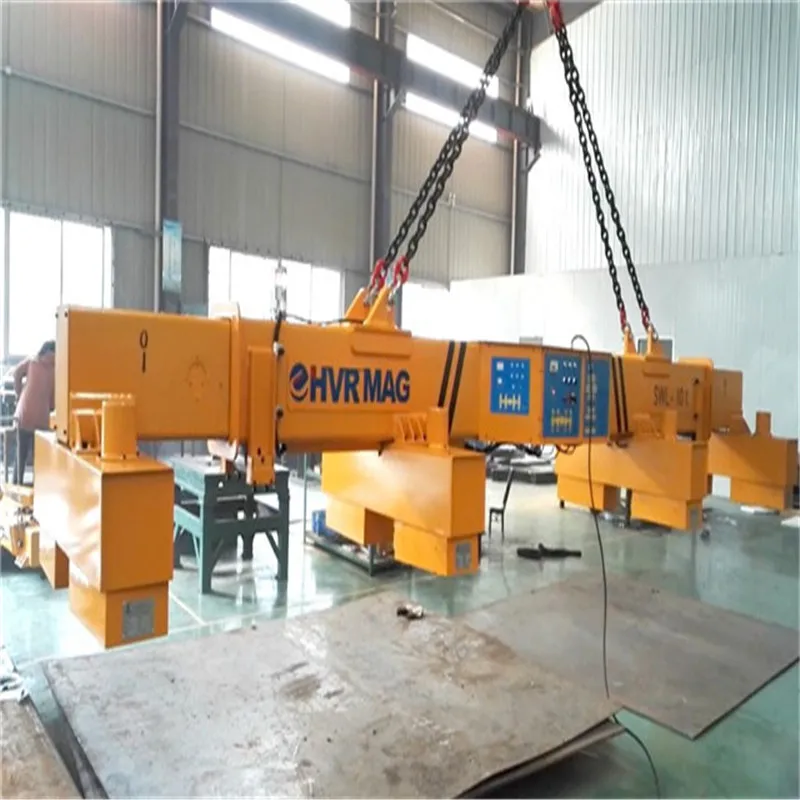

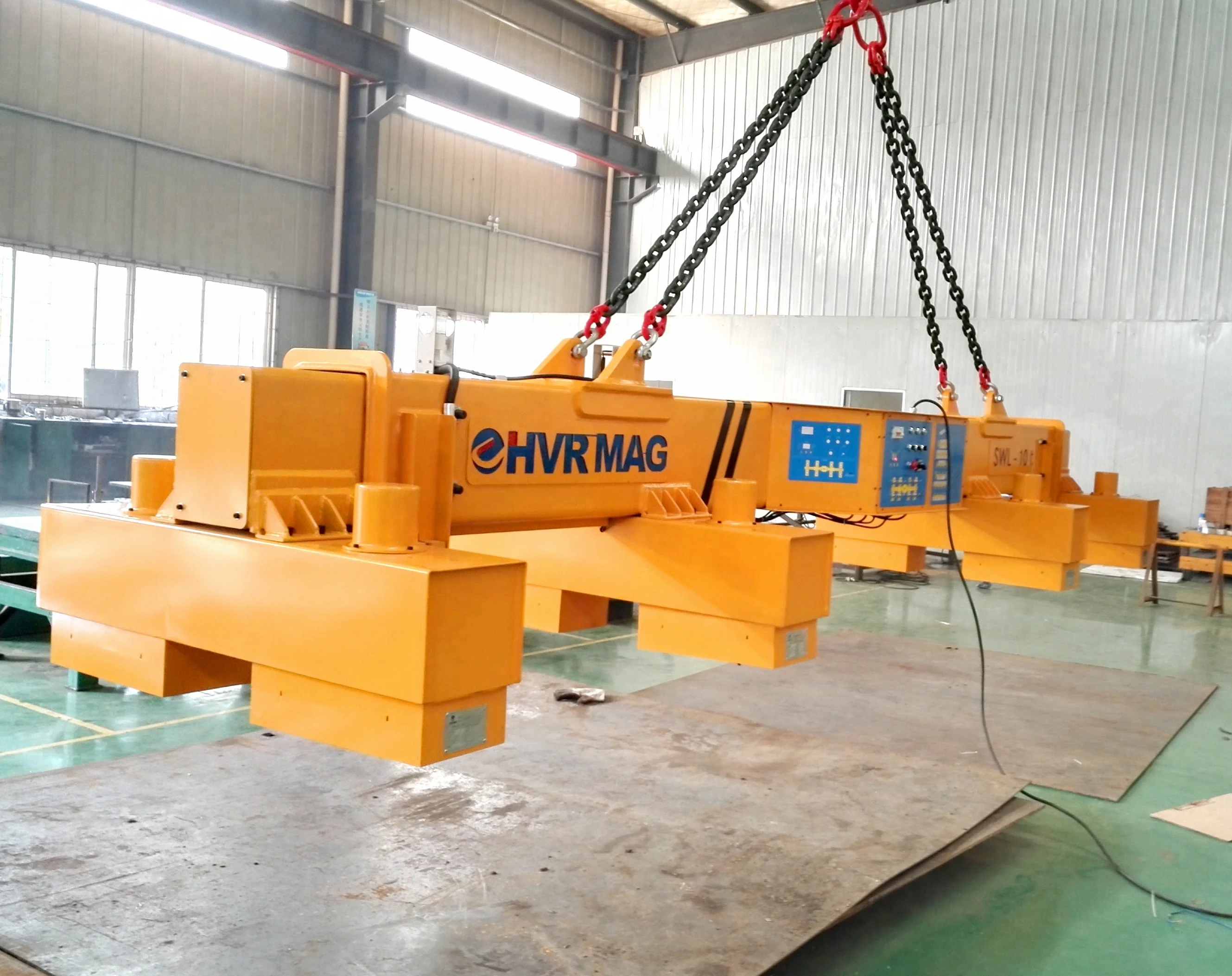

Zhuzhou factory electro permanent lifting magnet telescopic lifter for steel plate
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (60682904474):
Product Overview
Description
Professional custom heavy duty lifting equipment

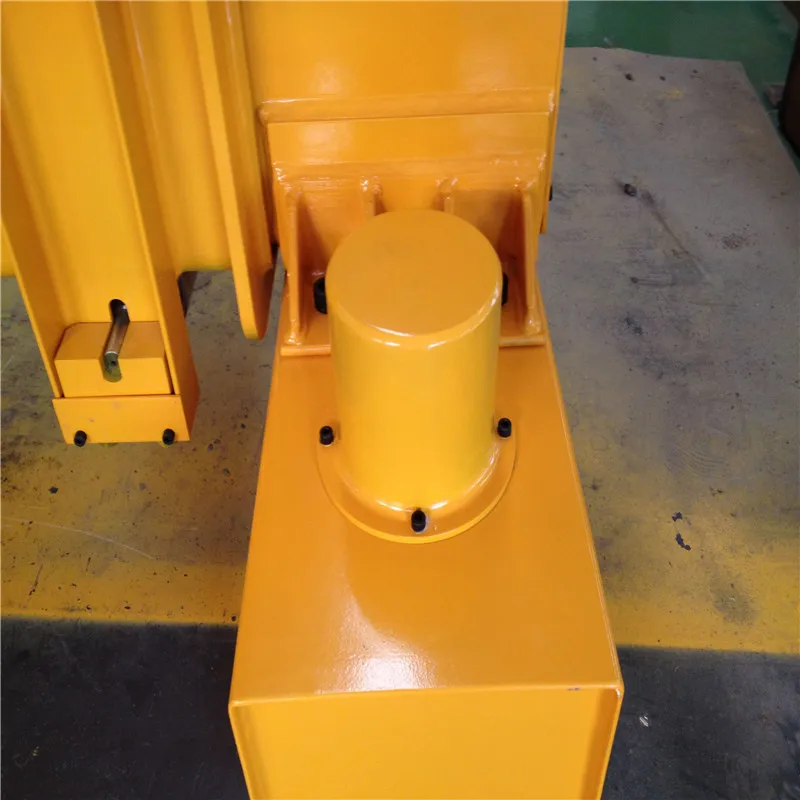

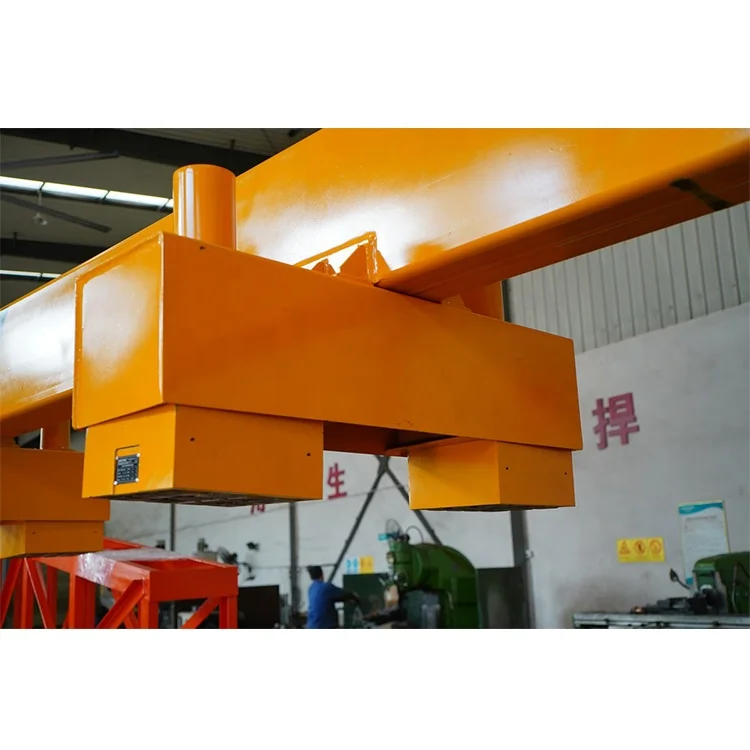

The welded Beam of construction steel is equipped with a number of electro permanent magnetic Modules, which are each elastically suspended, for a perfect adaptation to the Steel Sheet.
The electronic control Unit is equipped with a selector switch that allows to activate/deactivate a number of magnetic modules..
The PICK-UP cycle grants the lifting of 1 single Steel Sheet.
Control via the integrated digital push Buttons or with the standard supplied Radio remote Control.
FEATURES AT A GLANCE
Superior safety
----- Remain holding even in power outage)
Energy Saving
------- Consumes no power during lift

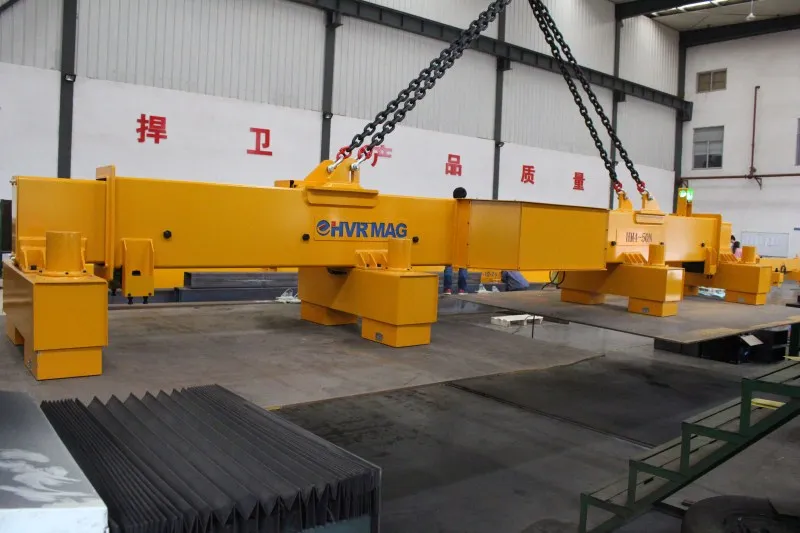

Telescopic beam and remote control
-----Suitable for different length steel plate
------ Only one operator remote operation
Contents | Electro Permanent Magnet System | Electromagnet System |
The source of the magnetic force | From permanent magnets :NdFeB, AlNiCo | Produced by the electrical current flow |
Magnetization | Two kinds of magnetization, permanent and electromagnetic, both controlling the work load at the pole face | The electric current only controls the work load at the pole face |
Demagnetization | The interaction between the magnets removes the magnetic force controlling the work load | Isolation of the electric supply removes the magnetic force controlling the work load |
Safety | No electricity is consumed during the working period. Electricity shutdown won’t affect the operation of the magnet system or the magnetic latching of the work load. | Electricity is essential for the operation of the magnet. When in shutdown, the magnetization will stop. The work load may fall down without a battery backup supply. |
Reliability | No natural or electrical factors affect the magnet while it is operation and the reliability is quite stable. | An increase in temperature due to electric current flow or ambient temperature, may affect the operation of the magnet, and the coil or the electrical controls could open circuit or burn out. It is not as reliable. |
Maintenance | Minimum maintenance is required and the running cost is low. | The coils and battery need to be tested periodically and the cost can be expensive. |
The Operational Cost | No electricity is consumed while operating the magnet. The total electricity consumption is 5% of the electromagnetic systems. | The electricity consumption is quite large and the cost is expensive if used for long periods of time. |
Lifting weight/ Actual Weight Comparison | High:- A 4200kg electro permanent magnet can lift 15 tons. | Low:- A 8700 kg electromagnet can lift 15 tons. |
PRODUCT SPECIFICATIONS
Art No. | Length(mm/in) | Width(mm) | Thickness(mm) | Capacity (kg) | Magnetic module | ||||||||
Min. | Max. | Min. | Max. | Min. | Max. | Model | Qty | ||||||
HM2-12-050 | 3000 | 12000 | 500 | 2500 | 5 | 20 | 5000 | HEPMP-640 | 8 | ||||
HM2-12-080 | 3000 | 12000 | 500 | 2500 | 5 | 32 | 8000 | HEPMP-1000 | 8 | ||||
HM2-12-090 | 3000 | 12000 | 500 | 3200 | 5 | 35 | 9000 | HEPMP-1200 | 8 | ||||
HM2-12-120 | 3000 | 12000 | 500 | 3200 | 5 | 40 | 12000 | HEPMP-1500 | 8 | ||||
HM2-12-150 | 3000 | 12000 | 500 | 3200 | 5 | 50 | 15000 | HEPMP-2000 | 8 | ||||
HM2-12-200 | 3000 | 16000 | 500 | 3200 | 5 | 50 | 20000 | HEPMP-1800 | 12 | ||||
HM2-12-240 | 3000 | 16000 | 500 | 3200 | 5 | 60 | 24000 | HEPMP-2000 | 12 | ||||
HM2-16-090 | 3000 | 16000 | 500 | 2500 | 5 | 32 | 9000 | HEPMP-800 | 12 | ||||
HM2-16-120 | 3000 | 16000 | 500 | 2500 | 5 | 38 | 12000 | HEPMP-1000 | 12 | ||||
HM2-16-160 | 3000 | 16000 | 500 | 3200 | 5 | 40 | 16000 | HEPMP-1500 | 12 | ||||
HM2-16-200 | 3000 | 16000 | 500 | 3200 | 5 | 50 | 20000 | HEPMP-1800 | 12 | ||||
HM2-16-240 | 3000 | 16000 | 500 | 3200 | 5 | 60 | 24000 | HEPMP-2000 | 12 | ||||

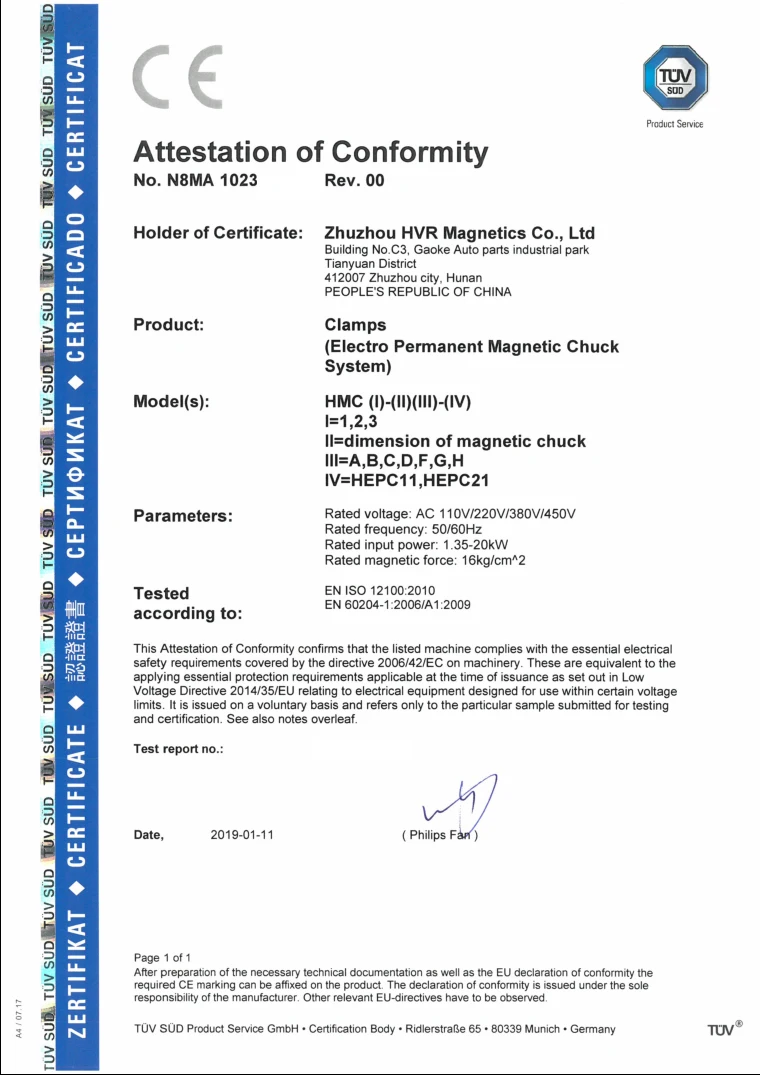

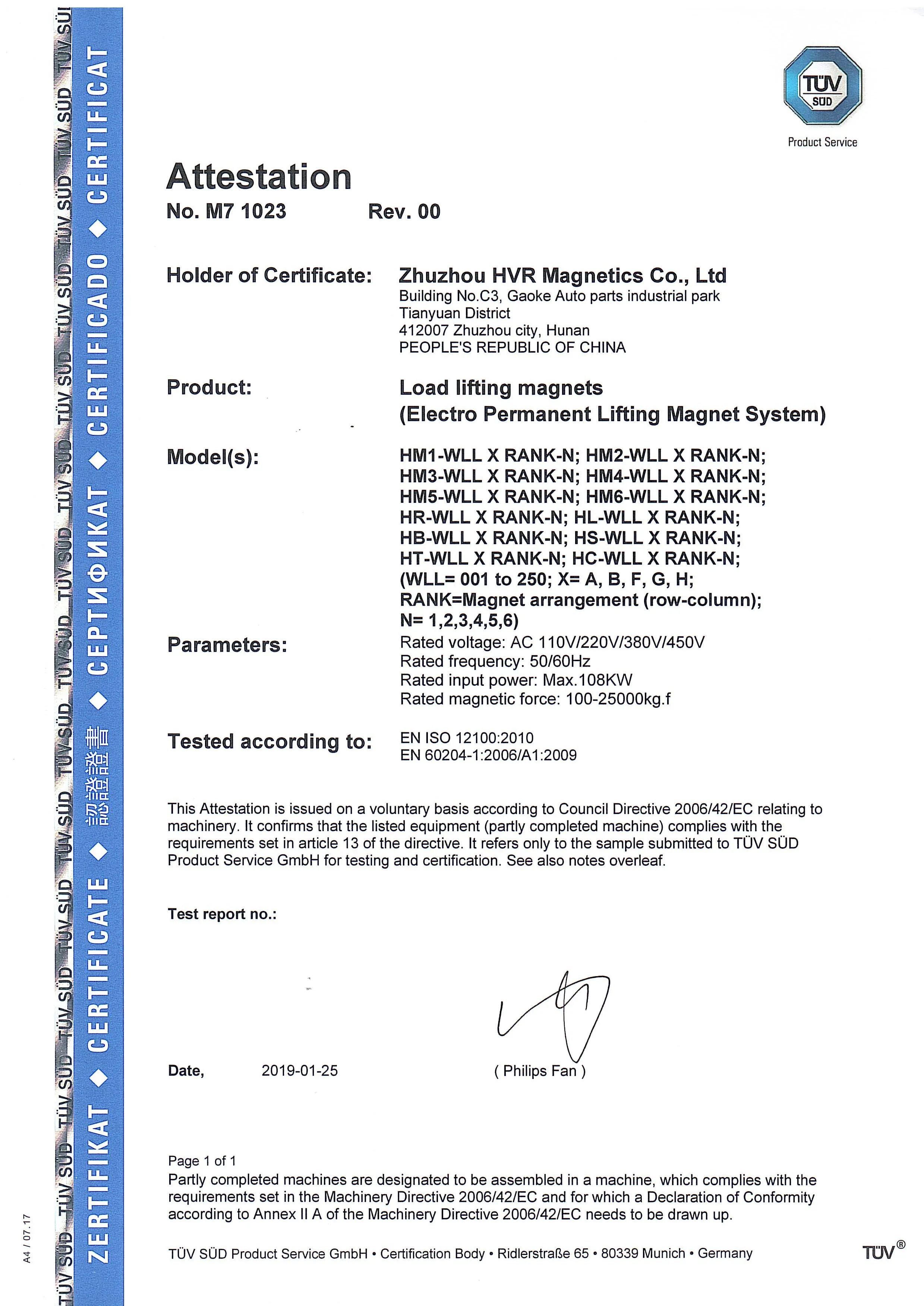

Certifications
Why Choose Us

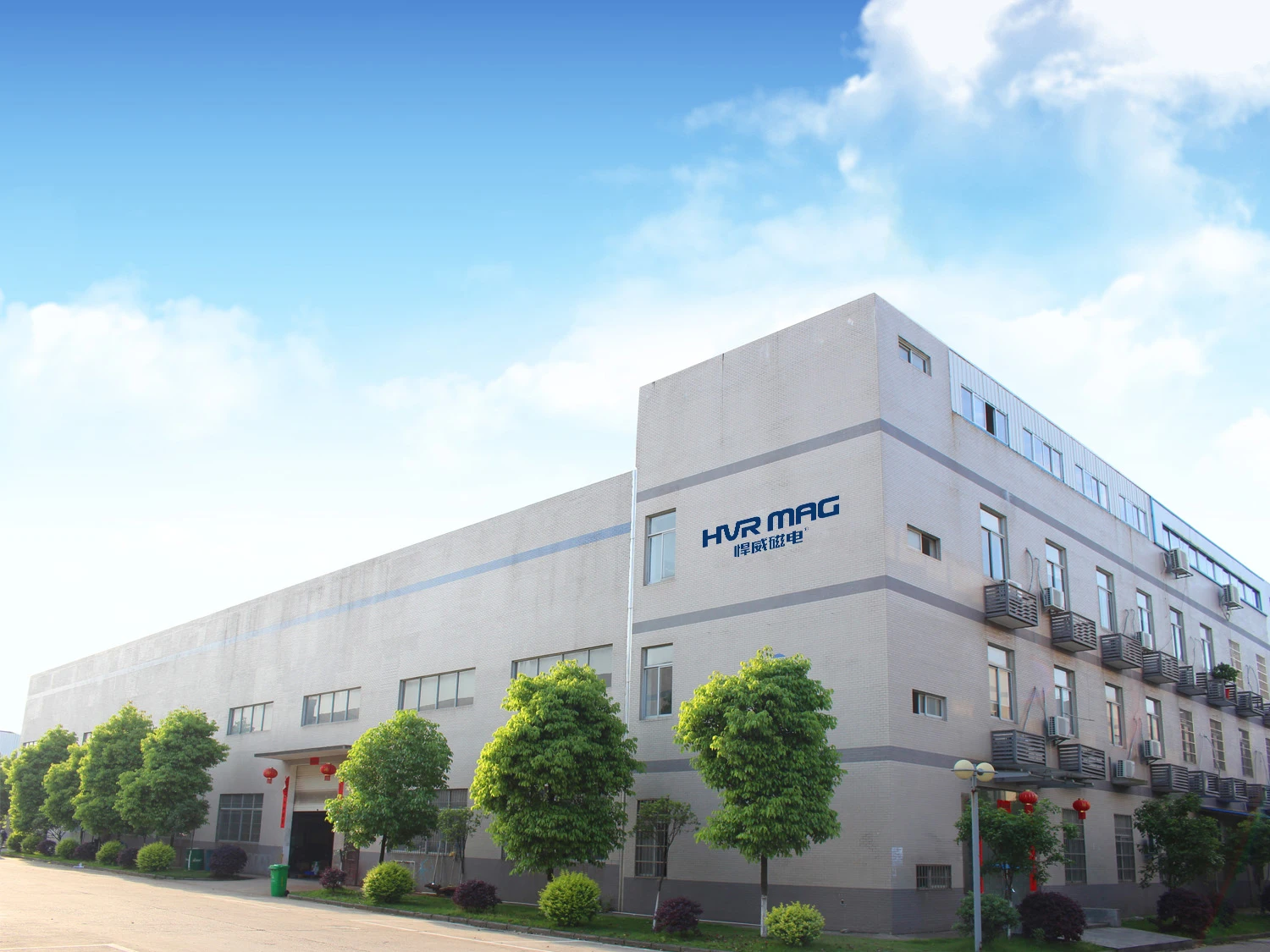

About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.

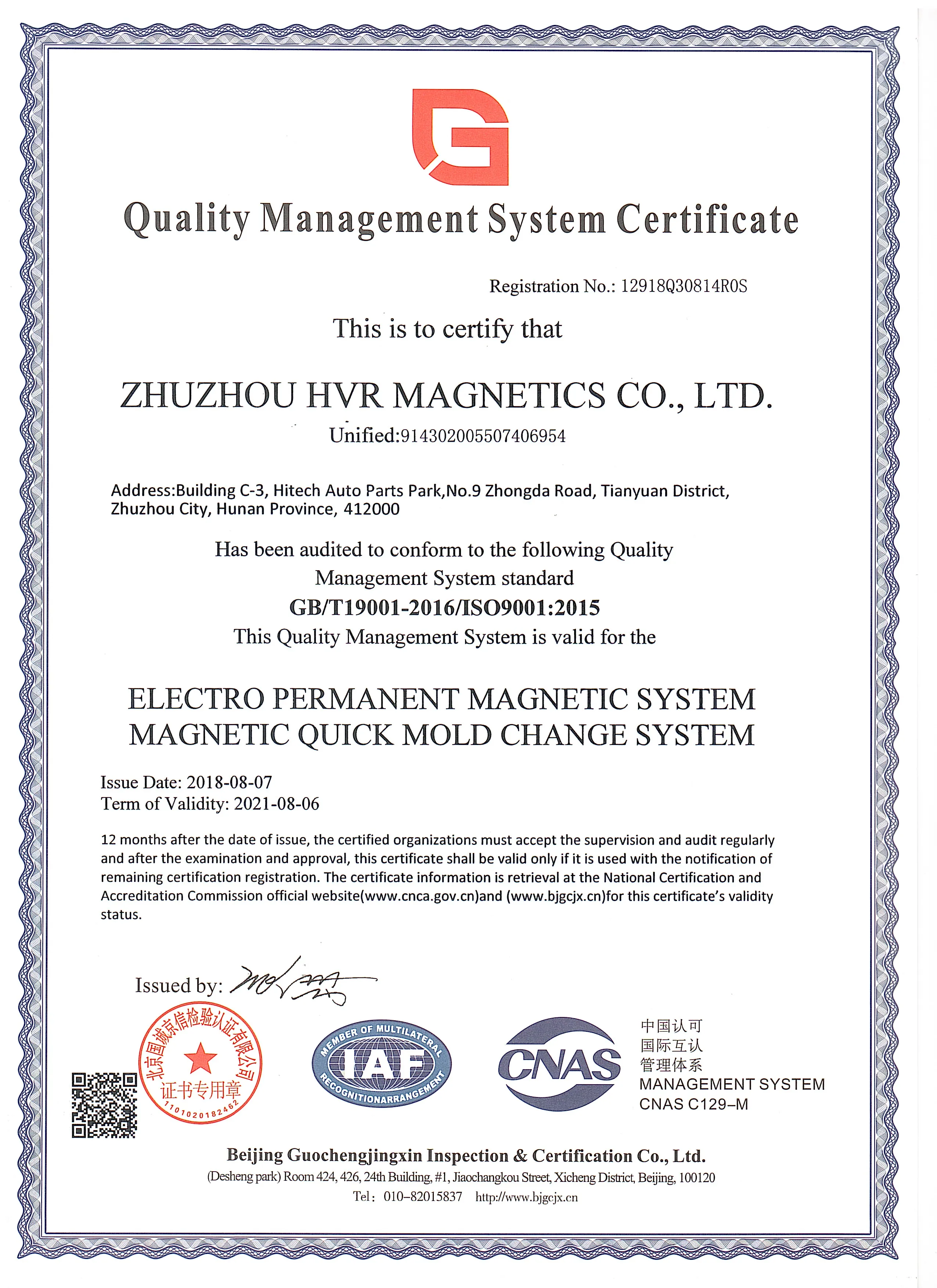

Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production

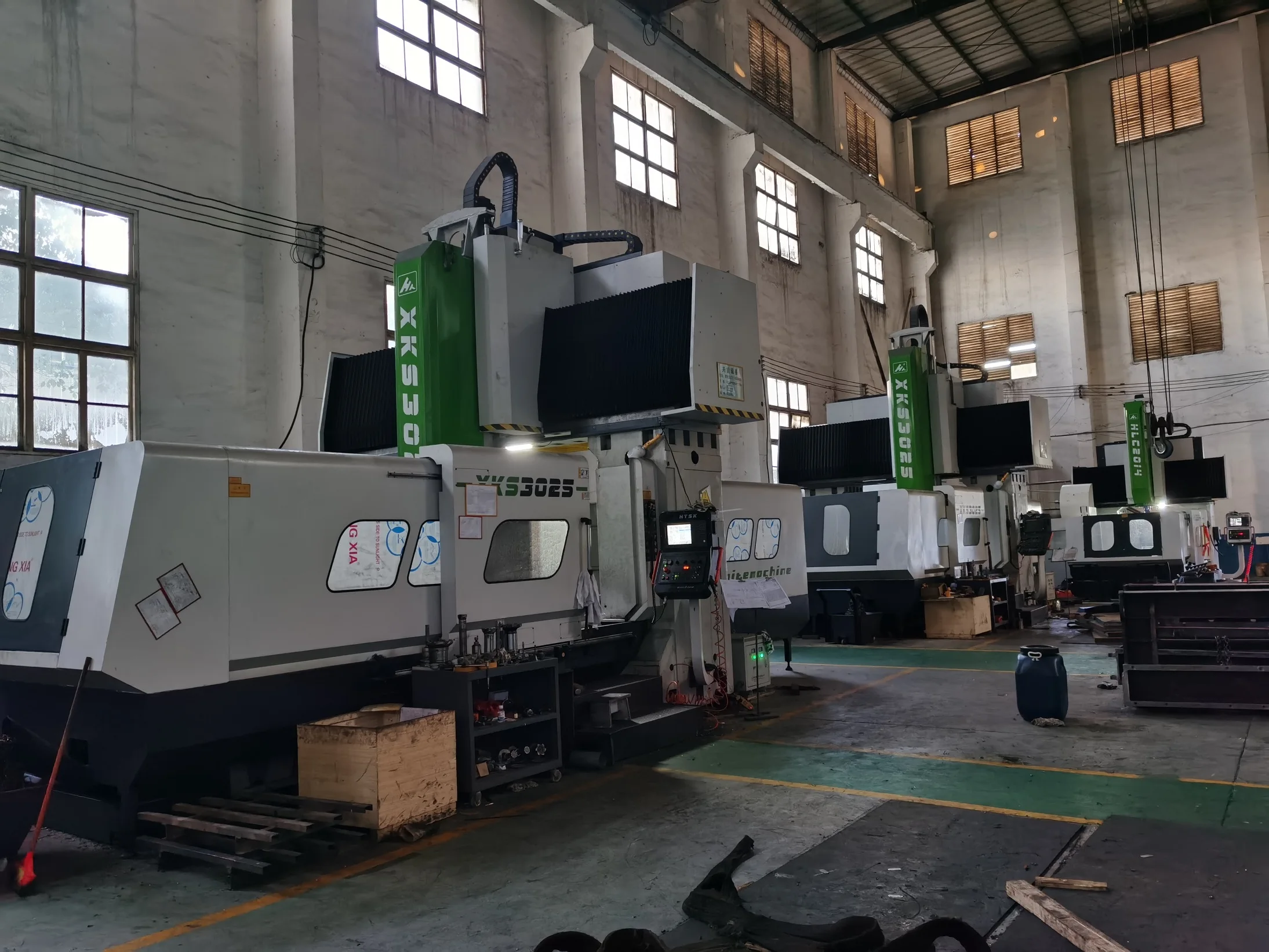

Modern factory with high production capacity
Service
On-site installation and online technical support are available
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
