TESmart SDI Switcher 4x1 HUB SDI Intelligent Switch Extender 4 To 1 Converter HD SD Monitor Security Camera 4x1 Video SDI Switch
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (60682913991):

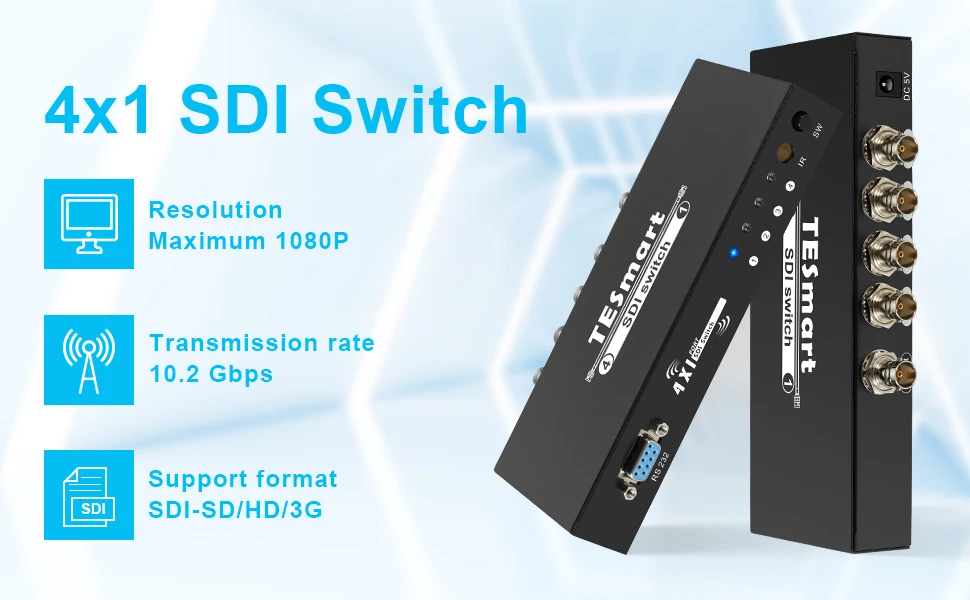

Product Overview
Description
Product Description
#SSW0401A10

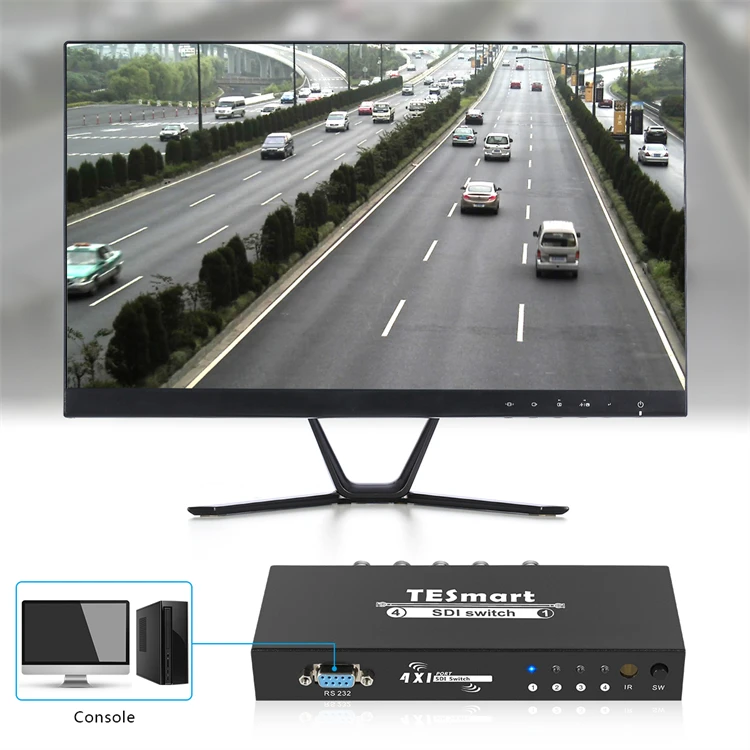

The 4 ports SDI switch, allows up to 4 SD/HD/3G-SDI sources to be routed to one SD/HD/3G-SDI display. Each SD/HD/3G-SDI source can be routed to the display using the front panel switch button, IR remote or PC( via RS 232 port).
Features:
⭐Support 4 SDI input, 1 SDI output.
⭐Seamless channel switch.
⭐36 bit/pixel deep color, data rate up to 10.2 Gbps.
⭐Support resolution 480i@60Hz, 576i@50Hz, 720P@50Hz/60Hz,1080i@50Hz/60Hz, 1080P@24/25/30/50/60Hz.
⭐Built-in equalizer, clock regeneration and cable driver enhancement.
⭐3G-SDI transmission over RG-59 cable with length up to 100 meters

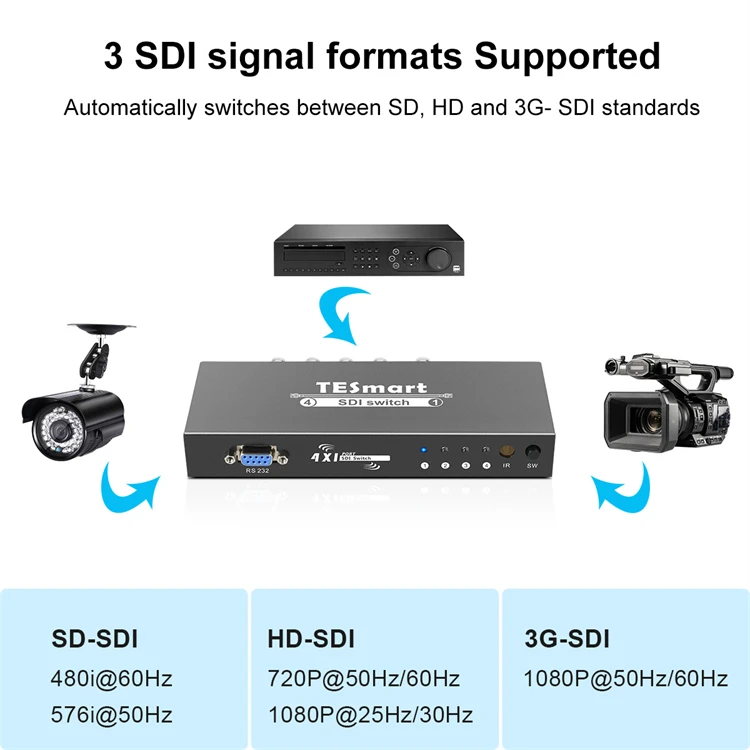

⭐Without delay, built-in automatic format detection of SD-SDI, HD-SDI, 3G-SDI.
⭐Support 4 SDI input, 1 SDI output.
⭐Seamless channel switch.
⭐36 bit/pixel deep color, data rate up to 10.2 Gbps.
⭐Support resolution 480i@60Hz, 576i@50Hz, 720P@50Hz/60Hz,1080i@50Hz/60Hz, 1080P@24/25/30/50/60Hz.
⭐Built-in equalizer, clock regeneration and cable driver enhancement.
⭐3G-SDI transmission over RG-59 cable with length up to 100 meters
⭐Without delay, built-in automatic format detection of SD-SDI, HD-SDI, 3G-SDI.
Packing List:
1 * 4x1 HDMI Switch
1 * IR Remote control
1 * DC 12V Power Adapter
1 * User manual
1 * 4x1 HDMI Switch
1 * IR Remote control
1 * DC 12V Power Adapter
1 * User manual
Specification
SSW0401A10 | 4x1 SDI Switch | |||
Technical | ||||
Support signal | SD/HD/3G-SDI | |||
Data rate | 10.2 Gbps | |||
Resolution | 480i@60Hz, 576i@50Hz, 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||

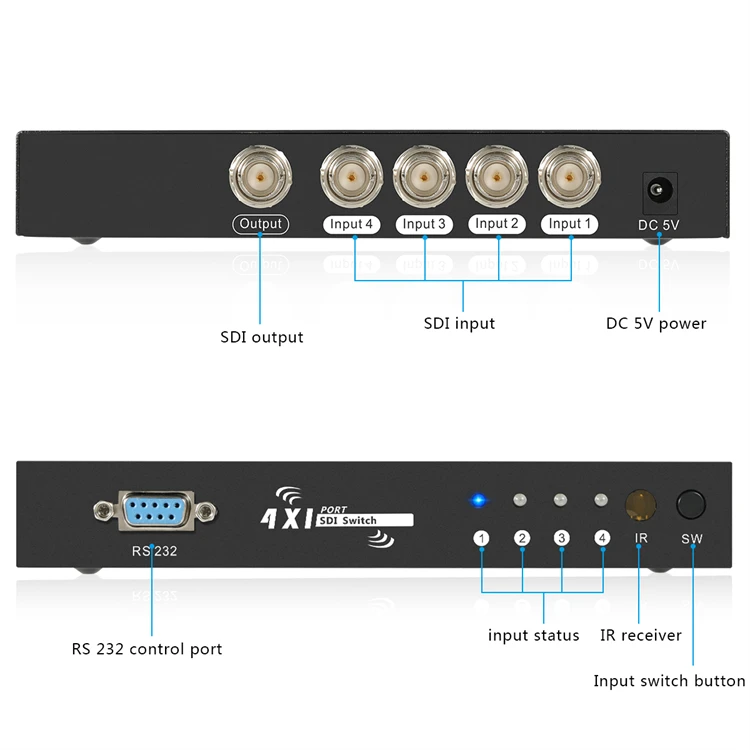

Input | 4* BNC(SDI), 1*via RS232 | |||
Output | 1* BNC(SDI) | |||
Mechanical | ||||
Casing material | Metal | |||
Power supply | DC 5V 1A | |||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |||
Operating Humidity | 10 to 90% RH | |||

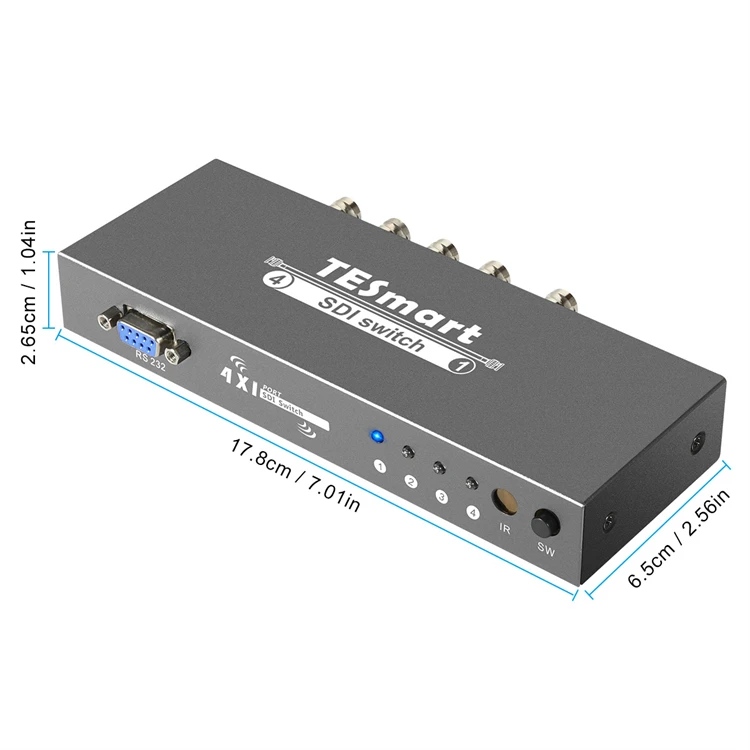

Product | Dimension | 178(L) x 65 (W) x 26.5 (H) mm | ||
Weight | 367g | |||
Item | Dimension | 262 (L) x 119 (W) x 90 (H) mm | ||
Weight | 639g | |||
Carton | Dimension | 515 (L) x 285 (W) x 470 (H) mm | ||
Quantity | 20pcs | |||
Total Weight | 13.63 | |||
